Operation Manual
Operation Manual
IP to Dual HDMI Receiver with USB KVM Extension
CH-352RX
DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for sucient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2020/03/17 Preliminary release
CONTENTS
1. Introduction...................................................... 1
2. Applications ..................................................... 1
3. Package Contents ........................................... 1
4. System Requirements..................................... 2
5. Features............................................................ 2
6. Operation Controls and Functions ................ 3
6.1 Front Panel.................................................. 3
6.2 Rear Panel................................................... 4
6.3 IR Cable Pinouts.......................................... 5
6.4 RS-232 Pinout and Defaults........................ 5
6.5 WebGUI Control .......................................... 6
6.5.1 System Tab......................................... 8
6.5.2 Network Tab ..................................... 11
6.5.3 Functions Tab ................................... 12
6.6 Telnet Control ............................................ 14
6.7 Telnet Commands...................................... 15
7. Connection Diagram ..................................... 22
8. Specications ................................................ 23
8.1 Technical Specications ............................ 23
8.2 Video Specications .................................. 24
8.3 Audio Specications .................................. 26
8.3.1 Digital Audio ..................................... 26
8.3.2 Analog Audio .................................... 26
8.3.3 AVoIP Audio Availability (Auto Mode) 27
8.4 Cable Specications.................................. 28
9. Acronyms ....................................................... 29
1
1. INTRODUCTION
This IP to Dual HDMI Receiver solution is designed to receive a pair of
independently extended HDMI sources via a standard Gigabit Ethernet
network connection and output them via dual HDMI outputs. Both HDMI
outputs provide support for received resolutions up to 1920x1200@60Hz
along with many audio formats including 8 channel LPCM and standard
Bitstream. Receiver 1 also adds support for analog audio, USB 2.0, IR and
serial data extension, making it ideal for KVM or touch panel extension
projects.
When using standard Ethernet cables, this unit supports the reception of
extended AVoIP signals up to 100 meters and the extension distance can
be further extended (up to 100m per segment) by using Gigabit Ethernet
network switches. This allows the user to cascade the system without signal
loss or introducing delay. Conguration information is provided via On Screen
Display (OSD) and control is by WebGUI and Telnet.
2. APPLICATIONS
• HDMI, USB, Audio, IR, and RS-232 extension
• Receiving dual broadcast sources over a standard Ethernet connection
• Touch panel point-of-sale or advertising kiosk extension
• Long distance data and video reception via cascading
• Remote KVM control of a system
3. PACKAGE CONTENTS
• 1× IP to Dual HDMI Receiver with USB KVM Extension
• 1× 5V/2.6A DC Power Adapter
• 1× Power Cord
• 1× IR Extender
• 1× Operation Manual
2
4. SYSTEM REQUIREMENTS
• HDMI receiving equipment such as HDTVs, monitors or audio ampliers.
• A compatible dual-AVoIP transmitter
• Analog audio receiving equipment such as headphones, audio ampliers
or powered speakers.
• A Gigabit Ethernet network switch with jumbo frame support is required. (8K
jumbo frames are strongly recommended)
• A Gigabit Ethernet switch with “IGMP snooping” enabled is strongly
recommended.
5. FEATURES
• HDMI 1.4 compatible, DVI 1.0 compatible with the use of an HDMI-DVI
adaptor.
• HDCP 1.x compliant.
• 2 HDMI outputs
• Each HDMI output is connected to an independent AVoIP receiver
• Video, audio, and control reception over TCP/IP in Unicast (point-to-point)
mode
• Supports video resolutions up to 1080p@60Hz and PC resolutions up to
WUXGA (1920×1200@60Hz)
• Supports extension of many audio formats including 8 channel LPCM and
standard Bitstream
• Optional analog audio bypass from receiver to transmitter
• Supports USB keyboard, mouse and storage extension
Note: Not compatible with USB hubs or USB 2.0 devices with high power
requirements such as external hard drives
• Supports IR and RS-232 bypass.
• Supports external EDID bypass
• Controllable via WebGUI or Telnet
• Supports the use of an external control center (IP Master Controller) to
provide expanded functionality (Contact your authorized dealer for more
information)
3
6. OPERATION CONTROLS AND FUNCTIONS

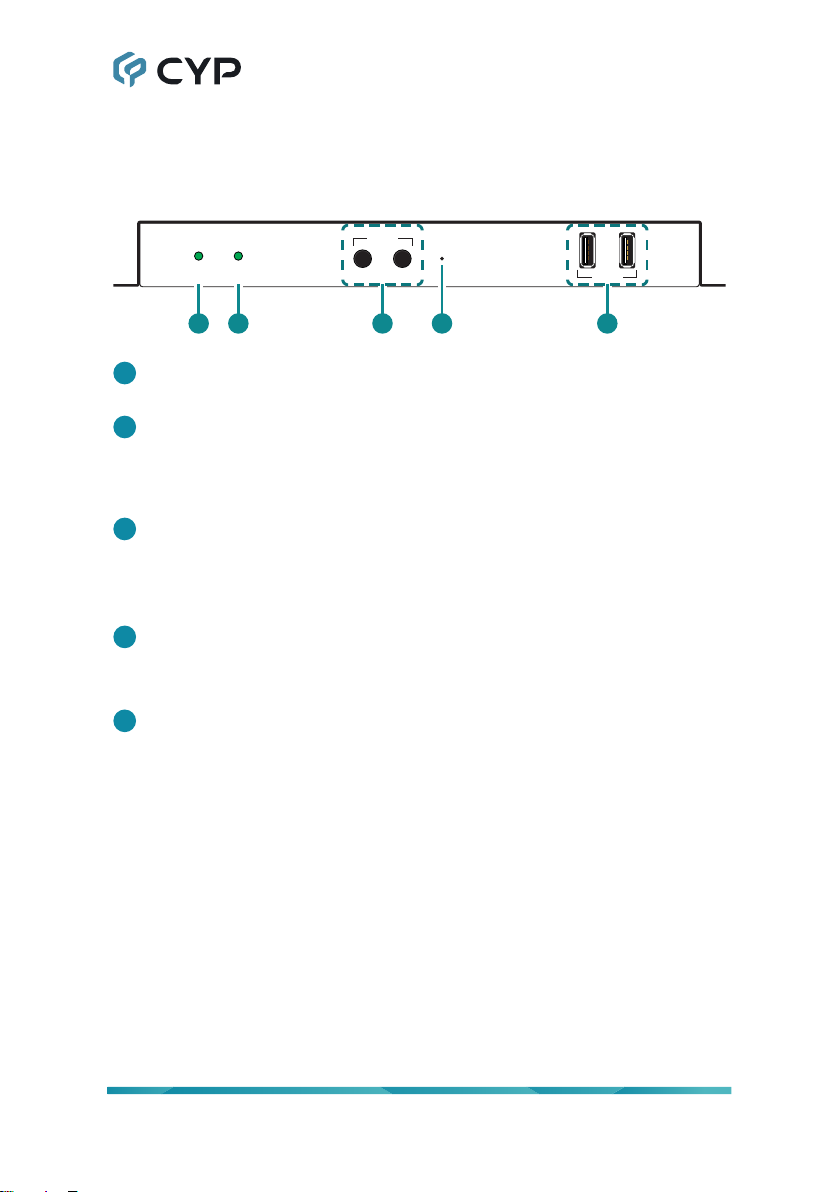

6.1 Front Panel
POWER LINK 112
EDID
USB
53 421
1POWER LED: This LED will ash while the unit is powering on and will
illuminate solidly once it is ready to be used.
2LINK 1 LED: If the unit has no network connection this LED will not
illuminate. While the unit is attempting to establish a connection with
a transmitter this LED will ash. When the unit has established stable
connection with a transmitter this LED will illuminate solidly.
3EDID 1~2 Buttons: Press either button force the use of the internal
EDID with the associated HDMI input.
Note: If the unit is power cycled the EDID will return to the default display
EDID bypass mode.
4Reset Pinhole: Press this recessed button to reset the unit’s power
supply and reboot the unit.
Note: Settings will not be reset.
5USB 2.0 (Type-A) Ports: Connect directly to standard USB 2.0
peripherals such as a mouse, keyboard or ash drive to extend their USB
functionality to the connected transmitter.
4
6.2 Rear Panel
RS-232 LAN
DC 5V
OUT 1 OUT 2IR IN
AUDIO
INOUT
72 653 41
1OUT 1 Port: Connect to an HDMI TV, monitor, or amplier for digital
video and audio output.
Note: The source will always be the device connected to HDMI input 1 on
the connected transmitter.
2AUDIO OUT Port: Connect to powered speakers or an amplier for
stereo analog audio output. This will output the audio from the Audio In
on the connected transmitter.
AUDIO IN Port: Connect to the mono analog output of a device such as
a microphone.
Note: This receiver’s Audio In audio channel is only active when an
analog source is also connected to the Audio In port on the connected
transmitter.
3IR IN Port: Connect to an IR Extender to receive local IR control signals
and extend them to the IR Blaster on the connected transmitter. Ensure
that the remote being used is within direct line-of-sight of the IR Extender.
4OUT 2 Port: Connect to an HDMI TV, monitor, or amplier for digital
video and audio output.
Note: The source will always be the device connected to HDMI input 2 on
the connected transmitter.
5RS-232 Port: Connect to a PC, laptop, or serial controllable device for
the extension of RS-232 signals.
Note:Thebaudrateiscongurable,butthedefaultbaudrateis115200.
6LAN Port: Connect via a Gigabit Ethernet switch to compatible
transmitter to receive video and data, and to a PC/laptop to control the
unit via WebGUI or Telnet.
7DC 5V Port: Plug the 5V DC power adapter into this port and connect it
to an AC wall outlet for power.
5
6.3 IR Cable Pinouts
IR Extender
Cabl
e
1
2
3
Infrared
Power
Ground
6.4 RS-232 Pinout and Defaults
Serial Port Default Settings
Baud Rate 115200
Data Bits 8
Parity Bits None
Stop Bits 1
Flow Control None
DCD
RxD
TxD
DTR
GND
RI
CTS
RTS
DSR
1
2
3
4
5
8
7
6
9
DE-9 Male Por
t
