1. Introduction
This is the user manual for survey E300 Pro GNSS receiver. It gives basic description
and operation guide which may help user to operate device properly.
1.1 Appearance
The E300 Pro main body is designed with magnesium alloy material to provide durable
usage and better heat dispersion as well as light weight 940g. The internal battery
ensures up to 12-hours continuous working.
1.2 Indicator
Working status is viewable through the indicators. The meaning of each indicator:
Indicator
Color
Meaning
Battery
Green and Red
•Solid green: battery level between
30%~100%
•Flash green: battery level between
10%~30%, speaker will beep
•Flash red: battery level below 10%
Bluetooth
Blue
•Off: no Bluetooth connection
•Solid blue: has Bluetooth connection
Data link
Green and Blue
•Solid green: datalink is ready to start
•Flash green: datalink is transmitting data
normally
•Flash Blue: when raw data recording is
enabled, the LED will flash according to the
interval
Satellite
Green and Red
•Off: no receiving satellites
•Flash red: receiving satellites but no
solution status
•Flash green: have solution but not fixed
•Solid green: fixed solution
•Flash red and green alternately: mainboard
abnormal
E300 Pro User Manual
Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com
1.3 Interface
E300 Pro GNSS receive bottom interface is shown as below. The 5-pin port is used to
connect external radio and external power, or output NMEA messages. Type-C port
can be used for data download (internal storage access) or charging.
1.4 Pin definition
The 5-pin port is defined as below:
5 Pin
Front View
1
+12V
Power
2
GND
Power ground
3
TXD
Device out
4
SGD
Signal ground
5
RXD
Device in
Power Button
Type-C Port
5-Pin Port
Micro SIM
Speaker
SIM Card
5-Pin and UHF
UHF Radio
Battery Indicator
Type-C
E300 Pro User Manual
Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com
1.5 Power button
There is a power button on E300 Pro control panel, the main function as below:
Power On
Long press button for three seconds to power on
receiver, all the indicators will on.
Power Off
Long press button for two seconds then release,
will hear the voice “Power off?” Then press the
button again to confirm.
Broadcast Current Working
Mode
Receiver will broadcast current working mode
when press the power button.
Self-check
Long press button for two seconds then release,
will hear the voice “Power off?” Then long press
button for three seconds, will hear the voice “self-
check”.
Check the battery Level
Press power button, battery indicator will show
the battery level.
2. Web User Interface
User can connect to receiver WIFI hotspot with PC, smart phone or tablet. The hotspot
name is the device serial number, can be found under the bottom of the device label.
Open web browser and input the IP address “192.168.10.1”. The default password is
“password”. From the website, user can manage working status, change working
mode, configurate basic settings, download raw data, update firmware and register
device.
2.1Position
View basic position information, satellite number, PDOP and time. In static mode, can
start and stop recording here.
E300 Pro User Manual
Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com
2.4Working Mode
Configurate working mode: base, rover or static.
2.5Satellite Setting
Configurate the satellites to be used. “RTK Timeout” setting is for aRTK service (With
Hemisphere L-Band service, user cans still keep high accuracy for a period when
correction data loses). “Surefix” is hemisphere technology to increase the reliability
of the fixed solution. Which means it will be much more difficult to get fixed solution
in tough environment.
E300 Pro User Manual
Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com

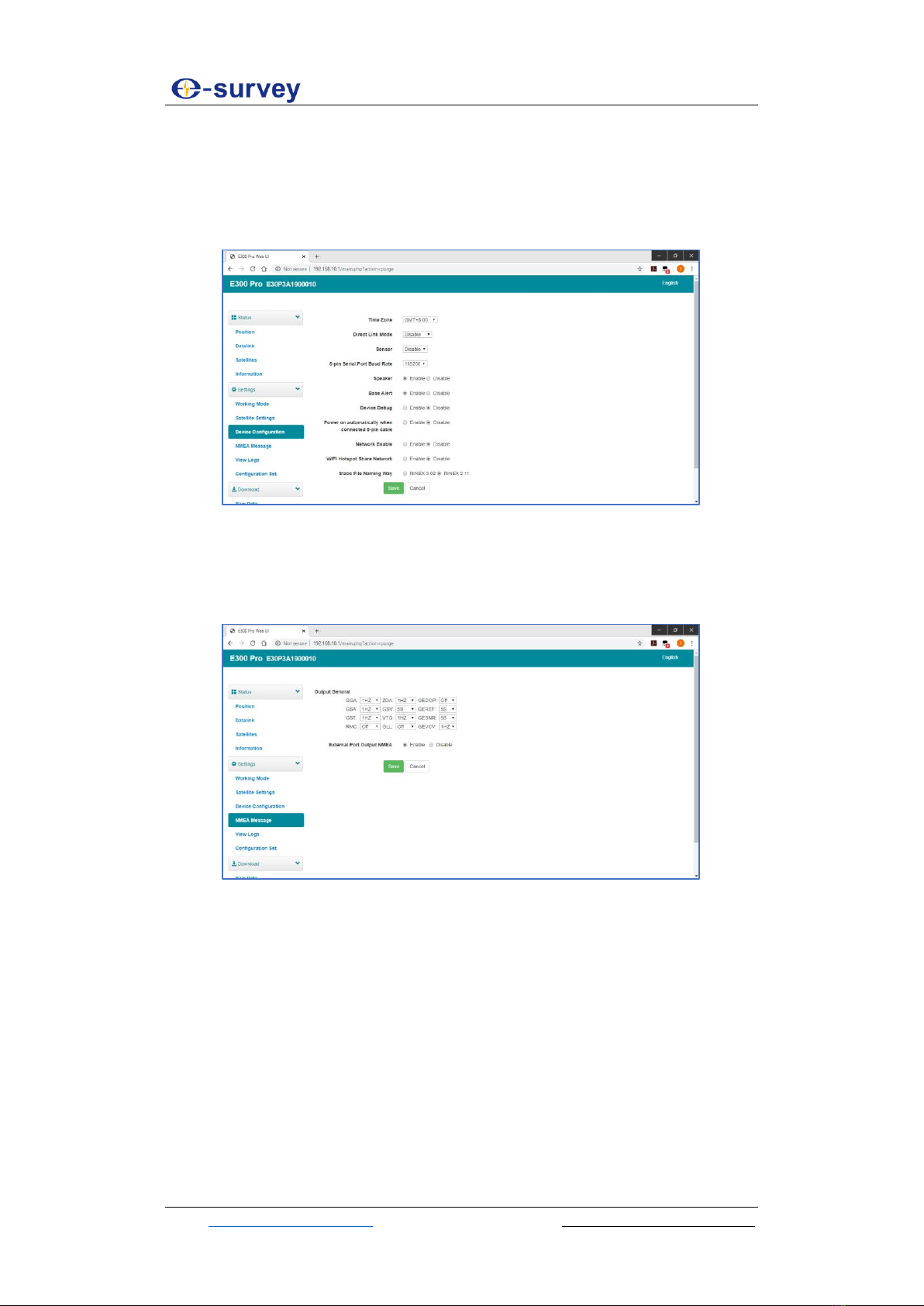

2.6Device Configuration
Configurate receiver settings: User can set time zone. Sensor means MEMS sensor
data output. Also, the 5-pin port baud rate is changeable. Speaker “Smart voice
broadcast”can be disabled. When SIM card is insert and “WIFI share network” is
enabled, PC can surf the internet when connected to device hotspot by using SIM data.
2.7NMEA Message
Configurate NMEA data output through Bluetooth or 5-pin port.
E300 Pro User Manual
Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com
2.8View Logs
The log files can be used to diagnose issues. Click “download” to download the files.
2.9Raw Data
Download raw data or convert data to RINEX format. User can use check box, then
click “Package” to download multiple files.
E300 Pro User Manual
Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com
2.10 Backup Data
The points collected in SurPad4.0 will be backup in receiver storage automatically to
avoid data loss. Can restore the data to SurPad software.
2.11 Management
User can update receiver and GNSS firmware as well as register device, format
internal disk, restore factory setting, restart device. To update the firmware, click
“Chose File” to import the firmware, then click “Upload File” to start updating.
