CYP IR-EXT3 Manual de usuario

Operation Manual

Infrared Over CAT5/6 Extender

Model: IR-EXT3

CONTENTS

1. Introduction..............................................1

2. Applications.............................................1

3. Package Contents .................................. 1

4. System Requirements.............................. 1

5. Features....................................................2

6. Operation Controls and Functions......... 3

6.1 Transmitter Front and Rear Panels....3

6.2 Receiver Front and Rear Panels .......4

6.3 IR Cable Pin Denition ......................5

6.4 IR Phone Jack Pin Denition..............5

6.5 IR IN Pin Assignment...........................6

6.6 IR OUT Pin Assignment .......................6

6.7 RJ45 Pin Assignment...........................6

7. Connection Diagram .............................. 7

8. Specications .......................................... 8

9. Acronyms .................................................8

1. INTRODUCTION

The IR Extender and the IR Repeater Box are perfect for controlling

source devices over long distances using CAT5 Cable.

By using the built-in IR Receiver of the IR Repeater, users are able to

control up to ve sources (with the original remote controls) at the

same time at a distance of up to 250 m.

There are no space limitations with these devices, which means even

if the sources are in a different room or even another oor than the

display, the performance stays the same.

The IR Extender and the IR Repeater Box give users an easy and

convenient way to control their desired source. If however, users only

wish to control sources in the same room then the IR Repeater Box will

be enough to control up to 2 sources.

The IR Extender Box is designed for longer distances and extra source

device control than the IR Repeater Box.

2. APPLICATIONS

• TV sales displays in consumer electronic stores

• Home theater installations

• Lecture room display

• Home entertainment

3. PACKAGE CONTENTS

• 1×Infrared Extender

• 1×Infrared Repeater

• 1×IR Extender (for Infrared Repeater)

• 5×Blasters (3 for Infrared Extender, 2 for Infrared Repeater)

• 1×5V DC Power Adaptor (for Infrared Repeater)

• Operation Manual

4. SYSTEM REQUIREMENTS

IR controlledable source equipment (e.g. DVD or Blu-ray

players) and CAT5 cable.

5. FEATURES

•Supports up to 5 outputs (3 for Infrared Extender, 2 for Infrared

Repeater)

•Control source devices anywhere within 250 m, can be run

through walls and ceilings

•

Transmits infrared signals only

•

It allows the use of existing remote controls

•

Only one IR Receiver is needed

•

IR Receiver's frequency range is 30~50 kHz

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Transmitter Front and Rear Panels

IR OUT1

CIR03 IR Extender

IR OUT2IR OUT3

IR CAT5

DC 5V

2 31

IR OUT1/2/3

Connect to the supplied IR blaster cables (up to 2 meters) for IR

signal transmission. Place the IR blaster in direct line-of-sight of the

equipment to be controlled.

IR OUT1

CIR03 IR Extender

IR OUT2 IR OUT3

2IR CAT5

Connect to the IR receiver with a CAT5 cable.

3DC 5V

Plug the supplied 5 V DC power supply into the unit and connect

the adaptor to an AC wall outlet.

Note: Connect the supplied power adapter to the IR repeater

only. The two units can be used at the same time via a single

power supply.

6.2 Receiver Front and Rear Panels

IR IN

CIR12 IR Repeater

IR OUT1IR OUT2

IR CAT5

DC 5V

31 2 4

IR IN

Connect to the supplied IR extender cable (up to 2 meters) for IR

signal reception. Ensure that the remote being used is within the

direct line-of-sight of the IR extender.

IR OUT1/2

Connect to the supplied IR blaster cables (up to 2 meters) for IR

signal transmission. Place the IR blaster in direct line-of-sight of the

equipment to be controlled.

IR IN

CIR12 IR Repeater

IR OUT1 IR OUT2 IR IN

CIR12 IR Repeater

IR OUT1 IR OUT2

IR CAT5

Connect to the IR transmitter with a CAT5 cable.

DC 5V

Plug the 5 V DC power supply into the unit and connect the

adaptor to an AC wall outlet.

Outlet

IR RepeaterIR Extender

CAT5 Cable

Max. Length 250 m

IR CAT5

DC 5V

IR CAT5

DC 5V

IR CAT5

Note: Please note that when plugging in the blaster and extender

cable incorrectly may damage or burn both the cables.

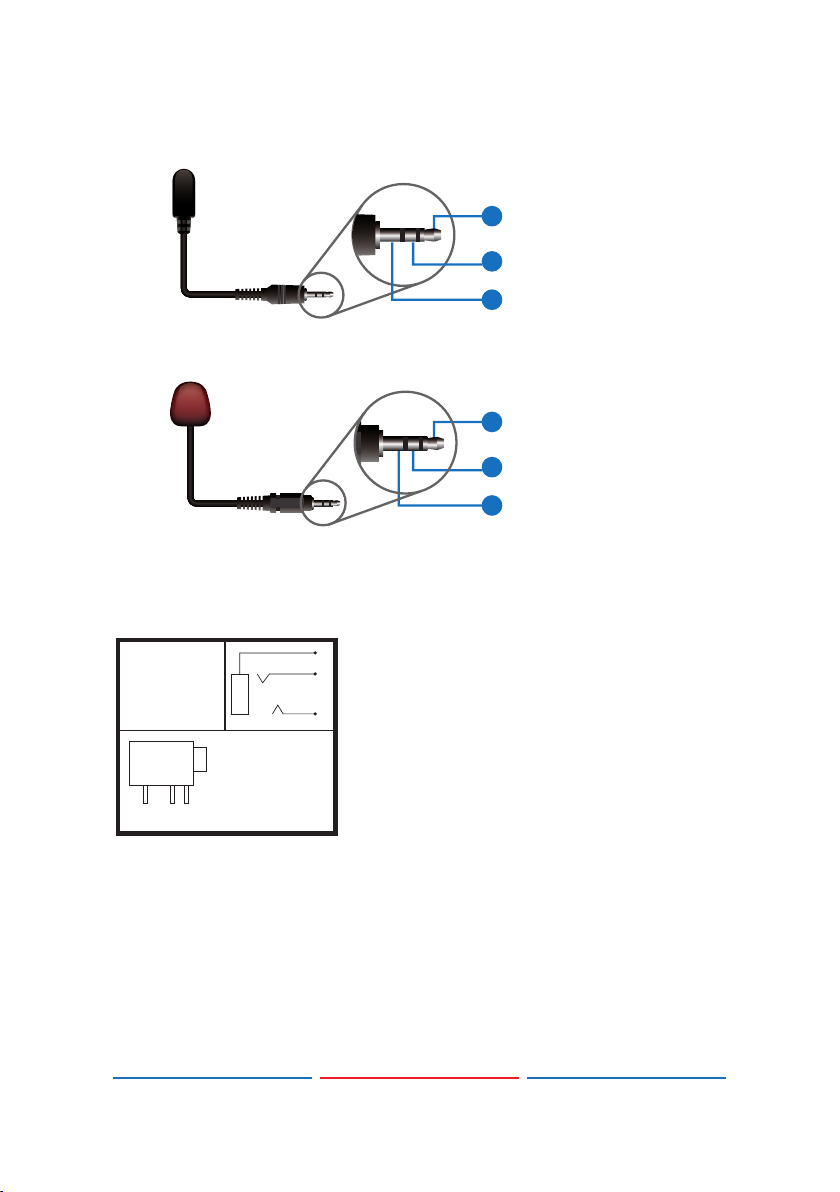

6.3 IR Cable Pin Denition

Power 5 V

IR Blaster Signal

IR Signal

Power 5 V

Grounding

IR Extender

IR Blaster

6.4 IR Phone Jack Pin Denition

SCHEMATIC

123

1. Ring Spring

2. Tip Spring

3. Earth Spring

6.5 IR IN Pin Assignment

PIN ASSIGNMENT

1 (Ring spring) Power 5V

2 (Tip spring) IR signal

3 (Earth spring) GND

6.6 IR OUT Pin Assignment

PIN ASSIGNMENT

1 (Ring spring) IR Blaster Signal

2 (Tip spring) Power 5V

3 (Earth spring) IR Blaster signal

6.7 RJ45 Pin Assignment

PIN ASSIGNMENT

1GND

2GND

3GND

4IR Blaster Signal

5IR Blaster Signal

6GND

7Power

8Power

8. SPECIFICATIONS

Transmitter

Input Port 1×CAT5e

Output Ports 3×IR Blaster

Receiver

Input Port 1×IR Extender

Output Ports 2×IR Blaster, 1×CAT5

Power Supply 5 V/1 A DC (US/EU standards, CE/FCC/UL

certied)

ESD Protection Human body model:

±10 kV (air-gap discharge)

±6 kV (contact discharge)

Dimensions 62 mm(W) ×50 mm (D) ×23 mm (H)/each

Weight 78 g/each

Chassis Material Aluminum

Silkscreen Color Silver

Operating Temperature 0 °C~40 °C / 32 °F~104 °F

Storage Temperature −20 °C~60 °C/−4 °F~140 °F

Power Consumption 0.5 W

Relative Humidity 20~60 % RH (non-condensing)

9. ACRONYMS

ACRONYM COMPLETE TERM

CAT5 Category 5 Cable

DC Direct Current

GND Ground

IR Infrared
