1. INTRODUCTION
The HDMI over single CAT5e/6/7 Transmitter and Receiver set is a
great solution to extend uncompressed audio/video and IP data
over a single run of CAT5e/6/7 cable at a distance up to 60 meter.
Multi-control interfaces are available which includes IR, RS-232 and
USB connection. This new extender set complies with advanced
protocols of HDCP2.2 and HDMI 2.0, the HDCP1.4 also supported.
The 6G HDMI video is able to be processed. Except extend 4K2K
data, it features useful audio functions. The “optical audio return”
supports audio transmit back from Receiver to Transmitter. Besides,
the “audio insertion” allows external audio insert to HDMI video such
as background music insertion. The HDBT clock stretch and TMDS re-
clocking are considered. The Receiver (PD) can be powered by the
PoE 48V function of the Transmitter (PSE), allowing for greater exibility
to t different installation scenarios.
2. APPLICATIONS
• 48V PoE from Transmitter (PSE) to Receiver (PD)
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1 x HDMI over CAT5e/6/7 Transmitter
• 1 x HDMI over CAT5e/6/7 Receiver
• 1 x IR Blaster
• 1 x IR Extender
• 1 x 48V / 0.83A DC power adapter
• 1 x Power cable
• 2 x RS232 terminal block pitch
• 2 x Audio terminal block
• 2 x Rack ear Sets
• 1 x Operation Manual
2
4. SYSTEM REQUIREMENTS
Input source equipment such as PS3/Blu-ray player and output HD TV/
display.
5. FEATURES
• HDCP 1.4/HDCP 2.2 and HDMI 2.0 compliant
• HDMI with 3D, 4K2K support and DVI Compliant
• 6G HDMI video (3840x2160 YUV444) input is supported
• Simultaneous transmission of uncompressed data over a single
CAT5e/6/7 cable up to 60m /196.8 ft at 1080p and 35m/115ft at 4K2K
• 4Play™ convergence: HDMI, PoE & Control (IR & RS-232)
• Supports output resolution up to 4K2K@50/60 _YUV_420
• Supports deep color input and output of 8 bits, 10 bits and 12 bits
• Supports CEC bypass
• Optical audio return supports audio transmit back from receiver to
transmitter
• Audio insertion supports external audio insert to HDMI video such as
background music insertion
• Supports EDID management PC software with default EDID and
native EDID from display or other sink devices
• Supports HDMI DDC bus clock stretch for better compatibility of some
Blu-ray players
• Manages TMDS re-clocking and signal re-generation for better signal
• Supports standard 48V from Transmitter (PSE) to Receiver (PD)
• Easily rmware update via USB in eld
• Ultra-thin wall plate design with friendly installation (The thickness is
16mm only)
Note: 1. The standard 48V PoE function is designed for powering
compatible Receiver units only---non-PoE Receivers will need
their own power supply. Receivers of another brand may not
be compatible.
2. Displaying HDMI 3D and 4K2K contents, equivalent source
signal and HDMI cable are required in order to secure the
quality.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel of Transmitter
DC 48V
POWER
OPT. OUTIR IN 2IR OUT 1SERVICERS-232
TX RX
+
-
AUDIO OUT
UPDATE
LR
1 2 3 65 7 8 94
1DC 48V: Plug the 48V DC power supply into the unit. Please do
follow the label on adapter to connect the black cable to ground
pin of connector.
2Power LED: This LED will illuminate once the device is connected to
a power supply.
3Audio out: Connects to speaker with RCA input for audio signal
output.
4OPT. out: The optical out is for receiving optical audio from
Receiver then transmits to other connected devices such as
speakers.
5IR Out 1: IR Out 1 is considered as IR extender which to connect
to the supplied IR Extender cables for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
Extender.
6IR In 2: IR In 2 is considered as IR BLASTER which connects to the
supplied IR Blaster cable for IR signal transmission. Place the IR
Blaster in direct line-of-sight of the equipment to
7SERVICE: This service slot is USB2.0 which is for rmware update
purpose.
8RS-232: Connect to a PC or Laptop via RS232 terminal to D-Sub 9-pin
cable for the transmission of RS-232 commands.
9Update: When update the rmware, the switch shall arrange to left
side (just follow arrow direction on case) and arrange back when
completing update.
4
6.2 Rear Panel of Transmitter

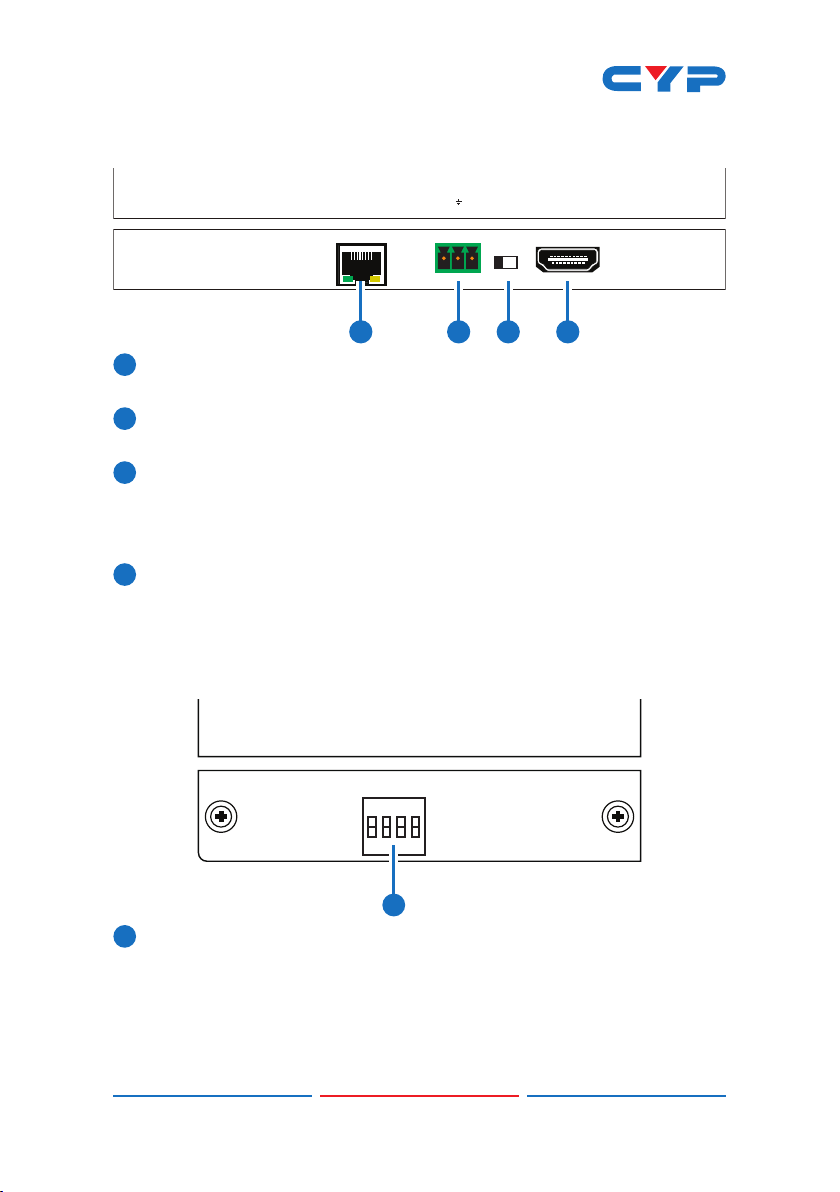

AUDIO IN AUDIO IN HDMI INCAT5e/6/7 OUT
RL
EXT INT
1 2 3 4
1CAT5e/6/7 Out: Connects to the Receiver unit with a single
CAT5e/6/7 cable for transmission of all data signals includes power.
2Audio In: This phoenix connector allowing connect to analog
audio devices such as DVD players.
3Audio In Ext / Int: The slide switch provides customer to select
external audio which means insert external audio to displayed
video. Please slide the switch to EXT for external audio insertion.
The slide switch at “INT” means audio remain current HDMI one.
4HDMI IN: Connects to HDMI source equipment such as a DVD or
Blu-ray player.
6.3 Right Side Panel of Transmitter
EDID
1
ON
1234
1EDID: EDID switch offers EDID selection. There are 16 sets of EDID
selection totally which divide to three modes includes “internal
mode”, “user mode” and “native mode”. 6 set of internal EDID,
9 sets are dened as user mode which are allowing customer to
upload as prefer one. The last one is native EDID which copies EDID
from sink device.
5
Dipswitch Selection for EDID:
Mode Number Dipswitch Number
Internal Mode 1 0000
2 1000
3 0100
4 1100
5 0010
6 1010
User Mode 7 0110
8 1110
9 0001
10 1001
11 0101
12 1101
13 0011
14 1011
15 0111
Native Mode 16 1111
EDID Detail Information:
1) Internal Mode:
1. Internal Mode FHD / 2 channel: 1080p/60 148M, No deep color
8bits, 2Ch
1. FHD / 2 channel: 1080p/60 148M, No deep color 8bits, 2Ch
2. FHD/ Multi channel: 1080p/60 148M, No deep color 8bits, 8Ch
3. UHD / 2 channel: 3840 x 2160p/30Hz 297M, No deep color 8bits, 2Ch
4. UHD / Multi channel: 3840 x 2160p/30Hz 297M, No deep color 8bits
, 8Ch
5. UHD+ / 2 channel: 3840 x 2160p/60Hz 594M, deep color 12bits, 2Ch
6.UHD+ / Multi channel: 3840 x 2160p/60Hz 594M, deep color 12bits, 8Ch
2) User Mode:
7~15. User Mode Upload mode. Default: FHD / 2 channel: 1080p/60
148M, No deep color 8bits, 2Ch
3) Native mode:
16. Copy EDID from sink device
