CYP PU-513L-KIT Manual de usuario

PU-513L-KIT

HDBaseT™ LITE Extender Kit with 1-way IR & RS-232

(up to 60m)

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

VS1 10/10/2012 First release

v1.01 31/07/2013 Added USB Power Cable

v1.02 03/10/2013 Added statement about RS-232 Adapters

v1.03 08/10/2013 Amended product description

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................6

5. Features..................................................7

6. Operation Controls and Functions .......8

6.1 Transmitter Front and Rear Panels....... 8

6.2 Receiver Front and Rear Panels ............ 9

6.3 Transmitter and Receiver Top Panels 10

6.4 IR Pin Assignment....................................10

6.5 D-Sub 9 Pin Denitions .........................11

7. Specications...................................... 12

8. Connection and Installation .............. 13

9. Acronyms............................................. 14

1. INTRODUCTION

The PU-513L-KIT allows uncompressed HDMI, one-way IR and RS-232 signals

to be transmitted over a Single CAT5e/6/7 cable to distances of up to 60m.

Utilise the USB power output from a TV as an optional way of powering the

PU-513L-RX receiver unit alternative to a mains power supply.

Designed with HDBaseT™technology for greater exibility in custom

installations with full HDMI and control signal transfer over a single

CAT5e/6 Cable.

2. APPLICATIONS

Commercial and residential multi-room AV environments

University lecture hall display and control

Retail sales display and control

Meeting room presentation and control

Commercial advertising display and control

3. PACKAGE CONTENTS

1× HDMI to CAT5e/6 with IR/RS-232 Transmitter

1× CAT5e/6 to HDMI with IR/RS-232 Receiver

1× IR Blaster

1× IR Extender

1× 3.5 mm mini-jack to RS-232 female cable

1× 3.5 mm mini-jack to RS-232 male cable

2× 5V/2.6 A DC Power Adaptor

Operation Manual

4. SYSTEM REQUIREMENTS

HDMI source equipment such as DVD/Blu-ray player/PC and TV/Monitor/

Projector with HDMI input and HDMI and CAT5e/6 connection cables.

5. FEATURES

HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant

Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m

Complies with HDBaseT™- Lite specications

Full HD resolution support (1080p@60Hz/36-bit), 3D over 60m, 4Kx2K

over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6

cable

HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour

Supports HDMI output up to 15m with 8/12-bit deep colour

Supports one-way IR and RS-232 Control

Supports High Denition LPCM 7.1CH, Dolby TrueHD, Dolby Digital

Plus and DTS-HD Master Audio transmission

Choose to power the PU-513L-RX via the USB output from a TV (Cable

available separately - APC-USB): Please note the performance and

consistency of USB power outputs from TV's can vary and cannot be

guaranteed by CYP.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Transmitter Front and Rear Panels

CAT5e/6 OUT

HDMI IN RS232 INIR OUT

LINK

DC 5V

HDMI to CAT5e/6 with

IR/RS232

TRANSMITTER

CAT5e/6 OUT

HDMI IN RS232 INIR OUT

LINK

DC 5V

HDMI to CAT5e/6 with

IR/RS232

TRANSMITTER

4 51 2 3

IR OUT

Connect to the supplied IR blaster for IR signal transmission to the source

equipment. Place the IR blaster in direct line-of-sight of the equipment

to be controlled.

HDMI IN

Connect to the HDMI input source devices such as a DVD player or a Set-

top Box with HDMI cable or DVI to HDMI cable.

RS 232 IN

Connect the 3.5mm mini-jack to D-Sub 9-pin female adaptor cable

(included in the package) to a PC or control system with D-Sub 9-pin

cable for the transmission of RS-232 commands.

DC 5V

Plug the 5V DC power supply into the unit and connect the adaptor to

an AC outlet.

CAT5e/6/7 OUT

Connect to the receiver unit with a single CAT5e/6 /7cable for

transmission of all data signals. The yellow LED will illuminate when

both the transmitter and receiver are connected and are powered. The

green LED will illuminate when the device is connected to the power

supply.

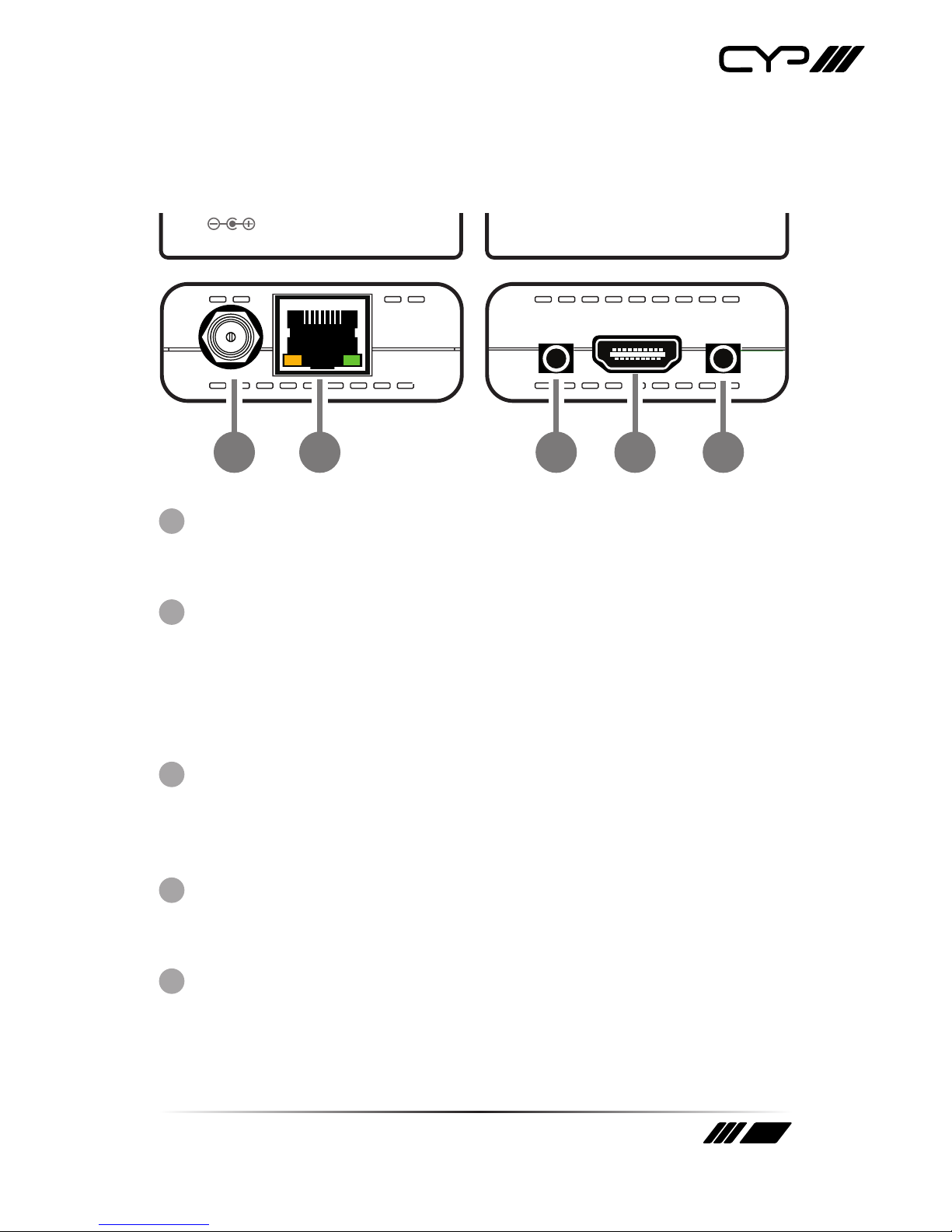

6.2 Receiver Front and Rear Panels

CAT5e/6 IN

LINK

DC 5V

CAT5e/6 to HDMI with

IR/RS232

HDMI OUT RS232 OUTIR IN

RECEIVER

CAT5e/6 IN

LINK

DC 5V

CAT5e/6 to HDMI with

IR/RS232

HDMI OUT RS232 OUTIR IN

RECEIVER

4 51 2 3

DC 5V

Plug the 5V DC power supply into the unit and connect the adaptor to

an AC outlet.

CAT5e/6/7 IN

Connect to the transmitter unit with a single CAT5e/6/7 cable for HDMI

Audio/Video and IR/RS-232 control signal transmission. The yellow LED

will illuminate when both the transmitter and receiver are connected and

are powered. The green LED will illuminate when the device is connected

to the power supply.

IR IN

Connect to the supplied IR receiver cable for IR signal reception.

Ensure that remote being used is within the direct line-of-sight of the

IR extender.

HDMI OUT

Connect to a HDMI equipped TV/monitor for display of the HDMI

input source signal.

RS 232 OUT

Connect the 3.5mm mini-jack to D-Sub 9-pin female adaptor cable

included in the package to a PC or control system with D-Sub 9-pin

cable for the transmission of RS-232 commands.

6.3 IR Pin Assignment

Power 5V

IR Blaster Signal

IR Signal

Power 5V

Ground

IR Receiver

IR Emitter
