OPERATION MANUAL

PU-106

v1.3 HDMI over CAT6 Extender

Set with IR Pass-through

PU-106_Manual-EN.indd 1 26/04/2011 12:50:05

Table of Contents

1. Introduction 1

2. Features 1

3. Package Contents 1

4. Operation Controls and Functions 2

4.1 Front Panel Diagram 2

4.2 Rear Panel Diagram 3

5. Connection Diagram 4

6. Specications 4

PU-106_Manual-EN.indd 2 26/04/2011 12:50:19

Page 1

1. Introduction

All the PUMA, HDMI over CAT5e/6 transmitters and receivers are the perfect solution

to extend HDMI signals via CAT cabling up to 40m. The PU-106 also allows you to use

your existing Remote Control to control your device with the included IR Receiver &

Blaster.

2. Features

• v1.3 HDMI, HDCP 1.1 and DVI 1.1 compliant.

• HDMI over CAT6 Extender Set.

• Resolutions supported: PC - VGA to WXGA; HDTV - 480i to 1080p plus

1080p24fps.

• High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD

Master Audio plus LPCM.

• Compatible with CAT-5E and CAT-6 cables. CAT-6 is recommended for better

performance.

• Supports CEC functions.

• Supports ‘Deep Colour’ (10 & 12 bit).

• Equalises and recovers incoming TMDS data before re-transmitting to ensure

optimum signal quality.

• Supports xvYCC

• Supports 3D signals

3. Package Contents

• HDMI to CAT6 Transmitter.

• 5V DC power supply adaptor.

• Operation Manual.

PU-106_Manual-EN.indd 1 26/04/2011 12:50:33

Page 2

4. Operation Controls and Functions

4.1 Front Panel

1. HDMI input: Connect the HDMI input port to the HDMI or DVI output of your

source equipment such as DVD player or set-top-box.

2. Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC

wall outlet. (1) power adaptor is required for both Transmitter box and receiver box,

the other box can select internal power supply.

3. HDMI output: Connect the HDMI output port to the HDMI or DVI output of your

displayer such as HD TV or HD monitor.

1 32

POWER 5V

HDMI INPUT

IR

Transmitter

POWER 5V IR

Receiver

HDMI OUTPUT

PU-106_Manual-EN.indd 2 26/04/2011 12:50:34

Page 3

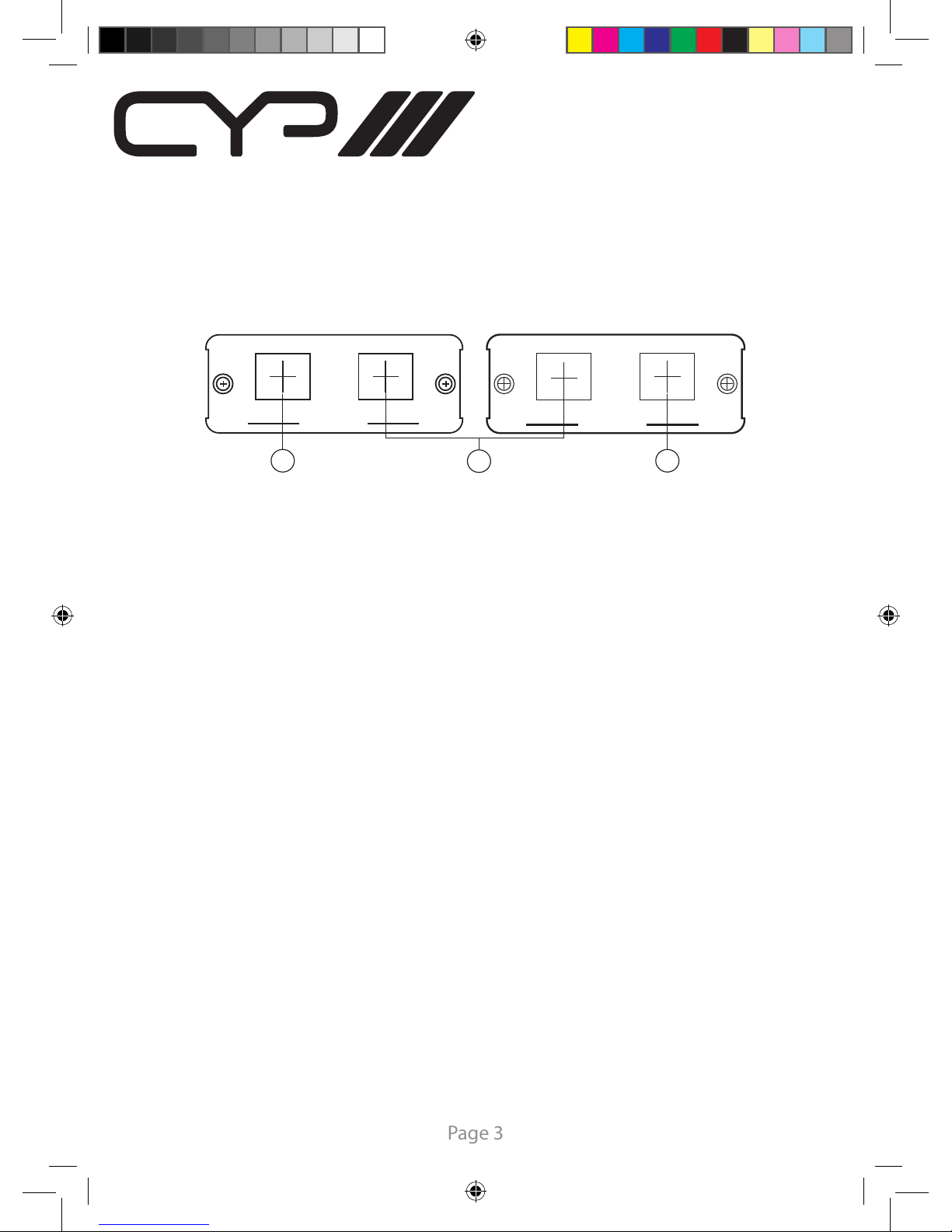

4.2 Rear Panel

1. DDC input/output: Connect the DDC output of 106TX to the DDC input of the

receiver unit using CAT-6 cable.

2. Video input/output: Connect the video output to the video input of the receiver

unit using CAT-6 cable.

Note:

1. Cable tested with CAT-6E / 23AWG / Solid and therefore, cable with dierent

specication may result in dierent distance.

2. Cable distance tested with equipment PS3 20G, 37” Philips 8 bit LCD TV and 37”

Samsung 12 bit LCD TV.

3. Figures provided in this manual are reference gures only, actual gures may

depend on source and display use with cable specication.

1 1

2

DDC VIDEO

CAT6 OUTPUT

VIDEO DDC

CAT6 INPUT

PU-106_Manual-EN.indd 3 26/04/2011 12:50:34

Page 4

5. Connection Diagram

Input Port

Transmitter: 1x HDMI female port, 1x IR jack,

Receiver: 2 x CAT5e/6, 1 x IR Jack

Output Port

Transmitter: 2 x CAT5e/6, 1 x IR Jack

Receiver: 1x HDMI female port, 1x IR jack

Power Supply 2 x 5V/2.6A DC (US/EU standards, CE/FCC/UL

certied)

Dimensions (mm) 50(W) x 62(D) x 23(H)

Weight (g) 340

Chassis Material Aluminium

Silk Skin Colour Black

Operating Temperature Operating from 0°C ~ 40°C

6. Specications

PU-106_Manual-EN.indd 4 26/04/2011 12:50:39

Notes:

PU-106_Manual-EN.indd 5 26/04/2011 12:50:39
