CH-506TX & RX
CH-506TXL & RXL
HDMI/IR/RS-232 over Single CAT5e/CAT6 Extender
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 12/12/11 Preliminary Release
VS1 26/04/12 Updated format, diagrams and
statements
VS2 26/07/12 IR cable updated
VR3 28/09/12 Add Light Version
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Transmitter Front and Rear Panels..3
6.2 Receiver Front and Rear Panels .....4
6.3 D-Sub 9-Pin Denitions .....................5
6.4 IR Cable Pin Assignment..................5
7. Connection Diagram ............................ 6
8. Specications ........................................ 7
9. Acronyms ............................................... 8
1
1. INTRODUCTION
The HDMI with RS-232 over Single CAT5e/CAT6 transmitter and receiver
set can send uncompressed audio/video over a single run of CAT5e/6
cable up to 100 m* and has the added benet of control through the
built-in RS-232 and IR ports.
*Light version can run up to 60m
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1×HDMI & IR over Single CAT5e/CAT6 Transmitter
• 1×HDMI & IR over Single CAT5e/CAT6 Receiver
• 2×IR Blaster
• 2×IR Extender
• 2×3.5 mm Phone Jack to RS-232 Cable
• 2×5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray players and HDMI
equipped output display (TVs or monitors).
2
5. FEATURES
• HDMI including 3D, 4k×2k supports, HDCP and DVI compliant
• Supports HDCP repeater and CEC function
• Simultaneous transmission of uncompressed data over a single
CAT6/CAT5e cable up to 100 m/328 ft*
• Uncompressed video 1080p, 60 Hz, 36-bit
• Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master
Audio
• 3Play convergence: HDMI & Control (IR & RS-232)
• Installation friendly
Note: This system was tested with CAT6/23AWG cable. Results may
vary with cables of different specications.
*Light version CAT6/CAT5e cable up to 60m/196.8ft
3
6. OPERATION CONTROLS AND FUNCTIONS

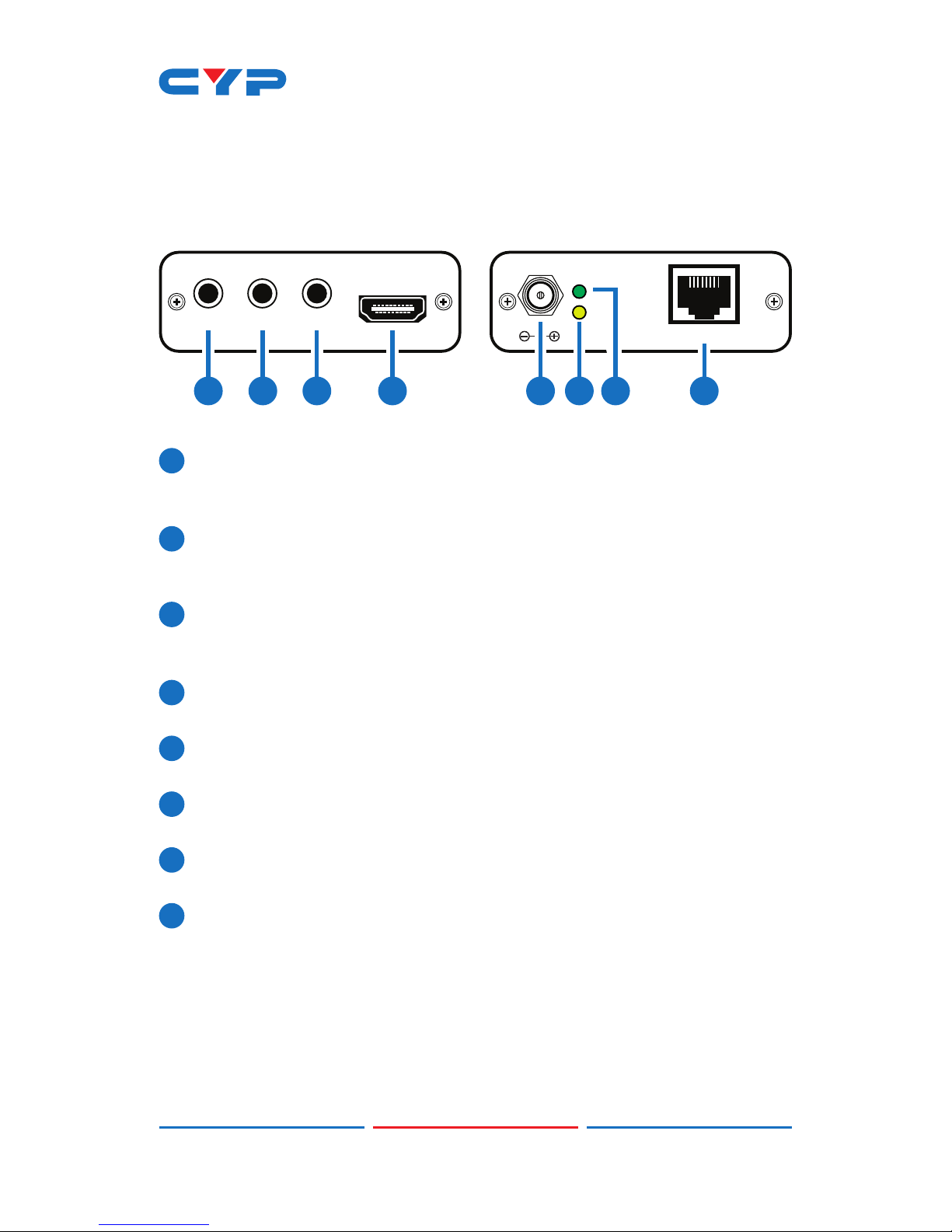

6.1 Transmitter Front and Rear Panels
Power
Link
CAT 5e /6 Out
DC 5V
IR2 Extender
RS232 In IR1 Blaster
HDMI In
RearFront
231 5
46 7 8
1
RS-232 In: Connect to a PC/laptop or RS-232 enabled device(with
supplied 3.5 mm phone jack to D-Sub 9 pin adaptor) for the
transmission of RS-232 commands.
2IR2 Extender: Connect to the supplied IR extender cable for IR
signal reception. Ensure that remote controller being used is within
the direct line-of-sight of the IR extender.
3
IR1 Blaster: Connect to the supplied IR blaster cable for IR signal
transmission. Place the IR blaster in direct line-of-sight of the
equipment to be controlled.
4
HDMI In: Connect to HDMI source equipment such as a DVD or Blu-
ray player.
5
DC 5V: Plug the 5 V DC power supply into the unit and connect the
adaptor to an AC outlet.
6
Link: The yellow LED will illuminate when both the input and output
CAT5e/6 signals are connected.
7
Power: This green LED will illuminate when the device is connected
to a power supply.
8
CAT5e/6 Out: Connect to the receiver unit with a single CAT5e/6
cable for transmission of all data signals.
4

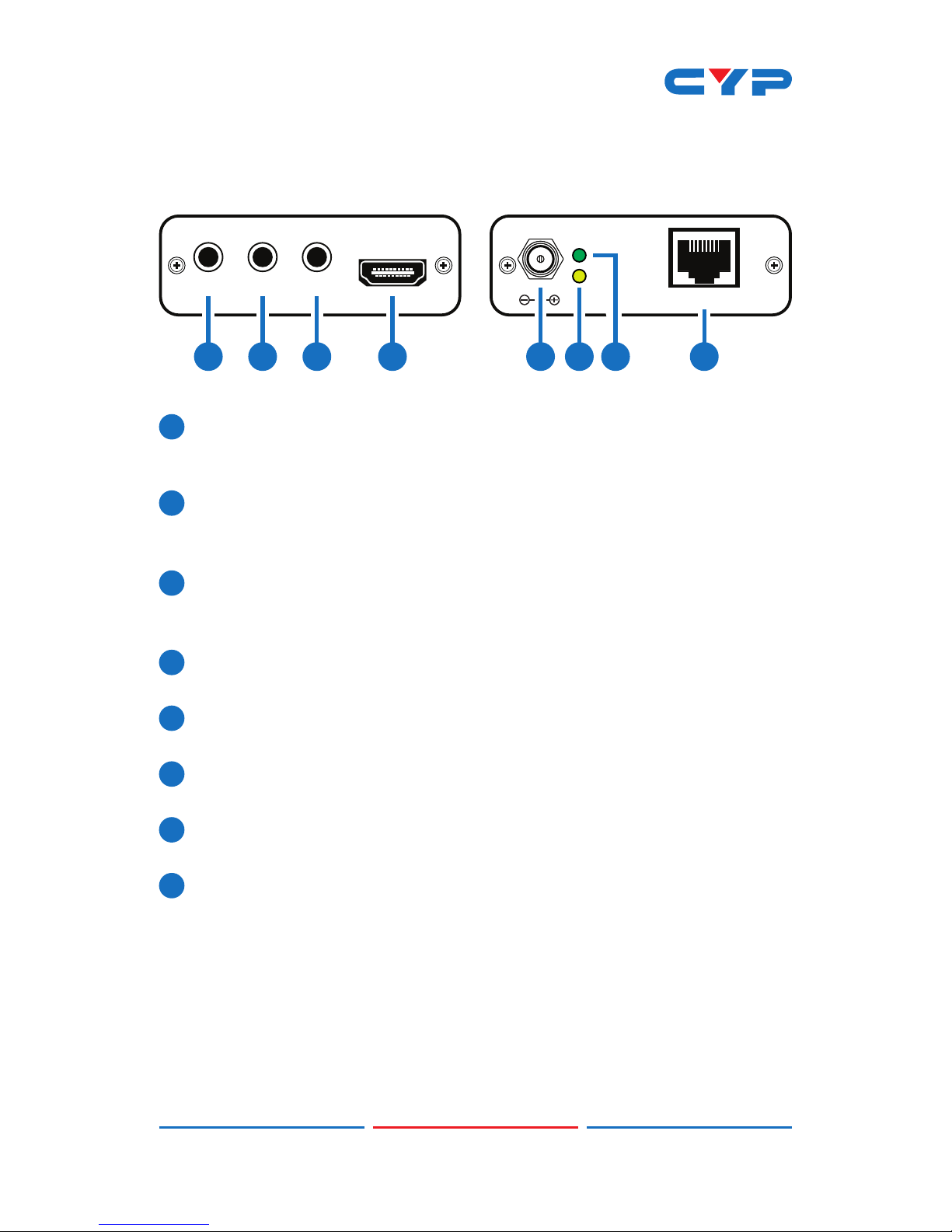

6.2 Receiver Front and Rear Panels
Power
Link
CAT 5e /6 In
DC 5V
IR1 Extender
RS232 Out IR2 Blaster
HDMI Out
RearFront
231 5
46 7 8
1
RS-232 Out: Connect to the device that is to be controlled (with
the supplied 3.5mm phone jack to D-Sub 9-pin adaptor) by RS-232
commands.
2
IR1 Extender: Connect to the supplied IR extender cable for IR
signal reception. Ensure that remote being used is within the direct
line-of-sight of the IR extender.
3
IR2 Blaster: Connect to the supplied IR blaster cable for IR signal
transmission. Place the IR blaster in direct line of sight of the
equipment to be controlled.
4
HDMI Out: Connect to a HDMI equipped TV/monitor for display of
the HDMI input source signal.
5
DC 5V: Plug the 5 V DC power supply into the unit and connect the
adaptor to an AC outlet.
6
Link: The yellow LED will illuminate when both the input and output
CAT5e/6 signals are connected.
7
Power: This green LED will illuminate when the device is connected
to a power supply.
8
CAT5e/6 In: Connect to the transmitter unit with a Single CAT5e/6
cable for transmission of all data signals.
5

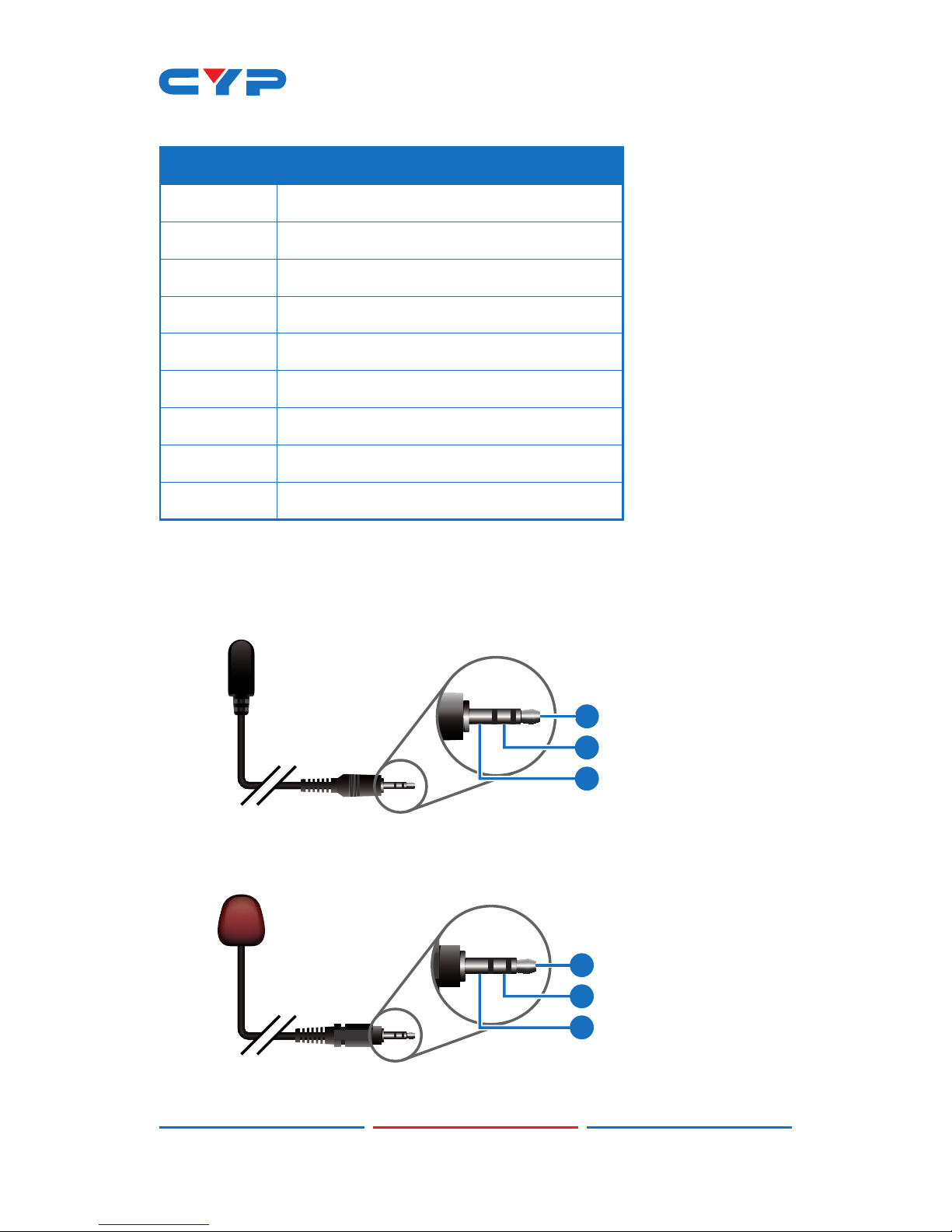

6.3 D-Sub 9-Pin Denitions
PIN DEFINE TX/RX
1N/C
2TxD/RxD
3RxD/TxD
4N/C
5GND
6N/C
7N/C
8N/C
9N/C
6.4 IR Cable Pin Assignment
3
1
3
1
2
2
Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Grounding
IR Extender
IR Blaster
6

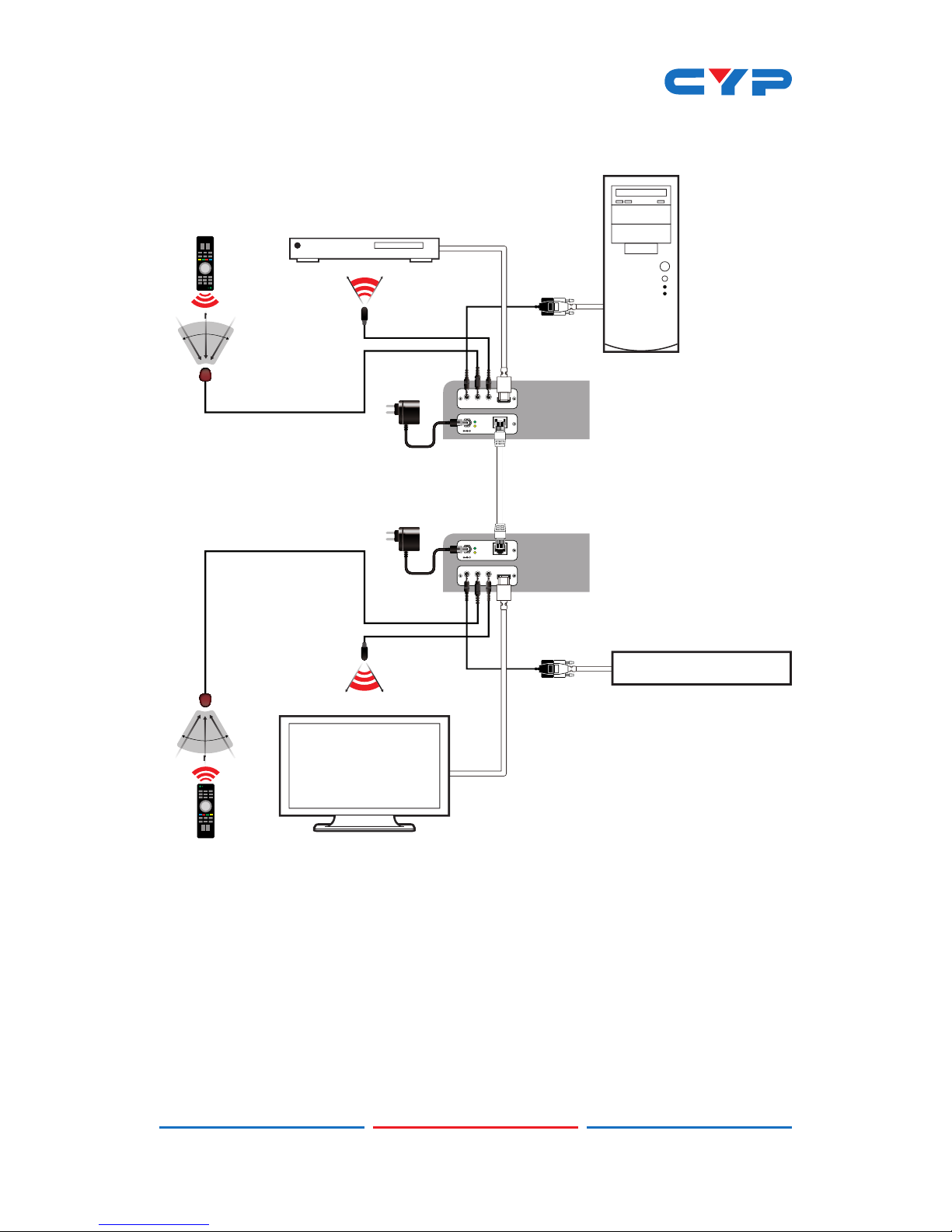

7. CONNECTION DIAGRAM
TX
RX
IR1 Extender
RS232 Out IR2 Blaster
HDMI Out
Power
Link
CAT 5e/6 In
DC 5V
Power
Link
CAT 5e/6 Out
DC 5V
IR2 Extender
RS232 In IR1 Blaster
HDMI In
7m
3m 3m
60°
m
1.5m
60°
7m
3m 3m
60°
m
1.5m
60°
DVD or Blu-ray Player
HDMI
HDMI
Display
Single
CAT5e/6
Cable
Power
Supply
Power
Supply
RS-232 Equipped Device
RS-232
Equipped
PC or
Notebook
IR Extender
IR Extender
IR Blaster
IR Blaster
RS-232
Adaptor
RS-232
Adaptor
