CH-1109TXC & RXC

HDMI to CAT5e/6 with LAN/PoE/IR Extender

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VS1 25/11/11 First release

VR2 02/03/12 POE Supports only family's

device

VS3 23/03/12 Amended PoE function

Updated the connection

diagram and the

specications table

VR4 16/04/12 IR Distance

CONTENTS

1. Introduction..............................................1

2. Applications.............................................1

3. Package Contents ..................................1

4. System Requirements..............................1

5. Features....................................................2

6. Operation Controls and Functions.........3

6.1 Transmitter Front and Rear Panels....3

6.2 Receiver Front and Rear Panels.......4

6.3 IR Cable Pin Assignment....................5

6.4 D-Sub 9 Pin Denitions .......................5

7. Connection Diagram .............................6

8. Specications ..........................................7

9. Acronyms.................................................8

1. INTRODUCTION

The device that can make your home or ofce more efcient, the

CH-1109TXC & RXC is capable of sending HDMI (uncompressed

audio/video), 3 Ethernet connections and control ports (through the

built-in RS-232 and IR ports) over a single CAT5e/CAT6 up to a distance

of 100m (300 ft.). Even more, it is adaptor free at the receiver end.

Further, with the HDMI bypass is designed to allow instant display at

the control point. So, if you wish to make your home or ofce more

efcient, get the HDMI over Single CAT5e/CAT6 with LAN/PoE & IR

Extender and prepare to be amazed.

2. APPLICATIONS

• Household entertainment media sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

• Any Smart AV Installation system

3. PACKAGE CONTENTS

• HDMI to CAT5e/6 with LAN/PoE/IR Transmitter

• CAT5e/6 to HDMI with LAN/PoE/IR Receiver

• 1×IR Blaster

• 1×IR Receiver

• 24V DC Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• Input HDMI source equipment such as DVD/Blu-ray player and

output display with HDMI input.

• RS232 controlled device

• Ethernet equipped device

5. FEATURES

• HDMI 1.4 compliant with 3D formats and 4k×2k resolution support

• Supports CEC bypass function

• Simultaneous transmission of uncompressed video and audio

(1080p@60Hz/-Deep Color) over a single CAT5e/6 type cable for

up to 100m (300ft.).

• Audio support up to 7.1CH Dolby TrueHD and DTS-HD

• Connect and share up to 6 Ethernet connections at speeds up to

100Mbps

• Various controls over HDMI: CEC, RS232 and IR

• 5Play™ convergence: HD video, audio & Control ports (IR and

RS232)/LAN/PoE

• Installation friendly

• Single power supply powers both units, receiver unit is powered

through the transmitter.

Note:

1. This system was tested with CAT6/23AWG cables, results may vary

with cables of a different specication.

2. The PoE function is designed for powering compatible receiver

units only—non-PoE receivers will need their own power supply.

Receivers of another brand may not be compatible.

6. OPERATION CONTROLS AND FUNCTIONS

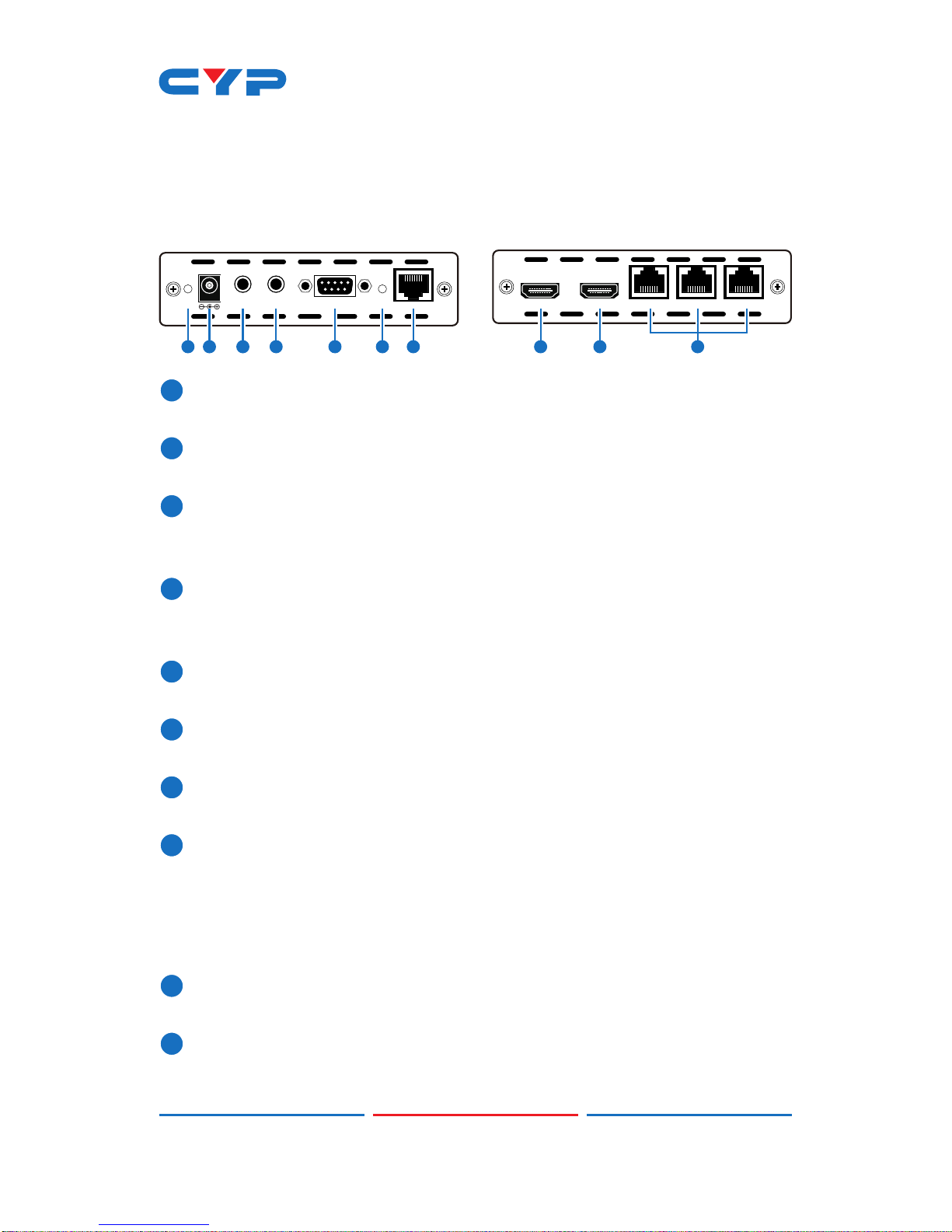

6.1 Transmitter Front and Rear Panels

HDMI

Bypass HDMI In

LAN 1 LAN 2 LAN 3

PowerDC 24V

Extender

Blaster RS232 In CAT5e/6 Out

Link

IR 2

IR 1

1 2 3 4 5 6 7 8 9

Front Rear

Power LED: The red LED will illuminate when the 24 V DC Adaptor is

connected to the AC outlet.

DC 24V: Plug the 24V DC power supply into the unit and connect

the adaptor to an AC outlet.

IR 1 Blaster: Connect with the IR blaster cables (included in the

package) for IR signal transmission. The related IR receiver port is

IR1 Extender.

IR 2 Extender : Connect with the IR receiver cables (included in the

package) for IR signal reception.The related IR transmitter port is

IR2 Blaster.

RS-232 In: Connect to a PC/laptop (with a D-Sub 9-pin male cable)

for the transmission of RS-232 commands.

Link LED: This yellow LED will illuminate when the both CAT5e/6

input and output signal is connected.

CAT5e/6 Out: Connect the transmitter and receiver via a single

CAT5e/6 type cable for all data transmission.

HDMI Bypass: Connect to a HDMI TV/monitor for instant display of

the HDMI input source signal.

Note: When the HDMI bypass is connected, no signals will be

transmitted to the receiver side. Therefore, unplug this connection

after conrming that the correct image is displayed

HDMI In: Connect to the HDMI equipped source equipment such

as DVD or Blu-ray player.

LAN 1/2/3: The LAN connections can be used to connect and

share up to 6 ethernet connections (3 at the reciver end, 3 at the

transmitter end), including computers, routers and media servers.

6.2 Receiver Front and Rear Panels

LAN 1 LAN 2 LAN 3

HDMI Out

1 2 3 4 5 6 7

Front Rear

Power

Extender Blaster

IR 2

IR 1 RS232 Out CAT5e/6 In

Link

Power LED: The red LED will illuminate when the 24 V DC Adaptor is

connected to the AC outlet.

IR 1 Extender: Connect with the IR receiver cables (included in the

package) for IR signal reception. The related IR transmitter port is

IR1 Blaster.

IR 2 Blaster: Connect t with he IR blaster cables (included in the

package) for IR signal transmission. The related IR receiver port is

IR2 Extender.

RS-232 Out: Connect to a RS-232 enabled device (with a D-Sub

9-pin female cable) for the transmission of RS-232 commands.

Link LED: This yellow LED will illuminate when the both CAT5e/6

input and output signal is connected.

CAT5e/6 In: Connect the transmitter and receiver via a single

CAT5e/6 type cable for all data transmission.

HDMI Out: Connect to a HDMI equipped TV or monitor to display

the HDMI input source signal.

LAN 1/2/3: The LAN connections can be used to connect and

share up to 6 ethernet connections (3 at the reciver end, 3 at the

transmitter end), including computers, routers and media servers.

6.3 IR Cable Pin Assignment

Power 5V

IR Blaster Signal

IR Signal

Power 5V

Grounding

IR Receiver

IR Blaster

6.4 D-Sub 9 Pin Denitions

Pin Dene TX/RX

1N/C

2TxD / RxD

3RxD / TxD

4N/C

5GND

6N/C

7N/C

8N/C

9N/C

7. CONNECTION DIAGRAM

PowerDC 24V

Extender

Blaster RS232 In CAT5e/6 Out

Link

IR 2

IR 1

HDMI

Bypass HDMI In

LAN 1 LAN 2 LAN 3

Power

Extender Blaster

IR 2

IR 1 RS232 Out CAT5e/6 In

Link

LAN 1 LAN 2 LAN 3

HDMI Out

3m 3m

60°

IR BLASTER

1.5m

60°

IR RECEIVER

3m 3m

60°

Media Server

Notebook

Media Player

TV/Display

RS232 Controlled

Device

Blu-ray/DVD Player

Modem/Router

PC with RS232

Control

Single CAT5e/6

IR Blaster

Power

Supply

IR Extender
