CTA LT-LFSDM Manual de usuario

Locking & Folding Security Laptop Desk Mount

LT-LFSDM

INSTALLATION - MANUAL

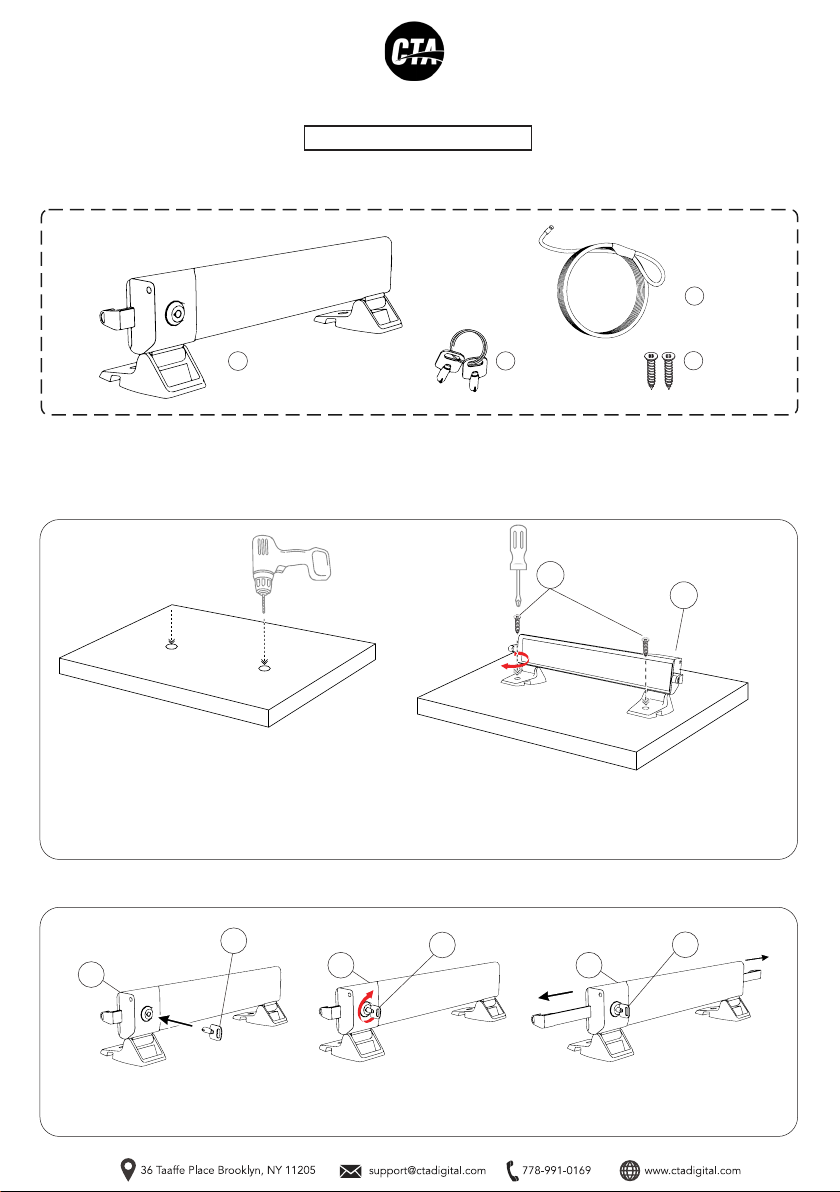

INSTALLATION:

1.Installing the Mount to Table :

2. Releasing the Holder Arms :

1A. Make holes on the surface where desk

mount (A) will be fixed as shown above.

1B. Place the laptop desk mount (A) matching the holes

drilled on surface and screw in the provided x2 screws(C)

trough the base with a screw driver (not provided) until

securely tightened.

CONTENTS:

2A. Insert the key (C) provided into the lock and turn it clockwise to set into unlocked mode and release the

arms. Slide open the arms until laptop can fit in.

**Drill and Screwdriver for

illustration only and not included

x1

Laptop

Desk Mount

A

x1

Key

Set

B

x1 Screws

C

x1

Cable

Lock

D

CA

A

B

A

B

A

B

3.Inserting Laptop into Holder :

4.Anti-Theft Cable Lock

Adjusting Tilt Angles of Holder

1.Loop one end of the cable (D) and anchor it

around something fixed such as a table leg as

illustrated above.

1. Tilt screen between 45º - 125º as shown to find preferred viewing setup.

2. Take the other end of the cable (D) with the metal end and

insert it into the holder at the location shown while key (B) is

inserted and holder (A) is still in unlocked mode. Then turn the

key to lock and remove it from the holder to have cable lock

affixed to holder.

3A. Insert the laptop and retract the arms until securely held. Turn key back counter clockwise to lock it.

**Laptop for illustration only and not included

D

AA

A

D

B

A

D

B

A

45º 125º
