Car-Interface CI-CARPLAY-CIC Manual de usuario

CI-CARPLAY-CIC

INSTRUCTION MANUAL

CARPLAY/ANDROID AUTO INTEGRATION FOR

BMW-MINI CIC HEAD UNIT

Model No.

CI-CARPLAY-CIC

Manual Ver.

1.0

Date

Jul. 25, 2019

www.car-interface.com

WARNING

In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the

interface while driving.

The reversing surveillance function just is used in reversing assistance. Please check the entire

surroundings while reversing.

All steps of installation should be done by the well-trained specialist.

During installation, the ignition key should be taken off and after all installation finished, connect

power cable last.

Please DO NOT plug or pull the connected cables in the state of power-on, in order to avoid

damaged monitor or accessory.

Install wiring in a manner in which cables will not come in contact with metal parts. The wiring

may be damaged by contact with metal parts, resulting in fire and shocks. Avoid all contact with

hot surfaces when wiring the main unit. High temperatures may damage wiring, causing shorts,

arcing and fires.

Please DO NOT put the product in the damp environment or water, in order to avoid electric

shock, damaged and fire accident caused by a short circuit.

Kindly check all components are in the box when receiving the product. If anything missing,

inform to the supplier/manufacturer.

Start the engine before loading, check the interface whether have function displayed, key control

whether correct, the vehicle interface whether having a scratch. Please give the feedback to the

supplier/manufacturer if there have any questions.

Please note that put the disassembled automotive components in a good way on the installation

process, avoid scratching the instrument panel, the leftovers of connecting cables need to

handle and DO NOT leave it in the car. The connecting plug must be insulated in order to short

circuit.

The cables should be connected in a good way, the vehicle installation space is a little small,

so reduce space usage as far as possible. There should be a good plan about connect cables,

avoid affecting the active component of connecting, such as control components of turning the

steering wheel, throttle and brake pedal. There need to be fastened after connecting cables in

case of a drop.

www.car-interface.com

FEATURES

Integrated 2 in 1 module supports Apple CarPlay and Android Auto

Support USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA,

etc.)

Offers 2 video in for front and rear view camera

Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines)

Supply pure 12V power to the front/rear view camera

Display front view automatically after shifting from “R” gear, also support setting

the duration

Adjustable left/right driving layout on CarPlay

VGA input for specific 360 panoramic system, offers a clearer picture

Operate by iDrive joystick and steering wheel buttons

Support OEM microphone

Support further software update

CarPlay

Android

USB

FPG

PDC

F/R view

Software

Auto

multimedia

camera

update

www.car-interface.com

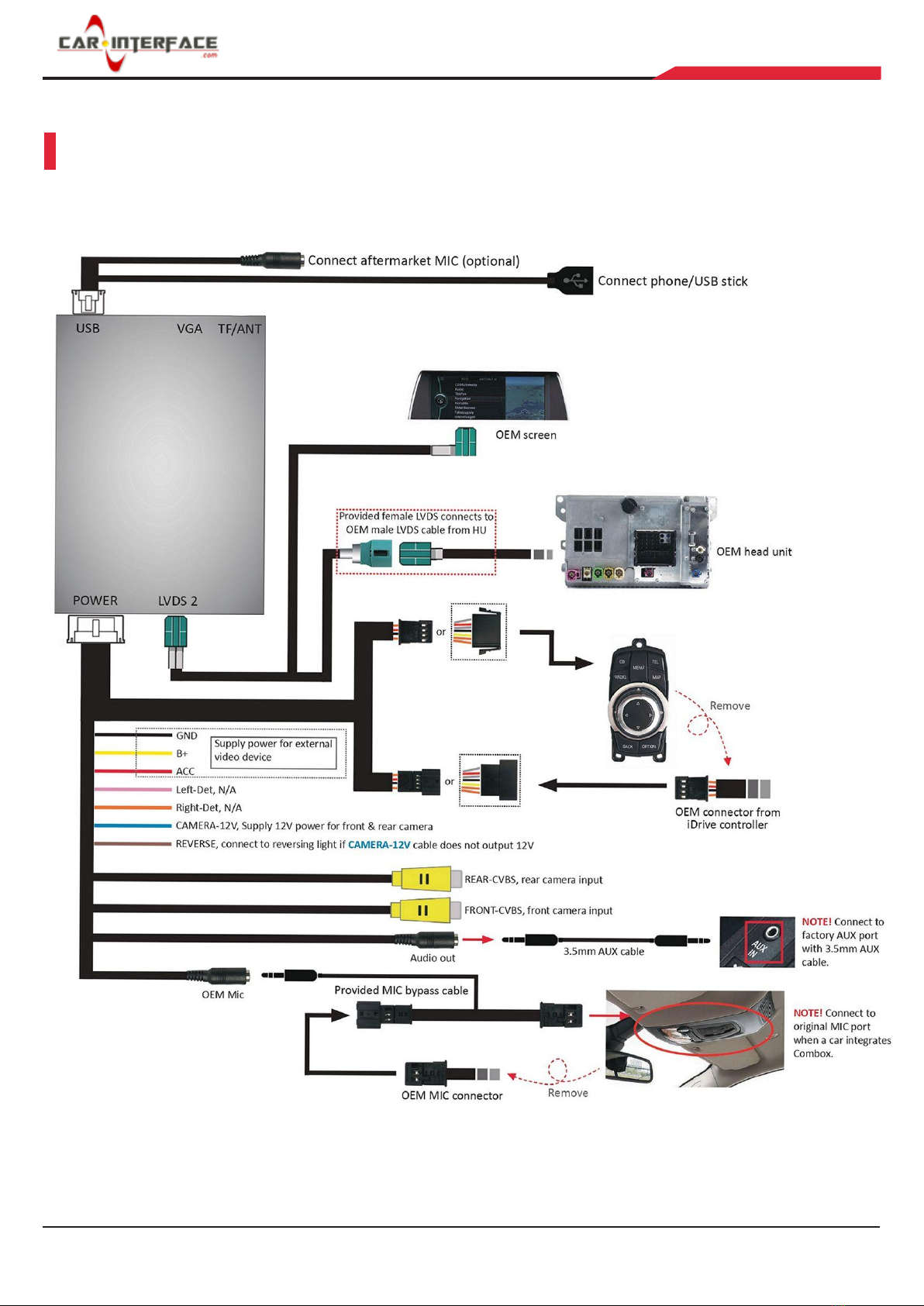

CONNECTION DIAGRAM

www.car-interface.com

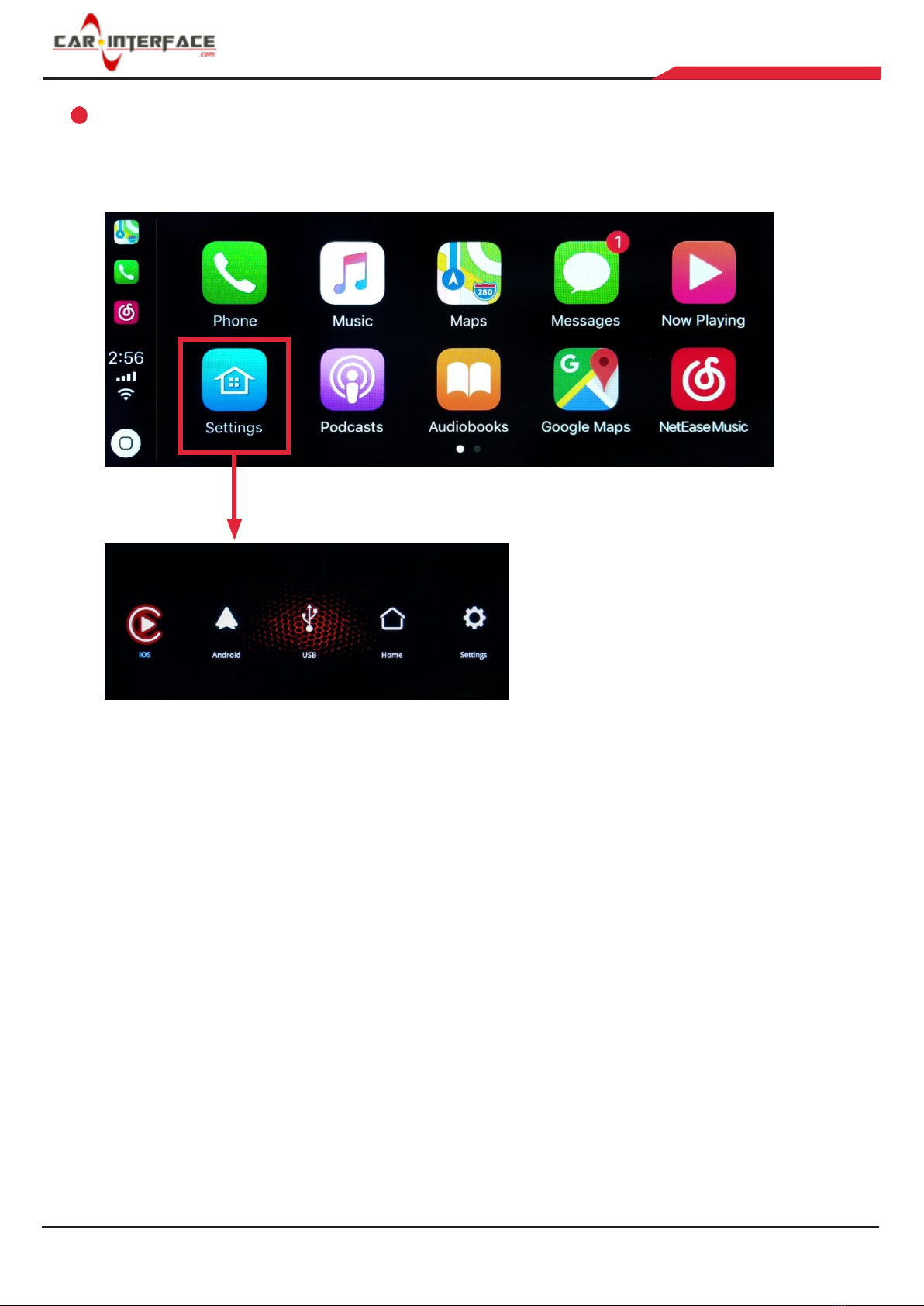

Settings

Back to

factory menu

USB

multimedia

Android

Auto

Apple

CarPlay

DIP SWITCH SETTING

NOTE! Please disconnect and reconnect interface's power for effective after changing

any DIP setting.

ADD ON MODULE UI

www.car-interface.com

MCU version

SETTINGS

Auto Phone Connect ON: CarPlay or Android Auto will start automatically

after connecting your iPhone or Android smartphone.

Driver Position Left/Right: Left/right driving mode on CarPlay.

Front Camera Time: Automatic front view display time, 0 means disable

front view, 10s max.

CP software version

www.car-interface.com

Back to add on main menu

APPLE CARPLAY

NOTE! Please disconnect iPhone's bluetooth before using Apple CarPlay.

www.car-interface.com

B area

A area

ANDROID AUTO

NOTE!

Make sure smartphone connect

to original car stereo Bluetooth

(tick CALL AUDIO, uncheck

MEDIA AUDIO) for phone call

audio delivering when using

Android Auto.

www.car-interface.com
