Car-Interface CI-CARPLAY-NTG45 Manual de usuario

Instruction Manual

CarPlay Integration for Mercedes-Benz NTG 4.5/4.7

Model No.

CI-CARPLAY-NTG45

MB-SW Ver.

060603

CP-SW Ver.

C7.1

Manual Ver.

1.3

Date

Nov. 29. 2018

www.car-interface.com

2 / 15

Content:



Warning 3



Compatibility 5



Features 6



Package Components 7



Connection Diagram 8



DIP Setting 10



Operation Instruction 11



How to switch from original to add-on interface 11



Apple CarPlay 12



Android Auto 13



Mirroring 14



USB Multimedia Playback 14

www.car-interface.com

3 / 15

△

Warning:

In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the interface while driving.

The reversing surveillance function just is used in reversing assistance. Please check the entire surroundings whilereversing.

All steps of installation should be done by the well-trained specialist.

During installation, the ignition key should be taken off and after all installation finished, connect power cablelast.

Please DO NOT plug or pull the connected cables in the state of power-on, in order to avoid damaged monitor oraccessory.

Install wiring in a manner in which cables will not come in contact with metal parts. The wiring may be damaged by contact with

metal parts, resulting in fire and shocks. Avoid all contact with hot surfaces when wiring the main unit. High temperatures may

damage wiring, causing shorts, arcing and fires.

Please DO NOT put the product in the damp environment or water, in order to avoid electric shock，damaged and fire accident

caused by a short circuit.

Kindly check all components are in the box when receiving the product. If anything missing, inform to thesupplier/manufacturer.

Start the engine before loading, check the interface whether have function displayed, key control whether correct, thevehicle

www.car-interface.com

4 / 15

interface whether having a scratch. Please give the feedback to the supplier/manufacturer if there have any questions.

Please note that put the disassembled automotive components in a good way on the installation process, avoid scratching the

instrument panel, the leftovers of connecting cables need to handle and DO NOT leave it in the car. The connecting plug must be

insulated in order to short circuit.

The cables should be connected in a good way, the vehicle installation space is a little small, so reduce space usage as far as

possible. There should be a good plan about connect cables, avoid affecting the active component of connecting, such as control

components of turning the steering wheel, throttle and brake pedal. There need to be fastened after connecting cables in case of a

drop.

www.car-interface.com

5 / 15

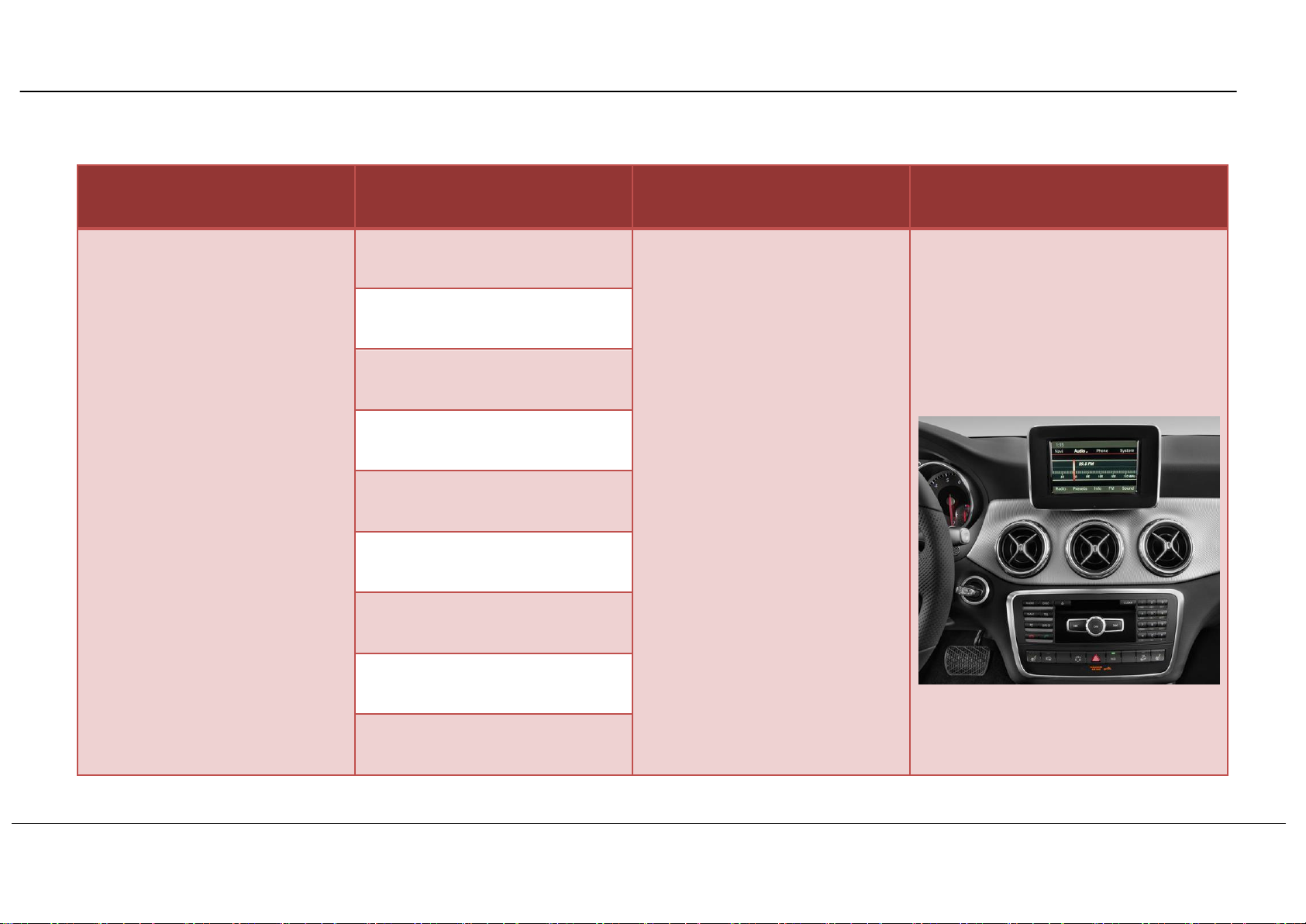

Compatibility:

Brands

Class

Years

Original System

Mercedes-Benz

A Class (W176)

2012 - 2015

NTG 4.5/4.7 system with 5.8/7 inch

monitor

4 Pin LVDS connector

B Class (W246)

C Class (W204)

E Class (W212)

CLA (C117)

CLS (W218)

GLA (X156)

GLK (X204)

ML (W166)

www.car-interface.com

6 / 15

Apple CarPlay Android Auto

Mirroring

USB multimedia

FPG

PDC

2*CVBS in

Software update

Features:

Integrated 3 in 1 module supports Apple CarPlay, Android Auto, and screen mirroring functions

Supports USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.)

Offers 2 CVBS video-in for front/rear view camera

Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines)

Supply 12V power to the backup camera

2 alternative ways display front view (DIP setting): display automatically when shifted from “R”gear or long press “BACK”button

VGA input for specific 360 panoramic system, offers a clearer picture

Operate by OEM Comand controller & steering wheel buttons

Support further software update by TF card

www.car-interface.com

7 / 15

Main Unit

Dimension: 143*102*26 mm

Quadlock Main Power Cable

4 pin LVDS Cable

Package Components:

USB/MIC Cable

Optional Component:

External Microphone

(Needed when a car without

OEM MIC)

8 / 15

www.car-interface.com

Connect to head unit

OEM Head Unit

OEM Screen

Provided 4pin LVDS Cable

CarPlay Integration for NTG4.5 OEM 4pin

LVDS Cable

Connection Diagram

OEM Quadlock

Connector

Main Quadlock Power Cable

Connect External MIC (Optional)

See chart A below

USB Connector

USB

360 / VGA

LVDS 2

LVDS 1

POWER

9 / 15

www.car-interface.com

Chart A:

ACC_OUT

B+

GND

Supply power for DVR or other video

devices. Just connect the ACC_OUT(RED)

when use aftermarket front viewcamera

FM audio transmitter

BT audio transmitter GND 2 Connect GND if there is any audio noise

NOTE! Other ways like connect to FM/BT audio transmitter

could be also used for audio transmission to factory radio.

LEFT_DET

RIGHT_DET

N/A

CAM_POWER Supply 12V power for backup camera

REVERSE Reverse detect (Connect to reverse light if

CAM_POWER cable does not output12V)

How to delivering audio to

OEM radio

REAR_CVBS Rear view camera video input

Connect to AUX interface after

activating OEM AUX function in

the engineering menu.

FRONT_CVBS

AUDIO OUT

Front view camera/DVR video input

AUX audio output (Connect to external

audio adapter kits for sound deliveringto

OEM radio)

10 / 15

www.car-interface.com

OFF

NOTE! Please reboot the interface for effective after changing any DIP setting.

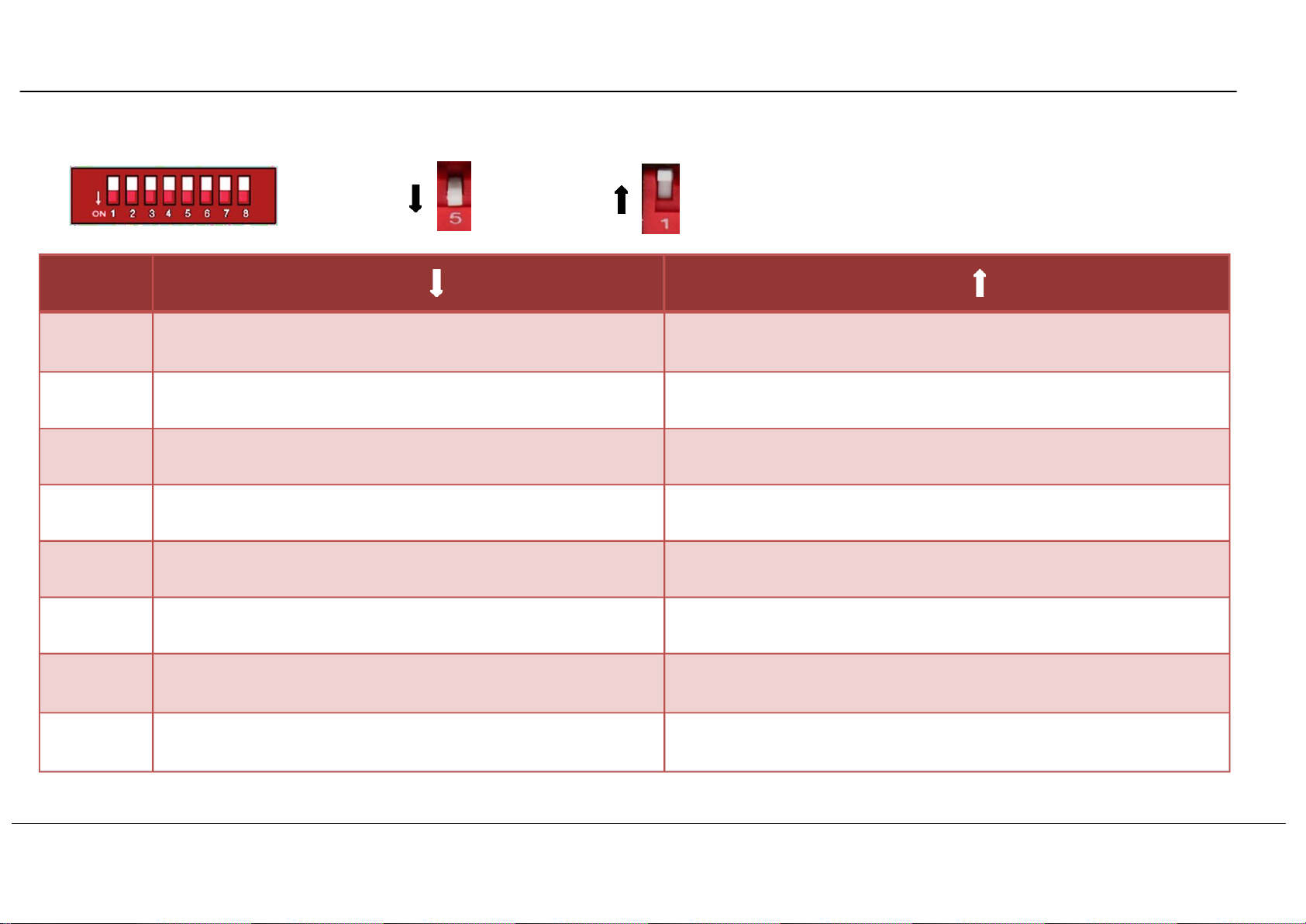

DIP Setting:

OFF

Disable Dynamic Parking Guideline

Enable Dynamic Parking Guideline

Disable 360 Panoramic

Enable 360 Panoramic

CVBS

VGA (360 mode)

Display front view camera for 10S automatically after shifted

from “R” gear

Skip front view camera (Long press “BACK” button to display front

view/DVR)

5.8 inch

7 inch

Keep “ON” status

Original Rear View Camera

Aftermarket Rear View Camera

External Microphone

Original Microphone
