Car-Interface CI-C1-RNSE Manual de usuario

Version 08.12.2015 CI-C1-RNSE

c.LOGiC-Interface

CI-C1-RNSE

Compatible with navigation systems

Audi Navi Plus RNS-E

Only for vehicles WITHOUT factory rear-view camera

Product features

• full plug and play multimedia interface

• 1 AV-input with separate IR-control channel

• control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, …

• after-market rear-view camera input

• automatic switching to rear-view camera input (optional coding necessary to switch from

OEM-modes)

• rear-view camera power (+12V max. 1A)

• rear-seat-entertainment AV-output

• power on remote out trigger signal (+12V ma.x 1A) to switch on connected devices

Version 08.12.2015 CI-C1-RNSE

Page1

Contents

1. Prior to Installation

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

2. Connection schema

3. Installation

3.1. Interconnecting Interface-box and harness

3.2. Connections to head-unit

3.3. Connecting peripheral devices

3.3.1. AV-source

3.3.2. Installing AV-source’s IR-sensor additionally

3.3.3. After-market rear-view camera

4. Operation

4.1. Selecting the c.LOGiC as current AV-source

4.2. Assigning device control

4.3. Remote functions

4.4. Picture settings

5. Specifications

Appendix A –Device control table

Version 08.12.2015 CI-C1-RNSE

Page2

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We offer

free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

If remote function for the connected devices shall be used, additional an IR-

remote cable and Y-adapter are needed, see chapter AV-source .

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

Interface-box

C1C-M01

HW_____ SW_____

Harness

C1C-RNSE

Version 08.12.2015 CI-C1-RNSE

Page3

1.2. Check compatibility of vehicle and accessories

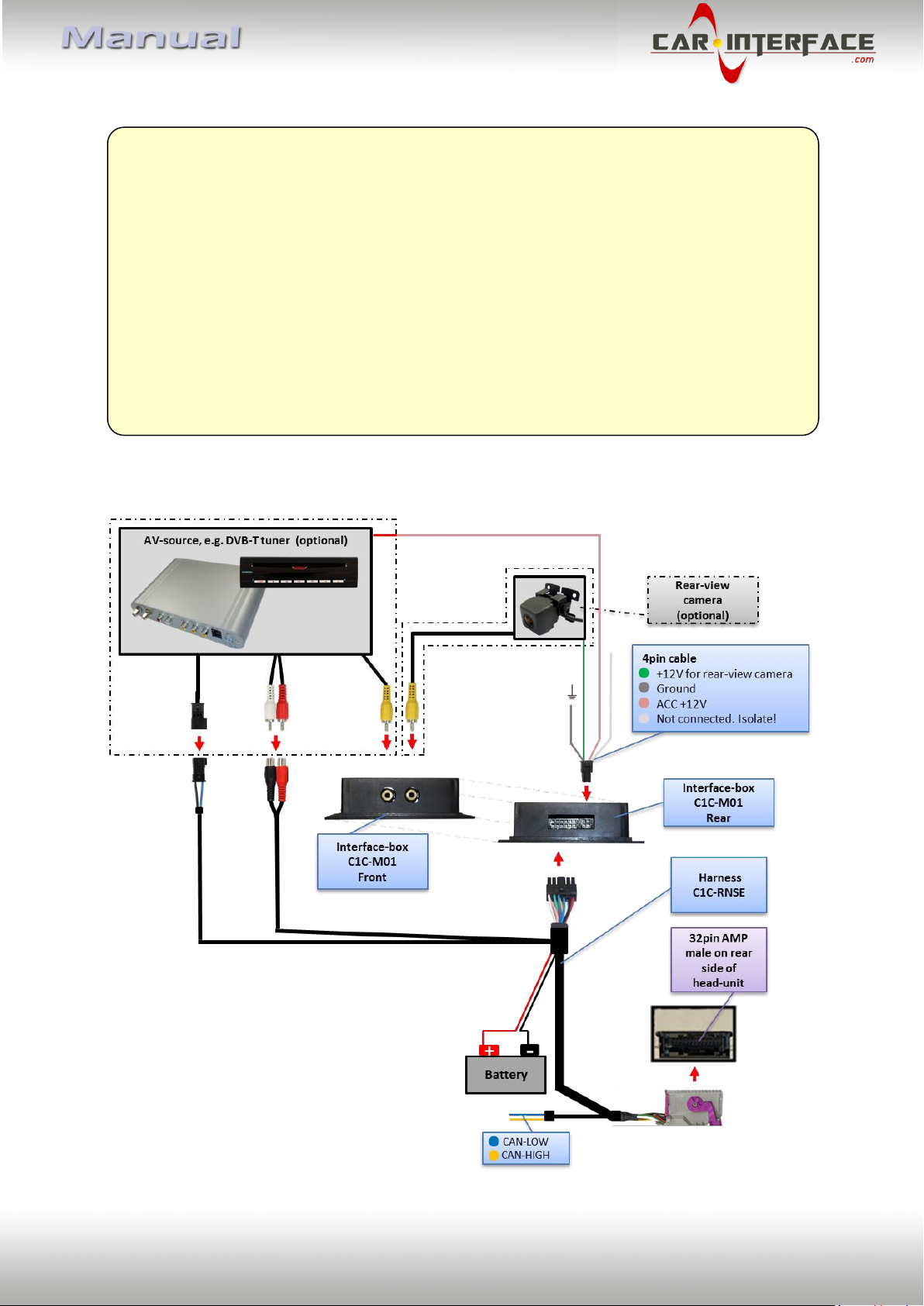

2. Connection schema

Requirements

Vehicle Audi A3 (8L, 8P & 8P Sport), A4 (Cabrio 8H/B7/8E, B6/8E), A6 (4B),

TT (8J), Lamborghini

Navigation Audi Navi Plus RNS-E all-in-one navigation 16:9

Limitations

Factory-TV-tuner Must NOT be installed.

After-market rear-view Only compatible with NTSC-cameras.

camera Automatic switching to camera from OEM mode only works

after coding the head-unit to rear-view camera per diagnosis

computer (Only possible on RNS-E with minimum software 550

and till year 2010).

Version 08.12.2015 CI-C1-RNSE

Page4

3. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

Place of installation is behind the head-unit.

3.1. Interconnecting Interface-box and harness

Plug harness C1C-RNSE into 12pin Molex of Interface-box C1C-RNSE.

Version 08.12.2015 CI-C1-RNSE

Page5

3.2. Connections to head-unit

Remove the head-unit from the dash-board.

Plug female 32pin AMP-connector of C1C-RNSE into male 32pin AMP-socket of head-

unit.

Note: If the 32pin AMP-socket of the head-unit is already occupied, the vehicle probably has

a factory rear-view camera or a factory TV-tuner. In case of a factory tuner, it must be

uninstalled: disconnect the female 32pin AMP-connector of the factory harness and

disconnect all wires from the factory TV-tuner. In case of a factory rear-view camera you

have ordered/received the wrong product, call for support.

Connect the loose red cable to +12V battery, the loose black cable to ground, the

loose yellow cable to CAN-HIGH and the loose blue cable to CAN-LOW of the vehicle.

No liability for vehicle wire colors and pin definition! Possible changes by the vehicle

manufacturer. The given information must be verified by the installer.

Pin of Quadlock

Assignment

Pin 15

+12V Permanent

Pin 12

Ground

Pin 9

CAN HIGH 9

Pin 10

CAN LOW

Quadlock male of vehicle

Version 08.12.2015 CI-C1-RNSE

Page6

3.3. Connecting peripheral devices

It is possible to connect one after-market AV-source and an after-market rear-view camera

to the c.LOGiC Interface.

Before final installation of the peripheral devices, we recommend to test-run the c.LOGiC

functions to detect incompatibility of vehicle, navigation, factory accessories or peripheral

devices as soon as possible.

3.3.1. AV-source

The c.LOGiC interface has the possibility to connect and remotely control by navigation

buttons one pre-programmed device. The device list in the device control table (Appendix A)

shows the pre-programmed remote channels and the related IR-remote cables STA-xxx

which must be ordered separately for the control of the device.

Using the respective STA-xxx IR-control cable, interconnect the blue female 3pin AMP

connector of harness C1C-RNSE and the IR-port of the AV-source.

Using an RCA-cable, interconnect the female RCA-port Video In of the Interface-box

C1C-M01 with the AV-output of the AV-source.

The pink ACC-output wire (+12V max. 1A) of the 4pin cable can be connected to the

ACC-input wires of the connected device to switch it on. It carries +12V when the

head-unit is running.

Version 08.12.2015 CI-C1-RNSE

Page7

3.3.2. Installing AV-source’s IR-sensor additionally

Additionally to the control via OEM navigation, it is possible to install the original IR-sensor

of a connected device. By using the respective Y-adapter (e.g. STA-Y35MM or STA-RJ12) for

the IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be

connected and used simultaneously. Installation of the IR-sensor is recommended as the

controls via navigation are limited, and not all functions may be covered.

3.3.3. After-market rear-view camera

Connect the video RCA of the after-market rear-view camera to female

RCA connector R-CAM IN of Interface-box C1C-M01.

Connect the green wire of the 4pin cable to the camera power supply (+12V max. 1A)

of the after-market rear-view camera and the grey wire to ground of the vehicle. The

green wire is high (+12V max. 1A) when reverse gear is engaged. The white wire of

the 4pin cable is not connected and has to be isolated. In some cases it is possible

that the automatic switching does not work. In this case connect the white wire to

the reverse gear light (+12V).

Connect pin 2 of chamber C of the Quadlock to

reverse gear light (+12V) (loose white cable

included in harness C1C-RNSE).

Note: Only compatible with NTSC-cameras.

Automatic switching on reverse gear from OEM

mode to camera input only works after coding

the head-unit per diagnosis computer (Only

possible on RNS-E with minimum software 550

and till year 2010).

If coding is done by diagnosis PC, code rear-view camera to value 1 in channel 04,

controller 56. After coding the vehicles needs to be locked for at least 66 minutes to

reach general sleep mode.

Version 08.12.2015 CI-C1-RNSE

Page8

4. Operation

4.1. Selecting the c.LOGiC as current AV-source

Push the CD/TV button of the head-unit to choose the

c.LOGiC as current AV-source.

4.2. Assigning device control

After selecting the c.LOGiC as current AV source, longpress key SETUP. The FIS will display

“TV 1” and “RC01”. Turn right knob until the device-related IR-code as described in device

control table for the AV-source (appendix A) is reached. Push right knob to confirm the

assignment.

Note: The IR-control channel TV1 is preset to RC-Code 41 compatible DVB-T tuners.

4.3. Remote function

The button assignment table shows which functions of the connected devices can be

executed by head-unit buttons. Once the AV-input is activated, the head-unit button in the

left column will execute the function described in the corresponding device column. The

function description equals the remote control buttons of the optional c.LOGiC remote

control or the additional device. On the additional device the writing may vary (e.g. AV

instead of Source).

Version 08.12.2015 CI-C1-RNSE

Page9

4.4. Picture settings

To enter the picture settings menu longpress the RETURN button.

The picture settings menu always starts with the

brightness settings. The respective current picture

value is displayed on the instrument panel.

Press the knob to change from brightness to

colour and contrast (after contrast, the interface

starts again with brightness).

Turn the knob to change the current picture value.

To quit the settings menu press RETURN-button.

Button assignment table c.LOGiC Audi Navi Plus RNS-E

Head-

unit

button

DVB-T

USB-LiNK

DVD-player

DVD-

changer

iPod®-control

Analog-tuner

CH -

TRACK -

CH -

1 long

EPG

POWER

PBC

SHUFFLE

CH +

TRACK +

CH +

OK / PLAY

MODE

↑

VOL +

↓

VOL -

→

CH +

6 long

SCAN

VOL+

PLAY

SCAN

←

CH -

7 long

POWER

VOL-

DISC

EJECT

MODE

EXIT

STOP

PLAY

MUTE

SETUP

LIGHT

ADJUST
