Billion BiPAC 7800(N) Manual de usuario

BiPAC 7800(N)

(802.11n) Dual WAN

ADSL2+ Firewall Router

Quick Start Guide

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

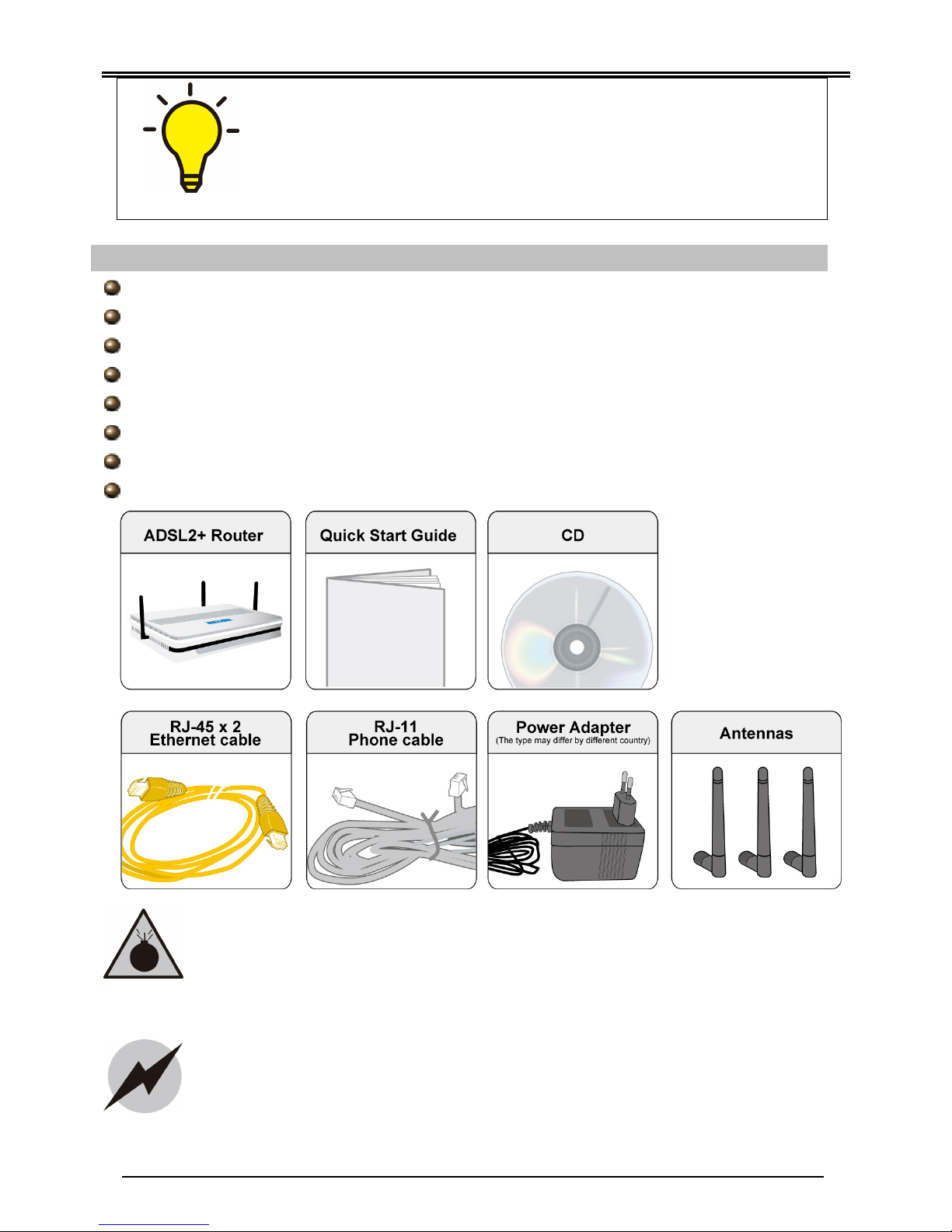

Package Contents

BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

CD containing the on-line manual

RJ-11 ADSL/telephone cable

Ethernet (RJ-45) cable

Three 2dBi detachable antennas (Wireless model only)

Power adapter

Quick Start Guide

Splitter/ Micro-filter (Optional)

Warning

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON

CD-ROM.



Do not use the

router

in high humidity or high temperatures.

Do not use the same power source for the router as other

equipment.

Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.



Avoid using this

product

and all

accessories

outdoors.



Place the router on a stable surface.

Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Attention

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

The Front LEDs

The Rear Ports

*Note: For WPS configuration, please refer to the WPS section of User Manual.

Connect the

supplied power

adapter to this jack

Connect the supplied

RJ-11 cable to this port

when connecting to the

ADSL/telephone

network

Press more

than 5 seconds

to restore the

device to its

default mode.

Connect your computer

to a LAN port using the

included Ethernet cable

(with RJ-45 cable)

When power on

LED

will

lit

green. When the system is

booting it will blink orange at the

same time. While the system is

ready it will only be lit green.

When system boot fails or in

emergency mode it will only be

lit orange.

WAN 10/100M Ethernet port

(with auto crossover

support); connect Cable

Modem, VDSL, and Fiber

Modem or PON optic lines

with your RJ-45 cable

Lit when connected to an

Ethernet device.

Lit green for 1000Mbps;

Lit orange for 10/100Mbps.

Blinking when data is being

Transmitted / Received.

Lit Green when

successfully connected

to an ADSL DSLAM,

(“line sync”).

it when connected to

broadband connection device.

Lit orange for 10/100Mbps.

Blinking when data is

transmitted

received

Power

ON/OFF

switch

Lit green when

wireless

connection is established. Flash

orange when WPS configuration

is in progress. Flashing green

when data is sent / received.

Connect the

detachable antennas

Push WPS button to

trigger Wi-Fi Protected

Setup *

Lit orange when WAN port

fails to get IP address.

Flashes green when WAN port

gets IP ad dress successfully

and when data is transmitted.

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

Users will not be able to connect to the internet through EWAN if DSL is already connected to

the internet. Only one connection type (EWAN or DSL) is allowed to connect to the internet at

one time.

ADSL Router Mode

Broadband Router Mode

1. Power Connection

Plug the supplied power adapter to the wall

jack and the other side to the router.

Please note that the plug type may differ according to different country.

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to one of the Giga Ethernet ports, and

the other side to the PC’s Ethernet interface.

3. EWAN Connection

Connect the supplied RJ-45 Ethernet cable to the Ethernet WAN port (EWAN), and

connect the other side to another alternative broadband device, such as Cable

Modem, VDSL, Fiber Modem or PON optic lines.

4. ADSL Connection

Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the other

side to the phone jack on the wall.

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

5. Splitter/ Micro-filter Connection

The Splitter / Micro-filter are important for ADSL installation, they help direct

high-frequency signals to the ADSL modem & low frequency signals to the

telephone or other analogue device to prevent inter-modulation distortion & get

good speed/stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

b) Micro-filter connection

If the installation has several telephones or other analog devices, then an internal

micro-filter can be employed at each analog device.

-O

Make sure that device is powered on, Ethernet cable is connected to your PC and ADSL line is

in sync. Then open up a web browser and you will automatically be directed to the step-by-step

easy sign on configuration wizard which will guide you to complete the basic network

configuration to connect to the internet.

Billion BiPAC 7800(N) (802.11n) Dual WAN ADSL2+ Firewall Router

1. Open the web browser and type http://192.168.1.254 in the browser's address box. This

number is the default IP address for this router. Press Enter.

2. A username and password window will appear. The default username is “admin”, and

password is “admin”. Press OK to proceed.

3. You will get a status report web page and main menu screen.

Please see the relevant sections of user manual for detailed instructions on how to

configure your router.

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

3. Frequent loss of ADSL line sync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Most problems can be solved by referring to the Troubleshooting section in the user manual.If

you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

WORLDWIDE

http://www.billion.com

Billion Product Registration

Billion is committed to before and after sales customer services. You will get the most out of your Billion's products

after registration. Please register online at http://www.billion.com/register to receive valuable services and support

from us.

BiPAC

800

(N)

V1.0
