Billion BIPAC 7500 Manual de usuario

BIPAC-7500G

802.11g ADSL VPN Firewall Router with

3DES Accelerator

Quick Start Guide

Billion BIPAC-7500G - 802.11g ADSL VPN Firewall Router with 3DES Accelerator

Package Contents

BIPAC-7500GADSL VPN Firewall Router

CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

Console (PS2-RS232) Cable

AC-DC power adapter (12V DC, 1A)

ADSL Line Filter (Optional)

(Note: Included for Australia)

Two 5dbi Antennae

This Quick Start Guide

For more detailed instructions on configuring and using

the 802.11g ADSL VPN Firewall Router, please refer to

the on-line manual.

 Do not use the BIPAC-7500G ADSL VPN Firewall Router in high

humidity or high temperatures.

 Do not use the same power source for the BIPAC-7500G ADS

VPN Firewall Router as other equipment.

 Do not open or repair the case yourself. If the BIPAC-7500G ADSL

VPN Firewall Router is too hot, turn off the power immediately and

have it repaired at a qualified service center.

Warning

 Place the BIPAC-7500G ADSL VPN Firewall Router on a stable

surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

ttention

Quick Start Guide

The Front LEDs

LED Meaning

1 PWR Lit when power is ON.

2 SYS Lit when the system is ready.

3 LAN port 1 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps

Blinking when data is transmitted/received.

4 LAN port 2 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps

Blinking when data is transmitted/received.

5 LAN port 3 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps

Blinking when data is transmitted/received.

6 LAN port 4 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps

Blinking when data is transmitted/received.

7 WLAN Lit green when the wireless connection is established. Flashes

when sending/receiving data.

10 MAIL Flash when there is Email in your configured Email account.

11 PPP Lit when there is a PPPoA / PPPoE connection.

13 ADSL Lit when successfully connected to an ADSL DSLAM (“linesync”).

Billion BIPAC-7500G - 802.11g ADSL VPN Firewall Router with 3DES Accelerator

The Rear Ports

Port Meaning

1 LINE Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

2 CONSOLE Connect a PS2/RS-232 cable to this port when connecting to a

PC’s RS-232 port (9-pin serial port).

3 LAN

1X — 4X

(RJ-45 connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the

four LAN ports when connecting to a PC or an office/home

network of 10Mbps or 100Mbps.

RESET

After the device is powered on, press it to reset the device or

restore to factory default settings.

0-3 seconds: reset the device

6 seconds above: restore to factory default settings (this is used

when you cannot login to the router. E.g. forgot the password)

5 PWR Connect the supplied power adapter to this jack.

6 Power Switch Power ON/OFF switch

Quick Start Guide

Connecting Your ADSL Router

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR, SYS and WLAN LEDs are lit steadily and that the relevant LAN LED

is lit.

Billion BIPAC-7500G - 802.11g ADSL VPN Firewall Router with 3DES Accelerator

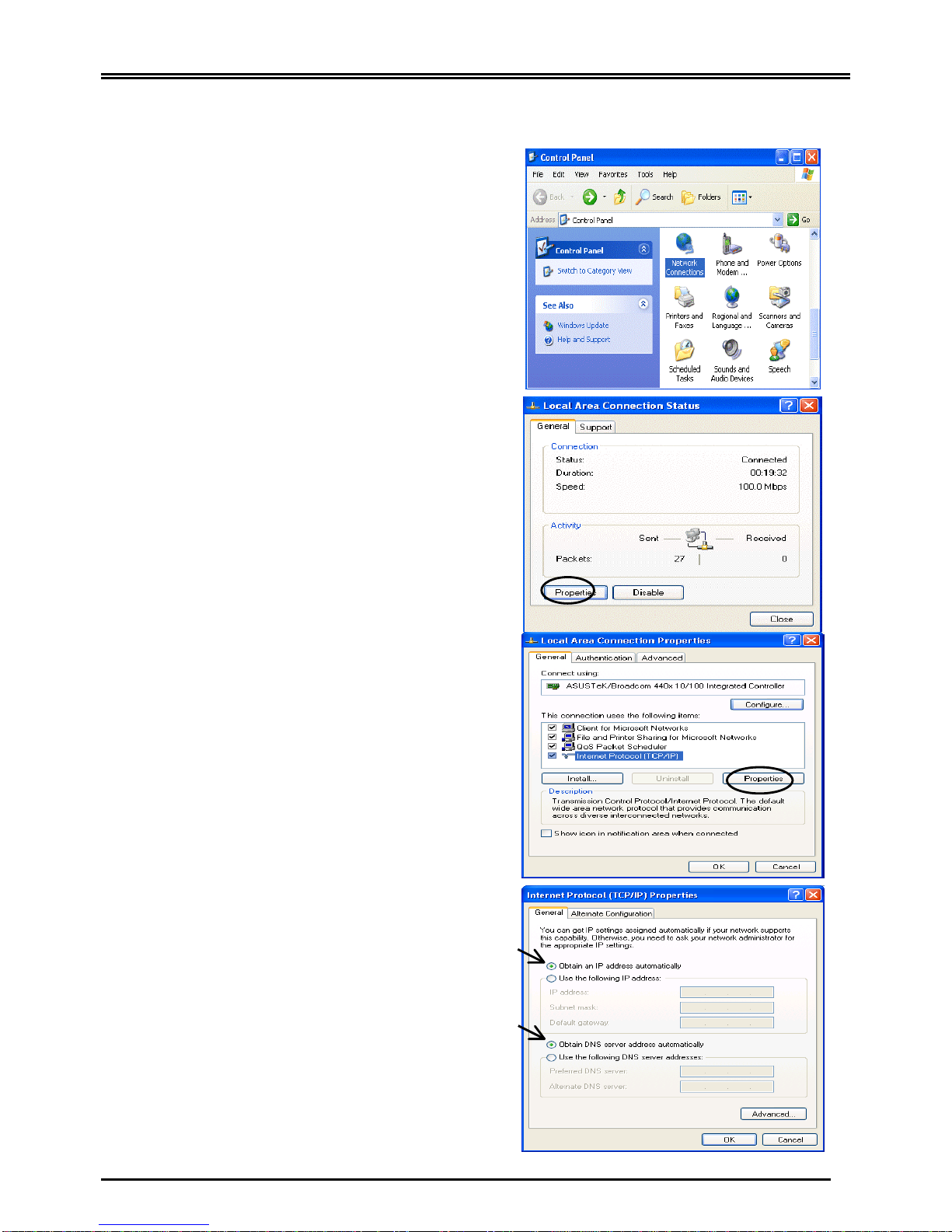

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

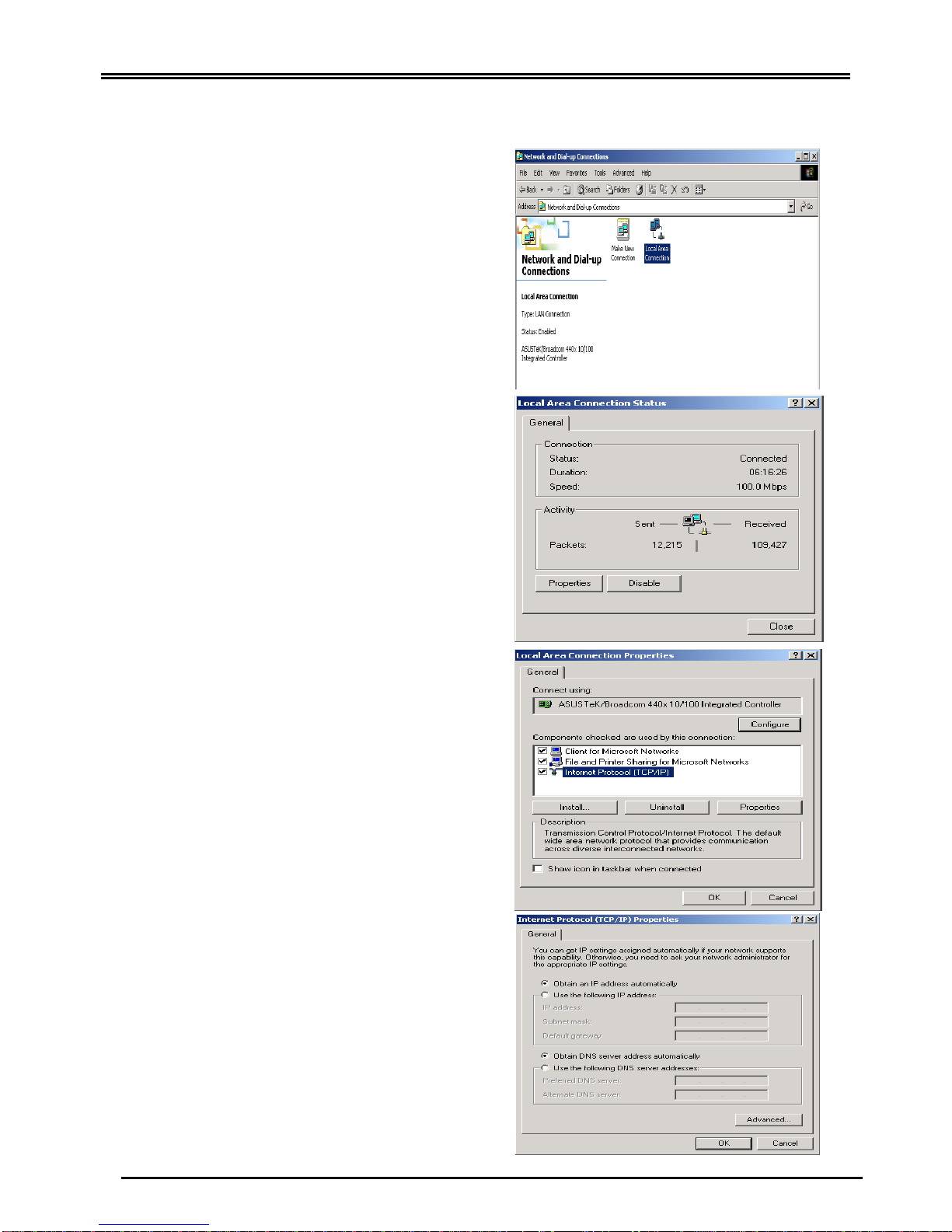

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Billion BIPAC-7500G - 802.11g ADSL VPN Firewall Router with 3DES Accelerator

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

choose the Protocols tab.

2. Select TCP/IP Protocol and click

Properties.

3. Select the Obtain an IP address from a

DHCP server radio button and click OK.
