Billion BiPAC 7401V(G)P R4 Manual de usuario

BiPAC 7401V(G)P R4

VoIP/ (802.11g) ADSL2+

Firewall Router

Quick Start Guide

Billion BiPAC 7401V(G)P R4 VoIP/ (802.11g) ADSL2+ Firewall Router

-1-

BiPAC 7401V(G)P R4 ADSL2+ Router

CD (containing manual, utility, QSG)

RJ-11 ADSL/ telephone cable

Ethernet (RJ-45) cable

One 2dBi detachable antenna (Wireless model only)

Power adapter

RJ-45 to RS-232 Console Kit

Quick Start Guide

Splitter/ Micro-filter (Optional)

Warning

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON

CD-ROM.



Do not use the

router

in high humidity or high temperatures.

Do not use the same power source for the router as other

equipment.

Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.



Avoid using this

product

and all

accessories

outdoors.



Place the router on a stable surface.

Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Attention

Quick Start Guide

-2-

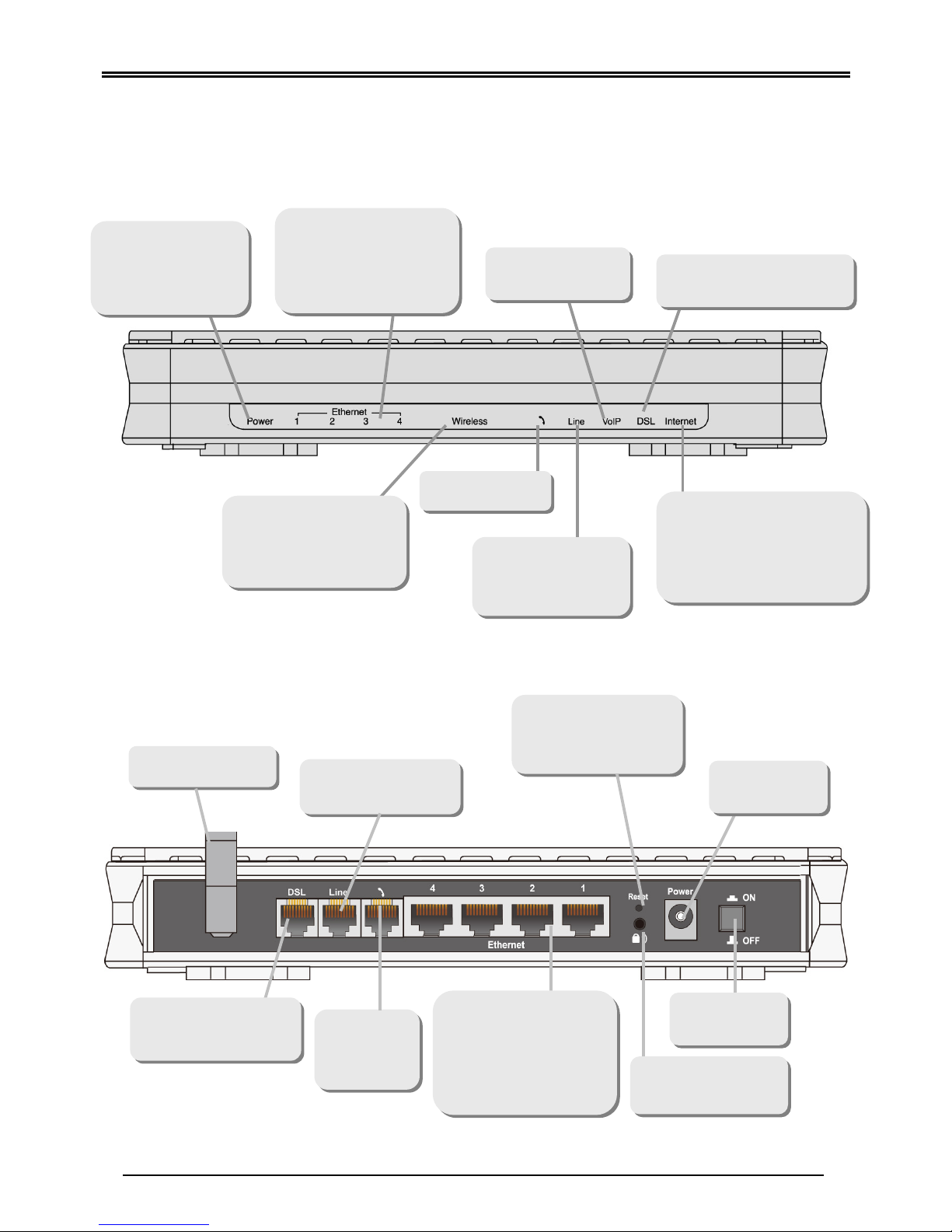

The Front LEDs

The Rear Ports

* Note: For WPS configuration, please refer to the WPS section of User Manual.

Connect

to the

ADSL

telephone network with

RJ-11 cable (telephone).

Press

he RESET button

for 6 seconds and above

to restore the factory

default settings.

Connec

to PC or an

office/home network of

10Mbps or 100Mbps with

UTP Ethernet cable. Port

4 can be either a LAN or

Console port at a time but

not both.

Connect

with

the

detachable antenna.

Lit

orange

when

power is ON. Lit red

means system is fail.

Lit green when the

system is ready.

Connect

to the

telephone jack on the

wall with RJ-11 cable.

Lit green when one of

LAN ports is connected to

an Ethernet device.

Blink when data is being

Transmitted / Received.

Lit Green when the device is

successfully connected to an

ADSL DSLAM. (“line sync”)

Lit green when

wireless

connection is

established. Flash green

when the device is

sending/receiving data.

Power ON/OFF

switch

Lit

green

when the

inbound and outbound

calls are transmitted

through PSTN.

Lit

green

when the

SIP Registration is

OK.

Connect

o an

analog phone

set with RJ-11

cable.

Lit red when WAN port fails to

get IP address. Lit green when

WAN port gets IP address

successfully. Lit off when

device in bridged mode or

WAN connection not present.

Lit green when the

phone is off hook.

Connect

it with

the supplied

power adapter.

Push

to trigger Wi

Protected Setup

function.

Billion BiPAC 7401V(G)P R4 VoIP/ (802.11g) ADSL2+ Firewall Router

-3-

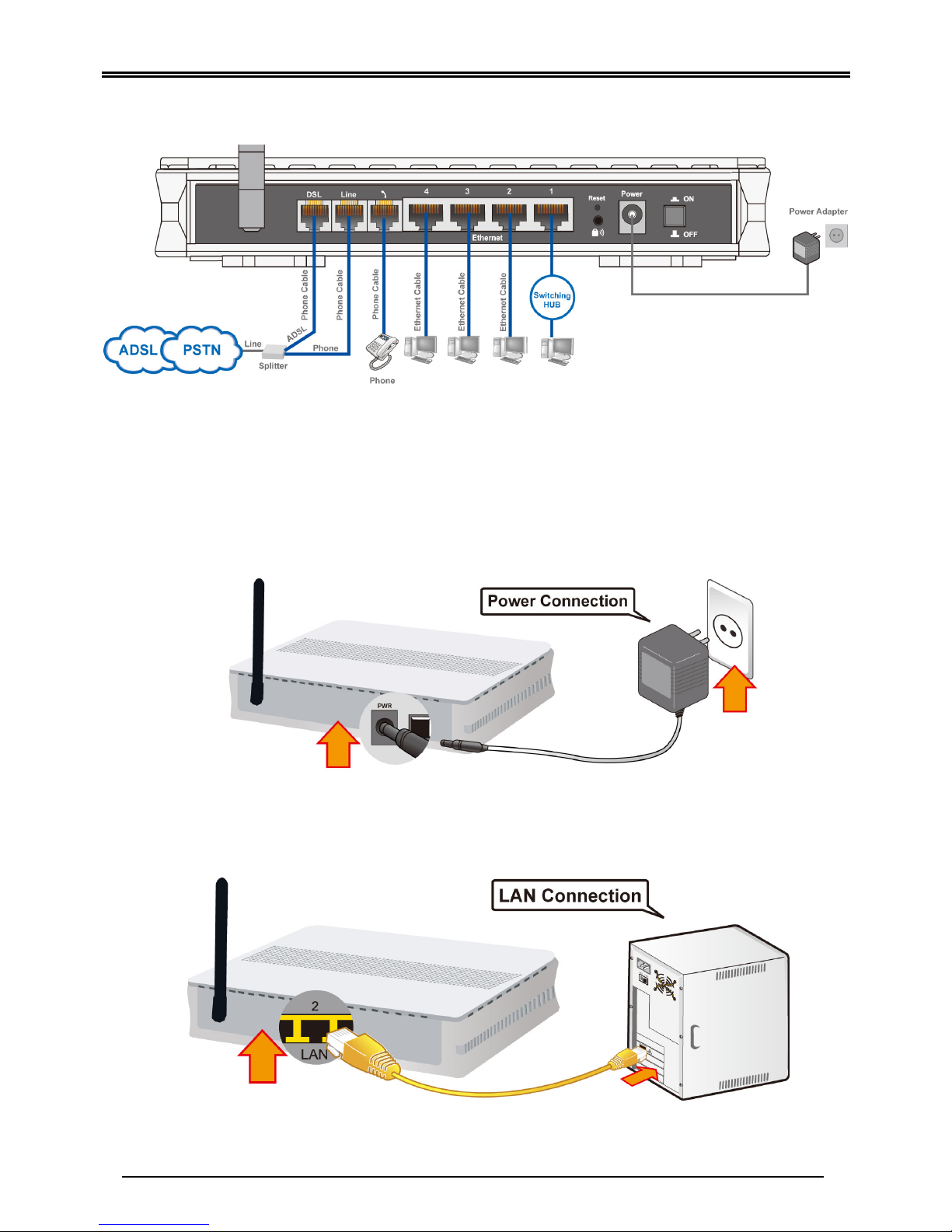

1. Power Connection

ug the supplied power adapter to the wall jack and the other side to the router.

Please note that the plug type may differ according to different countries.

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the

other side to the PC’s Ethernet interface.

Quick Start Guide

-4-

3. Phone Connection

Connect RJ-11 cable to the router’s phone port and the analog phone set.

4. Line Connection

a) Connect RJ-11 cable to the router Line port and the splitter phone port.

b) Connect RJ-11 cable to the router DSL port and the splitter ADSL port.

c) Connect RJ-11 cable to the splitter Line port and the phone jack on the wall.

5. EWAN Connection

Connect RJ-45 Ethernet cable to the Ethernet port # 1 (EWAN), and connect the

other side to another alternative broadband device, such as Cable Modem, VDSL,

Fibre Modem or PON optic lines. Please refer to User Manual for detail instruction.

Billion BiPAC 7401V(G)P R4 VoIP/ (802.11g) ADSL2+ Firewall Router

-5-

6. Splitter/ Micro-filter Connection

The Splitter / Micro-filter are important for ADSL installation, they help direct

high-frequency signals to the ADSL modem & low frequency signals to the

telephone or other analogue device to prevent inter-modulation distortion & get

good speed/stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

b) Micro-filter connection

If the installation has several telephones or other analog devices, then an internal

micro-filter can be employed at each analog device.

After you complete the hardware installation insert CD into the CD Drive to run the setup utility.

The setup utility will auto-run. Follow the step-by-step configuration wizard & it will guide you to

setting up the basic network configuration.

Quick Start Guide

-6-

1. Open the web browser and type http://192.168.1.254 in the browser's address box. This

number is the default IP address for this router. Press Enter.

2. A username and password window will appear. The default username is “admin”, and

password is “admin”. Press OK to proceed.

3. You will get a status report web page and main menu screen.

Please see the relevant sections of user manual for detailed instructions on how to

configure your router.

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

3. Frequent loss of ADSL line sync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Most problems can be solved by referring to the Troubleshooting section in the User Manual.If

you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

WORLDWIDE

http://www.billion.com

BiPAC

740

(

)

V1.0
