BIPAC-711C2 / 710C2

ADSL Modem / Router

Quick Start Guide

Billion BIPAC – 711C2 / 710C2 – ADSL Modem / Router

Package Contents

BIPAC-711C2 / 710C2 ADSL Router

CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

One USB cable (for 711C2 only)

AC-DC power adapter (12VDC, 1A)

This Quick Start Guide

 Do not use the BIPAC-711C2 / 710C2 in high humidity or high

temperatures.

 Do not use the same power source for the BIPAC-711C2 / 710C2

as other equipment.

 Do not open or repair the case yourself. If the BIPAC-711C2 /

710C2 is too hot, turn off the power immediately and have it

repaired at a qualified service center.

Warning

 Place the BIPAC-711C2 / 710C2 on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

ttention

For more detailed instructions on configuring and using

the ADSL Modem/Router, please refer to the on-line

manual.

Quick Start Guide

The Front LEDs

5 3 1

7 4 2

LED Meaning

1 PWR Lit green when power adapter is connected.

2 SYS When lit, it indicates that the device is working properly.

3 USB When this LED is lit, it indicates that the USB port is connected to

the PC and working properly.

4 LNK Lit green when the LAN link is connected.

5 COL Flashes green when collision happens

7 ADSL When lit, it indicates that the ADSL (Line) port is connected to the

DSLAM and working properly.

The difference between BIPAC-711C2 and 710C2 is that BIPAC-710C2

does not have USB port; the rest functions are the same as BIPAC-

711C2.

Billion BIPAC – 711C2 / 710C2 – ADSL Modem / Router

The Rear Ports

6 4 3 1

5 2

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

3 LAN

(RJ-45 connector)

Connect the supplied crossover cable to this port when

connecting to a NIC (Network Interface card) in PC.

Connect an UTP Ethernet cable to this port when connecting to a

LAN such as an office or home network.

4 RESET Press it to restore the factory default setting back

5 USB

(USB connector) Connect the supplied USB cable to this port when connecting to

the PC

6 LINE

(RJ-11 connector) Connect the supplied RJ-11 cable to this port when connecting to

the ADSL

BIPAC-710C2 does not have USB port.

Quick Start Guide

Connecting Your ADSL Modem/Router

Through Ethernet Port

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR, SYS and LAN LEDs are lit steadily

4. Follow the “Configuring the Network Properties on a PC” section on page 8 to modify the

network settings

Through USB Port (for BIPAC-711C2 only)

1. Connect the USB cable to the USB port of the device and connect the other end to the PC.

Also connect the device to the ADSL/telephone network.

2. Power on the device

3. Ensure the Power and LAN LEDs are lit

4. Follow the “Installing the USB Driver on a PC” section on page 5 to setup this device.

Billion BIPAC – 711C2 / 710C2 – ADSL Modem / Router

Installing the USB Driver on a PC (for BIPAC-711C2 only)

If you connect the device through USB port instead of Ethernet port, for the first time the USB

cable is connected to the PC, Windows will automatically detect the device. Follow the steps to

install the USB driver.

1. When Windows tells you that the new device has been detected, select “Install from a list or

specific location” and click “Next >”.

2. Insert the installation CD into the CD-ROM drive. Check “Search removable media” and click

“Next >”. Then, it takes seconds to search and install the software.

This section is described based on Windows XP. For other Operating

Systems such as Windows 2000/Me/98, please refer to the on-line

manual for more detailed instructions.

Quick Start Guide

3. When windows titled “Hardware Installation” or “Software Installation” appear, press

“Continue Anyway” to go on.

4. Then, click “Finish”

5. After a few moments, Windows will show the new device, USB ADSLAdapter, has been

detected. Select “Install from a list or specific location”. Click “Next >”.

Billion BIPAC – 711C2 / 710C2 – ADSL Modem / Router

6. Click “Next >” when the following figure appears.

7. When windows titled “Hardware Installation” appears, press “Continue Anyway”. Then, click

“Finish” to end installation.

8. After installing the driver, follow the next section to configure the network properties on the PC.

Quick Start Guide

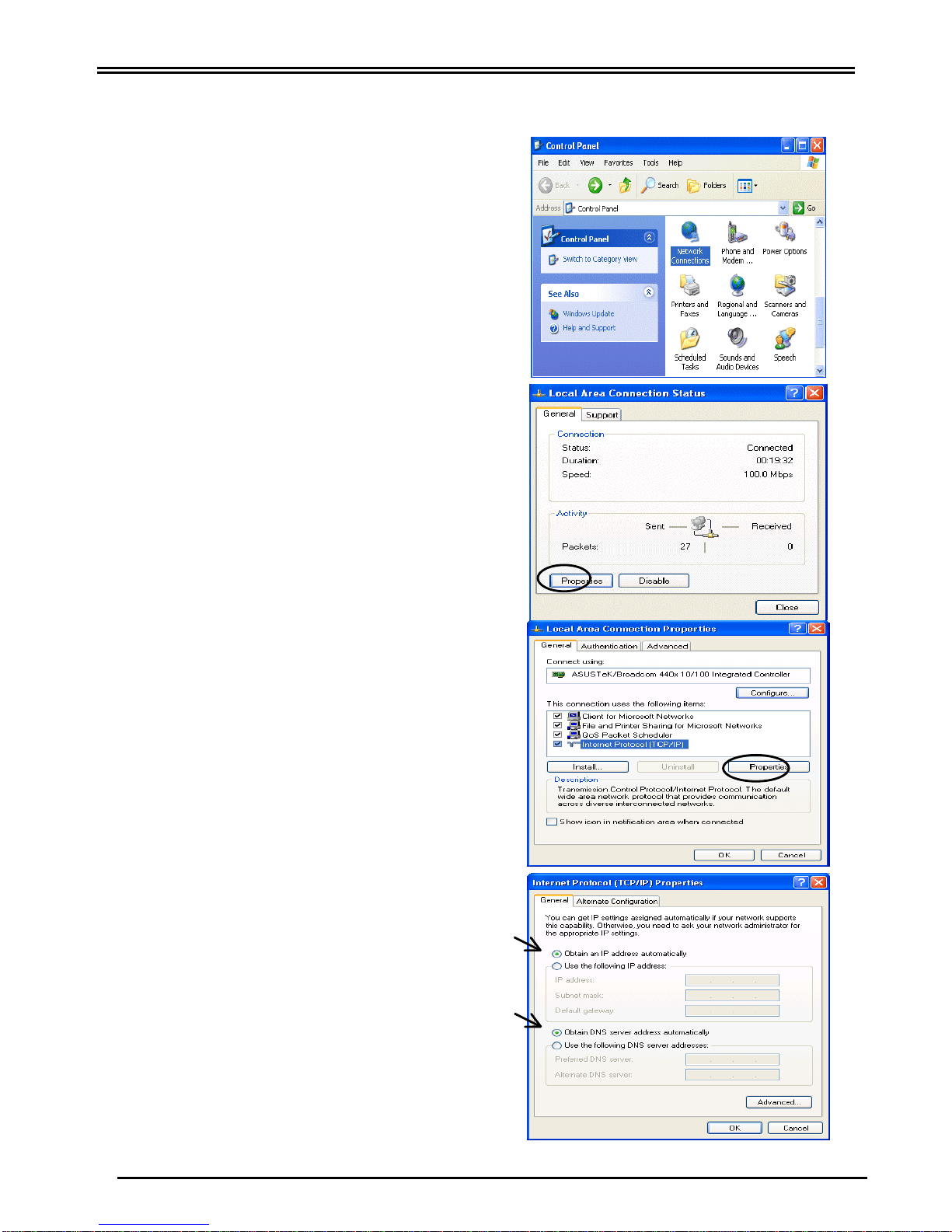

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.
