4IPNET OWL610 Manual del operador

OWL610/OWL620 V1.00

Outdoor Access Point

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

This document is protected by USA copyright laws and other laws. Besides, the

document is the property of 4IPNET, INC. You may not copy, reproduce, distribute,

publish, display, perform, or modify any part of this publication in any form or by any

means without prior written permission from 4IPNET, INC. You may not alter or remove any

are claimed or registered marks of their respective companies or organizations.

To download up-to-date version, please visit www.4ipnet.com.

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

FCC CAUTION

This equipment has been tested and proven to comply with the limits for a class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

---Reorient or relocate the receiving antenna.

---Increase the separation between the equipment and receiver.

---Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

---Consult the dealer or an experienced radio/TV technician for help.

The device contains a low power transmitter which will send out Radio Frequency (RF) signal when

transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20 centimeters

between the radiator and your body.

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

CE CAUTION

Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for

European Community, Switzerland, Norway, Iceland, and Liechtenstein

Model: OWL610, OWL620

For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and

hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement.

• Radio: EN 300.328:

• Radio: EN 50392

• EMC: EN 301.489-1, EN 301.489-17,

• EMC: EN 55022Class B, EN 55024:+ A1 + A2including the followings:

EN 61000-3-2, EN 61000-3-3.

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,

EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

• Safety: EN 60950-1 + A11,

Caution:

This declaration is only valid for configurations (combinations of software, firmware, and hardware)

provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by

4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements.

European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range

2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be

restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory

authority for compliance.

Taiwan NCC Statement

根據 NCC 低功率電波輻射性電機管理辦法規定:

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或

變更原設計之特性及功能。

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用，並改善至

無干擾時方得繼續使用。

前項合法通信，指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

Preface Package Contents

The 802.11 a/b/g/n compliant OWL610 / OWL620 is

a rugged multi-mode MIMO outdoor access point

(single radio for the OWL610, dual radio for the

OWL620), specifically designed for building

municipal or campus wide wireless networks in

harsh outdoor environments. There are two system

modes that can be used for dual purposes. It can be

deployed as a traditional multi-wireless Access

Point (AP) or a Relay. The OWL600 series access

points make wireless communication fast, secure

and easy.

The die-cast Aluminum sealed OWL600 Series

Access Point is rust-free and IP68 compliant. It is

high wind load resilient and is designed to operate

in a wide range of temperature. Combined with a

variety of directional antennas, One OWL610 /

OWL620 can easily serve clients located in different

directions as well as for coverage extension. With all

modules supporting a/b/g/n bands, more channels

are available for better channel planning.

This Quick Installation Guide (including FAQ

Instruction Guide) provides instructions for getting

started with the OWLAccess Point.

1. 4ipnet OWL610 / OWL620 x 1

2. Quick Installation Guide (QIG) x 1

3. CD-ROM

(with User’s Manual and QIG) x 1

4. Power Sourcing Equipment (PSE) X 1

(Optional)

5. Mounting Kit x 1

It is recommended to keep the original

packing material for possible future shipment

when repair or maintenance is required. Any

returned product should be packed in its

original packaging to prevent damage during

delivery.

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

System Overview

OWL610 / OWL620

Figure 1 OWL610 / 620

1 Console The system can be configured via a serial console port. The administrator

can use a terminal emulation program such as Microsoft’s Hyper Terminal

for troubleshooting purposes.

2 Ethernet LAN Attach Ethernet cables here for connecting to the wired local network

3 PoE Connector For connecting to the Power Sourcing Equipment (PSE)

4 N-type Connector x 2* For connecting to an antenna

4 N-type Connector x 4* For connecting to an antenna (RF Card A x 2, RF Card B x 2)

*OWL610 has 2 N-type connectors to go with one built-in RF card.

*OWL620 has 4 N-type connectors to go with the corresponding dual RF card.

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

Hardware Installation

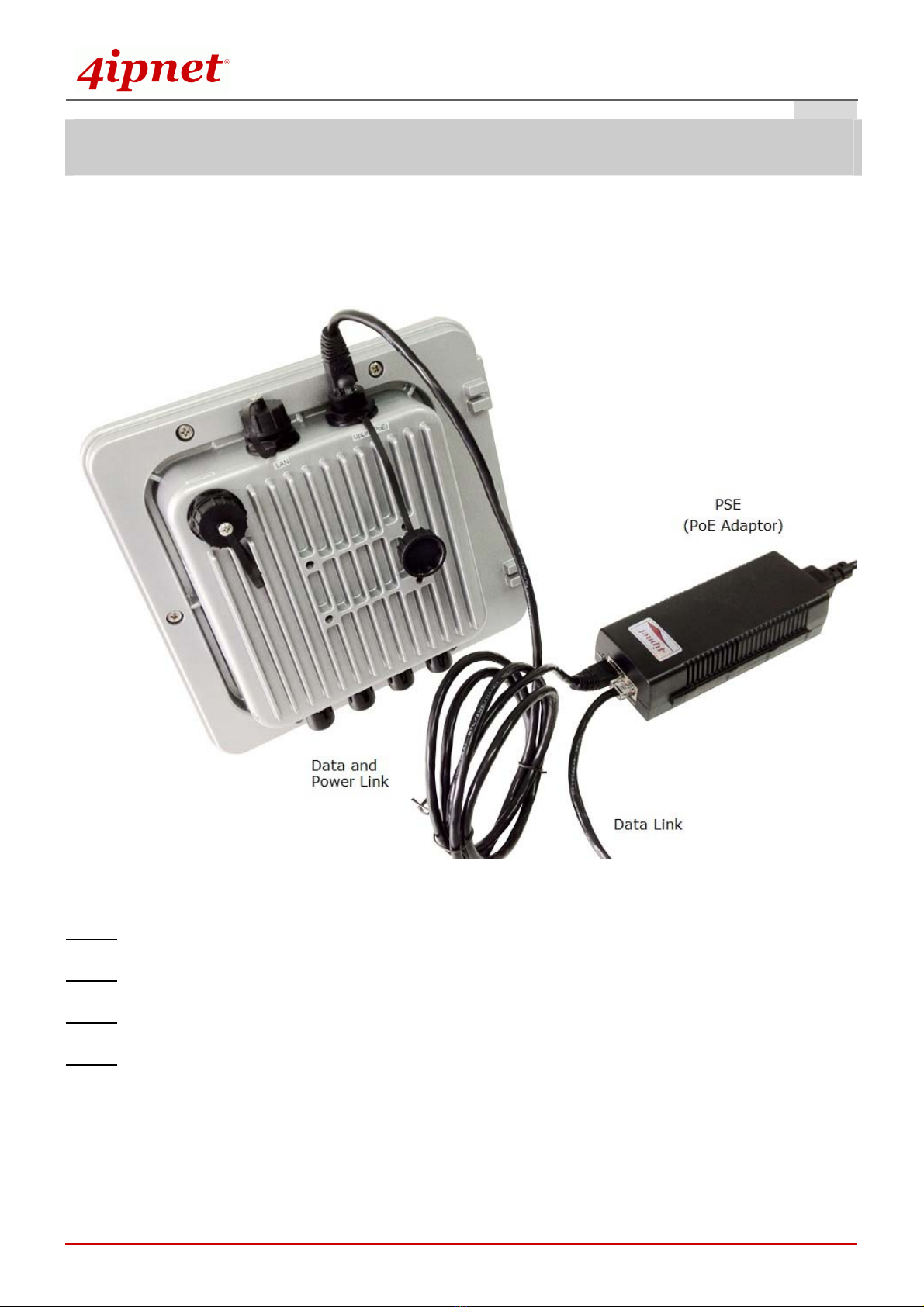

The following diagram is a basic network topology which can be used for testing and configuring the OWL610 /

OWL620.

Installation Steps:

Step 1. Connect an antenna to the connector.

Step 2. Connect the Ethernet Port of OWL610 / OWL620 to the POWER & DATA OUT Port of the PSE.

Step 3. Connect one end of an Ethernet cable to the Data Port of PSE and the other end to the computer.

Step 4. Power on the PSE in order to supply power to the OWL610/OWL620.

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

Getting Started

4ipnet OWL610 / OWL620 supports web-based configuration. Upon the completion of hardware installation,

Access Point can be configured through a PC by using its web browser such as Mozilla Firefox 2.0 or Internet

Explorer version 6.0 and above.

The default values of LAN IP address and subnet mask of OWL610 / OWL620 are:

IP Address 192.168.1.1

Subnet Mask 255.255.255.0

Steps:

1. To access the web management interface, connect the administrator PC to the LAN port of OWL610 /

OWL620 via an Ethernet cable. Then, set a static IP address on the same subnet mask as OWL610 /

OWL620 in TCP/IP of your PC, such as the following example:

IP Address: 192.168.1.100

Subnet Mask: 255.255.255.0

2. Launch the web browser on your PC by entering the IP address of OWL610 / OWL620

(https://192.168.1.1) at the address field, and then press Enter.

Example of entering OWL610 / OWL620's default IP Address via a web browser

3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,

and then click Login.

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

Administrator Login Page

4. After a successful login into OWL610 / OWL620’s Web user interface (Web UI), a System Overview

page of web management interface will appear, as depicted below.

The Web Management Interface - System Overview Page

5. To logout, simply click on the Logout button at the upper right hand corner of the interface to return to the

Administrator Login Page. Click OK to logout.

Quick Installation Guide

OWL600 Series Enterprise Access Point ENGLISH

Common Settings

Step 1. Change Administrator’s Password

Change Password Page

Click on the Utilities main menu button, and then select the Change Password tab.

Enter the old password and then a new password with a length of up to 32 characters, and retype it in

the Re-enter New Password field.

Click SAVE to save the changes.
