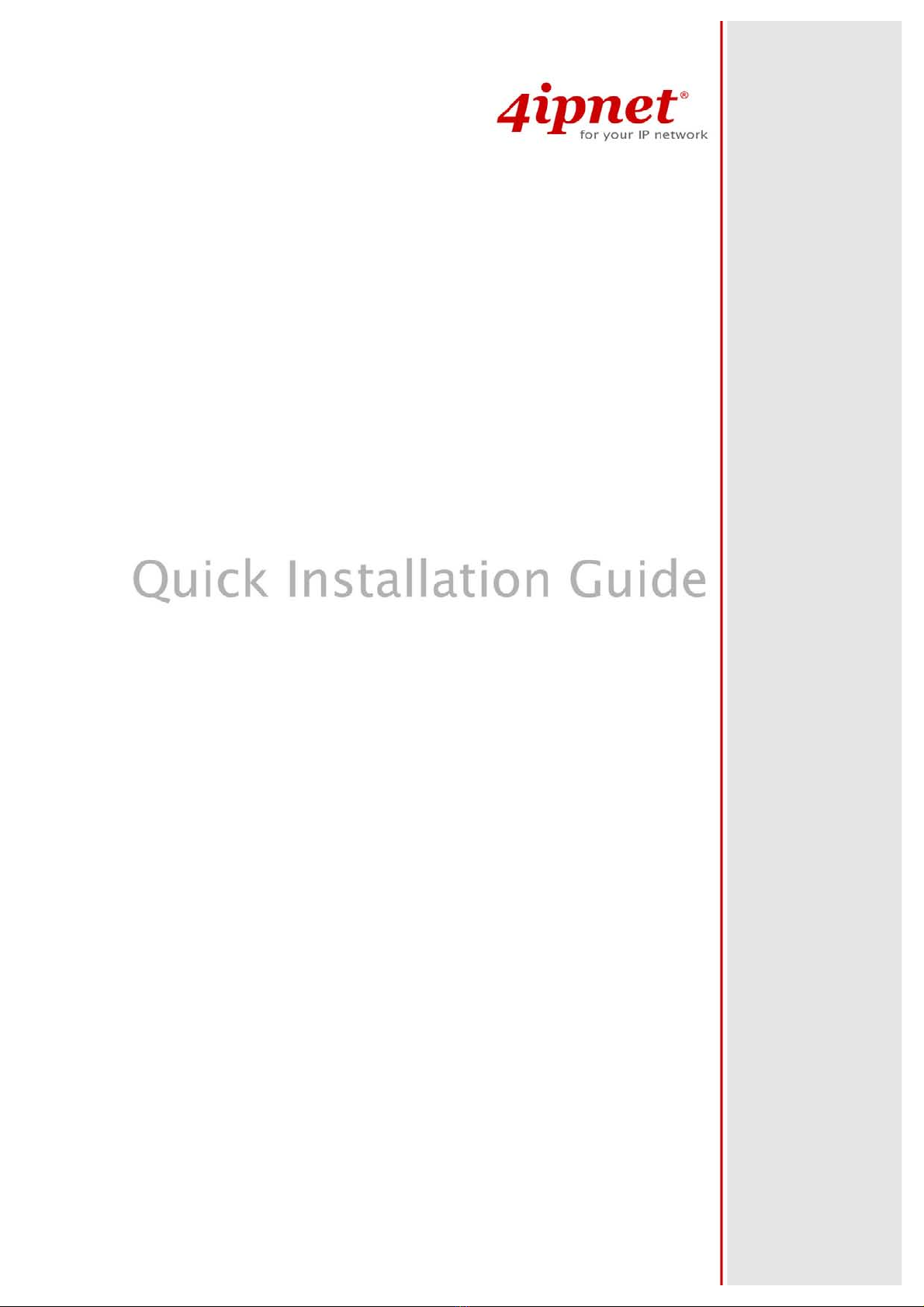

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

This document is protected by U S A copyrig ht l a w s a nd other l a w s a nd is the property of

4 I P N E T, I N . Y ou ma y not copy, reproduce, distribute, publ ish, displ a y, perf orm, or

modif y a ny pa rt of this publ ica tion in a ny f orm or by a ny mea ns w ithout prior w ritten

permission f rom 4 I P N E T, I N . Y ou ma y not a l ter or remov e a ny copyrig ht or other notice

f rom copies of the content. Al l other bra nd a nd product na mes a re cl a imed or

reg istered ma rk s of their respectiv e compa nies or org a niz a tions.

Al l rig hts reserv ed.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

N o t e

The respective FCC ID for This document serves only as a sample manual and QIG for this sample unit. The

respective FCC ID for O W L 5 / O W L 5 1 w ill b e V Z 9 9 3 , application in prog ress in J uly 2 9.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

- 1 -

Preface Pack ag e C o n t en t s

The 802.11 b/g compliant OWL500/510 is a Long

Range Outdoor CPE/AP/Bridge device that can be

used for dual purposes. First, it can be deployed as

a traditional fixed wireless Access Point (AP).

Secondly, it can be used as a Customer Premises

Equipment (CPE) that connects to the outdoor

wireless network of Wireless Internet Service

Provider (WISP).

The metal sealed OWL500/510 is compact in size

and weatherproof. Coming with a mounting kit, it

can be mounted on a pole or wall. It is suitable for

both indoor and outdoor usage with its 500mW

output power, which is higher than a typical indoor

AP (100mW).

This Quick Installation Guide (including FAQ

Instruction Guide) provides instructions for getting

started with OWL500/510.

1. OWL500/510 x 1

2. Quick Installation Guide (QIG) x 1

3. CD-ROM (with User’s Manual and QIG) x 1

4. Power Sourcing Equipment (PSE) with

AC cable x 1

5. Mounting Kit x 1

It is recommended to keep the original

packing material for possible future shipment

when repair or maintenance is required. Any

returned product should be packed in its

original packaging to prevent damage during

delivery.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

- 2 -

System Overview

OWL500

1 WLAN Green LED ON indicates system ready

2 Wireless Signal Strength For showing the signal strength situation

3 Ethernet Green LED ON indicates connection, OFF indicates no connection,

and BLINKING indicates transmitting data.

4 PoE Connector For connecting to the Power Sourcing Equipment (PSE)

5 N-type Connector For connecting to an antenna

6 Power Red LED ON indicates power on, and OFF indicates power off

7, 8

Wireless Signal Strength For showing the signal strength situation (7: Yellow; 8: Green)

OWL510

1 WLAN Green LED ON indicates system ready

2 Wireless Signal Strength For showing the signal strength situation

3 Ethernet Green LED ON indicates connection, OFF indicates no

connection, and BLINKING indicates transmitting data.

4 PoE Connector For connecting to the Power Sourcing Equipment (PSE)

5 Built-in patch antenna 10 dBi (Horizontal: 110 degree; Vertical: 60 degree)

6 Power Red LED ON indicates power on, and OFF indicates power off

7, 8 Wireless Signal Strength For showing the signal strength situation (7: Yellow; 8: Green)

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

- 3 -

H a rd wa re I n sta l l a tio n

OWL500/510

The following diagram is a basic network topology which can be used for testing and configuring the

OWL500/510.

Installation Steps:

Step 1. Connect an N-type antenna to the N-type connector (applicable for OWL500/510 only).

Step 2. Connect the PSE (POWER & DATA OUT) to the PSE 1 connector on the lower panel.

Step 3. Connect one end of an Ethernet cable to the PSE 2 connector on the lower panel and the other end

to a computer.

Step 4. Connect the power cord to the PSE.

Step 5. Power on the PSE in order to supply power to the OWL500/510.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

- 4 -

G ettin g Sta rted

4ipnet OWL500/510 supports web-based configuration. OWL500/510 is a dual-mode system, AP Mode as the

default mode for the first time entering the system, which also can be configured as either an access point (AP

Mode) or a gateway (CPE Mode) based on your needs. It is required to follow the respective installation

procedures provided to properly set up the desired mode for this system.

•Default IPAddress of Web Management Interface:

The default IP address and Subnet Mask for the AP mode and CPE mode are as follows:

Mode AP Mode CPE Mode

IP Address 192.168.1.1 192.168.1.1

Subnet Mask 255.255.255.0 255.255.255.0

•Default User Name and Password:

There is only one management account for APmode, root. In addition, there are two system management

accounts for CPE mode to maintain the system, root and admin, and each has different levels of management

capabilities. The root account is empowered with full privileges while the admin account is with partial ones.

The default user name and password for both the root and admin account are as follows:

Mode AP Mode CPE Mode

Management

Account Root

Account Admin

Account

User Name root root a dmin

Password a dmin a dmin a dmin

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

- 5 -

Step 1: IP Segment Setup for Administrator PC

Set a static IP address on the same subnet mask as OWL500/510 in TCP/IP of the administrator PC, such as

the following example. Do not duplicate the IP address used here with the IP address of OWL500/510 or any

other devices within the same network.

>> Example of IP Segment:

The valid range of IP address is 1 ~ 254. However, 1must be avoided as it is already used by OWL500/510.

Below depicts an example of using 100 (the underlined value can be changed as desired).

IPAddress: 192.168.1.100

Subnet Mask: 255.255.255.0

Step 2: Launch Web Browser

Launch a web browser to access the web management interface of AP mode by entering the default IP

address, http://192.168.1.1/, in the URL field, and then press Enter.

Using an incorrect default IP address will result in no Login page

shown in the web browser. Please make sure a correct IP

address is used for the desired mode.

Step 3: System Login

The system manager Login Page will then appear.

Enter “root” in the User name field and “admin” in the Password field, and then click OK to log in.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

- 6 -

Step 4: Login Success

After a successful login to OWL500/510, a System Overview page of web management interface will appear,

To logout, simply click on the Logout button at the upper right hand corner of the interface.

Note:

By default, AP mode is enabled. Therefore, the

administrator must access the system via the AP

mode login page for the first time. The administrator is

then able to switch between modes afterwards.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

O W L 5 0 0 / 5 1 0 L o n g R a n g e O u t d o o r C P E / A P / B r i d g e ENGLISH

- 7 -

Step 1: Launch Web Browser

Launch a web browser to access the web management interface of CPE mode by entering the default IP

address, http://192.168.1.1/, in the URL field, and then press Enter.

Step 2: System Login

The system manager Login Page will then appear.

Enter “root” in the User name field and “admin” in the Password field, and then click OK to log in. Below

depicts an example of using the root manager account.
