Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
Copyright Notice
This document is protected by USA copyright laws and other laws. Besides, the
document is the property of 4IPNET, INC. You may not copy, reproduce, distribute,
publish, display, perform, or modify any part of this publication in any form or by any
means without prior written permission from 4IPNET, INC. You may not alter or remove any
copyright or other notice from copies of the content. All other brand and product names
are claimed or registered marks of their respective companies or organizations.
All rights reserved.
Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 1
Preface Package Contents
4ipnet EAP300 is a high-end 802.11n/a/b/g
dual-band MIMO Access Point (AP) with the best
price/ performance for business and industrial
applications and is compliant with the latest
industrial wireless security standards that are
required in the tightly secured enterprise network
environments. EAP300 makes the wireless
communication fast, secure and easy. It supports
business grade security such as 802.1X, and Wi-Fi
Protected Access (WPA and WPA2). By pushing a
purposely built button, the 4ipnet WES feature
makes it easy to bridge wireless links of multiple
EAP300s for forming wider wireless network
coverage. EAP300 also features multiple ESSIDs
with VLAN tags; one EAP300 can emulate up to
eight Virtual APs, great for enterprise applications,
such as separating the traffics of different
departments using different ESSIDs. The PoE LAN
port can receive power from Power over Ethernet
(PoE) device. Its metal case is IP50 anti-dust
compliant, which means that EAP300 is well suited
to WLAN deployment in industrial environments.
This Quick Installation Guide provides instructions
and reference materials for getting started with
4ipnet EAP300.
1. EAP300 x 1
2. Quick Installation Guide x 1
3. CD-ROM
(with User’s Manual and QIG) x 1
4. Power cord x 1
5. Power Adapter (DC 12V) x 1
6. Antenna x 3
It is recommended to keep the original
packing material for possible future shipment
when repair or maintenance is required. Any
returned product should be packed in its
original packaging to prevent damage during
delivery.
Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 2
System Overview
Connector Panel
Figure 1 EAP300 Connector Panel
1 Console Attach the serial cable here.
2 Restart/Reset Button Press once to restart the system; Press and hold for more than 5
seconds to reset to factory default.
3 12 2A Attach the power adapter here.
4 WES Button Press to start running WES process.
5 LAN Attach the Ethernet cable here for connecting to wired local network,
6 USB For future use.
Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 3
Antenna Panel
Figure 2 EAP300 Antenna Panel
Antenna Connector: Attach the antennas here.
LED Panel
Figure 3 EAP300 LED Panel
1 LED ON indicates power on; OFF indicates power off.
2 LED OFF indicates RF is not ready; ON indicates RF is ready; CLINKING indicates
transmitting/receiving data.
3 LED ON indicates Ethernet cable connected; OFF indicates no connection.
4 For future use.
5 To indicate WES status.
Master Slave
WES Start LED (Green) OFF and then
BLINKING SLOWLY
LED (Green) OFF and then
BLINKING QUICKLY
WES Negotiate BLINKING NORMALLY BLINKING NORMALLY
WES Negotiate Timeout LED (Yellow) ON LED (Yellow) ON
WES Success LED (Green) ON LED (Green) ON
WES Fail LED (Red) ON LED (Red) ON
Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 4
Hardware Installation
Please follow the steps mentioned below to install the hardware of EAP300:
1. Place the EAP300 at a best location.
The best location for EAP300 is usually at the center of your wireless network.
2. Connect EAP300 to your network device.
Connect one end of the Ethernet cable to the LAN port of EAP300 and the other end of the cable to a
switch, a router or a hub. EAP300 is then connected to your existing wired LAN network.
3. There are two ways to supply power over to EAP300.
(a) Connect the DC power adapter to the EAP300 power socket.
Please only use the power adapter supplied with the EAP300 package. Using a different power
adapter may damage this system.
(b) EAP300 LAN port is capable of transmitting DC currents. Connect an IEEE 802.3af-compliant PSE
device, e.g. a PoE-switch, to the LAN port of EAP300 by the Ethernet cable.
Now, the Hardware Installation is completed.
To double verify the wired connection between EAP300 and your switch/router/hub, please
check the LED status indication of these network devices.
Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 5
Getting Started
4ipnet EAP300 supports web-based configuration. Upon the completion of hardware installation, EAP300 can
be configured through a PC by using its web browser such as Mozilla Firefox 2.0 or Internet Explorer version
6.0 and above.
The default values of LAN IP address and subnet mask of EAP300 are:
IPAddress: 192.168.1.1
Subnet Mask: 255.255.255.0
Steps:
1. To access the web management interface, connect the administrator PC to the LAN port of EAP300 via
an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP300 in TCP/IP of your
PC, such as the following example:
IPAddress: 192.168.1.100
Subnet Mask: 255.255.255.0
2. Launch the web browser on your PC by entering the IP address of EAP300 (http://192.168.1.1) at the
address field, and then press Enter.
Figure 4 Example of entering EAP300'sdefault IP Address via a web browser

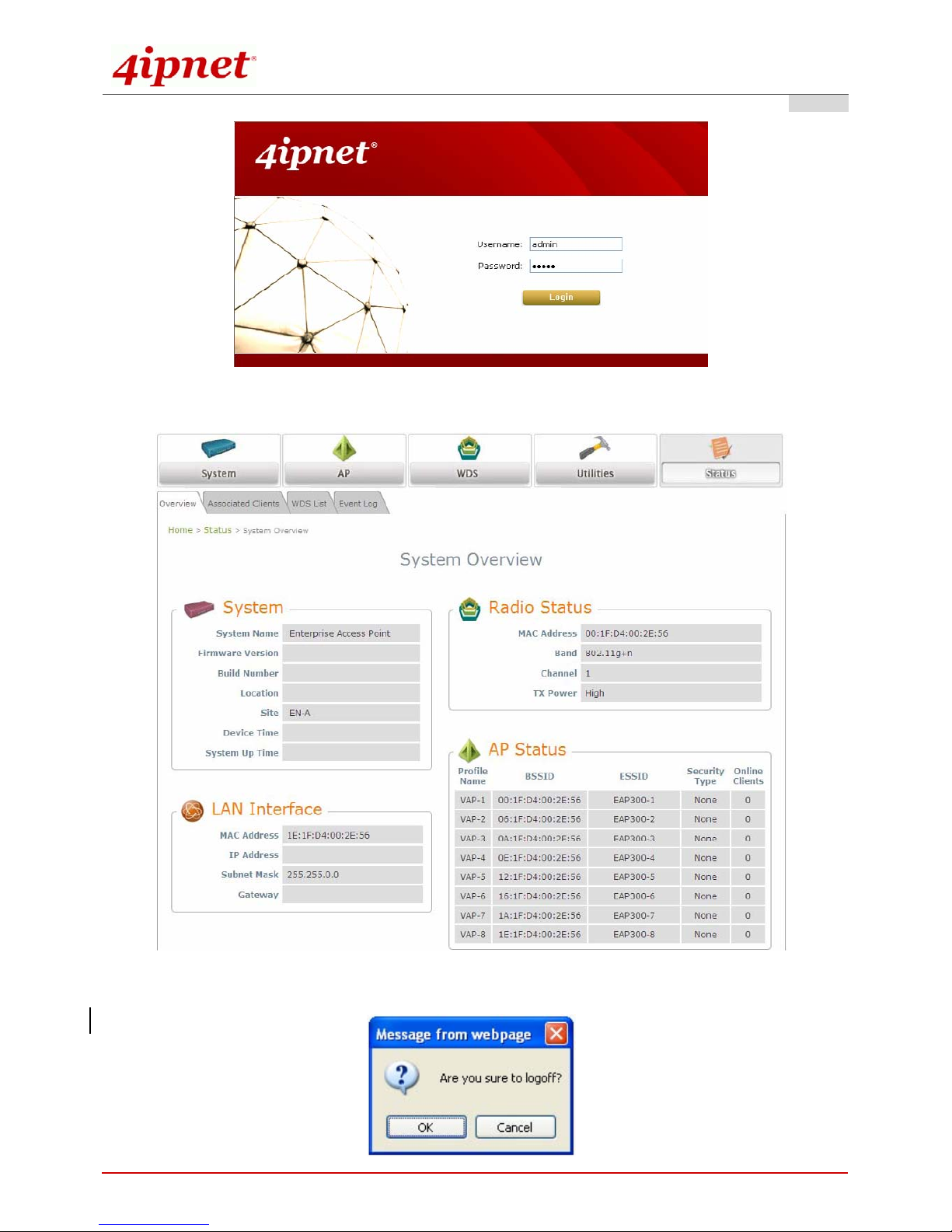

3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,
and then click Login.
Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 6
4. After a successful login into EAP300, a System Overview page of web management interface will
appear, as depicted below.
5. To logout, simply click on the Logout button at the upper right hand corner of the interface to return to the
Administrator Login Page. Click OK to logout.
Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 7
Common Settings
Step 1. Change Administrator’s Password
¾Click on the Utilities main menu button, and then select the Change Password tab.
¾Enter the old password and then a new password with a length of up to 32 characters, and retype it in
the Re-enter New Password field.
¾Click Save to save the changes.
Quick Installation Guide
EAP300 802.11n/a/b/g Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 8
Step 2. Configure General AP (Access Point) Settings
¾Click on the AP main menu button, and then select the General tab.
¾Determine the Band and Channel settings:
Select your preferred Band and Channel for you wireless connection. For example, select
802.11n+802.11g for the band and 1for the channel.
