4IPNET EAP747 Manual de usuario

EAP747 V1.10

Enterprise Access Point

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

This document is protected by U A copyright laws and other laws. Besides, the

document is the property of 4IPNET, INC. You may not copy, reproduce, distribute,

publish, display, perform, or modify any part of this publication in any form or by any

means without prior written permission from 4IPNET, INC. You may not alter or remove any

are claimed or registered marks of their respective companies or organizations.

To download up-to-date version, please visit www.4ipnet.com.

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

FCC CAUTION

This equipment has been tested and proven to comply with the limits for a class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

---Reorient or relocate the receiving antenna.

---Increase the separation between the equipment and receiver.

---Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

---Consult the dealer or an experienced radio/TV technician for help.

The device contains a low power transmitter which will send out Radio Frequency (RF) signal when

transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20 centimeters

between the radiator and your body.

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

CE CAUTION

Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for

European Community, Switzerland, Norway, Iceland, and Liechtenstein

Model: EAP747

For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and

hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement.

• Radio: EN 300.328

• EMC: EN 301.489-1, EN 301.489-17,

• EMC: EN 55022

Class B, EN 55024

+ A1 + A2

including the followings:

EN 61000-3-2, EN 61000-3-3.

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,

EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

• Safety: EN 60950-1 + A11,

Caution:







This declaration is only valid for configurations (combinations of software, firmware, and hardware)

provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by

4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements.

European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range

2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be

restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory

authority for compliance.

Taiwan NCC Statement

根據

NCC

低功率電波輻射性電機管理辦法

規定

第十二條

經型式認證合格之低功率射頻電機非經許可公司、商號或使用者均不得擅自變更頻率、加大功率或

變更原設計之特性及功能。

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用並改善至

無干擾時方得繼續使用。

前項合法通信指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

Preface Package Contents

4ipnet EAP747 is a high-end 802.11 a/b/g/n

2.4GHz/5 GHz MIMO Access Point (AP) with the

best price/ performance for business and industrial

applications and is compliant with the latest

industrial wireless security standards that are

required in the tightly secured enterprise network

environments.

EAP747 makes the wireless communication fast,

secure and easy. It supports business grade

security such as 802.1X, and Wi-Fi Protected

Access (WPA and WPA2). By pushing a purposely

built button, the 4ipWES (Press-n-Connect)

feature makes it easy to bridge wireless links of

multiple EAP747s for forming a wider wireless

network coverage.

EAP747 also features multiple ESSIDs with VLAN

tags and multiple Virtual APs; great for enterprise

applications, such as separating traffic from different

departments using different ESSIDs. The PoE LAN

port is able to receive power from Power over

Ethernet (PoE) sourcing devices.

This Quick Installation Guide provides instructions

and reference materials to get you started with

4ipnet EAP747.

1. 4ipnet EAP747 x 1

2. Quick Installation Guide (QIG) x 1

3. CD-ROM

(with User’s Manual and QIG)

x 1

4. Ethernet Cable x 1

5. Power Adapter (DC 12V) x 1 (Optional)

6. Mounting Kit x 1

It is recommended to keep the original

packing material for possible future shipment

when repair or maintenance is required. Any

returned product should be packed in its

original packaging to prevent damage during

delivery.

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

System Overview

Rear Panel

EAP747’s Rear Panel

1 12V 2 A Attach the power adapter here.

2 Restart / Reset

Button

Press once to restart the system; Press and hold for more than 5 seconds to

reset to factory default.

3 WES Button WDS Easy Setup. Press the button to build up a WDS link with another peer.

4 LED Indicators 4 LED lights are available. What the numbers stand for is listed at the bottom of

the panel.

5 Uplink (PoE) Port Offers uplink connection. This port can be used to connect to a controller,

gateway, or directly to the Internet. PoE is also supported

6 LAN 1- 2 Ports Attach Ethernet cables here to connect to the wired local network.

7 Phone Jet The telephone line can bypass if the EAP747 is placed on the socket.

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

Hardware Installation

Please follow the steps mentioned below to install the hardware of EAP747:

1. Place the EAP747 at the best location.

a) The best location for EAP747 is usually at the center of your intended wireless network.

b) If admin would like to mount the EAP747 on the wall (on a socket), the figure below indicates how the

mounting kit can be used on the back of the device. Screw the panel to the EAP747, and then turn the panel

clockwise to fasten it with the AP.

2. Connect the EAP747 to your network device.

Connect one end of the Ethernet cable to the Uplink port of EAP747 and the other end of the cable to a switch,

a router, or a hub. EAP747 is then connected to your existing wired LAN network.

There are two ways to supply power over to EAP747.

3. Connect the DC power adapter to the EAP747 power socket.

EAP747 Uplink port is capable of receiving DC currents. Connect an IEEE 802.3af-compliant PSE device (e.g.

a PoE-switch) to the Uplink port of EAP747 with the Ethernet cable.

The figure shows the way to fasten the panel to an EAP747

Now, the Hardware Installation is complete.

•Please use only the power adapter supplied with the EAP747 package. Using a different power

adapter may damage this system.

•To verify the wired connection between EAP747 and you switch / router / hub, please also

check the LED status indicator of the respective network devices.

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

Getting Started

4ipnet EAP747 supports web-based configuration. When hardware installation is complete, EAP747 can be

configured through a PC by using a web browser such as Mozilla Firefox 2.0 or Internet Explorer version 6.0

and above.

The default values of LAN IP address and subnet mask of EAP747 are:

IP Address: 192.168.1.1

Subnet Mask: 255.255.255.0

Steps:

1. To access the Web Management Interface, connect the administrator PC to the LAN port of EAP747 via

an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP747 in TCP/IP of your

PC, such as the following example:

IP Address: 192.168.1.1

Subnet Mask: 255.255.255.0

2. Launch the web browser on your PC by entering the IP address of EAP747 (https://192.168.1.1) in the

address field, and then press Enter.

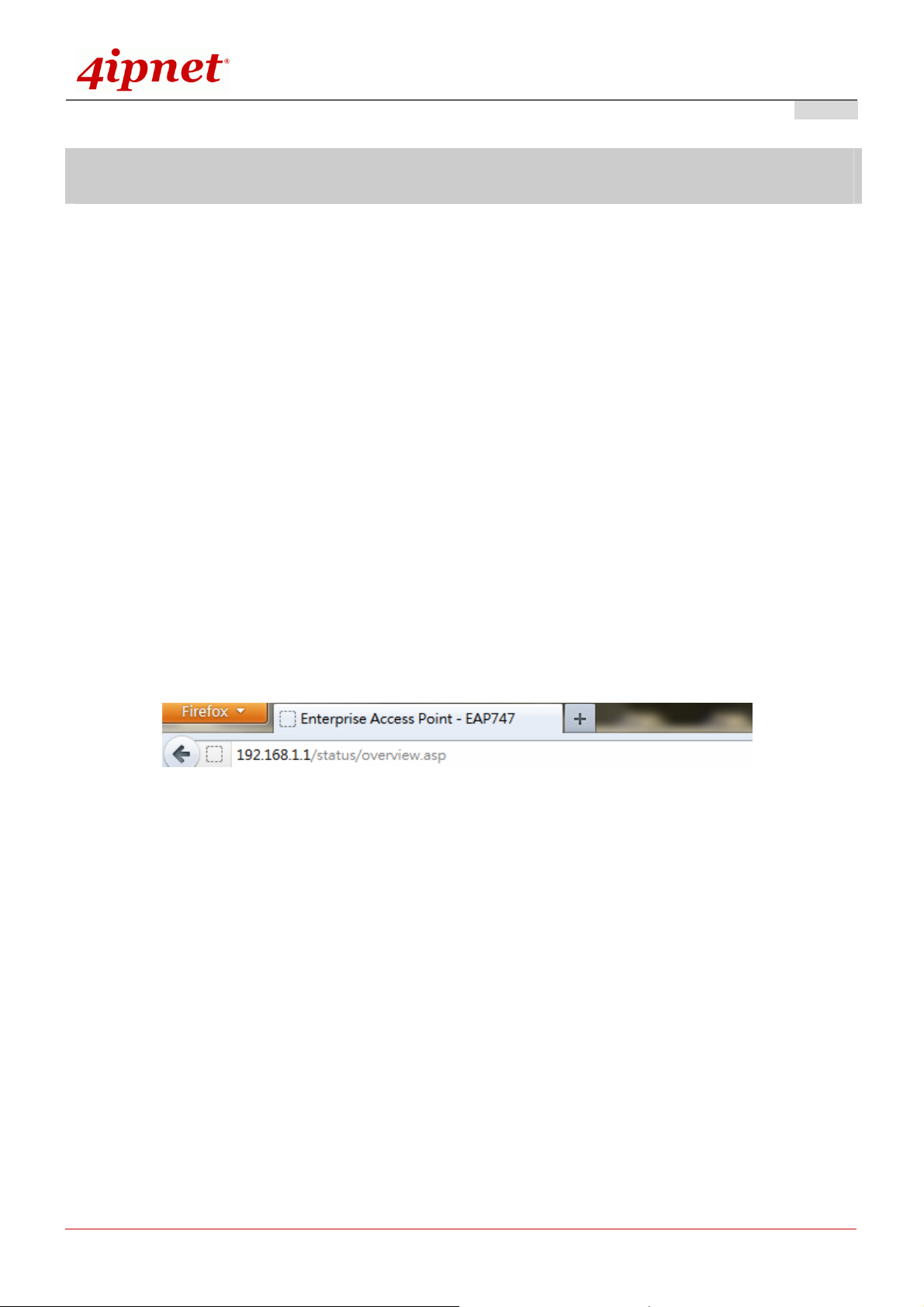

Example of entering EAP747's default IP Address via a web browser

3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,

and then click Login.

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

Administrator Login Page

4. After a successful login to EAP747, a System Overview page of the Web Management Interface will

appear, as depicted below.

The Web Management Interface - System Overview Page

5. To logout, simply click on the Logout button at the upper right hand corner of the interface to return to the

Administrator Login Page. Click OK to logout.

Quick Installation Guide

Quick Installation GuideQuick Installation Guide

Quick Installation Guide

EAP747 Enterprise Access Point ENGLISH

Common Settings

Step 1. Change Administrator’s Password

Change Password Page

Click on the Utilities icon on the main menu, and select the Change Password tab.

Enter the old password and then a new password with a length of up to 32 characters, and retype it in

the Re-enter New Password field.

Click SAVE to save the changes.
