4IPNET EAP320 V1.20 Manual de usuario
EAP320 V1.20
Enterprise Access Point
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. i
Copyright Notice
This document is protected by USA copyright laws and other laws. Besides, the
document is the property of 4IPNET, INC. You may not copy, reproduce, distribute,
publish, display, perform, or modify any part of this publication in any form or by any
means without prior written permission from 4IPNET, INC. You may not alter or remove any
copyright or other notice from copies of the content. All other brand and product names
are claimed or registered marks of their respective companies or organizations.
All rights reserved.
To download up-to-date version, please visit www.4ipnet.com.
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. ii
FCC CAUTION
This equipment has been tested and proven to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
---Consult the dealer or an experienced radio/TV technician for help.
The device contains a low power transmitter which will send out Radio Frequency (RF) signal when
transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. iii
CE CAUTION
Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Model: EAP320
For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and
hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement.
• Radio: EN 300.328:
• EMC: EN 301.489-1, EN 301.489-17,
• EMC: EN 55022Class B, EN 55024:+ A1 + A2including the followings:
EN 61000-3-2, EN 61000-3-3.
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
• Safety: EN 60950-1 + A11,
Caution:
This declaration is only valid for configurations (combinations of software, firmware, and hardware)
provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by
4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements.
European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range
2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be
restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory
authority for compliance.
Taiwan NCC Statement
根據 NCC 低功率電波輻射性電機管理辦法 規定:
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或
變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用，並改善至
無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 1
Preface Package Contents
4ipnet EAP320 is a high-end 802.11a/b/g/n 2.4GHz/
5.0GHz MIMO Access Point (AP) with two RF cards
embedded to maximize deployment flexibility and
feasibility for IT administrators.
Complying with the latest industrial wireless security
standards that are required in the tightly secured
enterprise network environments, EAP320 makes
the wireless communication fast, secure and easy. It
supports business-grade secure encryption -
802.1X and Wi-Fi Protected Access (WPA and
WPA2) ; by pushing a purposely built button, the
4ipWES (Press-n-Connect) feature makes it easy
to bridge wireless links of multiple EAP320s for
forming a wider wireless network coverage.
EAP320 also features multiple ESSIDs with VLAN
tags and multiple Virtual APs; great for enterprise
applications, such as separating traffic from different
departments using different ESSIDs. The PoE LAN
port is able to receive power from Power over
Ethernet (PoE) sourcing devices. Its metal case is
IP50 anti-dust compliant, which means that EAP320
is well suited to WLAN deployment in industrial
environments.
This Quick Installation Guide provides instructions
and reference materials to get you started with
4ipnet EAP320.
1. 4ipnet EAP320 x 1
2. Quick Installation Guide (QIG) x 1
3. CD-ROM
(with User’s Manual and QIG) x 1
4. Ethernet Cable x 1
5. Console Cable x 1
6. Power Adapter (DC 12V) x 1
7. Detachable Antenna x 4
It is recommended to keep the original
packing material for possible future shipment
when repair or maintenance is required. Any
returned product should be packed in its
original packaging to prevent damage during
delivery.
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
P/N: V11020120510
2
System Overview
Front Panel
Figure 1 EAP320 Front Panel
Rear Panel
Figure 2 EAP320 Rear Panel
1 12V 2 A Power Socket
2 Restart/ Reset Press once to restart the system; to reset the system to factory default settings,
hold for more than 5 seconds.
3 WES Button (A / B) For IT administrators to easily setup WDS links with the two RF cards.
4 LED Indicators 6 indicators that displays the states of 6 various functions or progresses. The
numbers are explained on the leftmost side of the rear panel.
5 Uplink port The port for uplink connection to another gateway or device. PoE is supported.
6 LAN 1- 2 ports The ports for connections with LAN side devices
7 Console Port To access EAP320 via the console interface.
Right-Side Panel
On the right side of the panel there is a Kensington slot.Admin can also fill it with a rubber plug.
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
P/N: V11020120510
3
Hardware Installation
Please follow the steps mentioned below to install the hardware of EAP320:
1. Place the EAP320 at the best location.
The best location for EAP320 is usually at the center of your intended wireless network.
2. Connect EAP320 to your network device.
Connect one end of the Ethernet cable to the Uplink port of EAP320 and the other end of the cable to a
switch, a router or a hub. EAP320 is then connected to your existing wired LAN network.
3. There are two ways to supply power over to EAP320.
(a) Connect the DC power adapter to the EAP320 power socket.
Please use only the power adapter supplied with the EAP320 package. Using a different power
adapter may damage this system.
(b) EAP320 Uplink port is capable of receiving DC currents. Connect an IEEE 802.3af-compliant PSE
device, e.g. a PoE-switch, to the Uplink port of EAP320 with the Ethernet cable.
Now, the Hardware Installation is completed.
To verify the wired connection between EAP320 and your switch/router/hub, please check the
LED status indication of these network devices.
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
P/N: V11020120510
4
Getting Started
4ipnet EAP320 supports web-based configuration. When hardware installation is complete, EAP320 can be
configured through a PC by using a web browser such as Mozilla Firefox 2.0 or Internet Explorer version 6.0
and above.
The default values of LAN IP address and subnet mask of EAP320 are:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Steps:
1. To access the Web Management Interface, connect the administrator PC to the LAN port of EAP320 via
an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP320 in TCP/IP of your
PC, such as the following example:
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
2. Launch the web browser on your PC by entering the IP address of EAP320 (https://192.168.1.1) at the
address field, and then press Enter.
3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,
and then click Login.
Administrator Login Page
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
P/N: V11020120510
5
4. After a successful login to EAP320, a System Overview page of the Web Management Interface will
appear, as depicted below. The Radio Status and AP Status for modules on both RF cards will be shown.
The Web Management Interface - System Overview Page
5. To logout, simply click on the Logout button at the upper-right corner of the interface to return to the
Administrator Login Page. Click OK to logout.
Quick Installation Guide
EAP320 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
P/N: V11020120510
6
Common Settings

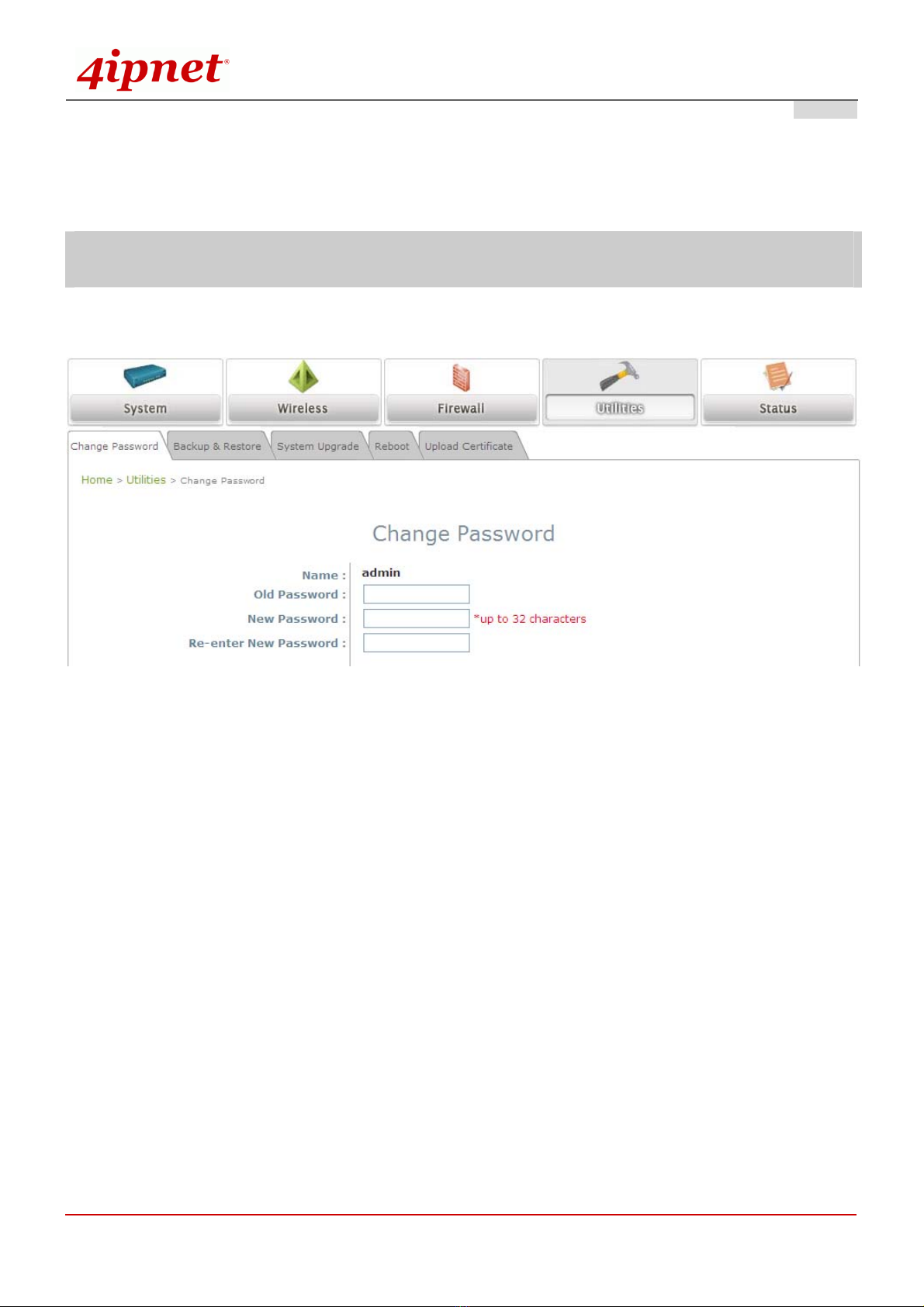

Step 1. Change Administrator’s Password
Change Password Page
Click on the Utilities icon on the main menu, and select the Change Password tab.
Enter the old password and then a new password with a length of up to 32 characters, and retype it in
the Re-enter New Password field.
Click SAVE to save the changes.
