Xtreme XB-300SLA Manual de usuario

XB-300SLA & XB-305SLA

Electric Mountain bike

Owner’s Manual

All manuals and user guides at all-guides.com

all-guides.com

IMPORTANT INFORMATION

FULLY CHARGE BATTERIES BEFORE FIRST USE - Batteries should be fully charged immediately when they are received and immediately after

each use for the recommended charge times (see below)

• 12V12Ah Sealed Lead Acid Batteries: 6-8 hours

FACTORSTOMAXIMIZETHERANGEOFYOURELECTRICBICYCLE

RIDER INPUT - the more the rider pedals the further the distance traveled. Continuous riding, as opposed to frequent stopping and starting, will yield the g

greatest range possible

ELEVATION GAIN - the flatter the road the further the distance traveled



WEATHER

- cold weather can adversely affect the battery capacity

TERRAIN - the smoother the terrain (roadways vs. fireroads, etc.) the further the distance traveled

RIDER WEIGHT

- the lighter the rider, resulting in less drain on the batteries, the further distance traveled

RIDER BICYCLE MAINTENANCE

- a properly maintained bicycle will yield the greatest range possible

RIDER TIRE PRESSURE

- properly inflated tires have less rolling resistance and will be easier to pedal

BATTERIES - properly charged and maintained batteries will yield the greatest range possible. Batteries stored in cold areas (below 50 degrees Fahrenheit / 10

degrees Celsius) will show reduced range. Batteries that have not been kept in optimum condition will show reduced range and run time.

All manuals and user guides at all-guides.com

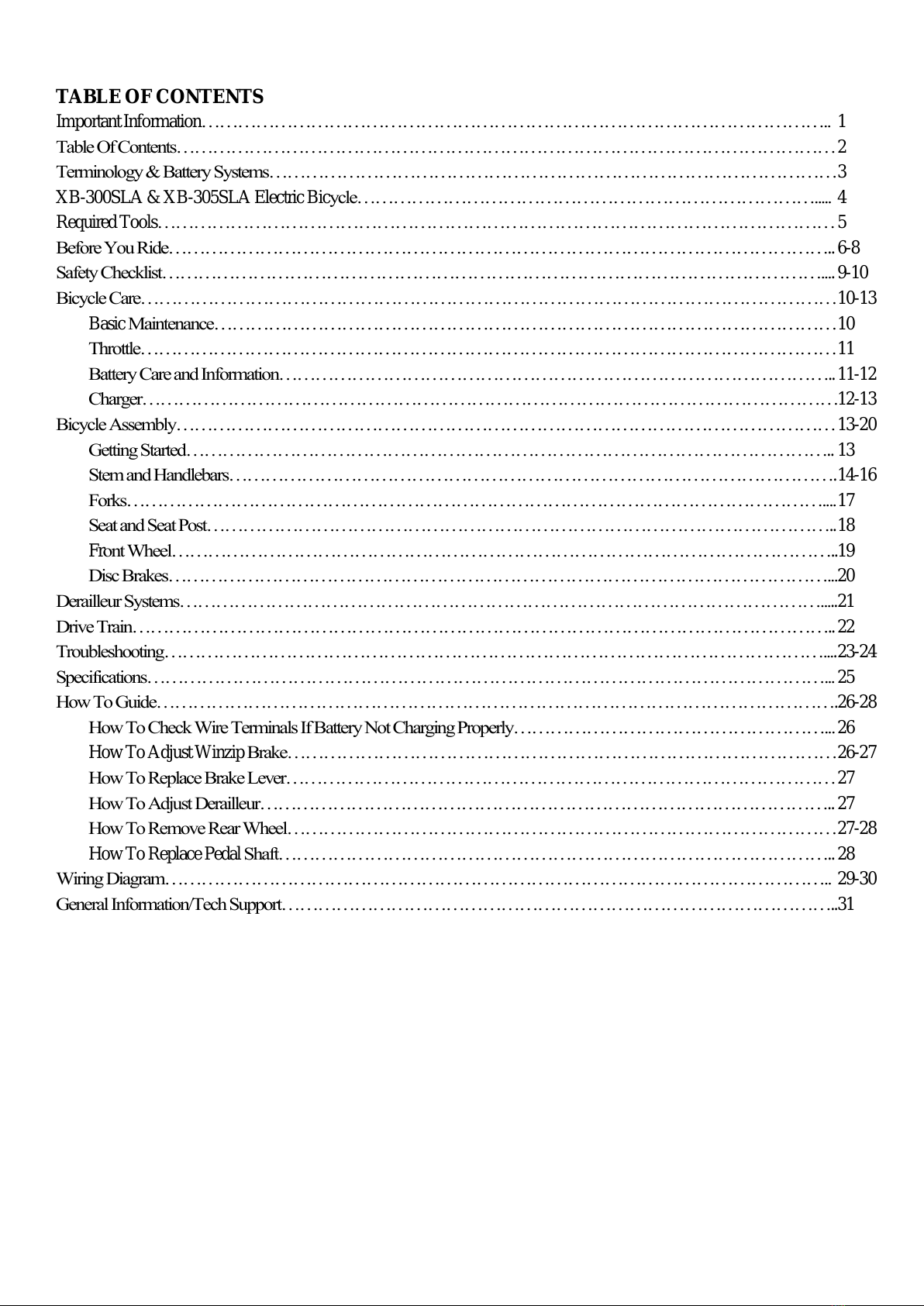

TABLEOFCONTENTS

ImportantInformation………………………………………………………………………………………….. 1

Table Of Contents………………………………………………………………………………………………2

Terminology & Battery Systems…………………………………………………………………………………3

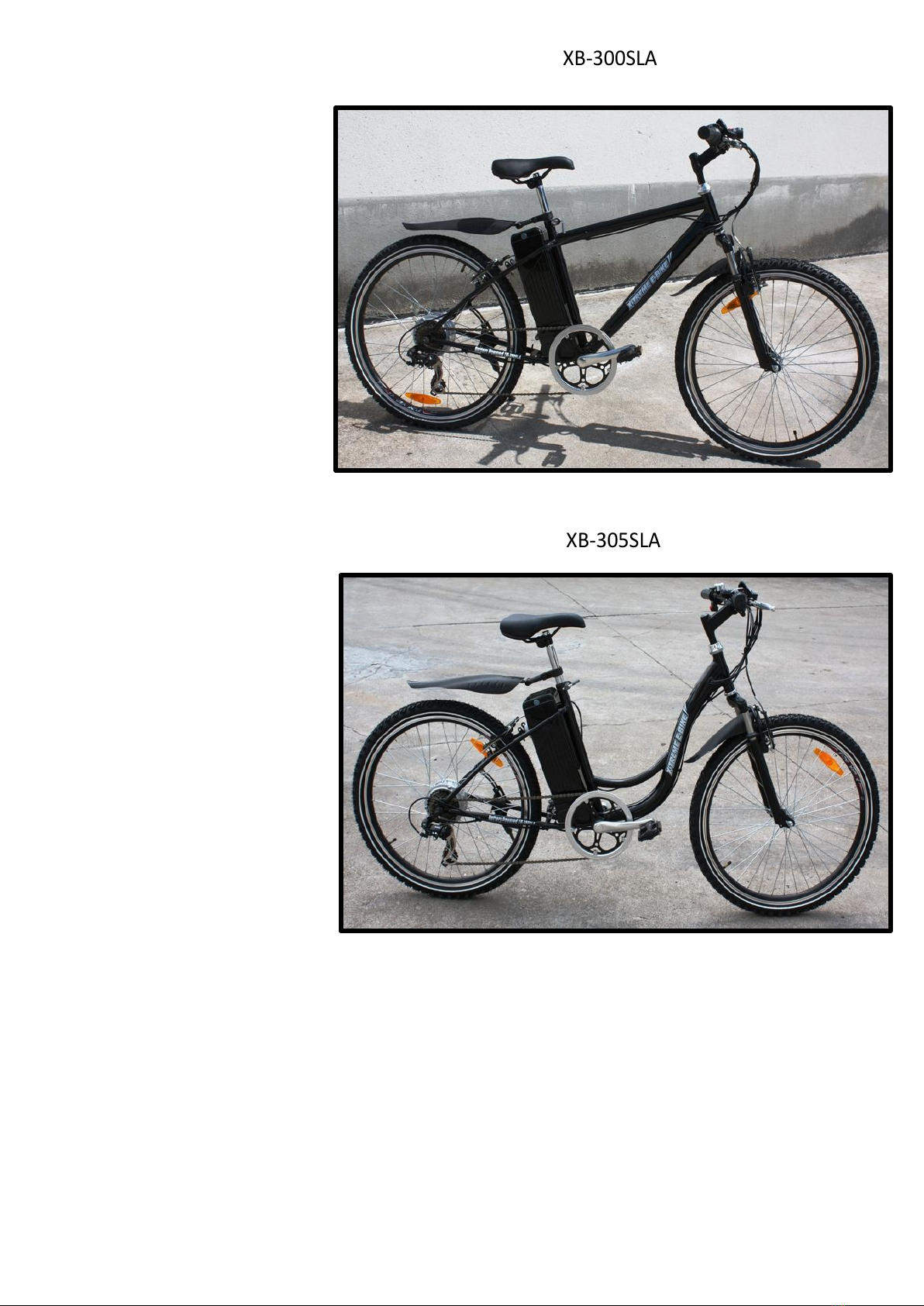

XB-300SLA&XB-305SLAElectricBicycle…………………………………………………………………..... 4

RequiredTools…………………………………………………………………………………………………5

Before You Ride………………………………………………………………………………………………..6-8

Safety Checklist………………………………………………………………………………………………....9-10

Bicycle Care……………………………………………………………………………………………………10-13

BasicMaintenance…………………………………………………………………………………………10

Throttle……………………………………………………………………………………………………11

Battery Care and Information………………………………………………………………………………..11-12

Charger……………………………………………………………………………………………………12-13

Bicycle Assembly………………………………………………………………………………………………13-20

Getting Started…………………………………………………………………………………………….. 13

Stem and Handlebars……………………………………………………………………………………….14-16

Forks……………………………………………………………………………………………………....17

Seat and Seat Post…………………………………………………………………………………………..18

Front Wheel………………………………………………………………………………………………..19

Disc Brakes………………………………………………………………………………………………...20

Derailleur Systems…………………………………………………………………………………………….....21

Drive Train……………………………………………………………………………………………………..22

Troubleshooting………………………………………………………………………………………………....23-24

Specifications…………………………………………………………………………………………………...25

How To Guide………………………………………………………………………………………………….26-28

How To Check Wire Terminals If Battery Not Charging Properly……………………………………………...26

HowToAdjustWinzipBrake………………………………………………………………………………26-27

How To Replace Brake Lever………………………………………………………………………………27

How To Adjust Derailleur………………………………………………………………………………….. 27

How To Remove Rear Wheel………………………………………………………………………………27-28

HowToReplacePedalShaft………………………………………………………………………………..28

Wiring Diagram……………………………………………………………………………………………….. 29-30

General Information/Tech Support………………………………………………………………………………..31

All manuals and user guides at all-guides.com

XB-305SLA

XB-300SLA

All manuals and user guides at all-guides.com

paRt

1 -

paRts

identi

ica

tion

Warning / important -

ake notice of this symbol throughout this manual and pay

particular attention to the instructions blocked off and preceded by this symbol.

TERMINOLOGY

POWER Systems

–Pedal Assist - Asensor ring and pickup mounted near the bottom bracket allow the bicycle to sense forward pedaling and

apply power.

–Twist and Go - A rider-controlled system, the motor activates only when the handlebar throttle is turned.

G –Pedal Assist or Twist and Go - A handlebar-mounted button allows selection of PAS or TAG modes.

All manuals and user guides at all-guides.com

Your new bicycle was partially assembled in the factory and then partially disassembled for shipping. You may have purchased the bicycle already

fully assembled and ready to ride OR in the shipping carton in the partially disassembled form. The following instructions will enable you to prepare

your bicycle for years of enjoyable cycling. For more details on inspection, lubrication, maintenance and adjustment of any area please refer to the

relevant sections in this manual. If you have questions about your ability to properly assemble this unit, please consult a qualified bicycle service

specialist before riding.

YPICAL

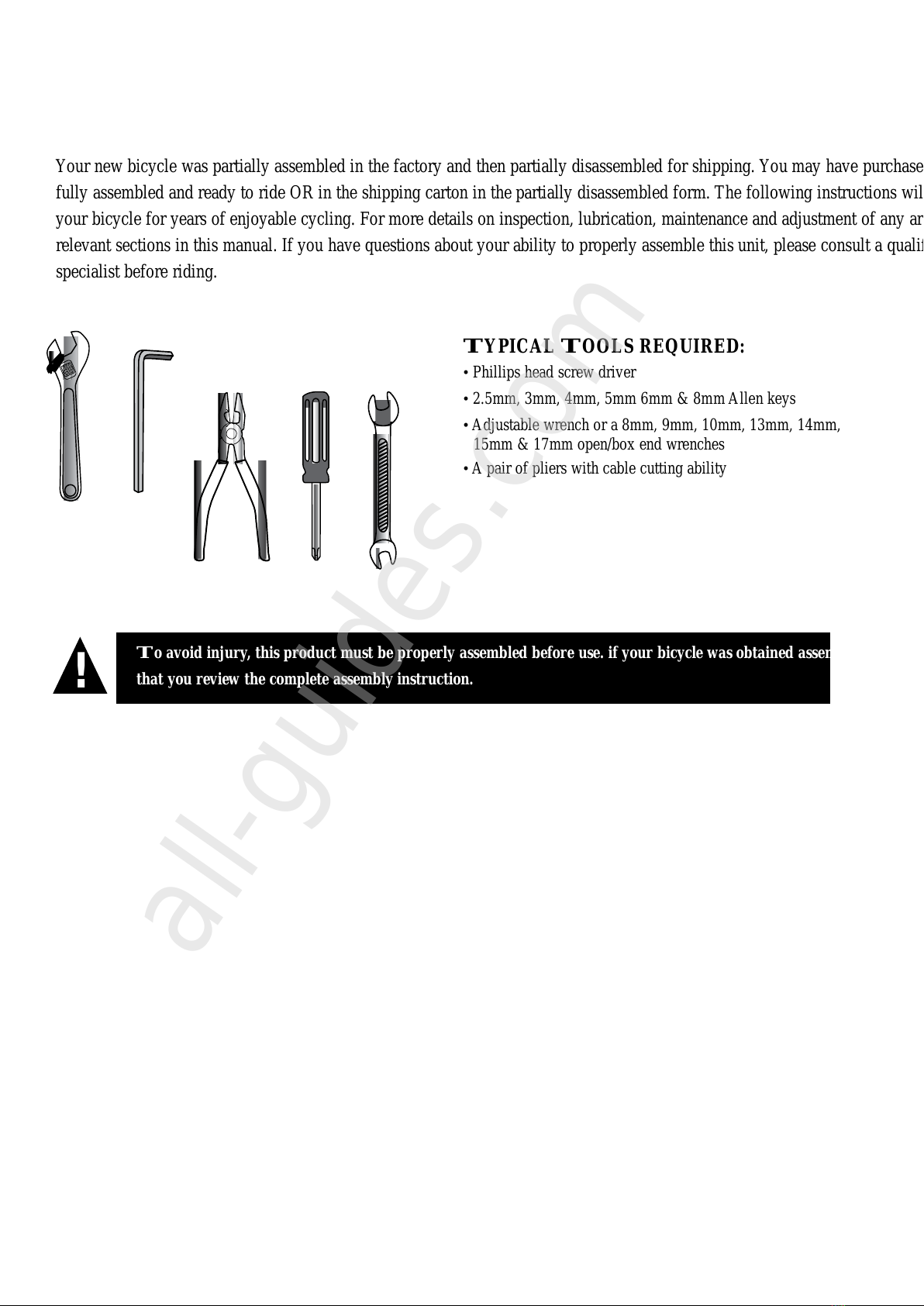

OOLS REQUIRED:

•Phillips head screw driver

•2.5mm, 3mm, 4mm, 5mm 6mm & 8mm Allen keys

•Adjustable wrench or a 8mm, 9mm, 10mm, 13mm, 14mm,

15mm & 17mm open/box end wrenches

•A pair of pliers with cable cutting ability

o avoid injury, this product must be properly assembled before use. if your bicycle was obtained assembled, we strongly recommend

that you review the complete assembly instruction.

All manuals and user guides at all-guides.com

all-guides.com

PART

2 -

Beforeyou ride

ide

BEFORE YOU RIDE

ABOUT THIS MANUAL

It is important for you to understand your new bicycle. By reading this manual before you go out on your first ride, you’ll know how to get better performance, comfort,

and enjoyment from your new bicycle.

It is also important that your first ride on your new bicycle is taken in a controlled environment, away from cars, obstacles, and other distractions.

ENER

NING

Bicycling can be a hazardous activity even under the best of circumstances. Proper maintenance of your bicycle is your responsibility as it helps reduce the risk of injury.

This manual contains many “Warnings” and “Cautions” concerning the consequences of failure to maintain or inspect your bicycle. Many of the warnings and cautions say

“you may lose control and fall.” Because any fall can result in serious injury or even death, we do not repeat the warning of possible injury or death where ever the risk of

falling is mentioned.

ASPECIALNOTE

FOR P

ARENTS

It is a tragic fact that most bicycle accidents involve children. As a parent or guardian, you bear the responsibility for the activities and safety of your minor child. Among

these responsibilities are to make sure that the bicycle which your child is riding is properly fitted to the child; that it is in good repair and safe operating condition; that you

and your child have learned, understand and obey not only the applicable local motor vehicle, bicycle, and traffic laws, but also the common sense rules of safe and responsible

bicycling. As a parent, you should read this manual before letting your child ride the bicycle. Please make sure that your child always wears an ANSI, ASTM, SNELL

approved bicycle helmet when riding

CORRECT

FRAME SIZE

When selecting a new bicycle, the correct choice of frame size is a very important safety consideration. Most full sized bicycles come in a range of frame sizes.

These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube.

For safe and comfortable riding there should be clearance of no less than 1 - 2 inches between

the rider and the top tube of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground.

The ideal clearance will vary between types of bicycles and rider preference. This makes straddling the frame when

off the seat easier and safer in situations such as sudden traffic stops. Women can use a men’s style bicycle to determine the correct size women’s model.

The following chart and diagram will help you make the correct choice. Rider leg length refers to approximate pant inseam.

All manuals and user guides at all-guides.com

RIDING

POSITION

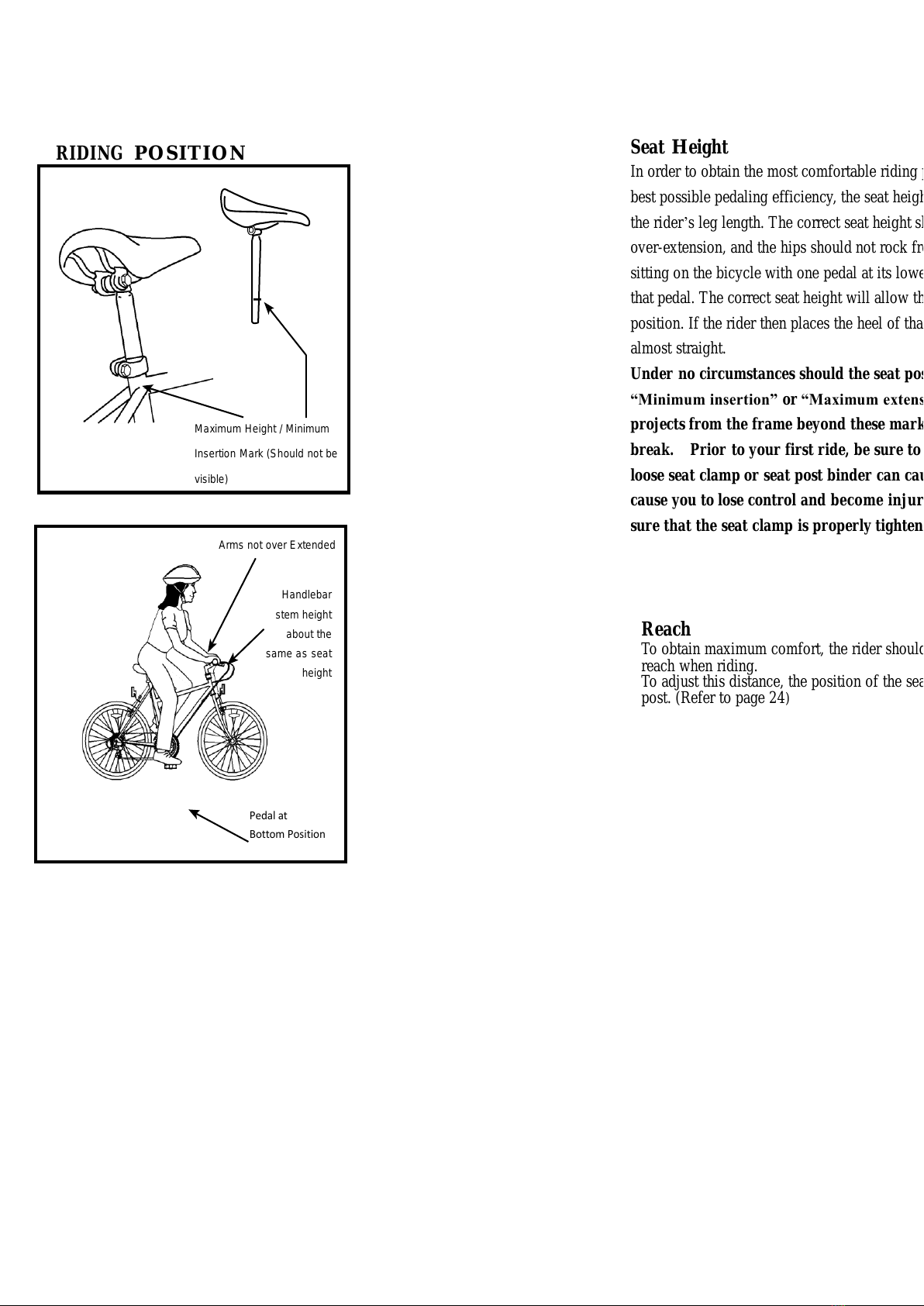

Seat

eight

In order to obtain the most comfortable riding position and offer the

best possible pedaling efficiency, the seat height should be set correctly in relation to

the rider’s leg length. The correct seat height should not allow leg strain from

over-extension, and the hips should not rock from side to side when pedaling. While

sitting on the bicycle with one pedal at its lowest point, place the ball of your foot on

that pedal. The correct seat height will allow the knee to be slightly bent in this

position. If the rider then places the heel of that foot on the pedal, the leg should be

almost straight.

Under no circumstances should the seat post project from the frame beyond its

“Minimum insertion” or “Maximum extension” mark. if your seat post

projects from the frame beyond these markings, the seat post or frame may

break. Prior to your first ride, be sure to tighten the seat clamp properly.

loose seat clamp or seat post binder can cause damage to the bicycle or can

cause you to lose control and become injured.

Periodically

check to make

sure that the seat clamp is properly tightened

Reach

To obtain maximum comfort, the rider should not overextend his or her

reach when riding.

To adjust this distance, the position of the seat can be altered in relation to the seat

post. (Refer to page 24)

Maximum Height / Minimum

Insertion Mark (Should not be

visible)

Arms not over Extended

Handlebar

stem height

about the

same as seat

height

Pedal at

Bottom Position

All manuals and user guides at all-guides.com

Handlebar

eight

Maximum comfort is usually obtained when the handlebar height is

equal to or slightly higher than the height of the seat. You may wish to

try different heights to find the most comfortable position.

Handlebar Adjustment & Height

The stem’s “Minimum insertion” mark must not be visible above

the top of the headset. If the stem is extended beyond this mark,

the stem may break or damage the fork’s steering tube, which

could cause you to lose control and become injured.

Failure to properly tighten the stem binder bolt, the handlebar

binder bolt, or the bar end extension clamping bolts may

compromise steering action, which could cause you to lose control

and become injured. Place the front wheel of the bicycle between

your legs and attempt to twist the handlebar/stem assembly using

a reasonable amount of force. There should be no play or ability

to move the handlebars in relation to the wheel. If you can twist

the handlebars while the wheel remains in place, do not ride

until proper alignment and is obtained, then tighten all bolts

accordinglybeforeuse.

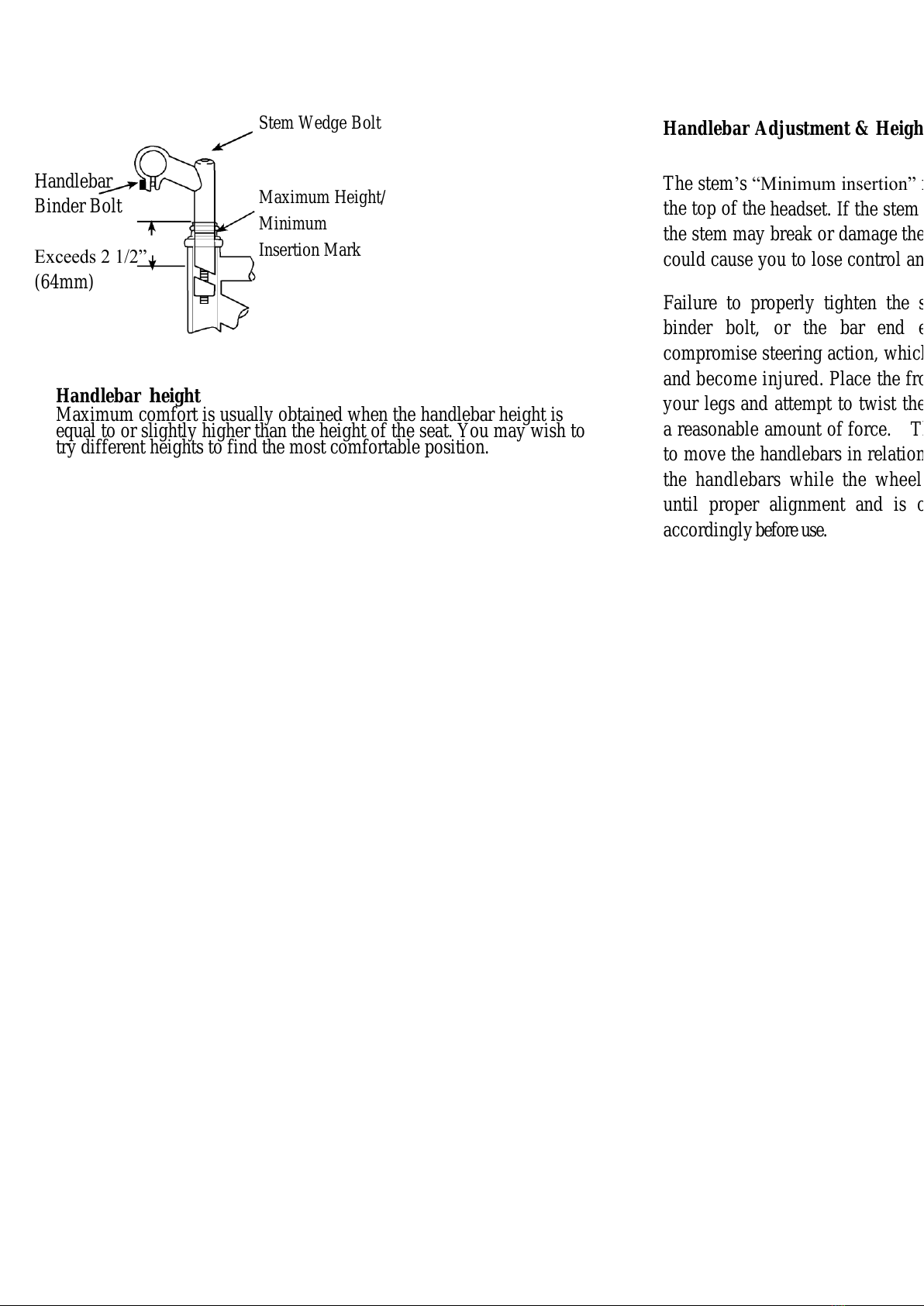

Handlebar

Binder Bolt

Exceeds 2 1/2”

(64mm)

Stem Wedge Bolt

Maximum Height/

Minimum

Insertion Mark

All manuals and user guides at all-guides.com

ETY

CHEC

LIST

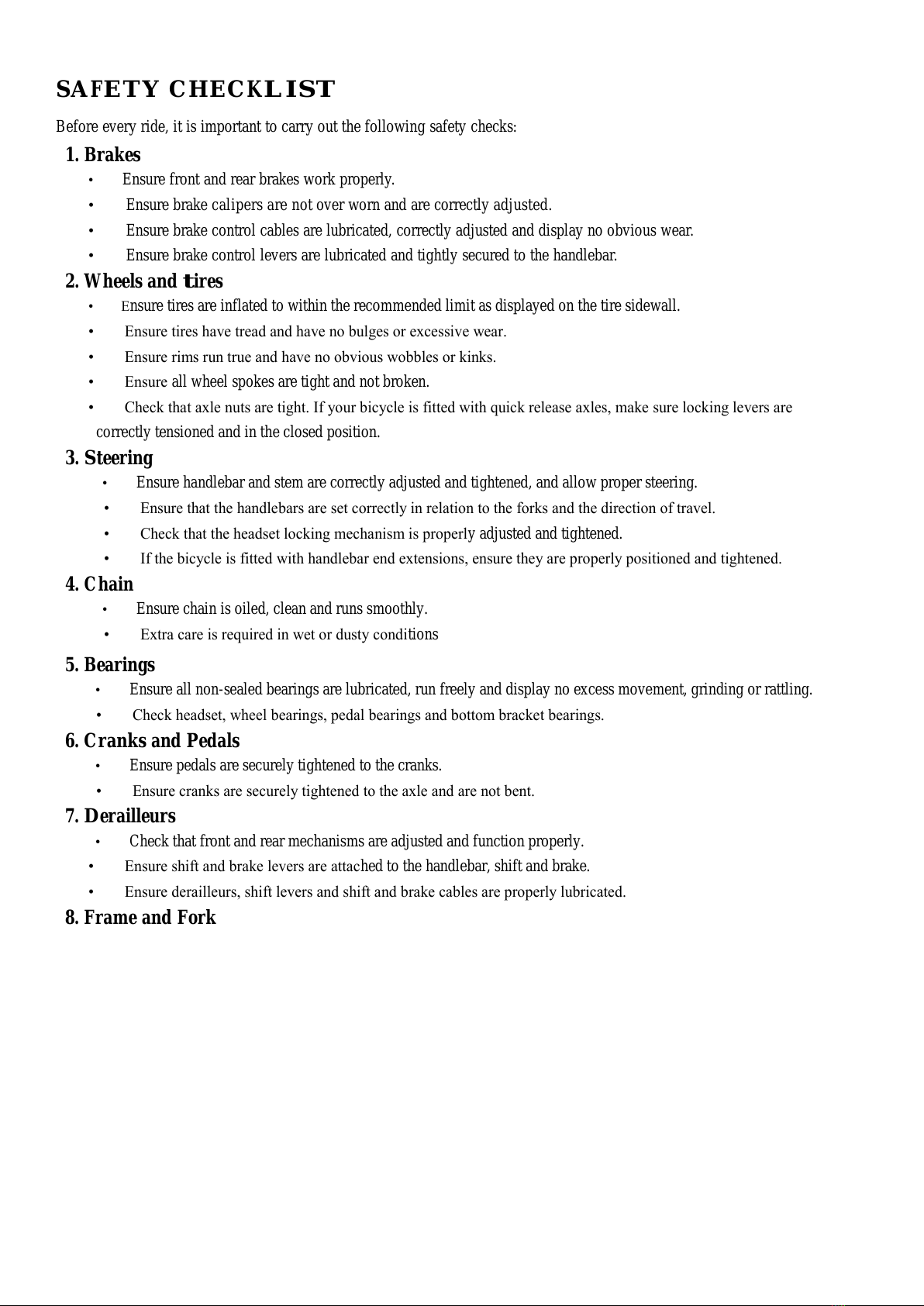

Before every ride, it is important to carry out the following safety checks:

1. Brakes

• Ensure front and rear brakes work properly.

• Ensure brake calipers are not over worn and are correctly adjusted.

• Ensure brake control cables are lubricated, correctly adjusted and display no obvious wear.

• Ensure brake control levers are lubricated and tightly secured to the handlebar.

2. Wheels and

ires

• Ensure tires are inflated to within the recommended limit as displayed on the tire sidewall.

• Ensure tires have tread and have no bulges or excessive wear.

• Ensure rims run true and have no obvious wobbles or kinks.

• Ensure all wheel spokes are tight and not broken.

• Check that axle nuts are tight. If your bicycle is fitted with quick release axles, make sure locking levers are

correctly tensioned and in the closed position.

teering

• Ensure handlebar and stem are correctly adjusted and tightened, and allow proper steering.

• Ensure that the handlebars are set correctly in relation to the forks and the direction of travel.

• Check that the headset locking mechanism is properly adjusted and tightened.

• If the bicycle is fitted with handlebar end extensions, ensure they are properly positioned and tightened.

4. Chain

• Ensure chain is oiled, clean and runs smoothly.

• Extra care is required in wet or dusty conditions

5. Bearings

• Ensure all non-sealed bearings are lubricated, run freely and display no excess movement, grinding or rattling.

• Check headset, wheel bearings, pedal bearings and bottom bracket bearings.

Cranks

and

edals

• Ensure pedals are securely tightened to the cranks.

• Ensure cranks are securely tightened to the axle and are not bent.

erailleurs

• Check that front and rear mechanisms are adjusted and function properly.

• Ensure shift and brake levers are attached to the handlebar, shift and brake.

• Ensure derailleurs, shift levers and shift and brake cables are properly lubricated.

8. Frame and Fork

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Scooter de Xtreme

Xtreme

Xtreme XB-420M Manual de usuario

Xtreme

Xtreme XG-565 A-Blaze Signature Series Manual de usuario

Xtreme

Xtreme X-140 Manual de usuario

Xtreme

Xtreme XM-3100 Guía de solución de problemas

Xtreme

Xtreme X-360 Manual de usuario

Xtreme

Xtreme XG-505 Manual de usuario

Xtreme

Xtreme XG-470 Manual de usuario

Xtreme

Xtreme XM-3150 Guía de solución de problemas

Xtreme

Xtreme X-140 Manual de usuario

Xtreme

Xtreme X-010 Manual de usuario

Xtreme

Xtreme X-370 Manual de usuario

Xtreme

Xtreme X-160 Manual de usuario

Xtreme

Xtreme XB-420M Manual de usuario

Xtreme

Xtreme X-300 Manual de usuario

Xtreme

Xtreme XG-550 Manual de usuario

Xtreme

Xtreme X-360 Manual de usuario

Xtreme

Xtreme XG-550 Manual de usuario

Xtreme

Xtreme XR-302 Manual de usuario

Xtreme

Xtreme XG-575DS Manual de usuario

Xtreme

Xtreme XA-750 Manual de usuario

Xtreme

Xtreme X-250 Manual de usuario

Xtreme

Xtreme XR-101 Manual de usuario

Xtreme

Xtreme X-140 Manual de usuario

Xtreme

Xtreme METRO EXPRESS Manual de usuario

Manuales populares de Scooter de otras marcas

TEKTRO

TEKTRO CHEETAH Manual de usuario

Douglas

Douglas Vespa Sprint Guía de instalación

PLAYTIVE

PLAYTIVE AS-2448 Manual de usuario

Ebinger

Ebinger DONKEY XL Manual de usuario

Flyer

Flyer Mountain Guía del usuario

BackCountry eBikes

BackCountry eBikes Storm Manual de usuario

equipmed

equipmed FreeRoam II Manual de usuario

Yoto

Yoto Lion Manual de usuario

WESTHILL BIKES

WESTHILL BIKES LINK Manual de usuario

BAnff

BAnff eProdigy series Manual de usuario

Winther

Winther 475 Manual de usuario

Jetson

Jetson JBZL17 Manual de usuario

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manual de usuario

Carrera

Carrera impel Manual de usuario

Afikim

Afikim Superlight SL-3 Manual de usuario

CareCo

CareCo ZOOM Manual de usuario

Douglas

Douglas Vespa G.S. Manual de usuario

Gazelle

Gazelle with BOSCH System Manual de usuario
