Xtreme XM-3000 Guía de solución de problemas
Operation and Maintenance Instructions
Electric Moped
XM-3000
Revised 10/17/08
We strongly recommend that you read this entire manual before using
your vehicle for the first time.
1
X-Treme TM
Electric Moped
Contents age
General Instruction before riding Page 3
Point Inspection Page 4
Assembly Instructions Page 5
Technical Specifications Page 6
Parts List Page
Front Display Page 8
Ignition Key Positions Page 9
Handle Bar Controls Page 10
Power Boost Button Page 11
Accelerating & Braking Page 12
Battery & Charging Page 13
Performance Page 14
Maintenance Page 15
Maintenance Schedule Page 16
Frequently Asked Questions Page 1 - 19
Special Maintenance Warning Signals Page 20
Troubleshooting Page 21 - 22
2
General Instructions Before Riding
1) To ensure the vehicle is functioning correctly, do a quick check of
the vehicle’s tires and check that the brakes are working. (For more
detailed maintenance instructions see the Maintenance Schedule .
Your vehicle has been thoroughly checked by our engineers before
delivery but on the spot checks are equally important.
2) When the key is inserted and turned to the "ON" position, the power
indicator will illuminate. If current drain is over 60A, the power will be
automatically cut off to avoid over-heating. Wait for one minute and
then press the red button (see pg.7 to restart the vehicle.
3) To avoid unplanned acceleration, always turn the key to the “OFF”
position before dismounting or leaving the bike unattended.
4 SAFETY NOTICE: Be sure that you are seated on the bike and
stands are clear of the floor before touching the throttle handle. If
you twist the throttle before you are ready to go or while you are
mounting the bike it may run away from you and could lead to an
accident.
5) This vehicle may be ridden in wet conditions, but be sure to avoid
soaking it during cleaning to avoid damaging any of the electric
components.
6) The vehicle should not be left in strong, direct sunlight for long
periods as some of the electric components may overheat.
7) Motorcyclists must abide by the same traffic rules and regulations as
other motorists. Before taking your motorcycle on a public road, be
familiar with traffic rules and regulations and any special
requirements for motorcycles.
8) Never drink and ride. Alcohol slows reflexes and greatly limits your
ability to operate a motorcycle. Even a very small amount of alcohol
will reduce your ability to operate a motorcycle safely.
3
oint Inspection before every use
Item Action
Front Brake Squeeze right hand brake and push the vehicle to
see whether it rolls easily. If it does, then the brake
must be tightened. Tighten the bolt until the vehicle
will no longer move with the brakes applied.
Rear Power
Disc Brake
Listen for any noticeable grinding or squealing from
the tires while the brake is applied. If so, contact
the supplier.
Brake Fluid Check fluid gauge on the left handlebar to ensure
that the brake fluid is above the indicated level. If
not, top it off with a good brand of brake fluid.
Electric Switch Handle Turn Throttle counter clockwise then release; the
Throttle should spring back to stop position. If not,
contact your supplier.
Tires Check the tire pressure is 36 PSI
Controller/ Motor Check the usage and condition
Battery Check the power level by looking at the gauge or
with a voltage meter (26V-12V .
Signal Check to make sure your lights are working.
Nuts and Bolts Check to make sure that all nuts and bolts are
tightened and secured.
Important Notes
1. Regularly perform a routine maintenance check. Doing so will help
protect yourself and your vehicle.
2. If any parts are damaged, whether normal or abnormal, please check
with the supplier before riding.
4
Assembly Instructions
Installing the mirrors
1. Mirrors can be easily fixed to the handle bars between the grips and the
brake handle.
2. Screw in the mirror clockwise. The mirror that goes on the left controller
is curved to the left and the mirror that goes on the right controller
curves to the right.
3. Secure mirror by tightening the bolt.
4. Clean and adjust both mirrors before you ride. Adjust each mirror so
you can see the lane behind you and as far as possible the lane next
to you. When the mirror is properly adjusted you can see the edge of
your arm and shoulder.
5
Technical Specifications
Motor Power 3000W Brushless Hub Motor
Battery DC 60V, 38AH with the green saver ( silicone power batteries
Charger 5A,110V~250V/50 Hz ~60Hz
Charging Time 6~10 Hours
Life of Battery 400 Deep Cycles
Wheelbase 10 Inches
Torque 110Nm (76 ft-lb
Top Speed 40 mph
Single Charge 50 Mile based on 38AH battery
Climbing Capacity 1:4 Gradient for a 155 lb. Rider
Maximum Weight Capacity 282 lbs
Tire Front:3.50-10.00 Inch 8PR Rear:3.5-10.00 Inch 8PR, tubeless
tires
Gross Weight 297lbs with 38AH60V silicon battery
Net Weight 178lbs (not including battery
Battery Weight 128lbs
Product Size L 70” x W 27” x H47”
Brake System Front and Rear Disc brake
6
arts List
A. Horn
B. Throttle and Front Brake Handle
C. Rear View Mirror
D. Head Lamp
E. Dash Board
F. Odometer (Kilometer/Mileage
G. Shift gear position
H. Under seat storage
I. Front Storage Box
J. Tail Light
K. Front Disk Brake
A. 2 speed shift gear & Rear Disc Brake
L. Turning Signal Light
M. Front Shock Absorber
N. Center Stand
O. Kick Stand (this automatically cuts off the power so the bike will remain stationary
P. Front Fender
R. Rear hub motor
S. Front Wheel
T. Controller
U. Charging Plug
V. Anti-overheat circuit breaker
W. Battery Box
X. Voltage Converter
Y. Helmet Hook
Z. Rear Rack
7
8
9

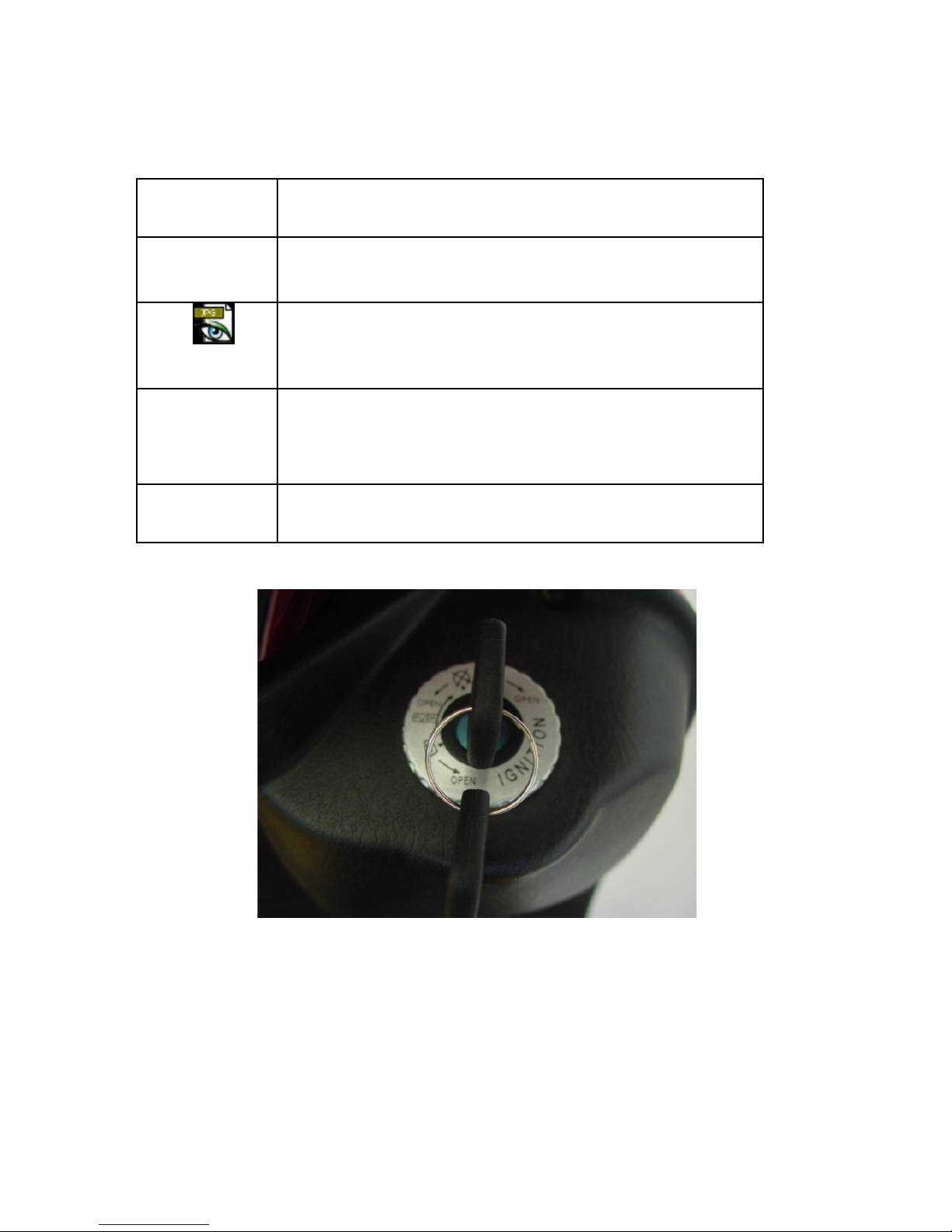

Ignition Key osition
Key
osition
Description
On Key cannot be taken out when power is on.
shift gear.jpg
Off
Key can be taken out when power is off
Lock handle
bar
To prevent theft, turn the Handle Bar to the far left
and turn the key into the lock position. The key can
be taken out when handle bar is in the lock position.
Opening the
seat
Use the key in the slot on the side of the bike to
release the locking mechanism of the seat.
10
