weBoost DRIVE SLEEK U470035 Manual de usuario
User Manual
Vehicle Signal Booster Kit
DRIVE SLEEK
A WILSON ELECTRONICS BRAND
______
Index
Package Contents 1
STEP 1: Mount Outside Antenna 2
STEP 2: Route & Connect Booster 3
STEP 3: Route Cable To Front Of Vehicle 5
STEP 4: Connect System To Power 6
STEP 5: Insert Phone Into Cradle 7
Troubleshooting 8
Safety Guidelines 9
Specifications 10
Warranty 11
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 1
________
Package
Contents
Sleek
Cradle
Outside
Antenna
Signal
Booster
Power
Supply
Magnetic
Vent Mount
(for cradle)
2CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
Step 1: Mount Outside
Magnetic Antenna
WORKS WITH ALL VEHICLES
Identify a location on the top of your vehicle that is:
Near the center of the roof
At least 12 inches away from any other antennas
At least 6 inches away from any windows
(including sunroofs)
Clean the surface where you will place the outside
antenna.
Mount the outside antenna by placing on top of vehicle.
6 in. away from windows
(including sunroofs)
route from
any side
NOTE: For roofs that are non-magnetic, you will need an adhesive disk to
mount the outside antenna.
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 3
______
Step 2: Route Antenna Cable
& Connect Booster
Route the cable into the vehicle. See examples below.
NOTE: When going through car wash,
remember to remove your antenna.
NOTE: The cable is strong enough that it may be shut in most vehicle doors
without damaging the cable.
Car/Sedan: Cable routed
into rear side door.
SUV/Van/Hatchback: Cable
routed into top of hatchback door.
Truck: Cable routed into
side door.
Identify a location on the top of your vehicle that is:
Near the center of the roof
At least 12 inches away from any other antennas
At least 6 inches away from any windows
(including sunroofs)
Clean the surface where you will place the outside
antenna.
Mount the outside antenna by placing on top of vehicle.
4CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
The included Velcro®can be used to mount the booster
out-of-the way on the floor under a seat or mounted to the
side of the trunk. It is best to mount in a place where the
cables cannot be tripped over or snagged (damaging the
booster).
______
(STEP 2 cont.)
Connect the cable from the outside antenna to the booster
port labeled
ANTENNA
by simply pressing the connector in until
you hear a “click”.
ANTENNA
cable from
outside antenna
booster
Velcro®
NOTE: Connecting cable from outside antenna to booster does not
take much force.
NOTE: The “hook” side of the Velcro®(already on the booster) can be
used to attach to the carpet of many vehicles.
bottom side of booster
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 5
______
Step 3: Route Cable To Front
Of Vehicle & Connect To
Cradle
We recommend routing the 15ft. fixed cable from the
booster, under mats and between seats up to the front of
the vehicle where the cradle will be located.
Connect booster cable to cradle cable.
to front of
vehicle
snap-in
connectors
cradle
6CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
Step 4: Connect System To
Power
Connect the power to the 12V*CLA port on your vehicle
and route power cable back to the booster.
Connect power cable to booster port labeled .
NOTE: We recommend routing with the same path as the cradle/booster
cable (under mats and between seats). Cable clips are provided to help
route & secure the cables.
NOTE: The booster will be on whenever there is power from the 12V CLA
port. If your vehicle always has power going to this port, you may want to
unplug this when you’re not driving so the booster does not drain your
battery. *Only 12V ports are supported.
ANTENNA
connect power supply
to 12V port
connect
to booster
cable from power supply
cable clip
cable clip
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 7
______

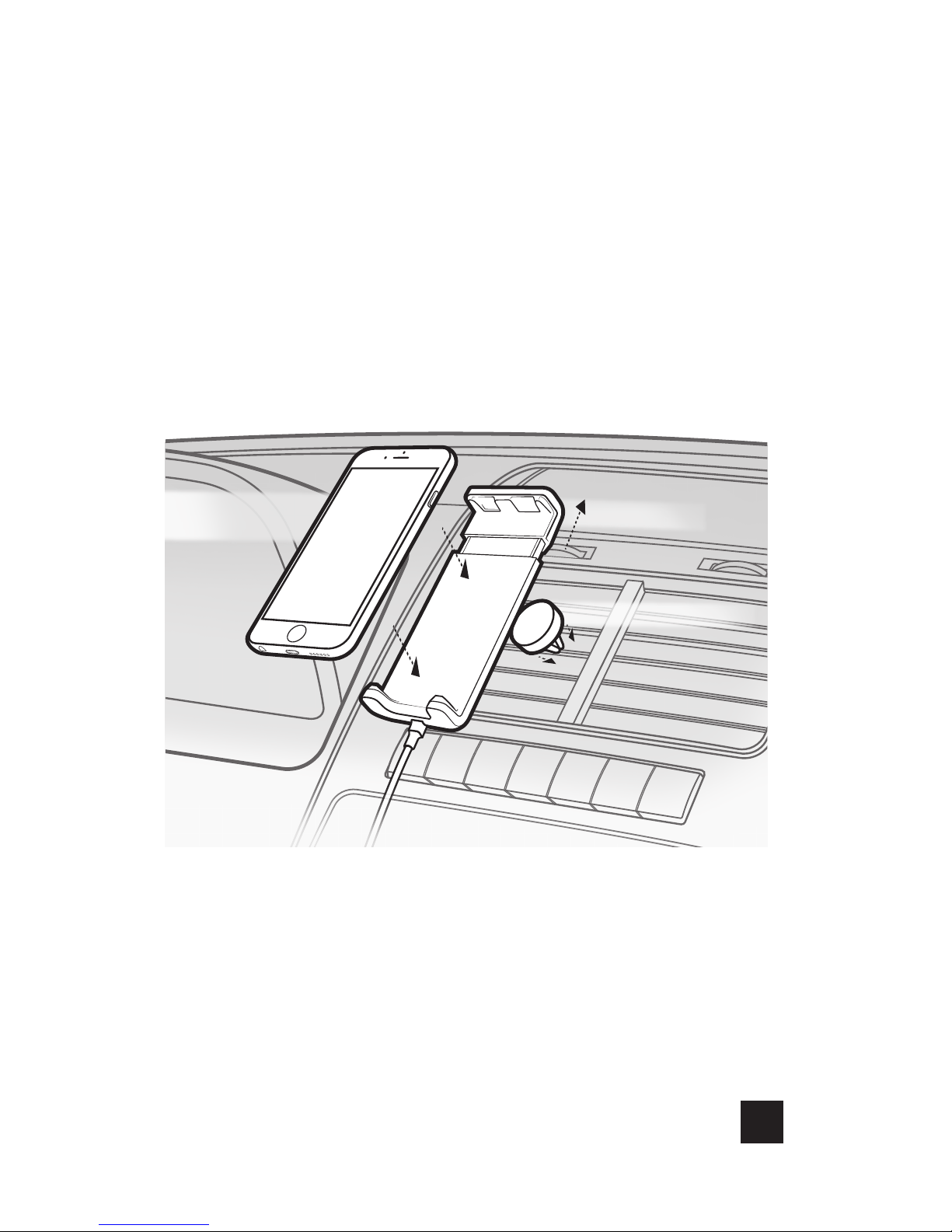

Step 5: Insert Your Phone
Into Cradle
Make sure you have plenty of slack in the cable going up
to the cradle (Velcro®straps included to manage excess
cable). Insert your phone into cradle and watch your signal
increase!
NOTE: A magnetic vent mount is provided which provides a versatile,
safe and functional smartphone solution.
IMPORTANT: The FCC requires to never use the cell phone in the cradle
next to your ear.
connect
to booster
cradle extends
insert phone into
cradle to boost signal
magnetic vent mount
8CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
Troubleshooting
Solid White (LED on cradle)
This indicates that your booster is functioning properly and at maximum gain.
Light O (LED on cradle)
Dropped Calls
If you are regularly experiencing dropped calls in the same areas, turn off VoLTE/HD
Voice in your phone’s settings.
Check/secure power connections to the CLA, booster, and cradle. If light shuts off,
remove from vehicle port and plug back in to reset the system. For any questions
or assistance contact our weBoost Customer Support Team (1-877-312-4547).
