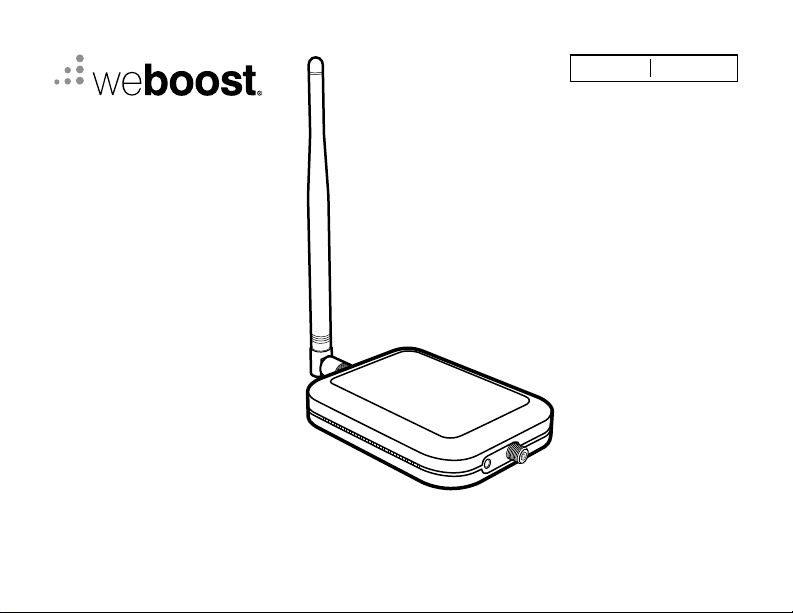

weBoost Basic Home Manual de usuario
Home Studio / Home Studio Lite
Cell Signal Booster
ENGLISH FRANÇAIS
Installation Guide
A WILSON ELECTRONICS BRAND
Index
Package Contents ............................................................1
STEP 1 Attach Booster Antenna to Booster & Place in Desired Location..............2
STEP 2 Mount & Point Outside Antenna Toward Nearest Cell Tower.................2
STEP 3 Route & Connect Outside Antenna To Booster ............................4
STEP 4 Power Up The Booster & Optimize The System ...........................4
Status Light Patterns ..........................................................6
Troubleshooting ..............................................................8
Safety Guidelines ........................................................... .10
Specifications ...............................................................12
Warranty....................................................................14
1
ENGLISH
Package Contents
Home Studio/Home
Studio Lite Booster
& Booster Antenna
Outside Antenna &
L-Bracket Antenna
Mount
Power
Supply
(2) 9 meter
Cables and
Cable Connector
2ENGLISH
STEP 1 Attach Booster
Antenna to Booster & Place In
Desired Location
Attach the Booster Antenna to Home
Studio/Home Studio Lite Booster and
place in room where stronger cell
signal is needed.
Pole mounting is preferred because it will
be easier to adjust to the direction of the
cell tower. Use the U-Bolts to attach the
Antenna to a pole or exhaust pipe on roof.
STEP 2 Mount & Point
Outside Antenna Toward
Nearest Cell Tower
Booster
Antenna
Home Studio/Home
Studio Lite Booster
Outside Antenna
attach L-Bracket
to antenna
attach L-Bracket
to U-Bolts
drip holes
3
ENGLISH
(STEP 2 cont.)
Point the Outside Antenna toward the
nearest cell phone tower. To find the
nearest tower, use an app such as
‘Open Signal’. This is the most critical
step of the installation process because
it will determine the overall performance
of the Booster system.
Side mounting is a option if you
can still obtain strong signal.
Note: Drip holes should be
pointed down towards ground.
Side Mounting
drip holes
4ENGLISH
STEP 3 Route & Connect
Outside Antenna To Booster
Connect the white RG-6 Cable to
Outside Antenna and route and
connect cable to Home Studio/Home
Studio Lite Booster. All connections
should be finger tightened only.
Connect Power Supply into end of Booster
then plug Power Supply into wall outlet.
NOTE: We strongly recommend using a
power strip with surge protection.
STEP 4 Power Up The Booster
& Optimize The System Status Lights will
appear at the top
5
ENGLISH
(STEP 4 cont.)
After powering up your system, check to
see how your talk, text, and data rates
have improved. If more is desired, you can
optimize your system.
Rotate the Outside Antenna in 1/8 turn
increments, after each turn, unplug and
reconnect the Booster to power while
observing the signal level on your cell
phone from the Inside Antenna’s projected
area. When you have determined a direction
that gives you the strongest signal, secure
the Outside Antenna in place. Below gives
you an idea of how much boosted cell signal
coverage this system will bring indoors
based on how strong the outside signal is.
After each rotation, observe
signal level on your cell phone
from the Inside Antenna’s
projected area.
If the cell signal
outside your home is:
Your boosted cell
signal will cover:
Strong Good Weak None
Large
Room
Medium
Room
Small
Room None
6ENGLISH
GREEN
This indicates that your Home Studio or Home
Studio Lite is functioning properly and there
are no issues with installation.
SOLID RED
Band has shuto. This is due to a feedback
loop condition called oscillation. This is a built
in safety feature that causes a band to shut
o to prevent harmful interference with a
nearby cell tower. Refer to Troubleshooting
section.
BLINKING GREEN, RED
This indicates that the Booster is operating
at a reduced gain to prevent oscillation
(feedback). This is a built in safety
feature to prevent harmful interference
with a nearby cell tower. If you are
Status Light Patterns
Band 2
Band 4
Band 5
Band 12
Band 13
Band 12
Band 13
Band 2
Band 4
Band 5
Band 12
Band 13
Band 12
Band 13
Home Studio Booster Lights
Home Studio Lite Booster Lights
7
ENGLISH
(Status Light Patterns cont.)
already experiencing the desired signal boost, then no further adjustments are
necessary. If you are not experiencing the desired boost in coverage then refer to the
Troubleshooting section.
BLINKING GREEN, YELLOW
This indicates that one or more of the Booster bands has reduced gain due to overload
from nearby cell tower. This is a built in safety feature to prevent harmful interference
with a nearby cell tower. If you are already experiencing the desired signal boost, then
no further adjustments are necessary. If you are not experiencing the desired boost in
coverage then refer to the Troubleshooting section.
SOLID YELLOW
Band has shuto due to overload from nearby cell tower. Outside Antenna must be
adjusted. Refer to Troubleshooting section.
LIGHTS OFF
If the Signal Booster’s light is o, verify your Power Supply has power.
8ENGLISH
FIXING RED LIGHT ISSUES
This involves Solid Red & Blinking Green/Red lights.
■ Tighten all cable connections (be sure to handtighten only, do NOT use tools).
You may want to undo and redo the connection completely. Unplug and replug
in Power Supply at the wall outlet.
■ Increase the distance (horizontally or vertically) between the Outside and Inside
Antenna. Add included cable if needed. Unplug and replug in Power Supply.
■ Booster should be 5 cm vertically separated and 30.5 cm horizontally separated
from any metal.
FIXING ANY YELLOW LIGHT ISSUES
This involves Solid Yellow & Blinking Green/Yellow lights.
■ Outside Antenna must be adjusted. Disconnect and reconnect power between
adjustments. Wait at least 10 seconds between adjustments for the lights to reset.
Pole Mount Option: Rotate the Outside Antenna away from the strongest cell
phone signal in small increments (1/8 turn) until the light turns green. Unplug and
Troubleshooting
