weBoost Home Complete 460045 Manual de usuario
NEED HELP? support.weboost.com 866.294.1660
User Manual
Cellular Signal Booster
Home Complete
A WILSON ELECTRONICS BRAND
Package Contents
1
Preparation
2
STEP 1-A & B: Connect Inside Antenna To Booster
3
STEP 2-A: Point Outside Antenna Toward Nearest Cell Tower
4
STEP 2-B: Mount Bracket To Outside Antenna
5
STEP 3: Route & Connect Cable To System
6
STEP 4: Power Up The Booster & Optimize The System
7
Measuring Booster Performance
9
Light Patterns
11
Troubleshooting
12
Safety Guidelines
14
Specifications
16
Warranty
17
______
Index
1
HOME COMPLETE CELL PHONE SIGNAL BOOSTER
______
Package
Contents
Home
Complete
Booster
Inside
Antenna
Outside
Antenna
Power
Supply
75’ & 60’
Cables
Booster &
Inside Antenna
Mounts
Outside Antenna
Bracket
Mount
Cable Clips
& 2 Adhesive
Strips
2CELL PHONE SIGNAL BOOSTER HOME COMPLETE
______
Preparation
NOTE: These instructions will walk you through a “soft” install process to find
the optimal locations for the inside and outside antennas, then through the
process of the permanent installation.
You Will Need (tools not included)
Make sure the following materials are prepared and ready for your
installation.
Ladder
Phillips-head screwdriver
10mm open-end wrench or adjustable wrench
Drill (if routing cable through wall)
1.25”-2” diameter pole existing pole (or order #901117)
Recommended: Power Strip with surge protection
3 to 4 hours
2 people (a person to help with antenna calibration)
3
HOME COMPLETE CELL PHONE SIGNAL BOOSTER
NOTE: Do not connect booster to power until the system is fully installed.
______
Step 1-A & B: Connect Inside
Antenna To Booster
Place the Inside Antenna where you need the greatest signal boost.
Connect Inside Antenna cable to the supplied coax cable then to the
bottom port on Home Complete Booster labeled ‘INSIDE’ and place Inside
Antenna in weak signal area at least 18 inches away from booster.
Inside
Antenna
Booster
4CELL PHONE SIGNAL BOOSTER HOME COMPLETE
______
Step 2-A: Point Outside
Antenna Toward Nearest
Cell Tower
Point the Outside Antenna toward the nearest cell phone tower. To find the
nearest tower, use an app such as ‘Open Signal’. This is the most critical step
of the installation process because it will determine the overall performance
of the booster system. The greater the separation between the Inside and
Outside Antennas, the better performance you will get from the booster.
Cell Tower
Outside Antenna
NOTE: The Outside Antenna must be at least
50 feet horizontal or 20 feet vertical from the
Inside Antenna for best performance. Make
sure the Inside Antenna and Outside Antennas
are setup so they are facing away from
each other.
5
HOME COMPLETE CELL PHONE SIGNAL BOOSTER
______
Step 2-B: Mount Bracket To
Outside Antenna
Attach the Mount to the Outside Antenna and use the Bolts/Pole Bracket to
attach to a pole.
NOTE: Mounting on existing roof exhaust pipe
would be a good time-saver option. Watch out for
power lines.
Outside Antenna
Drip holes
face down
Pole
(1.25”-2.0”dia.)
Pole Bracket
Antenna Mount
6CELL PHONE SIGNAL BOOSTER HOME COMPLETE
______

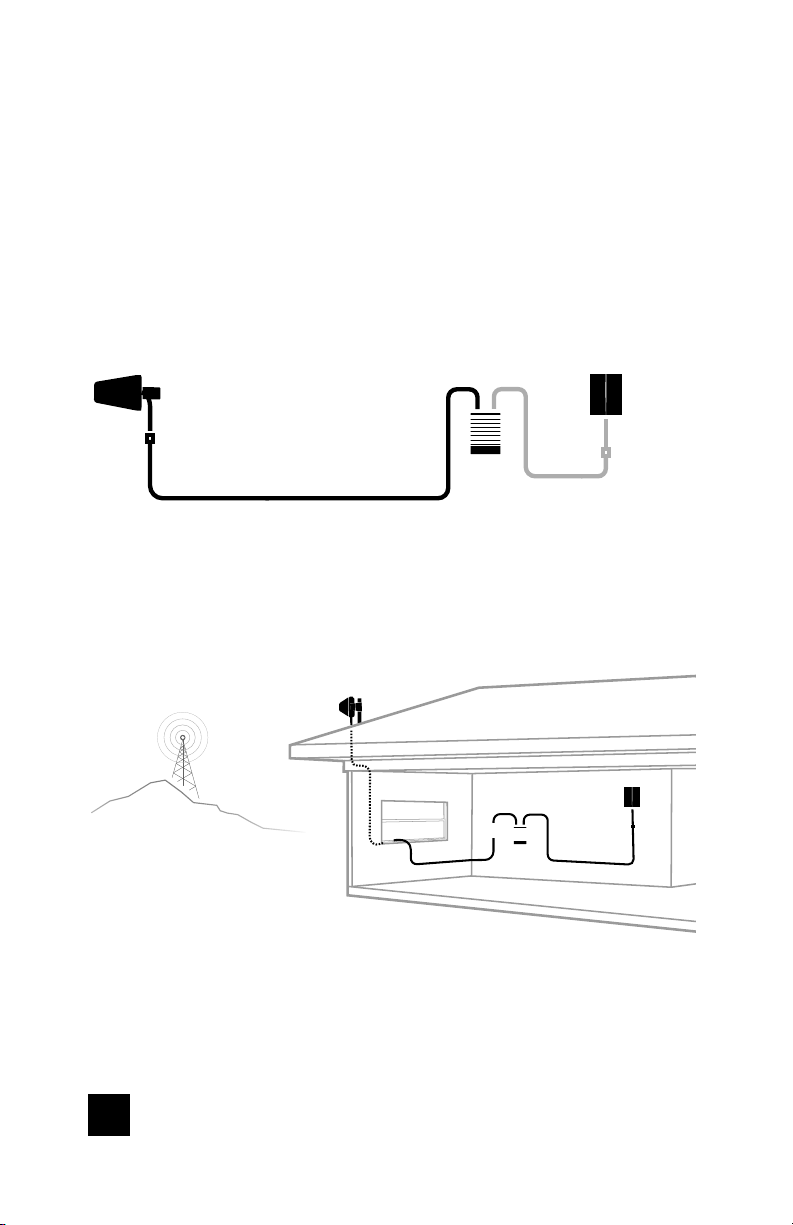

Step 3: Route & Connect
Cable To System
Connect the white RG-11 Cable to Outside Antenna and route cable
into the home. All connections should be hand tightened only.
Route cable to the Home Complete Booster and connect to port
labeled ‘OUTSIDE’.
Outside
Antenna
Inside
Antenna
Outside
Antenna
Cell
Tower
Inside
Antenna
RG-11 Cable
Booster
Booster
7
HOME COMPLETE CELL PHONE SIGNAL BOOSTER
______
Step 4: Power Up The
Booster & Optimize
The System
Plug the Power Supply into wall outlet then connect to the Booster.
Outside
Antenna
Outside
Antenna
Cell
Tower
Inside
Antenna
RG-11 Cable
Booster
to power
Inside
Antenna
Power Supply
50 FEET HORIZONTAL OR 20 FEET
VERTICAL DISTANCE
Booster
8CELL PHONE SIGNAL BOOSTER HOME COMPLETE
After powering up your system, you are now ready to optimize your system.
Rotate the Outside Antenna in 1/4 turn increments, after each turn, unplug
and reconnect the booster to power while observing the signal level on
your cell phone from the Inside Antenna’s projected area. Secure the
Outside Antenna in place, pointing in the direction that gives you the
strongest signal.
______
(STEP 4 cont.)
After each rotation, observe signal level
on your cell phone from the Inside Antenna’s
projected area
