Installation Guide
Index
Package Contents ........................................................... 1
STEP 1 Mount Outside Antenna & Route Cable .................................. 2
STEP 2 Connect Cable to Outside Antenna ..................................... 6
STEP 3 Inside Antenna Location ............................................... 6
STEP 4 Booster Location & Connect Cables .....................................7
STEP 5 Connect Power Supply to Booster ...................................... 7
Booster Light Patterns ....................................................... 8
Troubleshooting ............................................................ 10
Safety Guidelines ............................................................12
Specifications .............................................................. 15
Warranty................................................................... 16
1
ENGLISH
Package Contents
Drive Reach
Signal Booster
& Bracket
Outside
Antenna
& 7.6 m RG-6
Cable
Inside
Antenna
Power
Supply
33 cm Mast Extension,
Side-Exit Adapter,
Spring, L-Bracket
Mount & Thread
Lock Pack
2ENGLISH
STEP 1 Mount Outside
Antenna & Route Cable
!!!
NOTE: Keep in mind to stay below the maximum height limit allowed by law in your area (generally 4.1 m to 4.2 m).
common Outside
Antenna location
Determine where you want the Outside
Antenna on your RV. Mount Outside
Antenna to a ladder or pole so that the
entire Outside Antenna is above the roof
line of the RV and clear of other metal
obstructions.
Important
3
ENGLISH
To assemble the Outside Antenna, insert
cable through Mast Extension then through
Side Exit Adapter.
NOTE: Antenna Spring can be
used optionally.
(STEP 1 cont.)
c
a
b
l
e
c
a
b
l
e
c
a
b
l
e
c
a
b
l
e
Mast
Extension
33 cm
mast
33 cm
mast
c
a
b
l
e
c
a
b
l
e
Antenna Spring
(can be used
optionally)
Side Exit
Adapter
cable from
Outside Antenna
run cable
through Mast
Extension
4ENGLISH
Verify the Outside Antenna is the correct
height, if so, use thread locker (provided) to
thread points and screw into place.
NOTE: When adding the Side Exit Adapter
hold the Outside Antenna vertically and
screw the Side Exit Adapter from the
bottom up. This reduces cable twisting.
(STEP 1 cont.)
Side Exit
Adapter
mast
mast
add thread
locker
add thread
locker
Outside
Antenna
c
a
b
l
e
f
r
o
m
O
u
t
s
i
d
e
A
n
t
e
n
n
a
5
ENGLISH
(STEP 1 cont.)
Side Exit
Adapter
add thread
locker
Spring
(optional)
add thread
locker
ladder rail
L-Bracket Mount
& hardware
Mount Outside Antenna. L-Bracket
Mount and hardware is provided to
mount to ladder or pole. If installing
with Spring, the Side Exit Adapter must
be used. Then route 7.6 m RG-6 cable
from inside RV to Outside Antenna.
NOTE: Outside Antenna location must
be within reach of the booster with the
7.6 m coax cable. The system performs
best with maximum vertical and
horizontal separation.
6ENGLISH
STEP 3 Inside Antenna Location
STEP 2 Connect Cable to
Outside Antenna

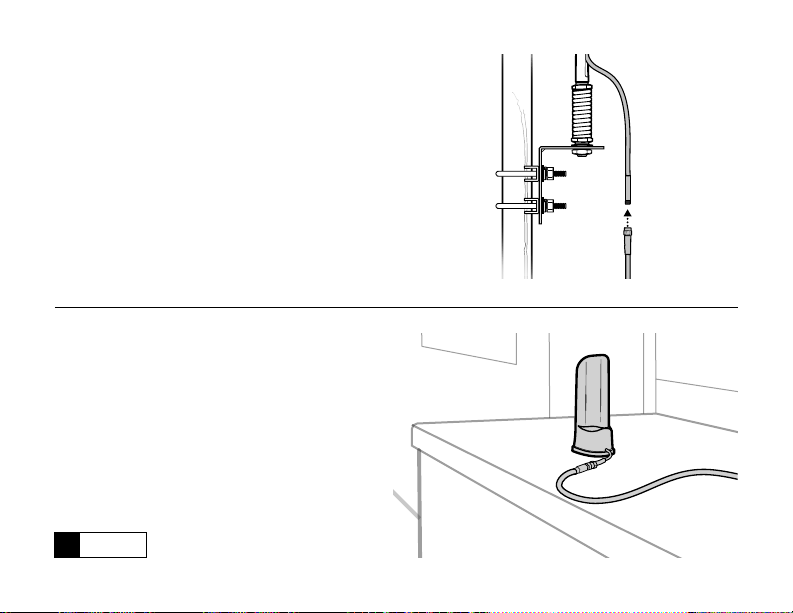

Place Inside Antenna where stronger
signal is desired in the RV.
After routing the RG-6 Cable into the
RV, connect the cable to the Outside
Antenna.
Inside Antenna
RG-58 Cable
RG-6 Cable
cable from
Outside Antenna
7
ENGLISH
STEP 4 Booster Location &
Connect Cables
from Inside Antenna
from Outside Antenna
STEP 5 Connect Power Supply
to Booster
Connect the power supply cord to the end of
the Booster, labeled “ ”, and connect into
a 110V wall plug. Enjoy your boosted signal!
connect Power
Supply Cord
Find a location to place the Drive Reach
Booster and secure it with provided Bracket.
Connect cable from Outside Antenna to
labeled booster port and connect cable from
Inside Antenna to labeled booster port.
8ENGLISH
SOLID GREEN
This indicates that your Drive Reach Booster is functioning properly and there are no
issues with installation.
SOLID RED
Band has shuto. This is due to a feedback loop condition called oscillation. This is a
built in safety feature that causes a band to shut o to prevent harmful interference
with a nearby cell tower. Refer to Troubleshooting section.
BLINKING RED, THEN SOLID GREEN
This indicates that one or more of the booster bands has reduced power due to a
minor feedback loop condition called oscillation. This is a built in safety feature to
prevent harmful interference with a nearby cell tower. If you are already experiencing
the desired signal boost, then no further adjustments are necessary. If you are not
experiencing the desired boost in coverage then refer to the Troubleshooting section.
Light O
If the Drive Reach Signal Booster’s light is o, verify your Power Supply has power.
Booster Light Patterns
