weBoost Home MultiRoom Manual de usuario
NEED HELP? support.weboost.com 866.294.1660
Installation Guide
Cell Signal Booster
Home MultiRoom
Home MultiRoom
A WILSON ELECTRONICS BRAND
BU-GDE000144-003-012120.indd 1BU-GDE000144-003-012120.indd 1 1/21/2020 3:34:10 PM1/21/2020 3:34:10 PM
Package Contents
1
Preparation
2
STEP 1-A & B: Inside Antenna & Booster Placement
3
STEP 2: Mount & Point Outside Antenna Toward Nearest Cell
Tower
5
STEP 3-A: Route & Connect Outside Antenna To Booster
8
STEP 3-B: Route & Connect Inside Antenna To Booster
9
STEP 4: Power Up The Booster & Optimize The System
10
Measuring Booster Performance
12
Light Patterns
14
Troubleshooting
15
Safety Guidelines
16
Specifications
17
Warranty
18
______
Index
BU-GDE000144-003-012120.indd 2BU-GDE000144-003-012120.indd 2 1/21/2020 3:34:10 PM1/21/2020 3:34:10 PM
1
HOME MULTIROOM CELL PHONE SIGNAL BOOSTER
______
Package
Contents
Home
MultiRoom
Outside Antenna
Mounting Bracket
Window Entry
Cable
(951177)
Wall Mount Brackets
w/Command Strips
Cable Mounting
Clips Qty. 15
Inside
Antenna
(314440)
Outside
Antenna
(314445)
30’ & 2-15’
Cables (950630),
(YX030-15W w/971129
Barrel Connector)
Power
Supply
(850018)
BU-GDE000144-003-012120.indd 1BU-GDE000144-003-012120.indd 1 1/21/2020 3:34:11 PM1/21/2020 3:34:11 PM
2
CELL PHONE SIGNAL BOOSTER HOME MULTIROOM
______
Preparation
NOTE: These instructions will walk you through a “soft” install process to find
the optimal locations for the inside and outside antennas, then through the
process of the permanent installation.
You Will Need (tools not included)
Make sure the following materials are prepared and ready for your
installation.
o Ladder
o Drill (if routing cable through wall)
o 1”-3” diameter existing pole for mounting
Outside Antenna (#901117 Pole Mount can be
purchased separately if needed)
o Recommended: Power Strip with surge protection
1 to 2 hours
1 Person (2 people to make antenna calibration easier)
BU-GDE000144-003-012120.indd 2BU-GDE000144-003-012120.indd 2 1/21/2020 3:34:11 PM1/21/2020 3:34:11 PM
3
HOME MULTIROOM CELL PHONE SIGNAL BOOSTER
NOTE: Do not connect booster to power until the system is fully installed.
______
Step 1-A & B: Inside Antenna
& Booster Placement
Place the Inside Antenna where you need the greatest signal boost
and place Booster in your desired location at least 24” away from
Inside Antenna.
TIP: The cable from the Inside Antenna can be
routed into the ceiling and connected to the
coax cable out-of-sight for a better look.
BU-GDE000144-003-012120.indd 3BU-GDE000144-003-012120.indd 3 1/21/2020 3:34:11 PM1/21/2020 3:34:11 PM
4
CELL PHONE SIGNAL BOOSTER HOME MULTIROOM
Inside Antenna Mounting Options
Mounted
Vertical
Command
Strips
Command Strips
Mounted
Horizontal
Or use the
kickstand and
set on desktop
______
(STEP 1-A & B cont.)
The Inside Antenna can be mounted horizontal, vertical or on a
desktop. Command strips can be used to secure mounting bracket.
BU-GDE000144-003-012120.indd 4BU-GDE000144-003-012120.indd 4 1/21/2020 3:34:12 PM1/21/2020 3:34:12 PM
5
HOME MULTIROOM CELL PHONE SIGNAL BOOSTER
______
Step 2: Mount & Point
Outside Antenna Toward
Nearest Cell Tower
NOTE: Mounting on existing roof exhaust pipe
would be a good time-saver option. Watch out for
power lines.
Outside Antenna
Mount
Bracket
Clamps
Pole mounting and wall mounting options are included. The pole mounting
option is preferred because it will be easier to adjust to the direction of
the cell tower.
Attach the Mount to the Outside Antenna and use the Bracket Clamps to
attach the Antenna to a pole or exhaust pipe.
Pole
(1.0”-3.0”dia.)
BU-GDE000144-003-012120.indd 5BU-GDE000144-003-012120.indd 5 1/21/2020 3:34:13 PM1/21/2020 3:34:13 PM
6
CELL PHONE SIGNAL BOOSTER HOME MULTIROOM
Point the Outside Antenna toward the nearest cell phone tower. To find the
nearest tower, use an app such as ‘Open Signal’. This is the most critical
step of the installation process because it will determine the overall
performance of the booster system.
The greater the separation between the Inside and Outside Antennas, the
better performance you will get from the booster.
Outside Antenna
NOTE: The Outside Antenna must be at least
50 feet horizontal or 20 feet vertical from
the Inside Antenna for best performance.
Make sure the Inside Antenna and Outside
Antennas are setup so they are facing away
from each other.
Cell Tower
______
(STEP 2 cont.)
BU-GDE000144-003-012120.indd 6BU-GDE000144-003-012120.indd 6 1/21/2020 3:34:13 PM1/21/2020 3:34:13 PM
7
HOME MULTIROOM CELL PHONE SIGNAL BOOSTER
If there’s not a pole to easily mount the Outside Antenna, this may be
mounted on the fascia by fastening the bracket as shown below.
______
(STEP 2 cont.)

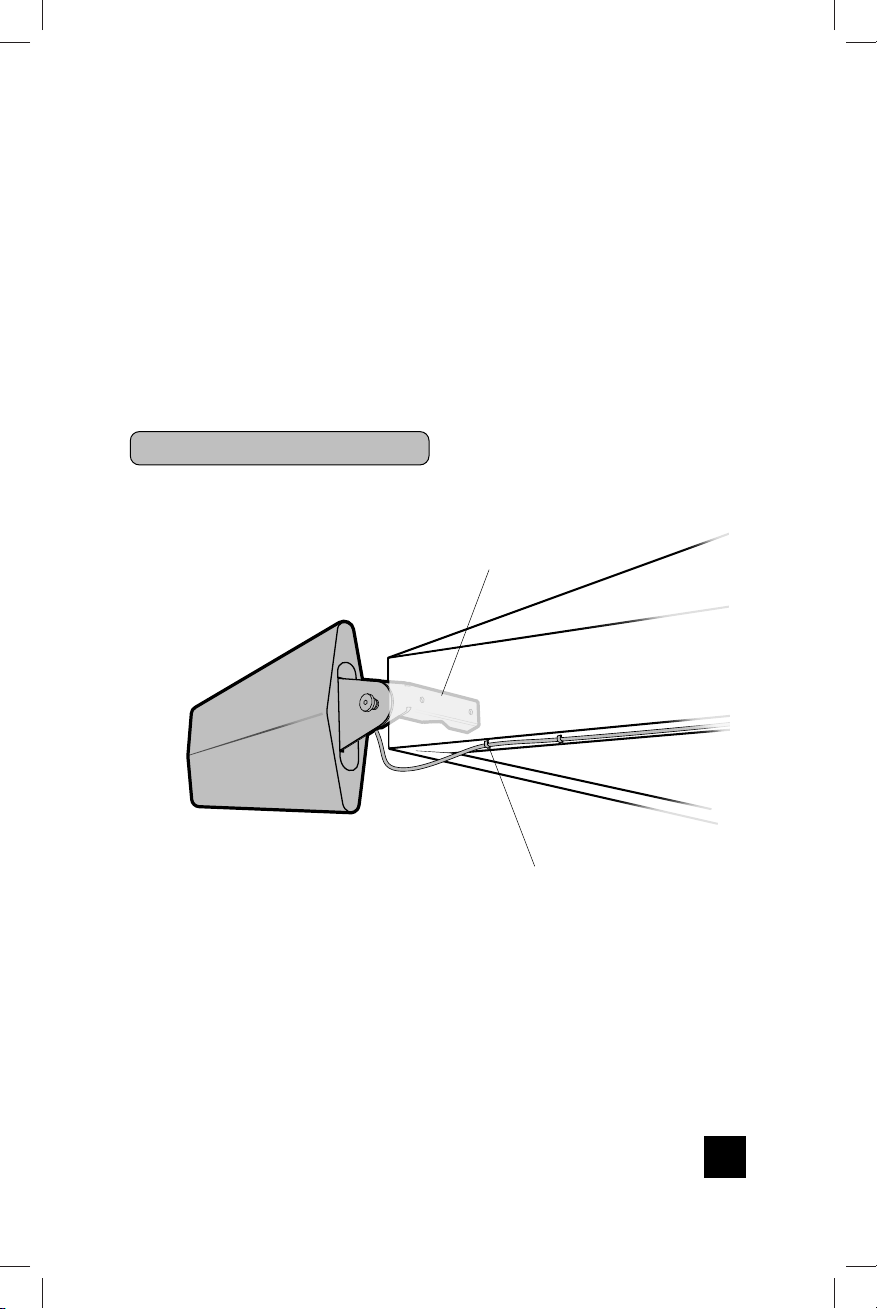

Mounting On Side Of Roof (Fascia)
Cable Mounting Clips provided
Using only the back Bracket Clamp
for mounting
TIP: Make sure to do the optimization test on Step 4 to find the best side of
your house before you mount this on the fascia.
BU-GDE000144-003-012120.indd 7BU-GDE000144-003-012120.indd 7 1/21/2020 3:34:13 PM1/21/2020 3:34:13 PM
8
CELL PHONE SIGNAL BOOSTER HOME MULTIROOM
______
Step 3-A: Route & Connect
Outside Antenna To Booster
The greater the separation, the better
the Booster performance
Connect the white RG-6 Cable to Outside Antenna and route cable
into the home. A Window Entry Cable is provided to help make cable
entry easier. All connections should be finger tightened only.
Route cable to the Home MultiRoom Booster and connect to the port
labeled ‘OUTSIDE ANTENNA’.
Outside
Antenna
connection
Window Entry
Cable
15’ RG-6 Cable15’ RG-6 Cable
Outside
Antenna
Cell
Tower
Booster
Booster
Cable Mounting Clips
provided
BU-GDE000144-003-012120.indd 8BU-GDE000144-003-012120.indd 8 1/21/2020 3:34:14 PM1/21/2020 3:34:14 PM
