WeBoost Home Room Manual de usuario

Installation Guide

Cell Signal Booster

Home Room

A WILSON ELECTRONICS BRAND

NEED HELP? support.weboost.com 866.294.1660

Package Contents 1

Preparation 2

STEP 1-A & B: Connect Inside Antenna To Booster 3

STEP 2-A: Point Outside Antenna Toward Nearest Cell Tower 4

STEP 2-B: Mount Bracket To Outside Antenna 5

STEP 3: Route & Connect Cable To System 7

STEP 4: Power Up The Booster & Optimize System 8

Measuring Booster Performance 10

Light Patterns 12

Troubleshooting 13

Safety Guidelines 14

Speciﬁcations 17

Warranty Back Page

______

Index

HOME ROOM CELL PHONE SIGNAL BOOSTER

______

Package

Contents

Home

Room

Inside

Antenna

Outside

Antenna

Cable

Connector

Window

Entry Cable

Roof/Pole

Mount

Bracket

Wall Mount

Bracket

Power

Supply

30' Cables

Qty. 2

2CELL PHONE SIGNAL BOOSTER HOME ROOM

______

Preparation

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your

installation.

o Ladder

o Phillips-head screwdriver

o 10mm open-end wrench or adjustable wrench

o Drill (if routing cable through wall)

o 1.25”-2” diameter pole existing pole (or order #901117)

o Recommended: Power Strip with surge protection

1 to 2 hours

2 people (a person to help with antenna calibration)

HOME ROOM CELL PHONE SIGNAL BOOSTER

NOTE: Do not connect booster to power until the system is fully installed.

______

Step 1-A & B: Connect Inside

Antenna To Booster

Connect Inside Antenna cable to the bottom port on Home Room booster

labeled ‘INSIDE’ and place Inside Antenna in weak signal area at least 18

inches away from booster.

Inside

Antenna

Booster

4CELL PHONE SIGNAL BOOSTER HOME ROOM

______

Step 2-A: Point Outside

Antenna Toward Nearest

Cell Tower

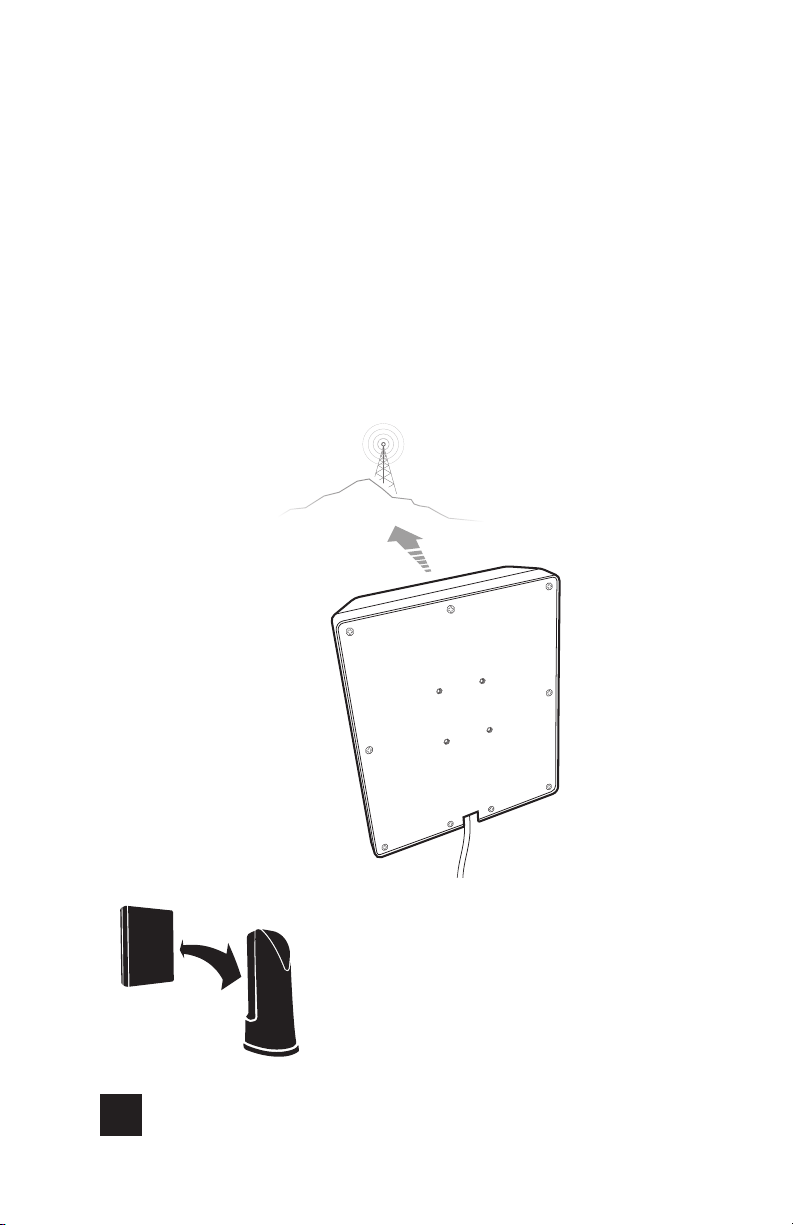

Point the Outside Antenna toward the nearest cell phone tower. To ﬁnd the

nearest tower, use an app such as ‘Open Signal’. After locating a cell tower’s

aproximate locationThis is the most critical step of the installation process

because it will determine the overall performance of the booster system.

Cell Tower

Outside Antenna

NOTE: The Outside Antenna must be at least

20 feet horizontal or 50 feet vertical from the Inside

Antenna for best performance. Make sure the Inside

Antenna and Outside Antennas are setup so they are

facing away from each other.

HOME ROOM CELL PHONE SIGNAL BOOSTER

______

Step 2-B: Mount Bracket To

Outside Antenna

Pole Mounting and Wall Mounting Options are included. The pole mounting

option is preferred because it would be easier to adjust to the direction

of the cell tower.

Attach the L-Bracket to the Outside Antenna and use the U-Bolts/Pole

Bracket to attach the L-Bracket to a pole.

NOTE: Mounting on existing roof exhaust pipe would

be a good time-saver option.

Cell Tower

Outside Antenna

Pole

(1.25”-2.0”dia.)

U-bolt &

Pole Bracket

L-Bracket

Pole Mounting Option

6CELL PHONE SIGNAL BOOSTER HOME ROOM

______

(STEP 2-B cont.)

Drill holes using

3/16 inch bit

Tap anchors in

Fasten bracket to back

of Outside Antenna Secure bracket to wall

mounting

Outside Antenna

on wall bracket

sideview

Wall Mounting Option

HOME ROOM CELL PHONE SIGNAL BOOSTER

______

Step 3: Route & Connect

Cable To System

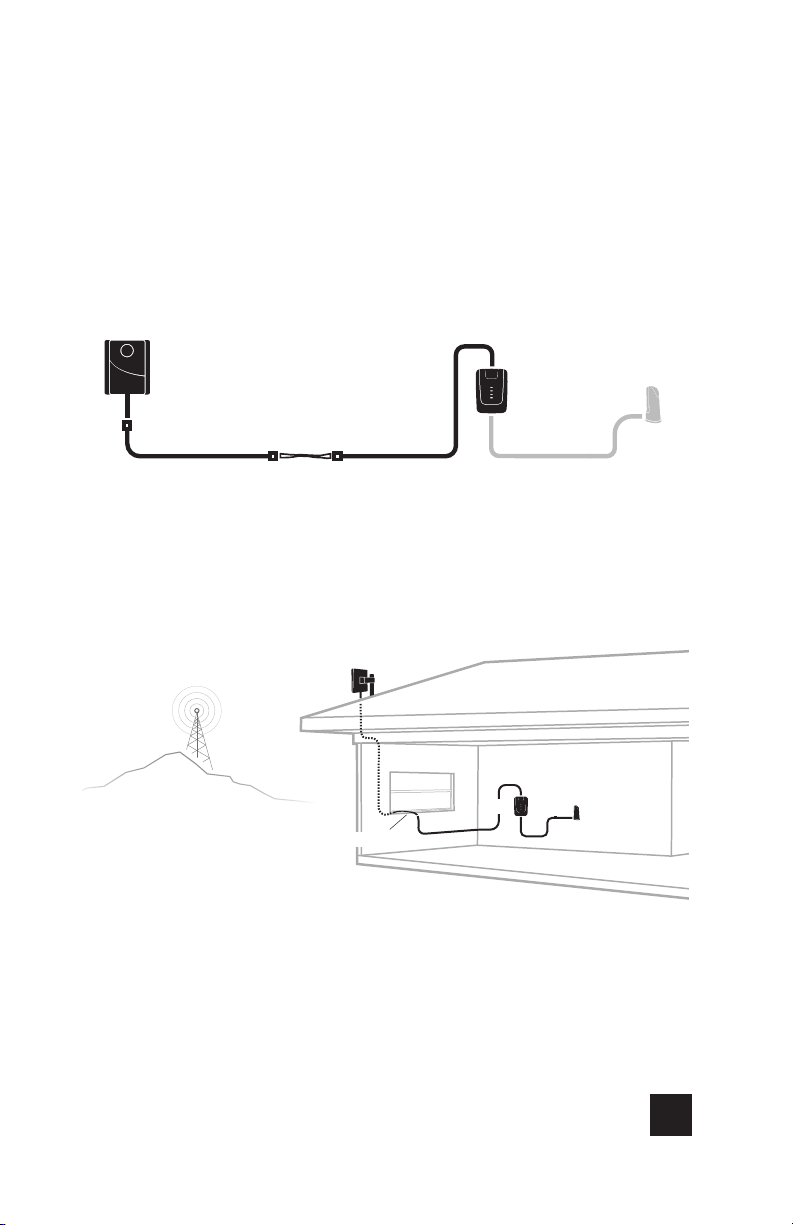

Connect the white RG-6 Cable to Outside Antenna and route cable

into the home. All connections should be hand tightened only.

A Window Entry Cable is provided to help make cable entry easier. Route

cable to the Home Room booster and connect to top port

labeled ‘OUTSIDE’.

Outside

Antenna

Inside

Antenna

Outside

Antenna

Cell

Tower

Inside

Antenna

RG-6 Cable RG-6 Cable

Window

Entry Cable

Booster

Window Entry Cable

Booster

8CELL PHONE SIGNAL BOOSTER HOME ROOM

______

Step 4: Power Up The

Booster & Optimize the

System

Plug the Power Supply into wall outlet then connect to Home 4G Booster.

Outside

Antenna

Outside

Antenna

Cell

Tower

Inside

Antenna

RG-6 Cable RG-6 Cable

Window

Entry Cable

Booster

to power

Inside

Antenna

Power Supply

Window Entry Cable

50 FEET HORIZONTAL OR 20 FEET

VERTICAL DISTANCE

Booster
