WatchGuard AP432

Hardware Guide

WatchGuard AP432

Access Point

WatchGuard Technologies, Inc. 2

About This Guide

Information in this guide is subject to change without notice. Companies, names, and data used in

examples herein are fictitious unless otherwise noted. No part of this guide may be reproduced or

transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express

written permission of WatchGuard Technologies, Inc.

Guide revised: 1/24/2022

names mentioned herein, if any, are the property of their respective owners.

Complete copyright, trademark, patent, and licensing information can be found in the Copyright and

Licensing Guide, available online at https://www.watchguard.com/wgrd-help/documentation/overview.

About WatchGuard

WatchGuard® Technologies, Inc. is a global leader in network

security, providing best-in-class Unified Threat Management, Next

Generation Firewall, secure Wi-Fi, and network intelligence products

and services to more than 75,000 customers worldwide. The

company’s mission is to make enterprise-grade security accessible

to companies of all types and sizes through simplicity, making

WatchGuard an ideal solution for Distributed Enterprises and SMBs.

WatchGuard is headquartered in Seattle, Washington, with offices

throughout North America, Europe, Asia Pacific, and Latin America.

To learn more, visit WatchGuard.com.

For additional information, promotions and updates, follow

WatchGuard on Twitter, @WatchGuard on Facebook, or on the

LinkedIn Company page. Also, visit our InfoSec blog, Secplicity, for

real-time information about the latest threats and how to cope with

them at www.secplicity.org.

Address

505 Fifth Avenue South

Suite 500

Seattle, WA 98104

Support

www.watchguard.com/support

U.S. and Canada +877.232.3531

All Other Countries +1.206.521.3575

Sales

U.S. and Canada +1.800.734.9905

All Other Countries +1.206.613.0895

WatchGuard Technologies, Inc. 3

Contents

WatchGuard AP432 Hardware Guide 6

Access Point Management 6

About Your Hardware 7

Hardware Specifications 7

Environmental Requirements 8

Hardware Description 9

Bottom Panel Connections 9

Side Panel Connections 10

Device Indicators 10

Mount and Connect the Access Point 12

Ceiling Mount 12

Wall Mount 14

Wall or Ceiling Mount with T-Rail Mount and Spacers 15

Access PointFree Standing Bracket 16

Connect the Access Point 17

Ethernet Power Injector (Optional) 18

Power Adapter (Optional) 20

Notices 21

Safety Warning 21

Power Adapter Requirements 21

FCC Certification 21

CENotice 22

ISEDStatement 22

EUDeclaration of Conformity 24

Brazil ANATEL 27

CISPR 22 Statement 27

4 WatchGuard Technologies, Inc.

Mexico NOM 27

Japan Statement 27

Japan VCCIClass B Statement 27

Taiwan NCCStatement 27

RoHS Statement 28

WEEE Statement 28

REACH Certificate of Compliance 28

WatchGuard Technologies, Inc. 5

WatchGuard AP432 Hardware Guide

The WatchGuard AP432 is a high performance 4x4 Wi-Fi 6 802.11ax access point that supports up to

1148 Mbps data rate on the 2.4 GHz band and 2400 Mbps on the 5 GHz band. The access point also

features a 2.5G Ethernet interface.Power is provided by a PoE+ (Power over Ethernet) power source or

an optional AC power adapter.

Access Point Management

You can manage your access point with WatchGuard Cloud. WatchGuard Cloud delivers a simplified

platform for Wi-Fi management to easily deploy, configure, and report on your wireless networks.

For more information on how to set up your access point with WatchGuard Cloud, see

watchguard.com/start.

WatchGuard Technologies, Inc. 6

About Your Hardware

Hardware Specifications

Hardware Description

Processor Qualcomm IPQ8072A Quad-Core CPU ARM Cortex A53 2.0GHz

RAM nFlash: SPI 8MB

nNAND: 256MB

nRAM: DDR4 2GB

Radio Model n2.4 GHz: QCN5024

n5 GHz: QCN5024

Radio Type and Frequency Band nRadio 1: 2.4 GHz 4x4 802.11b/g/n/ax

nRadio 2: 5 GHz 4x4 802.11a/n/ac/ax

Antennas

n4 x 2.4 GHz, 5.01 dBi

n4 x 5 GHz, 5.19 dBi

Ethernet Interfaces 1 x 10/100/1000/2500 NBASE-T RJ-45 Gigabit Ethernet Port

Power Interface PoE 54V DC 802.3at

Power Consumption 19.5W

MTBF

(Mean Time Between Failures)

TBD

Dimensions 205 mm x 205 mm x 33.2 mm (8.07” x 8.07” x 1.31”)

Weight 0.560 kg (1.234 lbs)

WatchGuard AP432 Hardware Guide

7 WatchGuard Technologies, Inc.

WatchGuard AP432 Hardware Guide

Environmental Requirements

To safely install your WatchGuard access point, we recommend that you:

nInstall the device indoors

nMake sure the device has adequate clearance for air flow and cooling

Other environmental requirements:

Operating Temperature 0°C to 40°C (32°F to 104°F)

Operating Humidity 5% to 90% non-condensing

Non-operating Temperature -30°C to 80°C (-22°F to 176°F)

Non-operating Humidity 5% to 90%, non-condensing

WatchGuard Technologies, Inc. 8

Hardware Description

The access point has these connections on the bottom panel of the device.

Bottom Panel Connections

Reset Button

Resets the access point to factory-default settings.

nUse a paper clip or other small object to press the reset button through the hole.

nPress and hold the reset button for up to 10 seconds. When you release the reset button, all

LEDs will go off to indicate that the device has rebooted.

2.5 G / LAN (PoE+)

This is a 2.5 Gbps Ethernet LAN port that connects the access point to a wired LAN connection

through a switch or hub. This port also provides PoE+ (802.3at) power for the device.

DC 12V

If PoE power is unavailable, you can power the device with the optional 12V DCpower adapter

(WG9009).

WatchGuard AP432 Hardware Guide

9 WatchGuard Technologies, Inc.

WatchGuard AP432 Hardware Guide

Side Panel Connections

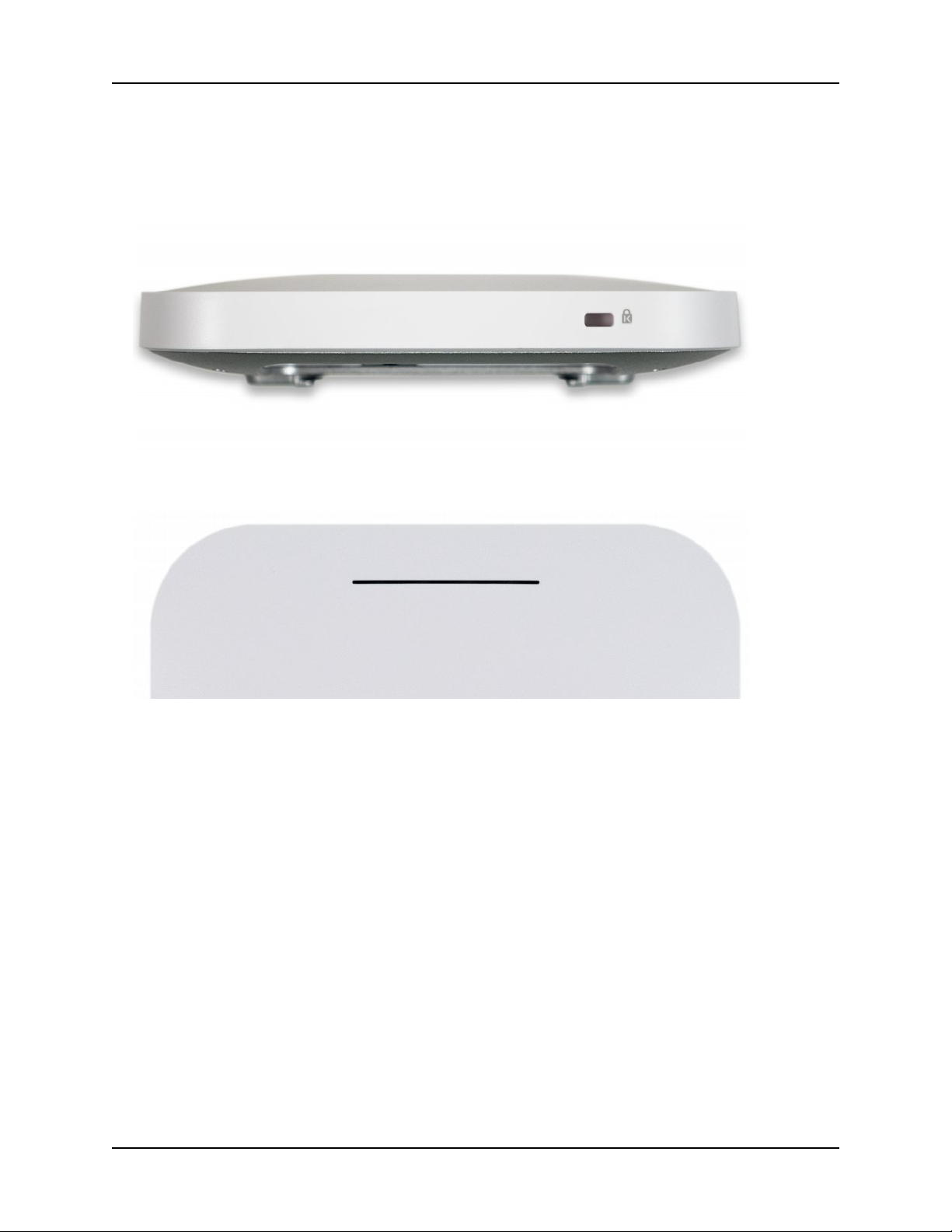

Kensington Lock Slot

The Kensington security lock slot is for use with a security cable to secure your device.

Device Indicators

The device has a single LED indicator that can show these conditions:

WatchGuard Technologies, Inc. 10
