Hardware Guide 1

Hardware Specifications

The WatchGuard® AP family of wireless access points provide secure, reliable, wireless communications while

delivering high performance and broad coverage—a perfect combination of services to meet the needs of

enterprise-level customers, small businesses, branch offices, campuses, and hotels alike.

Internal antennas, slim cases, minimalist labeling, and small LEDs, coupled with flexible mounting options,

make these devices ideal for low profile wireless deployment scenarios.

WatchGuard AP322 devices are intended for outdoor use and feature MIMO 802.11ac Wave 1 capability, and

dual radios that supports 2.4GHz (802.11b/g/n) and 5GHz (11a/n/ac) to provide wireless clients with enhanced

reliability and performance. Power can be provided by any Power over Ethernet (PoE+) power source.

There are two ways you can manage your AP322 device:

Total Wi-Fi and Secure Wi-Fi with WatchGuard Wi-Fi Cloud

A powerful cloud-based enterprise wireless management solution for AP configuration, security, and

monitoring.

Basic Wi-Fi with WatchGuard Firebox Gateway Wireless Controller

Local management, configuration, security, and monitoring of APs directly from your WatchGuard

Firebox. The WatchGuard Firebox requires Fireware v11.12.2 and higher.

For more information about how to set up and manage your WatchGuard AP, you can find documentation

online at: https://www.watchguard.com/help

Package Contents

WatchGuard AP

Quick Start Guide

Wall-mount and pole-mount accessories

2WatchGuard AP322

Hardware Specifications

About Your Hardware

Hardware Specifications

Environmental Requirements

To safely install your WatchGuard AP, we recommend that you:

Install the device indoors or outdoors, preferably under cover.

Make sure the device has adequate clearance for air flow and cooling.

Other environmental requirements:

AP322

Radio Type and

Frequency Band

2.4GHz, 802.11b/g/n. Max data rate: 450 Mbps

5GHz, 802.11a/n/ac. Max data rate: 1.3 Gbps

Antenna Six integrated omnidirectional antennas

EIRP 

(Effective Isotropic

Radiated Power)

28.77 dBm

Ethernet interface 1 x 10/100/1000 Mbps Gigabit Ethernet (LAN1)

802.3at PoE+

1 x 10/100/1000 Mbps Gigabit Ethernet (LAN2) for wired

extension. The LAN2 port cannot be used for link

aggregation.

Power Interface LAN1 PoE+: 19W (802.3at)

Power

Consumption

Max: 19 W

Min: 11W

Average: 16W

MTBF Rating 157,108 hrs at 50°C

531,809 hrs at 25°C

Dimensions 210mm × 210mm × 67mm

Weight 3.22 lb. (1.46 kg)

Operating temperature -20°C to 55°C (-4°F to 131°F)

Operating relative humidity 5% to 95% non-condensing

Non-operating temperature -40°C to 70°C (-40°F to 158°F)

Non-operating relative humidity 5% to 95% non-condensing

Hardware Guide 3

Hardware Specifications

Hardware Description

Device Connections and Buttons

Ethernet Network Interfaces

LAN1: Standard RJ45 connector that supports link speeds of 10/100/1000 Mbps and PoE+

connectivity. The WatchGuard AP322 can be powered by an 802.3at PoE+ connection on the LAN1

interface.

LAN2: Standard RJ45 connector that supports link speeds of 10/100/1000 Mbps. This interface can be

used as a wired extension for a wireless SSID that has NAT enabled. For more information on how to

configure NAT settings for an SSID, see the WatchGuard Wi-Fi Cloud Help. 

The LAN2 port cannot be used for link aggregation.

For APs managed locally by a Gateway Wireless Controller with Fireware v12.2.1 and higher, you can

bridge together the LAN ports on AP models that have two LAN interfaces. This enables you to extend

the wired network on the second LAN interface. For more information, see the Fireware Help.

Reset Button

Resets the WatchGuard AP to factory-default settings. You must use a paper clip or other small object

to press the reset button through the hole.

To reset the device to factory-default settings, power cycle the device (remove the power cable and

reconnect it again). While you reconnect the power source, press and hold the reset button for at

least 60 seconds until the power, LAN1, and 2.4 GHz indicators are green.

4WatchGuard AP322

Hardware Specifications

Device Indicators

The side of the WatchGuard AP322 has these status indicators:

AP Firmware 8.8.1 and Higher

LED

Status

Power LAN 1 and

LAN2

2.4 GHz and 5 GHz

Radios

Off Powered off. No Ethernet

link.

Radio inactive.

Green Powered on. Operating at normal

power and capabilities.

(PoE+ or DC power)

Connected at

10/100/1000

Mbps.

Radio active.

Flashing

Green

Not connected to Wi-Fi Cloud or

paired with a Gateway Wireless

Controller.

Orange Powered on. Operating at reduced

power and capabilities.

(For example:PoE 802.3af on PoE+

802.3at capable APs).

See AP Power Requirements.

- -

Flashing

Orange

No IP address received from DHCP. - -

Hardware Guide 5

Hardware Specifications

AP Firmware 8.8.0 and Lower

Device Indicators in AP Mode

Device Indicators in WIPS Mode

These indicators are active when the AP is set to dedicated WIPS (Wireless Intrusion Prevention System) mode.

For more information about WIPS mode, see the WatchGuard Wi-Fi Cloud help.

Power LAN1 LAN2 2.4 GHz 5 GHz Description

Solid green Solid green On/Off Any Any Powered on and operating

correctly. Connected to

WatchGuard Wi-Fi Cloud services.

Solid green Slow flash

green

On/Off Any Any Software upgrade in progress.

Solid amber Solid green On/Off Any Any No Ethernet link.

Solid amber Fast flash

green

On/Off Any Any Did not receive a valid IP address

from DHCP.

Solid amber Slow flash

green

On/Off Any Any Cannot connect to WatchGuard 

Wi-Fi Cloud services.

Off Off Off Off Off Not powered on or in startup

process.

Power LAN1 LAN2 2.4 GHz 5 GHz Description

Solid green Solid green On/Off Solid

green

Solid

green

Powered on and operating

correctly. Connected to

WatchGuard Wi-Fi cloud

services.

Solid green Slow flash

green

On/Off Slowflash

green

Any Software upgrade in process.

Solid amber Solid green On/Off Solid

green

Any No Ethernet link.

Solid amber Fast flash

green

On/Off Fast flash

green

Any Did not receive a valid IP

address from DHCP.

Solid amber Slow flash

green

On/Off Slowflash

green

Any C annot connect to

WatchGuard Wi-Fi Cloud

services.

Off Off Off Off Off Not powered on or in startup

process.

Solid green Solid green On/Off Solid

Green

Solid

green

Sensor is troubleshooting on

802.11b/g/n

Solid green Solid green On/Off Solid

Green

Fast flash

green

Sensor is troubleshooting on

802.11a/n/ac

Solid green Solid green On/Off Solid

Green

Fast flash

green

Sensor is troubleshooting on

both 802.11b/g/n and 802.11a/

n/ac

Solid green Solid green On/Off Solid

Green

Solid

green

Sensor is performing intrusion

prevention on 802.11b/g/n

6WatchGuard AP322

Hardware Specifications

Mounting Instructions

Your package includes the AP322 device, pole-mount, and wall-mount accessories.

Pole Mount Installation

Use the supplied pole-mounting accessories to install the AP322 on a pole.

The MAC address and serial number of your AP are printed on a label on the back of the device. 

Make sure you record this information before you mount the AP.

1. Place the AP on the pole.

2. Insert the straps in the slots on the AP and wrap around the pole.

3. Fasten the screws and make sure the AP is firmly attached to the pole.

Hardware Guide 7

Hardware Specifications

Wall Mount Installation

Use the supplied wall-mounting accessories to install the AP322 on a wall.

The MAC address and serial number of your AP are printed on a label on the back of the device. 

Make sure you record this information before you mount the AP.

1. Drill holes on the wall for the anchors.

2. Insert the four anchors.

3. Affix the mounting bracket to the wall.

4. Attach the AP to the mounting bracket.

5. Insert screws in the slots of the mounting bracket

6. Fasten the screws.

8WatchGuard AP322

Hardware Specifications

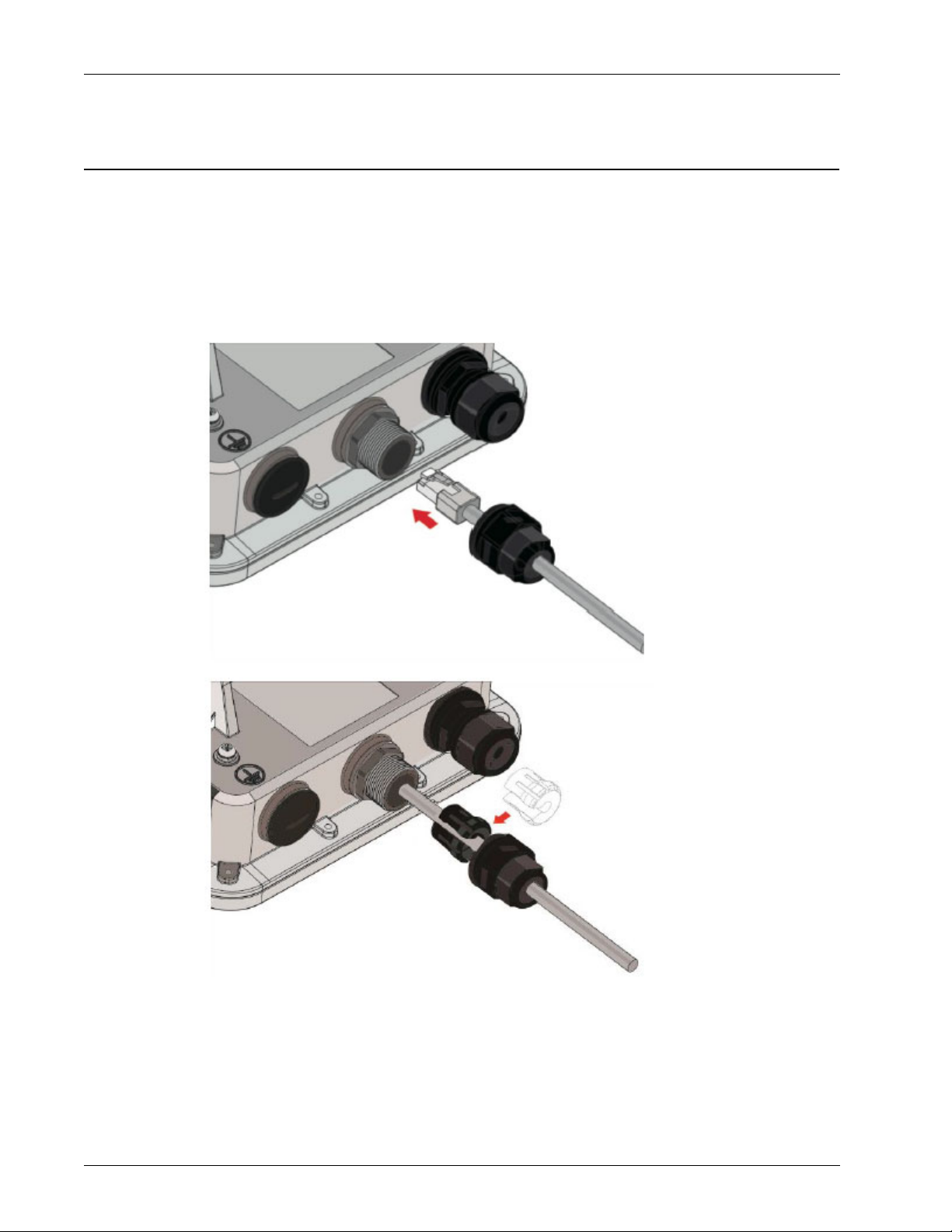

Connect the AP

You can power the WatchGuard AP322 with an 802.3at PoE+ connection.

To power on and connect the AP322 to the network with PoE+:

1. Connect one end of the network interface cable to the LAN1 port on the AP322.

2. Connect the other end of the network interface cable to an Ethernet jack that provides 802.3at PoE+

power.
