SureCall Force5 Inline Manual de usuario

Force5 Inline

5-Band Cellular Booster Extender for Commercial

Oces, Institutions and Housing Complexes.

User Guide

This is NOT a CONSUMER device. It is designated for installation

by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST

have an FCC LICENSE or express consent of an FCC Licensee to

operate this device. Unauthorized use may result in signicant

forfeiture penalties, including penalties in excess of $100,000

for each continuing violation.

WARNING

How It Works Pg. 3

Package Contents Pg. 4

Before You Start Pg. 4

Installing Your inside Antenna Pg. 5

Installing Signal Booster Pg. 7

Congure Gain Setting Pg. 9-11

Troubleshooting Pg. 12

Specication Pg. 13

Warranty Pg. 14-15

Safety Information Pg. 15

Table of Contents

2SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

How it Works

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] 3

Thank you for your purchase of the Force5 Inline signal booster. This booster is designed

to extend the signal reach for Industrial Force5 Inline installations that extend beyond

80,000 square feet.

This guide contains all the information you’ll need to get your Force5 Inline system up

and running. If you need any assistance while installing the product please contact tech

support at 1-888-365-6283.

When a project entails greater area coverage than the Force5 Industrial alone can pro-

vide, additional Force5 Inline boosters can be added to areas where the signal strength

is getting weak or cable lengths are too long causing dB loss.

How it works

Two common ways to increase the coverage area include:

• For areas consisting of long aisles, Force5 Inline boosters can be added where the signal falls to between

-70dB and -90dB.

• For large, wide areas the Force5 Inline boosters can be daisy-chained with the use of splitters to extend the

signal to remote corners.

Package Contents

1. Unpack all package contents. For missing or damaged items, contact your reseller.

2. Turn over the signal booster and record the model and serial number for reference:

Serial #:

Purchase Date:

3. Keep the carton and packing material to store the product in case you need to return it.

Standard Force5-Inline signal booster packages include the following items:

• One power supply

Signal Booster

Force5 Inline Booster

Before You Start

Step 1. Make sure you have positioned the booster close enough to an existing

electrical outlet.

Step 2. Make sure you have sucient cable length between the main cable

location and booster connector.

Step 3 Make sure you have sucient cable length between proposed inside antenna

location and booster connector.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] 5

1. If your indoor antenna is a dome type, mount it on the ceiling in a central location.

2. If your indoor antenna is a at panel, install it against a wall or surface projecting the

area where you want reception. Point the antenna away from the outside antenna.

To avoid interference stay a minimum distance of 3 feet from the panel antenna.

Step 1. Install the Inside Antenna

Inside antennas come in omni-directional (dome) and at panel versions.

Installing Your Hardware

Note: As you can see from the table above, acquiring the recommended inside and outside antenna separation optimizes coverage signicantly.

Any reduced antenna separation reduces the booster’s coverage.

Required Between

Outside and Inside Antenna

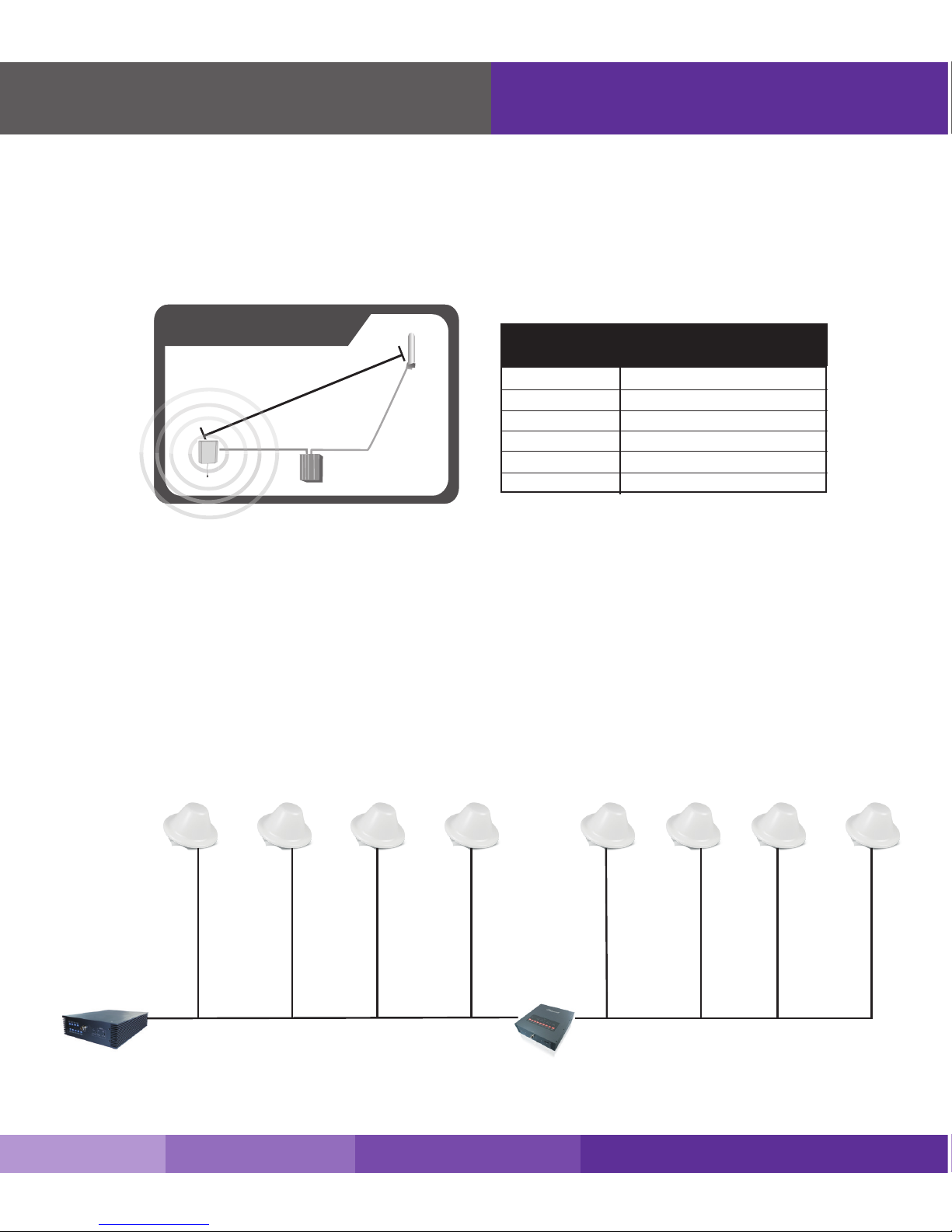

Antenna Separation Table

antenna separation

40dB 5-6’

45dB 15-20’

50dB 50’

55dB 60’

65dB 75-80’

72dB 100’-110’

Amplier gain Min. separation (ad)

Force5 Industrial Force5 Inline

Installing Your Hardware

Step 3: Attach the N-Female connection from the interior antenna to the cable leading to

the connector labeled INSIDE, on your booster.

Step 4: Tighten xing nut to secure antenna (do not over-tighten).

• Storage and transportation: Store and place in non-extreme room-temperature and

dry environment

• Attention: This antenna should not be used near open re or ame

Dome antennas are omni-directional interior antenna that gather signals from all sides.

Range of antennas is dependent on three factors:

1) Physical obstructions

2) Power generated by booster and

3) Reception from outside signal received and

distributed by outside antenna.

Dome antennas should be mounted in

an upright position for best results.

Step 1: Drill a 35mm diameter hole in the ceiling. The ceiling

thickness should be 20mm, maximum.

Step 2: Unscrew xing nut from antenna. Place antenna cable

through hole. Screw the xing nut back onto antenna

and cable on crawl space side of ceiling and fasten.

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] 7

Installing Your Hardware

Step 2. Install the Signal Booster

1. Select a location for your booster close to a working AC outlet. Do not expose the signal

booster to excessive heat, direct sunlight, moisture, and airtight enclosures.

2. Attach the supplied mounting kit to the booster using the supplied screws. Tighten the

screws with a screwdriver until snug, then add a 1⁄4-to-1/2 turn. Do not over tighten.

3. Orient the signal booster so the LEDs and DIP switches face away from the wall and

the LEDs are seen easily. Then mount the signal booster to the wall using appropriate

screws and/or wall anchors.

4. Connect the main cable line from the primary booster to the booster’s connector labeled

“Outside”. Hand-tighten the connection.

5. Connect the inside antenna cable to signal booster marked INSIDE. Hand-tighten the

connection.

6. Connect the AC power cord to the signal booster.

7. Connect the plug on the other end of the 110V AC power outlet.

8. Turn the booster’s power switch on.

• The signal booster turns on automatically.

• The Power LED lights up to show that the signal booster is ready for use.

• The Alert LEDs ash up to 15 seconds on each band to show the band is activated.

Note: If the Power LED does not turn ON or the Alert LEDs continue to ash, see Troubleshooting page 19. This booster is rated for 19V AV input

voltage. DO NOT use the booster with a higher voltage power supply. This can damage the booster, cause persoanl injury and viod your warrenty.

Installing your Hardware

Booster Hardware

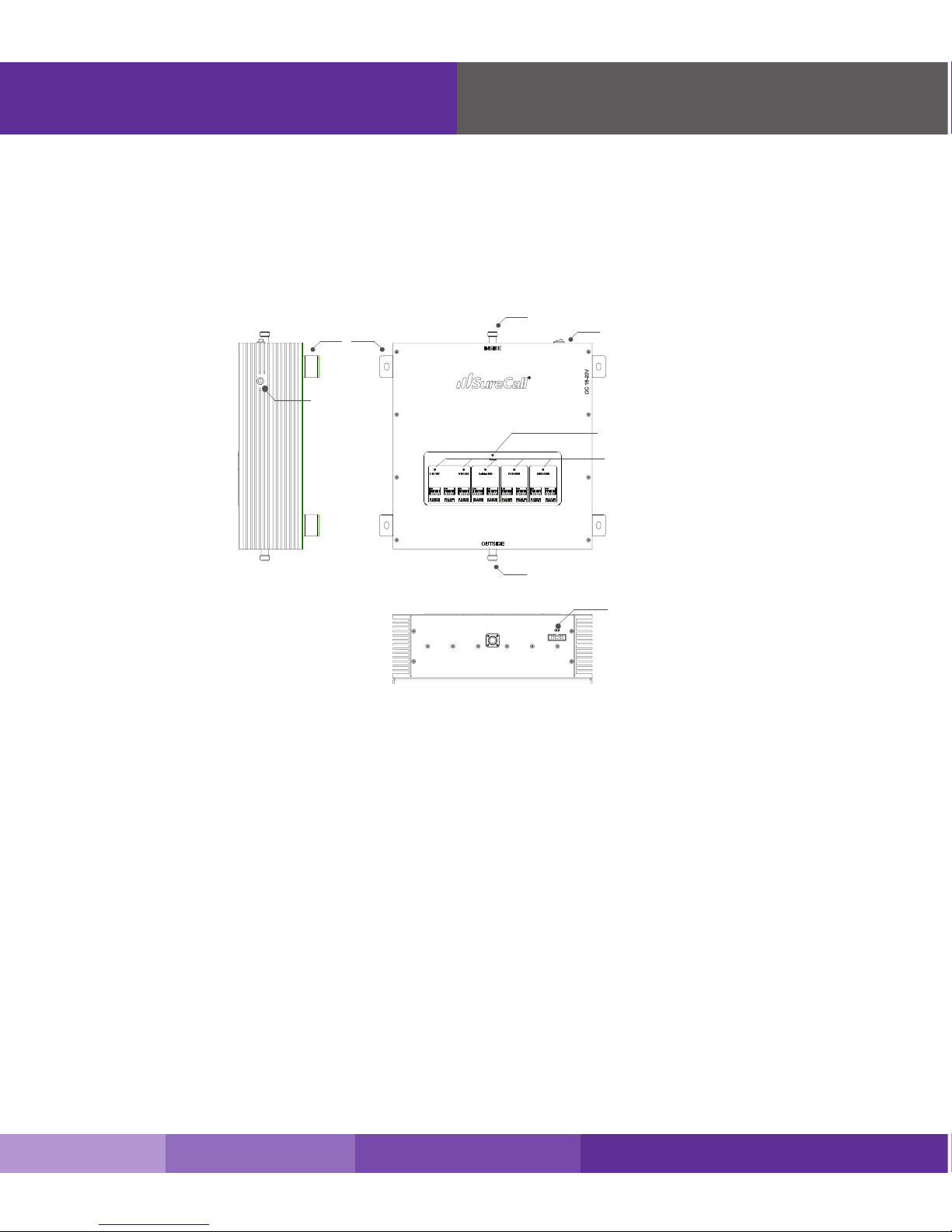

The following image shows the key hardware components on the cellullar booster.

Refer to this image as you install your Force5 Inline kit components.

DIP Switches and Lights

The Force5 Inline Industrial booster has the following indicators and controls:

• PCS Uplink Warning light/DIP switches (1): These DIP switches control the PCS communications

with the cellular tower.

• PCS Downlink Warning light/DIP switches (2): These DIP switches control the PCS amplication

within the building.

• Power light (3): This light should be illuminated or blinking green at all times while the booster is

powered on.

• Cellular Downlink Warning light/DIP switches 4): These DIP switches control the cellular

amplication within the building.

• Cellular Uplink Warning light/DIP switches (5): These switches control the cellular communications

with the tower.

Power LED

N connector to inside antenna

N connector to outside antenna

Alert LED

Power Switch

Programmer

Power Jack

Mount Kit

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] 9

Step 3. Congure Gain Settings

Facing the front of your booster, nd 9 banks of Dual In-line Package (DIP) switches.

These switches allow manual dB gain attenuation for uplink and downlink channels.

• Bank 1 controls AT&T communications with the cellular tower.

• Bank 2 controls Verizon and AT&T amplication in the building.

• Bank 3 controls Verizon communications with the cellular tower

• Bank 4 controls Cellular communications with the cellular tower.

• Bank 5 controls Cellular amplication in the building.

• Bank 6 controls PCS amplication with the cellular tower.

• Bank 7 controls PCS amplication in the building.

• Bank 8 controls T-Mobile communications with the cellular tower.

• Bank 9 controls T-Mobile amplication in the building.

The DIP switches in each bank correspond to the following dB gain values:

For maximum gain on all channels, your booster ships with all DIP switches turned OFF.

This setting should always be your starting point when installing or reinstalling the booster.

To change it, move the DIP switches to the ON or OFF position.

• Moving a switch down (away from the LEDs) turns OFF the switch and increases

booster gain for the selected channel.

• Moving a switch up (toward the LEDs) turns ON the switch and decreases booster

gain for the selected channel.

Switch settings are cumulative. This means the total amount of attenuation for a channel

equals the combined dB of all DIP switches in the same bank being set to ON.

Installing Your Hardware

12345

ON DIP

1 2 4 8 16

LTE707-UL

LTE-707 LTE-781

12345

ON DIP

1 2 4 8 16

LTE-DL

12345

ON DIP

1 2 4 8 16

LTE781-UL

12345

ON DIP

1 2 4 8 16

CELLULAR-UL

Cellular-800

12345

ON DIP

1 2 4 8 16

CELLULAR-DL

12345

ON DIP

1 2 4 8 16

PCS-UL

PCS-1900

12345

ON DIP

1 2 4 8 16

PCS-DL

12345

ON DIP

1 2 4 8 16

AWS-UL AWS-DL

AWS-2100

12345

ON DIP

1 2 4 8 16

Bank 1 Bank 2 Bank 3 Bank 4 Bank 5 Bank 6 Bank 7 Bank 8 Bank 9

Switch1

1 dB

Switch2

2 dB

Switch3

4 dB

Switch4

8 dB

Switch5

16 dB

WARNING: Do not adjust the uplink and downlink dB attenuation settings more than 20dB.

This could cause the booster to shut down

Note: As you see from the table above, attaining the recommended indoor and outdoor antenna separation optimizes coverage signicantly.

Any reduced antenna separation decreases the booster’ cellular signal capabilities.

LEDs

A light-emitting diode (LED) appears above each DIP switch bank on the top panel of the

signal booster.

LED

LTE 707 Uplink

LTE 781 Uplink

Cellular 800

Uplink

OFF = normal operation.

ON = LTE AT&T uplink warning.

Power o booster immediately.

OFF = normal operation.

ON = LTE Verizon uplink warning.

Power o booster immediately.

OFF = normal operation.

ON = Cellular uplink warning.

Power o booster immediately.

Designation Description

15 DB

21 DB

31 DB

OFF

To Achieve... Set the DIP Switchs in the Same Bank as Follows...

SW1

(1 dB)

0 DB

1 DB

OFF

SW2

(2 dB)

SW3

(4 dB)

SW4

(8 dB)

SW5

(16 dB)

3 DB ON OFFON OFF OFF

7 DB ON ONON OFF OFF

Installing your Hardware

SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]

Otros manuales para Force5 Inline

Tabla de contenidos

Otros manuales de Extensor de SureCall

SureCall

SureCall Fusion5S CA Manual de usuario

SureCall

SureCall M2M Manual de usuario

SureCall

SureCall Fusion5s 2.0 Omni/Dome Manual de usuario

SureCall

SureCall EZ Connect Manual de usuario

SureCall

SureCall TriFlex2Go Manual de usuario

SureCall

SureCall FusionProfessional Manual de usuario

SureCall

SureCall FLAREDB+ Manual de usuario

SureCall

SureCall EZ 4G Manual de usuario

SureCall

SureCall EZ Call Manual de usuario

SureCall

SureCall DualForce Manual de usuario

SureCall

SureCall SC-POLYO2-72-OU-P Manual de usuario

SureCall

SureCall SC-PolysH/O-72 Manual de usuario

SureCall

SureCall Shakespeare STREAM Manual

SureCall

SureCall Force5 2.0 Manual de usuario

SureCall

SureCall Fusion5S CA Manual de usuario

SureCall

SureCall Fusion4Home Omni/Panel Manual de usuario

SureCall

SureCall Fusion4Home Omni/Panel Manual de usuario

SureCall

SureCall Fusion2Go Max Manual de usuario

SureCall

SureCall Fusion4Home-Max Manual de usuario

SureCall

SureCall Fusion4Home 3.0 CA Manual de usuario

SureCall

SureCall FLAREDB+ Manual de usuario

SureCall

SureCall Fusion4Home Omni/Panel Manual de usuario

SureCall

SureCall Fusion 7 Manual de usuario

SureCall

SureCall Fusion Professional Yagi Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
