SureCall Fusion2Go Max Manual de usuario

Fusion2Go

Adjustable 2G, 3G, 4G Vehicle Signal Booster Kit

™

User Guide

( for US and Canada )

Click here to see price and to order.

How It Works Pg. 3

Package Contents Pg. 4

Installation:

Step1: Connect outside antenna Pg.5

Step 2: Connect inside antenna Pg.6

Step 3: Install the signal booster Pg.6

Step 4: Congure Gain Setting Pg. 7

Troubleshooting Pg. 8

Specication Pg. 9

Kitting Information Pg. 9

Warranty Pg. 10-11

Safety Information Pg. 11

Table of Contents

Thank you for purchasing SureCall’s Fusion2Go cell phone signal booster kit.

Fusion2Go provides enhanced 2G and 3G voice and 4G data reception and is

congurable for any size vehicle.

If you need any assistance during product installation please contact tech

support at 1-855-846-2654 or email us at [email protected].

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

The SureCall Fusion2Go is a high-quality bidirectional booster that enhances cellular

signals for cars, motor homes, and other vehicles.

The Fusion2Go works with two antennas:

• An inside antenna that communicates with your cell phone.

• An outside antenna that communicates with the cell tower.

Signals sent from a cell tower are received by the outside antenna, amplied by the

booster and then sent to your cell phone via the inside antenna. When your phone

transmits, the signal is sent to the inside antenna, and then sent to the cell tower via

the outside antenna. A minimum amount of cellular reception is required for the

Fusion2Go to work properly. Cellular signal strength is measured in dBm, an

abbreviation of the radio power per milliwatt. A minimum of -100 dBm is required.

Signal readings usually appear as a negative number (for example, -85). The stronger

the signal, the closer it gets to zero. See graph below.

How it works

Cell

Tower

Outside

Antenna

Signal Strength

-50dB

-60dB

-70dB

-80dB

-90dB

-100dB

-110dB

ExcellentGoodPoor

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

Package Contents

1. Unpack all package contents. For missing or damaged items, contact your reseller.

2. Turn over the signal booster and record the model and serial number for reference:

Serial #:

Purchase Date:

3. Keep the carton and packing material to store the product in case you need to return it.

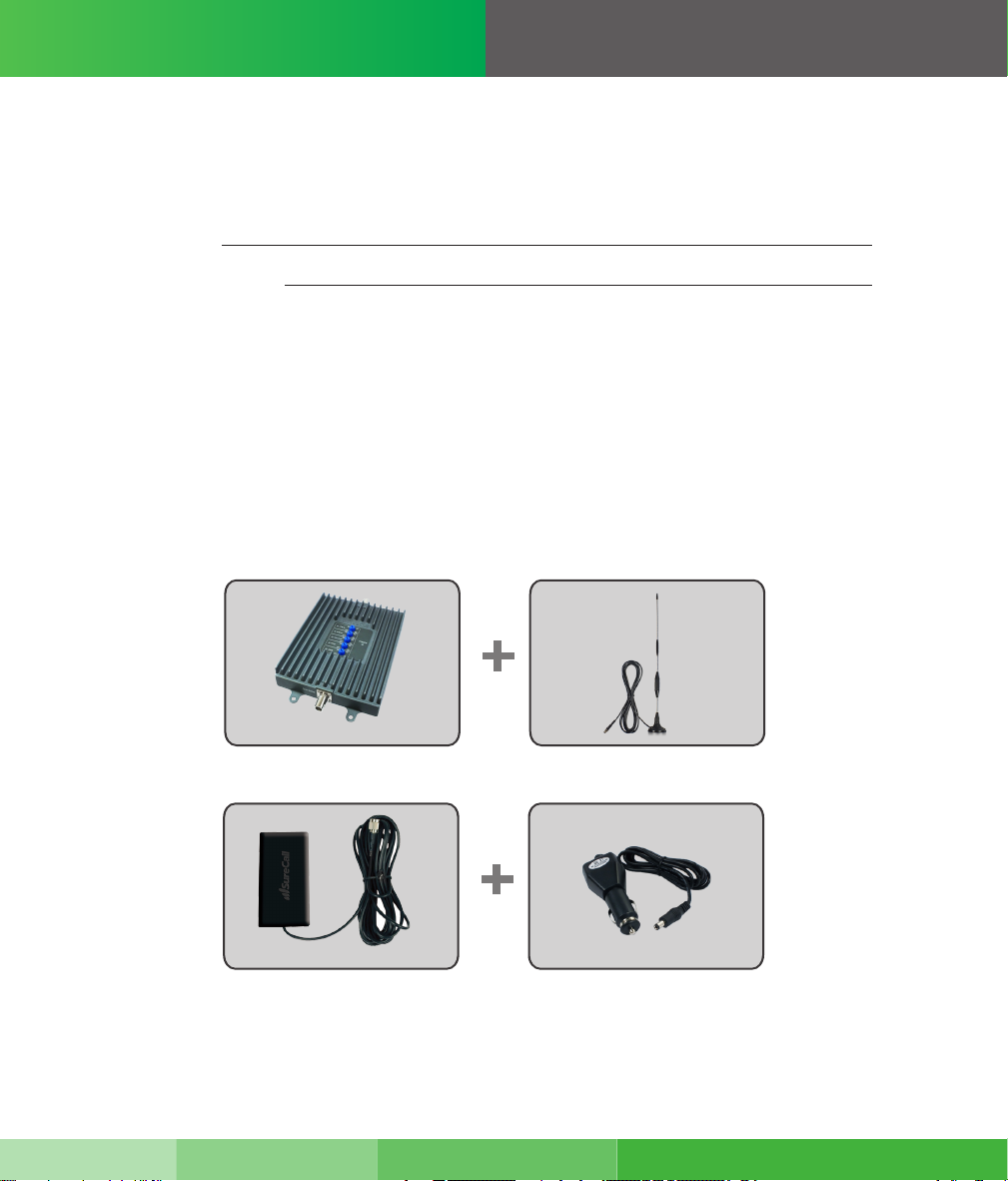

Your Fusion2Go signal booster package includes the following items:

• One SureCall Fusion2Go signal booster

• One magnetic-mount outside antenna with attached cable

• One inside antenna with attached cable

• One DC car charger for vehicle

• Velcro® and screw-mounting kit

Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC.

Changes or modications not expressly approved by SureCall could void the user’s authority to operate the equipment.

Fusion2Go Outside Magnetic

Mount Antenna

Inside Patch Antenna Power Adapter

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

Installation

Installation Steps:

Step 1. Installing your Hardware

Connect the Outside Antenna

1. Connect the magnetic outside antenna to the roof of the car in a location that:

• Is on top of the vehicle

• Has at least a 12-inch radius clear of obstructions and other radiating elements,

such as a radio antenna.

• Is at least 4-6 feet from the inside antenna.

2. Using the supplied cable, connect the outside antenna to the booster connector

marked OUTSIDE.

3. Run the outside antenna cord across the car’s roof and under the front door insulation

lining to hide and protect the antenna cable. Wrap up any loose cable

4. Hand tighten the connection

Note: The outside antenna must not be collocated or operating with any other antenna or booster.

FCC 27.5 (d)(4) Statement: Fixed, mobile, and portable (hand-held) stations operating in the 1710-1755 MHz band as well as mobile and portable stations operat-

ing in the 1695-1710 MHz and 1755-1780 MHz bands are limited to 1 watt EIRP. Fixed stations operating in the 1710-1755 MHz band are limited to a maximum

antenna height of 10 meters above ground. Mobile and portable stations operating in these bands must employ a means for limiting power to the minimum neces-

sary for successful communications.

Pursuant to the latest certication requirement you will need to register your booster. Please go to the link below for your cellular service carrier’s registra-

tion site.

AT&T: https://securec45.securewebsession.com/attsignalbooster.com/

Verizon: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html

Sprint: http://www.sprint.com/legal/fcc_boosters.html

T-Mobile: http://support.t-mobile.com/docs/DOC-9827 Click on the “Signal Booster Registration Tool”

US Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp?_requestid=38383

Fusion2Go

Magnetic Antenna

Power Adapter

Inside Patch Antenna

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

Note: Laboratory tests show that patch antennas can work from as close as 2 ft. from the outside antenna if the patch antenna is facing away from the

outside antenna. If the alert lights blink red, showing oscillation, turn the dial of the oscillating band down 3 dBs.

Installation

Step 2. Connect the Inside Antenna

1. Mount the inside antenna so it is:

• Within 2-3 feet of the cell phone

• Mounted on a surface that is at least 4” (10cm) away from metal.

2. Using the supplied cable, connect the antenna to the booster connector marked INSIDE

3. Hand tighten the connection

Step 3. Install the Signal Booster

1. Mount the booster under the seat of the vehicle, or on the front or middle console of the

vehicle. The location you select should:

• Be away from excessive heat, direct sunlight, or moisture.

• Provide proper ventilation.

Refer to the illustration on page 7 for the following steps:

2. Connect the outside antenna cable to the signal booster connector marked OUTSIDE.

Hand-tighten the connection.

3. Connect the inside antenna cable to the signal booster connector marked INSIDE.

Hand-tighten the connection.

4. Connect the DC power cord to the signal booster. Once you’ve connected the DC power

cord to the signal booster, connect the plug on the other end of the DC power outlet to

the cigarette lighter adapter. Turn the power switch on.

• The signal booster turns on automatically.

• The Power LED lights up to show that the signal booster is ready for use.

• The Alert LEDs ash 5 times on each band to show the band is activated.

Note: The Patch antenna must be at least 20cm away from the phone or cradle that phone is sitting in.

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

Congure Gain Setting

Booster Hardware

The following image shows the key hardware components on the cellullar booster.

Refer to this image as you install your Fusion2Go kit components.

Power Jack

Power Switch

Connector to Inside Antenna

FME connector to inside antenna

FME connector to outside antenna

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

Troubleshooting

Problem

Signal booster has no power

After installing your signal

booster system, you have

no signal or reception.

In the event you encounter a problem, follow the suggestions below to resolve the issue.

One of the red LEDs next to

the dials on your signal booster

is ashing red.

The Alert LEDs Continue to

ash

Solid Yellow Light Resolution

Resolution

Verify that the booster power switch is turned on.

Make sure the DC power outlet is plugged into the cigarette lighter

adapter. If the green POWER LED on the signal booster is OFF,

return the power supply to SureCall. Contact tech support at

1-855-846-2654 or [email protected]. or go to

https://www.signalbooster.com and log on to online support to

receive a Return Merchandise Authorization. (RMA)

Double-check all signal booster and antenna cable connections.

Be sure your signal booster’s dB gain is turned up to at least 40 dB

- 45 dB on each dial.

Lower the dial above the blinking LED by 5dB (for example, from

50 to 45) and monitor the bars on your cell phone to see whether

reception has improved.

Be sure the inside panel antenna is facing away from the outside

antenna.

Use the recommended 4-6 feet of antenna separation:

Each SureCall signal booster is equipped with Auto Shutdown

to prevent cell tower interference. The location where your car is

parked may be too close to a cell tower. Once away from the origi-

nal location, turn o and restart the booster.

This is not a problem, it’s simply indicating an inactive uplink band.

The light will go o automatically when the band is active.

Yellow and red lights are

alternately ashing.

Oscillation is detected. First try increasing the separation between

the indoor and outdoor antennas. If this doesn’t eliminate oscillation,

lower the dB gain in small dB increments.

Yellow light is ashing.

Resolution:

Automatic Gain Control (AGC) is adjusting, this is part of normal

operation.

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

Specication

Product Name Fusion2Go

Uplink Frequency Range (MHz): 698-716 / 776 – 787 / 824-849

1850-1915/ 1710-1755 ( G Block included )

728-746 / 746 – 757 / 869-894

1930-1995 / 2110-2155 ( G Block included )

50 Ω

50 dB

5 dB

≤2.0

CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards

5-15V

1 Watt EIRP

RG-174

FME Male (both ends )

<25W

2 LB 3 oz

RSNMOBILE5

Downlink Frequency Range (MHz):

Supported Standards:

DC Car Charge

VSWR:

Maximum Gain:

Noise Figure:

Input Impedance:

Maximum Output Power:

Cable:

RF Connectors:

Power Consumption:

Dimensions:

Operation Temperature: -4ºF to +158ºF

Weight:

FCC ID / IC :

7-7/8” X 5” X 1-3/16”

7784A-MOBILE5CA

Fusion2Go Canada

3 Watt EIRP

The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations

when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where

the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is

to be by means of input power or gain reduction and not by an attenuator at the output of the device.

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

Desktop or RV Kit

Marine Kit

*All equivalent antennas and cables are suitable for use with the Fusion2Go booster.

LTE-A LTE-V 800MHz 1900MHz 1700MHz\2100MHz

Outdoor Antenna SC288W

or Galaxy 5412-P 3dBi 3dBi 3dBi 4dBi 4dBi\4dBi

Outdoor Cable SC240-40FN

40Feet 3.52dB 3.52dB 3.98dB 6.52dB 6.12dB\6.92dB

Indoor Antenna SC248W 7dBi 7dBi 7dBi 10dBi 10dBi\10dBiWall Mounted

Antenna

Indoor Cable SC240-20FN

20Feet 2.06dB 2.06dB 2.29dB 3.56dB 3.36dB\ 3.76dB

Component Prod No.

Description

Gain/Loss Notes

LTE-A LTE-V 800MHz 1900MHz 1700MHz\2100MHz

Outdoor Antenna SC288W 3dBi 3dBi 3dBi 4dBi 4dBi\4dBi

Outdoor Cable SC240-40FN

40Feet 3.52dB 3.52dB 3.98dB 6.52dB 6.12dB\6.92dB

Indoor Antenna SC120W 1.2dBi 1.2dBi 1.2dBi 3dBi 3dBi\3dBi Table Top

Antenna

Component Prod No.

Description

Gain/Loss

Notes

Kitting Information

Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prex on all

of our antennas, cables and accessories from CM to SC-.

*All equivalent antennas and cables are suitable for use with the Fusion2Go booster.

Vehicle Kit

https://www.signalbooster.com | 1-855-846-2654 | [email protected]

Otros manuales para Fusion2Go Max

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Extensor de SureCall

SureCall

SureCall EZ Call Manual de usuario

SureCall

SureCall TriFlex SC-TriH/O-72-OD-Kit Manual de usuario

SureCall

SureCall Fusion Professional 2.0 Manual de usuario

SureCall

SureCall FusionTrek Manual de usuario

SureCall

SureCall Fusion2GO 3.0 RV Manual de usuario

SureCall

SureCall N-Range Manual de usuario

SureCall

SureCall Mobile30 Manual de usuario

SureCall

SureCall EZ 4G Manual de usuario

SureCall

SureCall Fusion4Home Yagi/Whip Manual de usuario

SureCall

SureCall Fusion Professional 2.0 Manual de usuario

SureCall

SureCall Fusion5X Manual de usuario

SureCall

SureCall FlexPro Manual de usuario

SureCall

SureCall EZ Connect Manual de usuario

SureCall

SureCall Fusion4Home Omni/Panel Manual de usuario

SureCall

SureCall Fusion2Go Max Manual de usuario

SureCall

SureCall Fusion4Home Omni/Panel Manual de usuario

SureCall

SureCall DualForce Manual de usuario

SureCall

SureCall Fusion4Home 3.0 CA Manual de usuario

SureCall

SureCall Fusion2Go 3.0 CA Manual de usuario

SureCall

SureCall SC-PolyO-72 Manual de usuario

SureCall

SureCall Fusion5S CA Manual de usuario

SureCall

SureCall GuardianA Manual

SureCall

SureCall Fusion4Home Omni/Panel Manual de usuario

SureCall

SureCall 5X Max Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
