Introduction
This document shows how to run the ST25DV-I2C out-of-band pairing demonstration, using NFC to improve the security of
Bluetooth® Low Energy (BLE) connections.
The ST25DV-I2C is a dynamic NFC Tag IC able to communicate with NFC readers and smartphones, and also with a
microcontroller through an I2C interface.
One of the most vulnerable phase is the one where the two Bluetooth® devices exchange keys and agree on the encryption key
to use. This information is exchanged over the air so it is vulnerable to man-in-the-middle (MITM) attacks.
NFC provides a side communication channel with the advantage of being very short distance (a few centimetres) so the hackers
cannot intercept this communication. The information, exchanged through NFC, is used to authenticate the cryptographic keys
exchanged by the two Bluetooth® devices. Hence, the data transfer is safe.
The following packages are available on www.st.com for this demonstration:
• STSW-ST25DV004 firmware
• STSW-ST25005 Android™ application
ST25DV-I2C out-of-band pairing demonstration
UM2710
User manual
UM2710 - Rev 1 - April 2020
For further information contact your local STMicroelectronics sales office.
www.st.com
1General information
The application described in this document runs on to STM32WB55 Arm®-based devices.
Note: Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.
1.1 Purpose and scope
The ST25DV-I2C out-of-band pairing demonstration runs on the MB1355C board plus a X-NUCLEO-NFC04A1
shield, featuring a ST25DV-I2C tag connected to an STM32WB55 device through the I2C bus.
The pairing with a Bluetooth® device is greatly facilitated by the use of NFC. Instead of selecting a Bluetooth®
device in a list, the user can tap the NFC Tag. The Bluetooth® connection is automatically set up, avoiding the risk
of selecting the wrong device in the list. This is the Bluetooth® handover over NFC.
NFC can be seen as a side communication channel between the Bluetooth® device and the Android™ phone.
This extra communication channel is used to exchange some data, called out-of-band data, used during the
Bluetooth® pairing.
These data contain a random number and a commitment value used to check the validity of the "Public Key"
received during the "Public Key exchange" phase, preventing a MITM attack.
Figure 1. Out-of-band BLE pairing
MS53551V1
BLE device
1.2 Glossary and acronyms
Table 1. Glossary and acronyms
Glossary/Acronyms Meaning
NFC Near field communication
BLE Bluetooth® Low Energy
ECDH Elliptic curve Diffie-Hellman
MITM attack Man-in-the-middle attack
NDEF NFC Data Exhange format
OOB pairing Out-of-band pairing
UM2710
General information
UM2710 - Rev 1 page 2/16
1.3 Hardware equipment
The following hardware is needed for this demonstration:
• MB1355C board plus X-NUCLEO-NFC04A1 shield
• An Android™ smartphone with at least the version 7.0 (Android™ Nougat)
Figure 2. MB1355C board
UM2710
Hardware equipment
UM2710 - Rev 1 page 3/16
Figure 3. X-NUCLEO-NFC04A1 board
1.4 Installation
This package includes the firmware for the MB1355C board and the Android™ executable (APK) to be used on
Android™ smartphones.
1.4.1 MB1355C board installation
To program the MB1355C board, perform following steps:
1. Install the ST-LINK USB driver, available on www.st.com
2. Connect the MB1355C board to a PC with the ST-Link USB-micro
3. The MB1355C board icon appears in the computer directory
4. Drag-and-drop the firmware to the MB1355C board icon
5. Restart the MB1355C board
UM2710
Installation
UM2710 - Rev 1 page 4/16
1.4.2 Android™ APK application installation
This application is not available on Google Play™ store so it must be installed manually. By default, Android™
prevents the installation of programs not coming from Google Play™ so go through the following steps:
1. Navigate to setting → Security.
2. Check the option "Unknown sources".
3. Tap “OK” on the prompt message.
4. Select "Trust".
5. Connect the Android™ phone to a PC with an USB cable and copy the APK to the phone’s internal memory.
6. With a file explorer, browse the memory of the phone and go to the folder where the APK is copied. Click on
the file to install it.
Note: Depending upon the Android™ version and the phone model, the wording may vary.
Note: If there is no file explorer, the program "File commander" is available for free on Google Play™.
1.5 License scheme
The Android™ application and the associated firmware are provided under the SLA0052 software license
agreement, available on www.st.com.
The software components provided in this package come with different license schemes, as shown in Table 2.
Table 2. License scheme
Component Copyright License
Application projects
STMicroelectronics
SLA0052
LibNDEF
Board support package (BSP)
BSD 3-Clause
STM32WB HAL/LL APIs
STM32WB Bluetooth® HCI
SLA0044
STM32WB Bluetooth® stack
STM32WB Bluetooth® profiles and
services
STM32WB Bluetooth®/Thread
concurrent stack
Cortex®-M CMSIS v4.5.0 Arm®BSD 3-Clause
UM2710
License scheme
UM2710 - Rev 1 page 5/16
2ST25DV-I2C "OobDemo" application screens
Figure 4. Home screen
Launch the application “ST25OobDemo” and tap the NFC Tag
of the X-NUCLEO-NFC04A1 board.
UM2710
ST25DV-I2C "OobDemo" application screens
UM2710 - Rev 1 page 6/16
Figure 5. Give confirmation
A pop-up requests confirmation to do a Bluetooth® pairing
with this device.
UM2710
ST25DV-I2C "OobDemo" application screens
UM2710 - Rev 1 page 7/16

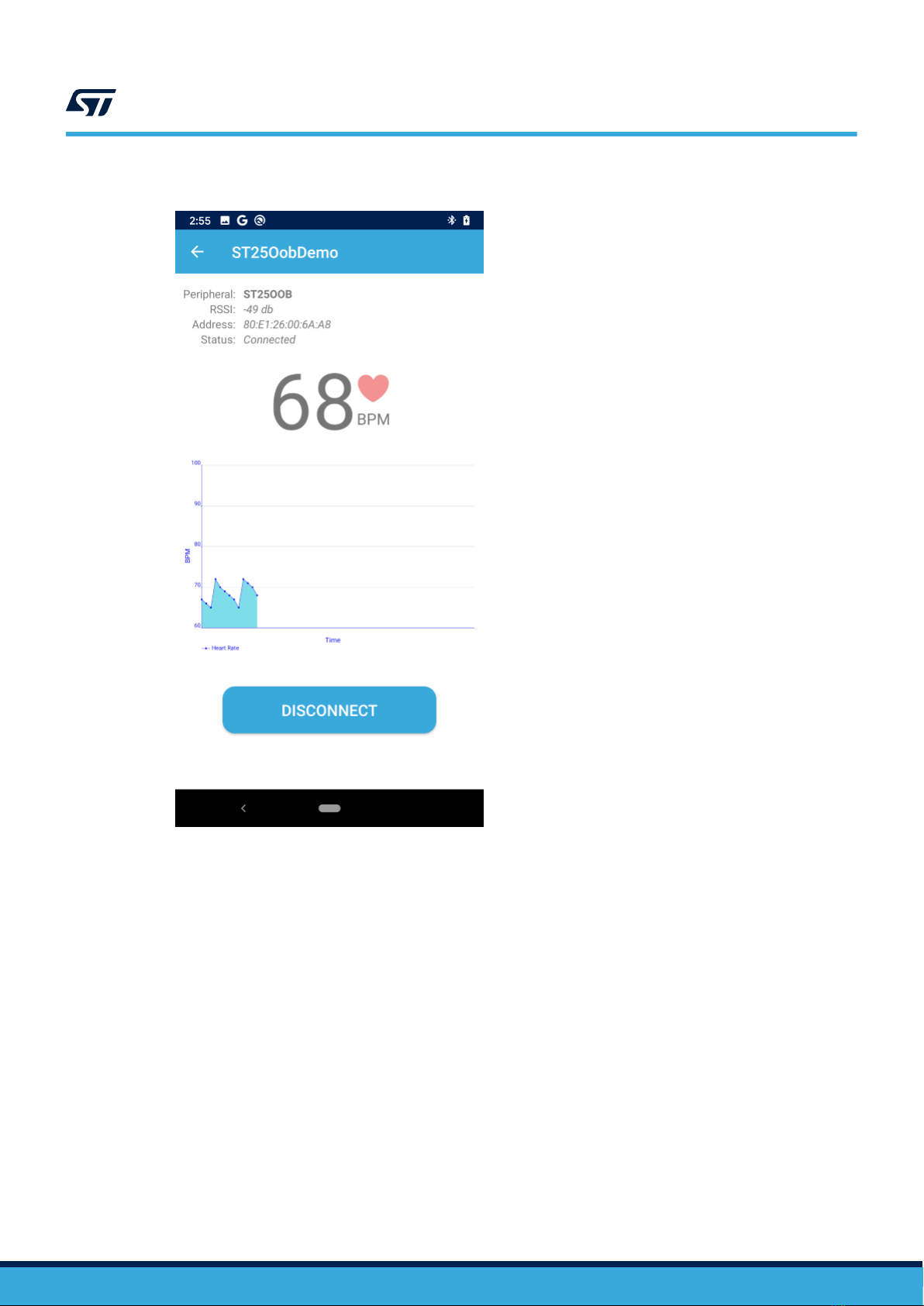

Figure 6. Setup launching
If user clicks ‘Yes’, the BLE connection is installed. The
smartphone then starts receiving some fictive heart rate data
from the Bluetooth® device and starts displaying them as a
graph.
Click on the "DISCONNECT" button to stop the connection
with this device (otherwise, the device remains connected).
UM2710
ST25DV-I2C "OobDemo" application screens
UM2710 - Rev 1 page 8/16
3Technical information
The NFC Tag contains an NDEF record with Bluetooth® handover information and OOB data:
• Record type name : “application/vnd.bluetooth.le.oob"
• Bluetooth® device name: e. g. « ST25OOB »
• Bluetooth® device address: e. g. 80:e1:26:00:6A:a8
• LE secure connections "Random Value" (16 bytes)
• LE Secure connections "Confirmation Value" (16 bytes)
The last two fields are optional and correspond to the OOB data.
When taping the NFC Tag, this NDEF message is read natively by the NFC service of the Android™ phone. A
pop-up is displayed to ask the user to confirm if it really wants to do a pairing with this Bluetooth® device. The
Bluetooth® pairing starts if the user clicks "Yes".
If the OOB data are present, it is used during the pairing process.
The Android™ application uses a "Broadcast Receiver" to be notified when a Bluetooth® connection is done. This
"Broadcast Receiver" checks if the connected Bluetooth® device has the expected device name. If this is the
case, the application starts displaying the data received.
Note: In this demonstration, the user is not authenticated. In a real product, the device checks if the user has the
permission to read the data. This is out of the scope of this demonstration, which shows how the NFC facilitates
the pairing with a Bluetooth® device.
3.1 Secure simple pairing
The used pairing method is called “Secure simple pairing” (refer to §7 of [1]), performed in five steps:
1. Public key exchange: The devices exchange their public keys and compute a shared secret information
thanks to Diffie-Hellman protocol.
2. Authentication Stage 1
The OOB protocol is used during this phase. The smartphone uses the random value and the commitment
value received from the Bluetooth® device. The protocol checks if the "Public Key" received during the "Key
Exchange" phase is really the one of the device. If a hacker has substituted the "Public Key" during the
phase 1, the verification of the commitment value fails. This is the protection against MITM attack.
Note: The NDEF data contained in the tag must be protected in write so that the data cannot be modified through the
RF interface and cannot be manipulated.
3. Authentication Stage 2
This stage confirms that both devices have successfully completed the exchange.
4. "Link Key" calculation
Calculation of the "Link Key".
5. LMP Authentication and Encryption
The final phase in simple pairing consists in authentication and generation of the encryption key.
UM2710
Technical information
UM2710 - Rev 1 page 9/16
4Known issues
The current implementation has some issues, detailed in the table below. The following tickets have been opened
on Android™ "Bug Tracker".
Table 3. Issues description
Ticket number Short description
142410444
OOB pairing does not work if user puts only the “Heart Rate”
profile. As a workaround, user must add also an “HID
profile“ (handled natively by Android™)
143335473 After Bluetooth® handover through NFC, the NFC of the
phone cannot be used for about 15 seconds.
143939066
If Bluetooth® is not enabled on the phone when user taps the
NFC Tag containing Bluetooth® handover the NFC service
automatically starts the Bluetooth® but it is running in a
special mode called “Quiet mode”, which has a bug.
As a workaround, the Bluetooth® is enabled by default when
the application starts.
UM2710
Known issues
UM2710 - Rev 1 page 10/16
