AN4943

Application note

Using the Chrom-ART Accelerator™ to refresh an LCD-TFT

display on STM32L496xx/L4A6xx/L4Rxxx/L4Sxxx microcontrollers

Introduction

The purpose of this application note is to highlight how to refresh an LCD-TFT display via

the FSMC interface using the Chrom-ART Accelerator™ on

STM32L496xx/L4A6xx/L4Rxxx/L4Sxxx microcontrollers.

The STM32L496xx/L4A6xx/L4Rxxx/L4Sxxx microcontrollers implement a Chrom-Art

Accelerator™ (DMA2D) that is a specialized DMA dedicated to image manipulation.

It can perform the following operations:

•Filling a part or the whole of a destination image with a specific color

•Copying a part or the whole of a source image into a part or the whole of a destination

image with a pixel format conversion

•Blending a part and/or two complete source images with a different pixel format and

copying the result into a part or the whole of a destination image with a different color

format.

On the STM32L496xx/L4A6xx/L4Rxxx/L4Sxxx microcontrollers, the flexible static memory

controller (FSMC) is used to access the LCD-TFT display through a parallel interface.

This application note explains on:

•How to connect the LCD-TFT display to the FSMC interface

•How to configure the DMA2D for the LCD-TFT display refresh

•How to use the DMA2D byte reordering features to directly drive Intel 8080 displays.

To fully benefit from this application note, the user should be familiar with the STM32

Chrom-ART Accelerator™ (DMA2D) as described in the STM32L4x6 advanced Arm®-

based 32-bit MCUs reference manual (RM0351) and the STM32L4Rxxx/L4Sxxx advanced

Arm®-based 32-bit MCUs reference manual (RM0432) available from the

STMicroelectronics website www.st.com.

Table 1. Applicable products

Type Product lines and part numbers

Microcontrollers

STM32L496AE, STM32L496AG, STM32L496QE, STM32L496QG,

STM32L496RE, STM32L496RG, STM32L496VE, STM32L496VG,

STM32L496ZE, STM32L496ZG

STM32L4A6AG, STM32L4A6QG, STM32L4A6RG, STM32L4A6VG,

STM32L4A6ZG

STM32L4R5/S5 line, STM32L4R7/S7 line, STM32L4R9/S9 line

www.st.com

Contents AN4943

2/22 DocID029937 Rev 2

Contents

1 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Chrom-ART Accelerator™ (DMA2D) application use case overview . . 6

3 LCD-TFT display on FSMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.1 Hardware interface description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.2 Display Command Set (DCS) software interface . . . . . . . . . . . . . . . . . . . . 8

3.3 Controlling the D/CX signal with STM32L496xx/L4A6xx/

L4Rxxx/L4Sxxx microcontrollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Chrom-ART Accelerator™ (DMA2D) configuration in STM32CubeL4 11

4.1 LCD partial refresh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

5 New DMA2D features to support Intel 8080 displays . . . . . . . . . . . . . . 13

5.1 Intel 8080 interface color coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.2 DMA2D reordering features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.2.1 Red and blue swap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.2.2 Byte swap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.3 DMA2D reordering use case examples . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.3.1 24bpp/18bpp over 16-bit FSMC data bus interface . . . . . . . . . . . . . . . . 17

5.3.2 24bpp/18bpp over 8-bit FSMC data bus interface . . . . . . . . . . . . . . . . . 18

5.3.3 16bpp over 8-bit FSMC data bus interface . . . . . . . . . . . . . . . . . . . . . . 19

6 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DocID029937 Rev 2 3/22

AN4943 List of tables

List of tables

Table 1. Applicable products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. FSMC signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Table 3. LCD-TFT signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Table 4. Minimum usable FSMC address bit depending on image size (16 bit RGB565 access) . . 10

Table 5. Swap operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 6. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

List of figures AN4943

4/22 DocID029937 Rev 2

List of figures

Figure 1. Display application typical use case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 2. Display bus interface specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 3. Memory map for LCD-TFT display access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 4. Automatic control of LCD-TFT display data/command by FSMC interface . . . . . . . . . . . . 10

Figure 5. 24bpp over 16-bit interface color coding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 6. 16bpp over 8-bit interface color coding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 7. 24bpp over 8-bit interface color coding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 8. DMA2D operations to support 24bpp over 16-bit interface. . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 9. DMA2D operations to support 24bpp over 8-bit interface. . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 10. DMA2D operations to support 16bpp over 8-bit interface. . . . . . . . . . . . . . . . . . . . . . . . . . 19

DocID029937 Rev 2 5/22

AN4943 Reference documents

1 Reference documents

The following documents are available on www.st.com.

•STM32L4x6 advanced Arm®-based 32-bit MCUs reference manual (RM0351)

•STM32L4Rxxx/L4Sxxx advanced Arm®-based 32-bit MCUs reference manual

(RM0432)

•Discovery kit with STM32L496AG MCU user manual (UM2160)

•Embedded software for the STM32L4 Series (STM32CubeL4)

This application note applies to Arm®-based devices.

Chrom-ART Accelerator™ (DMA2D) application use case overview AN4943

6/22 DocID029937 Rev 2

2 Chrom-ART Accelerator™ (DMA2D) application use

case overview

A typical application displaying an image into an LCD-TFT display is divided in 2 steps.

•Step1: creation of the frame buffer content

– The frame buffer is built by composing graphical primitives like icons, pictures and

fonts

– This operation is done by the CPU running a graphical library software

– It can be accelerated by a dedicated hardware used with the CPU through the

graphical library (Chrom-ART Accelerator™ (DMA2D))

– The more often the frame buffer is updated, the more fluid are the animations

•Step2: display of the frame buffer onto the LCD-TFT display

– The frame buffer is transferred to the display through a dedicated hardware

interface

– The transfer can be done using the CPU, the system DMA or using the Chrom-

ART Accelerator™ (DMA2D)

In a typical display application example using the STM32L496xx/L4A6xx/L4Rxxx/L4Sxxx

microcontrollers, the Flexible Static Memory Controller (FSMC) is used as the hardware

interface to the LCD-TFT display, the graphical primitives like pictures, icons or fonts are

stored in the external Quad-SPI Flash memory and the frame buffer is stored in the internal

SRAM. The transfer of the frame buffer to the LCD-TFT display can also be managed by the

Chrom-ART Accelerator™ (DMA2D), hence not using the CPU or the DMA resources.

This is showed in Figure 1: Display application typical use case.

Figure 1. Display application typical use case

MSv44235V2

Frame buffer in

internal SRAM

STM32L496xx/L4A6xx/L4Rxxx/L4Sxxx

SRAM

DMA2D

FSMC

LCD-TFT

display

Quad-SPI

Flash

Quad-SPI

interface

Graphical primitives in external

Quad-SPI Flash memory

Step 1

Step 2

DocID029937 Rev 2 7/22

AN4943 LCD-TFT display on FSMC

The Chrom-ART Accelerator™ (DMA2D) can update the whole image on the display (full

refresh) or only a part of it (partial refresh).

The configuration of the Chrom-ART Accelerator™ (DMA2D) (full or partial refresh) is done

by programming specific registers through the high level HAL library function as shown in

Section 4: Chrom-ART Accelerator™ (DMA2D) configuration in STM32CubeL4.

3 LCD-TFT display on FSMC

3.1 Hardware interface description

The below signals are used to connect the Flexible Static Memory interface (FSMC) to the

LCD-TFT display:

Table 2. FSMC signals

Signal name FSMC I/O Function

A[25:0] O Address bus

D[15:0] I/O Bidirectional data bus

NE[x] O Chip select, x=1..4

NOE O Output enable

NWE O Write enable

Table 3. LCD-TFT signals

Signal name(1)

1. The signal names are provided according the Type B Display Bus Interface (DBI) as described in the MIPI

Alliance standard for display bus interface.

LCD-TFT I/O Function

D/CX I Data/command control signal

D[15:0] I/O Bidirectional information signals bus

CSX I Chip select control signal

RDX I Read control signal

WRX I Write control signal

TE O Tearing effect

RESX I Reset

LCD-TFT display on FSMC AN4943

8/22 DocID029937 Rev 2

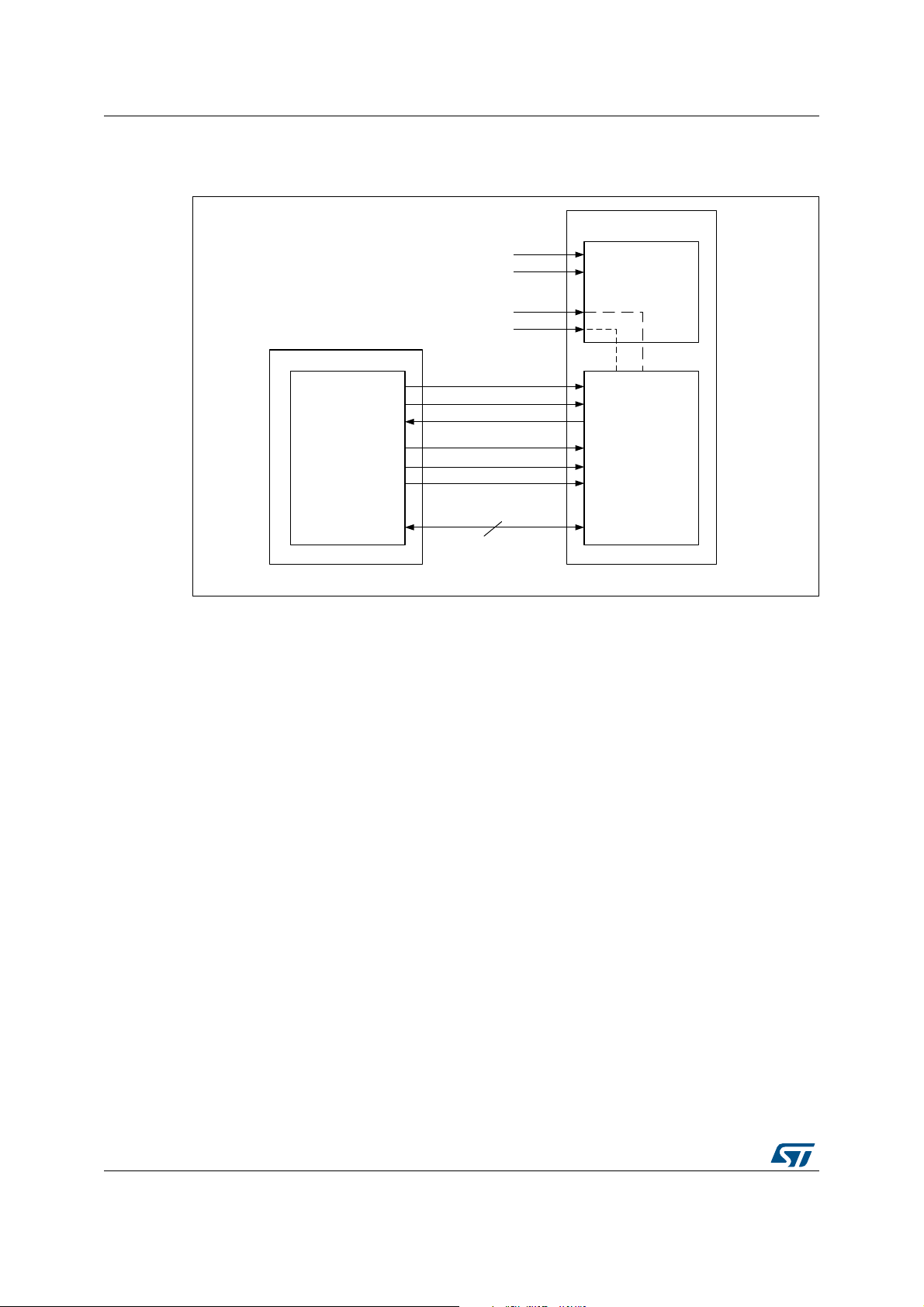

A typical connection is showed in Figure 2

Figure 2. Display bus interface specification

3.2 Display Command Set (DCS) software interface

The LCD-TFT displays can be controlled through the physical interface (here the FSMC

bus) using software commands according to the display command set (DCS) as defined in

the MIPI alliance specification for DCS.

The DCS commands are used to configure the display module and to transfer the frame

buffer to the display.

MSv44255V1

CSX

VDD

RESX

VDDI

D[15:0], D[8:0] or [D[7:0]

AGND

DGND

Power block

Interface block

Host

Interface block

D/CX

WRX

RDX

Display

DocID029937 Rev 2 9/22

AN4943 LCD-TFT display on FSMC

3.3 Controlling the D/CX signal with STM32L496xx/L4A6xx/

L4Rxxx/L4Sxxx microcontrollers

The D/CX signal of the DBI protocol is used to distinguish the commands (when D/CX = 0)

from the data (when D/CX = 1) transfers.

There are 2 ways to control the 'Data/Command control' (D/CX) signal:

1. By using a dedicated GPIO:

– Setting the 'Data/Command control' signal in "command mode" (setting the GPIO

connected to the D/CX signal to '0' by software)

– Sending the command

– Setting the 'Data/Command control' signal in "data mode" (setting the GPIO

connected to the D/CX signal to '1' by software)

– Sending the data (frame buffer)

2. By using an address bit of the FSMC address bus:

– Reserving a “low level” address in the memory map for the command transfer

– Reserving the higher memory map range for the data transfer

When using the DMA2D to access the LCD-TFT display on FSMC interface, it is important

to remember that even if the LCD-TFT display target is at a fixed address, the Chrom-ART

Accelerator™ (DMA2D) increments the address bus of the transmitted data at each access

(like a memory to memory access). Thus the FSMC address bus is incremented to cover

the full data range address in the memory map.

Figure 3. Memory map for LCD-TFT display access

Using the 2nd option “an address bit of the FSMC address bus” makes the software simpler

than using the 1st option with a dedicated GPIO, but it requires using the “high level”

address to control the ‘data or command select signal’.

•The user cannot use for example the FSMC address LSB bit (FSMC_A0) to control the

‘data or command select signal’

•The user must use a “high enough” FSMC address bit in order to keep for this bit the

same value during the whole image frame buffer transfer.

0xxxxx0000

‘High level’ address command @

data @ range

MSv44236V1

LCD-TFT display on FSMC AN4943

10/22 DocID029937 Rev 2

Figure 4. Automatic control of LCD-TFT display data/command by FSMC interface

1. ‘x’ as high as possible according Table 4.

For example, if the image buffer size is 240x240 pixels and the transfer is done using 16 bits

in RGB565 mode (one pixel transferred per access to LCD), the number of accesses are

240x240 = 57600 accesses and the FSMC address increments from 0x0000 0000 to

0x0000 E0FF.

Thus the 1st address bit that does not change during the transfer is the bit 16.

In this specific case the FSMC_A16 or a higher address bit can be used.

Table 4 shows the minimum FSMC address bit that can be used depending on some image

size.

Table 4. Minimum usable FSMC address bit depending on image size (16 bit RGB565

access)

Image size Nb of pixels Nb of accesses Max address Min usable FSMC

address bit

VGA 640x480 307200 0x4AFFF FSMC_A19

HVGA 480x320 153600 0x257FF FSMC_A18

QVGA 320x240 76800 0x12BFF FSMC_A17

- 240x240 57600 0x0E0FF FSMC_A16

MSv44237V1

LCD-TFT display

FSMC_D[15:0] Data[15:0]

Data/command selection

FSMC_A[x]

Other control signals

(1)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microcontrolador de ST

ST STM8A-DISCOVERY Manual de usuario

ST STM32F100 Series Instrucciones de instalación y funcionamiento

ST STM32L053 Manual de usuario

ST STM8L Instrucciones de instalación y funcionamiento

ST STM32F7508-DK Manual

ST STM32H7B3I-DK Manual de usuario

ST iNEMO STEVAL-MKI062V2 Series Manual de usuario

ST STM32F103ZE Manual de usuario

ST STM32F205 series Manual de usuario

ST STM32WL55JC Manual de usuario

ST EVLKST8500GH868 Manual de usuario

ST SPC58EC-DISP Manual de usuario

ST SimpleMAC STM32W108 Series Manual de usuario

ST P-NUCLEO-LRWAN2 Manual de usuario

ST STM32Cube Manual de usuario

ST UM2140 Manual de usuario

ST STM32H723 Manual de usuario

ST ST7260 Series Manual de usuario

ST ST7LITE1 B Series Manual de usuario

ST STM32F0 Series Instrucciones de instalación y funcionamiento

ST L638E Series Guía del usuario

ST VD6283 Manual de usuario

ST NUCLEO-WB55RG STM32WB Manual de usuario

ST STM32 NUCLEO-F030R8 Manual de usuario

Manuales populares de Microcontrolador de otras marcas

AMS

AMS AS7261 Demo Kit Manual de usuario

Novatek

Novatek NT6861 Manual de usuario

Espressif Systems

Espressif Systems ESP8266 SDK Guía de configuración

Nuvoton

Nuvoton ISD61S00 ChipCorder Guía

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manual de usuario

Texas Instruments

Texas Instruments Chipcon CC2420DK Manual de usuario

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manual de usuario

NEC

NEC 78GK0S/K 1+ Series Instrucciones de instalación y funcionamiento

Mikroe

Mikroe SEMITECH N-PLC Click Instrucciones de instalación y funcionamiento

Intel

Intel Agilex Manual de usuario

Cypress

Cypress CY4607 HX2VL Manual de usuario

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manual de usuario

Texas Instruments

Texas Instruments TMS320F2837 D Series Manual de usuario

CYPRES

CYPRES CY14NVSRAMKIT-001 Manual de usuario

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manual de usuario

Espressif Systems

Espressif Systems ESP8266EX Instrucciones de funcionamiento

Abov

Abov AC33M8128L Manual de usuario

Laird

Laird BL654PA Manual de usuario
