Pro-Form PFEL04900 Manual de usuario

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEL04900

Serial No.

Serial Number Decal

USERÕS MANUAL

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through

direct assistance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

1. Read all instructions in this manual before

using the elliptical crosstrainer.

2. It is the responsibility of the owner to ensure

that all users are adequately informed of all

precautions.

3. Place the elliptical crosstrainer on a level

surface, with a mat beneath it to protect the

floor or carpet. Keep the elliptical crosstrain-

er indoors, away from moisture and dust.

4. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

5. The elliptical crosstrainer should not be used

by persons weighing more than 250 pounds.

6. Keep children under age 12 and pets away

from the elliptical crosstrainer at all times.

7. Wear appropriate exercise clothing when

using the elliptical crosstrainer. Always wear

athletic shoes for foot protection.

8. Always hold the handlebar or the upper

body arms when mounting, dismounting, or

using the elliptical crosstrainer.

9. Keep your back straight when using the ellip-

tical crosstrainer; do not arch your back.

10. The pulse sensor is not a medical device.

Various factors, including the userÕs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11. If you feel pain or dizziness while exercis-

ing, stop immediately and begin cooling

down.

12. When you stop exercising, allow the pedals

to slowly come to a stop before dismounting

the elliptical crosstrainer.

13. The elliptical crosstrainer is intended for in-

home use only. Do not use it in any commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

BEFORE YOU BEGIN

Congratulations for selecting the revolutionary PRO-

FORM¨595E elliptical crosstrainer. The PROFORM

595E is an incredibly smooth exerciser that moves

your feet in a natural elliptical path, minimizing the

impact on your knees and ankles. And the unique

595e features adjustable resistance and incline to

help you get the most from your exercise. Welcome to

a whole new world of natural, elliptical-motion exercise

from PROFORM.

For your benefit, read this manual carefully before

you use the PROFORM¨595E. If you have additional

questions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

note the product model number and serial number

before calling. The model number is PFEL04900. The

serial number can be found on a decal attached to the

elliptical crosstrainer (see the front cover of this man-

ual for the location of the decal).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Upper Body Arm

Resistance Control

Handlebar with Pulse Sensor

FRONT

BACK

RIGHT SIDE

Pedal Arm

Pedal Disk

Pedal

Console

Book

Rack

Incline Bracket

Incline Frame

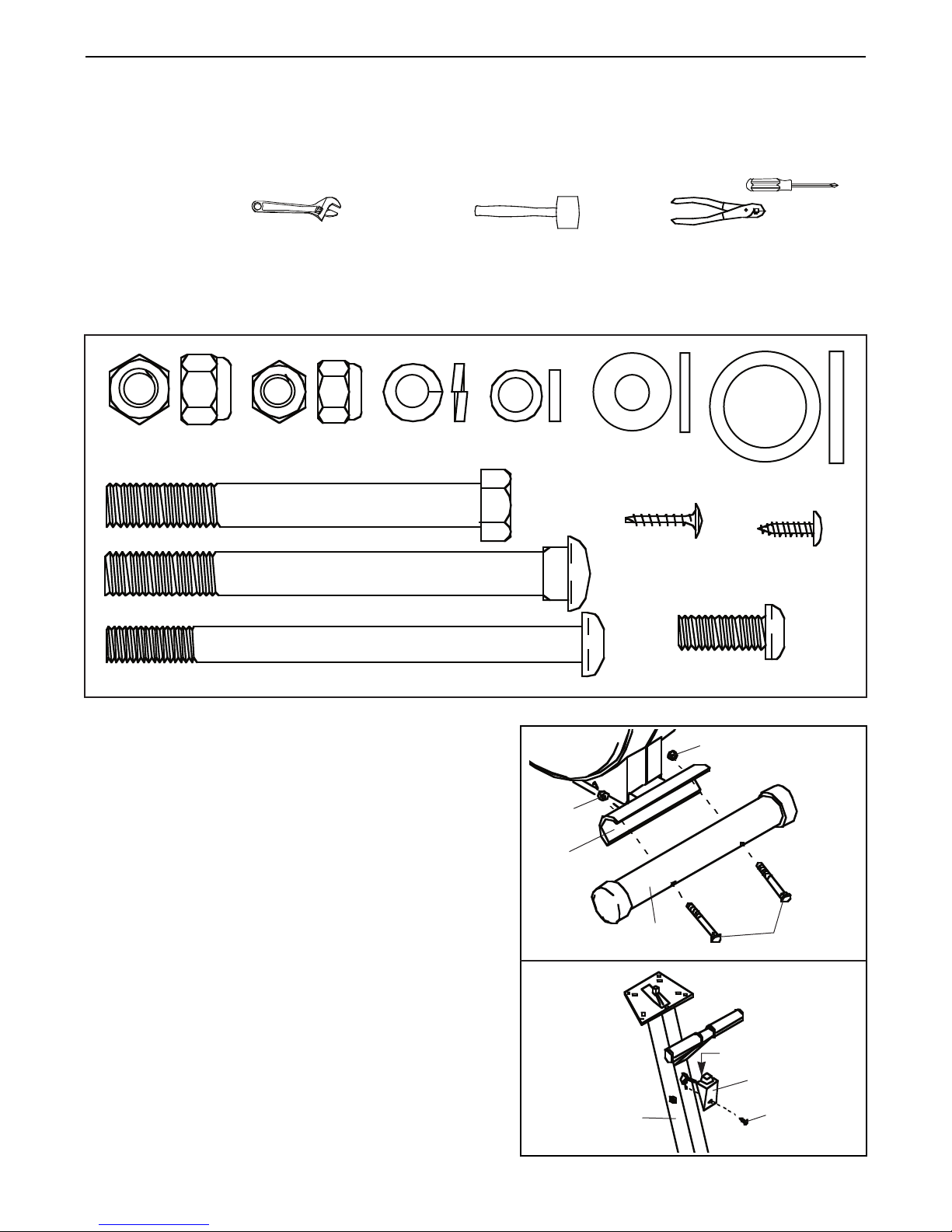

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the following tools: the included allen wrench, a phillips screwdriver ,

an adjustable wrench , a rubber mallet , and pliers .

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.

The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on

page 18. The second number refers to the quantity used in assembly. Note: Some small parts may have been

pre-attached for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.

1. Hold the Rear Stabilizer (65) against the saddle on the

rear of the Frame (1). Make sure that the Stabilizer is

turned so the square holes are facing away from the

Frame. Attach the Stabilizer with two M10 x 105mm

Carriage Bolts (27) and two M10 Nylon Locknuts (26).

126

2. Turn the Resistance Control (57) counterclockwise to

the minimum setting.

If the Resistance Control (57) is attached to the Upright

(2), remove the M4 x 16mm Screw (35). Pull the bot-

tom of the Resistance Control away from the Upright

and then slide it down to remove it. 57

Tab

235

M1 0 x105mm C arr iage B olt ( 27 )Ð 2

Axle Screw (30)Ð2

M10 x 85mm Bolt (25)Ð1

Nylon Washer

(11)Ð2

M8 Split

Washer (58)Ð2 M8 Wa she r (81) Ð6

M4 x 16mm

Screw (35)Ð9

M4 x 16mm

Flange Screw

(43)Ñ6

M8 Nylon

Locknut (8 0) Ð2

M10 Nyl on

Locknut (2 6) Ð7

Spacer

(4 4) Ð4

M8 x 108mm Bolt (79)Ð2

84 84

Metal

Bracket

3. Lay a cloth over the front of the Frame (1) to protect it.

Lay the Upright (2) in the position shown. Connect the

Extension Wire (51) to the Reed Switch Wire (50).

Next, connect the Resistance Cable (57) to the

Extension Cable (84) in the following way:

¥ Refer to drawing A. Pull up on the metal bracket, and

insert the tip of the Resistance Cable (57) into the

wire clip on the Extension Cable (84) as shown.

¥ Refer to drawing B. Firmly pull the Resistance Cable

(57) and slide it into the metal bracket on the

Extension Cable (84) as shown.

¥ Refer to drawing C. Using pliers, squeeze the prongs

on the upper end of the metal bracket together.

5. Attach the Incline Bracket (24) to the lower end of the

Upright (2) with the M10 x 85mm Bolt (25) and an M10

Nylon Locknut (26). Do not overtighten the Nylon

Locknut; the Incline Bracket must pivot easily.

4. Align the two holes in the front of the Upright (2) with

the two welded bolts on the front of the Frame (1).

Carefully push the Reed Switch Wire (not shown) into

the Upright until there is no slack.

Next, pivot the Upright (2) about halfway to the vertical

position while guiding the metal bracket on the

Extension Cable (not shown) into the Upright. Once

the top edge of the metal bracket is inside the Upright,

pivot the Upright to the vertical position so it rests on

the four welded bolts on the Frame (1). Be careful to

avoid pinching the wires. Tighten a M10 Nylon

Locknut (26) onto each welded bolt.

Refer to assembly step 2. Insert the tab on the Resis-

tance Control (57) into the Upright (2). Next, press the

bottom of the Resistance Control against the Upright.

Tighten the M4 x16mm Screw (35) into the Resistance

Control and the Upright.

Welded

Bolts

8. Connect the Extension Wire (51) to the corresponding

wire on the Console (87).

Next, connect the two Pulse Wires (86) to the two

remaining wires on the Console (87). Note: Either

Pulse Wire can be attached to either wire on the

Console.

Next, connect the ground wire to the indicated hole in

the Upright (2) with an M4 x 16mm Screw (35).

Carefully feed the wires down into the Upright (2).

Attach the Console Base (49) to the Upright with four

M4 x 16mm Screws (35). Be careful to avoid pinch-

ing the wires.

Console

Wires

Ground Wire

7. The Console (87) requires two ÒAAÓ batteries (not

included). Alkaline batteries are recommended. To

install batteries, turn the console over and insert two

batteries into the battery clip as shown in the inset

drawing. Make sure that the negative ends of the

batteries (marked ÒÑÓ) are touching the springs in

the battery clip.

Attach a Plastic Tie (53) to the battery clip as shown.

Attach the Console (87) to the Console Base (49) with

four M4 x 16mm Screws (35), making sure that the

indicated wires are extending from the Console Base

(49). Be careful not to pinch the wires.

Wires

Battery

Clip

Batteries

V-shaped Groove

Grease

Tubes

6. Slide an M8 Split Washer (58) and an M8 Washer (81)

onto an Axle Screw (30). Tighten the Axle Screw into

one end of the Incline Axle (29). Next, apply a small

amount of the included grease to the Incline Axle.

Align the indicated tubes on the Incline Frame (5) with

the tubes on the Base (1). Make sure that the Incline

Frame is turned so the V-shaped grooves are on

top. Insert the Incline Axle (29) through the Incline

Frame and the Base. Note: It may be helpful to tap the

Incline Axle with a rubber mallet to insert it.

Slide an M8 Split Washer (58) and an M8 Washer (81)

onto the other Axle Screw (30). Tighten the Axle Screw

into the open end of the Incline Axle (29).

10. Apply grease to an M8 x 108mm Bolt (79). Slide an M8

Washer (81) onto the Bolt and insert the Bolt into the

indicated side of the Left Pedal Arm (3). Be careful not

to confuse the Left Pedal Arm with the Right Pedal

Arm (not shown); look at the position of the round

tube to identify the Left Pedal Arm. Next, slide a

Spacer (44), a Pedal Wheel (77), and another Spacer

(44) onto the Bolt and push the Bolt through the other

side of the Left Pedal Arm.

Next, slide a Tube Spacer (82), a Chrome Tube (21),

and an M8 Washer (81) onto the M8 x 108mm Bolt

(79). Tighten an M8 Nylon Locknut (80) onto the Bolt.

Attach the other Chrome Tube (not shown) to the Right

Pedal Arm (not shown) in the same way.

Grease

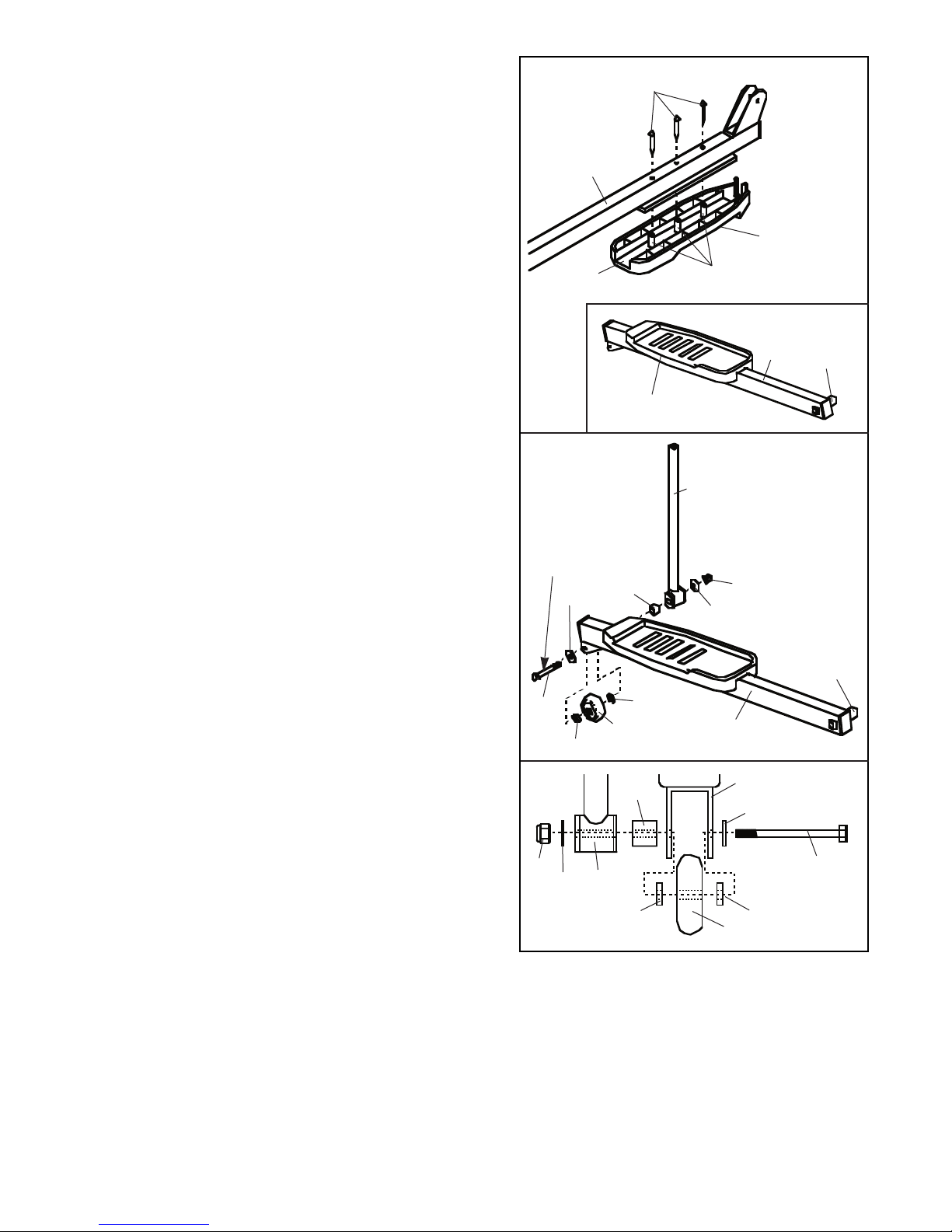

9. Identify the Left Pedal Arm (3), which has an ÒLÓ sticker

on it. Be careful not to confuse the Left Pedal Arm

with the Right Pedal Arm (not shown); look at the

position of the round tube in the inset drawing to

identify the Left Pedal Arm. Next, identify the Left

Pedal (41), which has the letter ÒLÓ molded onto the

bottom.

Turn over the Left Pedal Arm (3) as shown. Insert the

three plastic posts on the Left Pedal (41) into the three

indicated holes in the Left Pedal Arm. Make sure that

the Left Pedal is turned as shown. Attach the Left

Pedal with three M4 x 16mm Flange Screws (43).

Attach the Right Pedal (not shown) to the Right Pedal

Arm (not shown) in the same way.

943

Open Side

Plastic Posts

Round

Tube

Open Side

Round

Tube

10a

80 21

82 Front

View

13. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware

may be left over after assembly is completed. To protect the floor or carpet from damage, place a mat

under the elliptical crosstrainer.

12. Refer to the inset drawing. Apply a small amount of

the included Teflon¨lubricant to a paper towel; rub a

thin film of the lubricant onto each of the Chrome

Tubes (21). Slide an Upper Body Arm (7) onto each

Chrome Tube. Make sure that the Upper Body Arms

are turned as shown.

Tap a 5/8Ó Axle Cap (85) onto one end of the Axle

(19). Insert the Axle through one of the Upper Body

Arms (7) and then through the Upright (2). Slide the

other Upper Body Arm (7) onto the Axle. Tap another

5/8Ó Axle Cap (85) onto the Axle.

Lube

85 7

11. Apply a small amount of grease to the axle on the left

Crank Arm (6).

Slide a Nylon Washer (11) and the Left Pedal Arm (3)

onto the axle on the left Crank Arm (6). Note: It may be

helpful to use a rubber mallet to tap these parts on. Be

careful not to confuse the Left Pedal Arm with the

Right Pedal Arm (not shown); look at the position

of the round tube to identify the Left Pedal Arm.

Next, tap a 3/4Ó Axle Cap (61) onto the axle.

Attach the Right Pedal Arm (not shown) in the same way.

Grease

Round Tube

HOW TO USE THE ELLIPTICAL CROSSTRAINER

EXERCISING ON THE ELLIPTICAL CROSSTRAINER

To mount the elliptical crosstrainer, hold the handlebar

and step onto the pedal that is in the lowest position.

Next, step onto the other pedal. Push the pedals until

they begin to move with a continuous motion. Note:

The pedal disks can turn in either direction. It is

recommended that you move the pedal disks in

the direction shown below; however, to give vari-

ety to your exercise, you may choose to turn the

pedal disks in the opposite direction.

To dismount the elliptical crosstrainer, wait until the

pedals come to a complete stop. Important: The

elliptical crosstrainer does not have a free wheel;

the pedals will continue to move until the flywheel

stops. When the pedals are stationary, step off the

highest pedal first. Then, step off the lowest pedal.

HOW TO ADJUST THE RESISTANCE

To adjust the

intensity of your

exercise, the

resistance of the

pedals can be

adjusted. To

increase the

resistance, turn

the resistance

control clockwise;

to decrease the

resistance, turn

the control coun-

terclockwise.

Pedal

Pedal Disk

Control

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Entrenador elíptico de Pro-Form

Pro-Form

Pro-Form SR 30 Manual de usuario

Pro-Form

Pro-Form 380 Razor Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 786 S Elliptical Exerciser Manual de usuario

Pro-Form

Pro-Form PFCCEL87078 Manual de usuario

Pro-Form

Pro-Form 310 Ce Elliptical Manual de usuario

Pro-Form

Pro-Form Comfort Stride Manual de usuario

Pro-Form

Pro-Form 696 Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 595E PFEL04900 Manual de usuario

Pro-Form

Pro-Form 480 Cse Elliptical Manual de usuario

Pro-Form

Pro-Form 790 Hr Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 390 E Manual de usuario

Pro-Form

Pro-Form PFEL85607.0 Manual de usuario

Pro-Form

Pro-Form IFIT COACHLINK E9.0 Manual de usuario

Pro-Form

Pro-Form PFEL04907.0 Manual de usuario

Pro-Form

Pro-Form 300 Zle Elliptical Manual del sistema

Pro-Form

Pro-Form 485e Manual de usuario

Pro-Form

Pro-Form 595 HR Guía del usuario

Pro-Form

Pro-Form 600 N PFEL6026.0 Manual de usuario

Pro-Form

Pro-Form PFEL5105.2 Manual de usuario

Pro-Form

Pro-Form 130 Elliptical Manual de usuario

Pro-Form

Pro-Form ERGOSTRIDE Manual de usuario

Pro-Form

Pro-Form 500 Zle Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 465S Manual del sistema

Pro-Form

Pro-Form 820 Pr Elliptical Manual de usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
