Planet IGS-1020PTF Series Manual de usuario

Industrial 8-Port 10/100/1000T 802.3at PoE +

2-Port 100/1000X SFP Ethernet Switch

IGS-1020PTF Series

User’s Manual

Table of Contents

1. Package Contents................................................................................. 3

2. Hardware Introduction .......................................................................... 4

2.1 Switch Front Panel......................................................................... 4

2.2 LED Indicators............................................................................... 6

2.3 Switch Upper Panel........................................................................ 7

2.4 Wiring the Power Inputs................................................................. 8

2.5 Wiring the Fault Alarm Contact ....................................................... 9

2.6 Grounding the Device................................................................... 10

3. Installation ........................................................................................ 11

3.1 DIN-rail Mounting Installation ....................................................... 11

3.2 Wall-mount Plate Mounting ........................................................... 12

3.3 Side Wall-mount Plate Mounting (for IGS-1020PTF only) ................. 12

4. ProductSpecications ......................................................................... 13

Customer Support.................................................................................... 16

1. Package Contents

Thank you for purchasing PLANET Industrial 8-port 10/100/1000T 802.3at PoE

+ 2-port 100/1000X SFP Ethernet Switch, IGS-1020PTF or IGS-1020PTF-12V.

Thehardwarespecicationsofthesemodelsareshownbelow:

Model Name 10/100/1000T 802.3at

PoE+ RJ45 Ports

100/1000X

SFP Slots

Power Input

Range

IGS-1020PTF 8 2 DC 48~54V

IGS-1020PTF-12V DC 12~54V

In the following sections, the term “Industrial PoE+ Switch” means the

IGS-1020PTF or IGS-1020PTF-12V.

Open the box of the Industrial PoE+ Switch and carefully unpack it. The box

shouldcontainthefollowing items:

IndustrialPoE+Switchx1 QRcodesheetx1 SFPDustCapsx2

Wall-mountkitx1 DIN-railkitx1 RJ45DustCapsx8

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original packing

material, and use them again to repack the product in case there is a need to

return it to us for repair.

2. Hardware Introduction

2.1 Switch Front Panel

The front panels of the Industrial PoE+ Switches consist of Ethernet interfaces

andLEDindicatorsasshownbelow:

9 10

910

100/1000X SFP

LNK ACT

1000

10/100/1000T

IGS-1020PTF

LNK

ACT

PoE-in-Use

802.3at PoE+

P1 P2 Alarm

240W

PoE Usage

180W

120W

60W

Standard

Extend (Ports 5~8)

Mode

9 10

910

100/1000X SFP

LNK ACT

1000

10/100/1000T

IGS-1020PTF-12V

LNK

ACT

PoE-in-Use

802.3at PoE+

P1 P2 Alarm

240W

PoE Usage

180W

120W

60W

Standard Extend (Ports 5~8)

Mode

Figure 2-1: IGS-1020PTF front

panel

Figure 2-2: IGS-1020PTF-12V

front panel

GigabitTPInterfaces(Port1toPort8)

10/100/1000BASE-T copper, RJ45 twisted-pair: Up to 100 meters in standard

mode.

GigabitSFPSlots(Port9toPort10)

100/1000BASE-X mini-GBIC slot, SFP (small factor pluggable) transceiver

module: From 550 meters to 2 kilometers (multi-mode ber) and up to

10/20/40/60/80/120kilometers(single-modeberorWDMber).

DIP Switch for Port 5 to Port 8

The Industrial PoE+ Switch has a built-in solid DIP switch that provides

“Standard” and “Extend” operation modes. The Industrial PoE+ Switch

operates as a normal IEEE 802.af/at PoE+ Switch in the “Standard” operation

mode.

In the “Extend” operation mode, Port 5 to Port 8 of the Industrial PoE+

Switch operate on a per-port basis at 10Mbps full duplex operation but can

support 20~25-watt PoE power output over a distance of up to 250 meters

overcoming the 100m limit on Ethernet UTP cable. With this feature, the

Industrial PoE+ Switch provides an additional solution for 802.3af/at PoE+

distanceextension.

Standard Mode (default)

PoE IP Camera

PoE

100 meters (328 feet)

PoE

100BASE-TX UTP with PoE

IGS-1020PTF

100/1000X SFP

10/100/1000T

Standard Extend (Ports 5~8)

Mode

Extended Mode

PoE

250 meters (820 feet)

PoE

10BASE-T UTP with PoE

PoE IP Camera

IGS-1020PTF

100/1000X SFP

10/100/1000T

Standard Extend (Ports 5~8)

Mode

DIP Switch Mode Function

Standard

100/1000X SFP

10/100/1000T

Standard Extend (Ports 5~8)

Mode

DIP switch is o

This mode makes the Industrial PoE+ Switch operate

as a general switch and all PoE ports operate at

10/100/1000Mbpsauto-negotiation.

Extended

100/1000X SFP

10/100/1000T

Standard Extend (Ports 5~8)

Mode

DIP switch is on

This mode makes Port 5 to Port 8 of the Industrial PoE+

Switchoperateonaper-portbasisat10Mbpsfullduplex

operationbutcansupportPoEpower outputovera

distance of up to 250 meters overcoming the 100m limit

onEthernetUTPcable.

AfterchangingtheDIPswitch mode,pleasereboottheswitchto

take effect.

2.2 LED Indicators

System

LED Color Function

P1 Green Lights: Indicates power 1 has power.

P2 Green Lights: Indicates power 2 has power.

Alarm Red Lights: Indicates either power 1 or power 2 has no power.

60W Amber

O: Indicates the PoE usage is less than 30W.

Blinks: Indicates that the PoE usage is around 30W to

59W.

Lights: Indicates the PoE usage is around/over 60W.

120W Amber

Blinks: Indicates that the PoE usage is around 60W to

119W.

Lights: Indicates the PoE usage is around/over 120W.

180W Amber

Blinks: Indicates that the PoE usage is around 120W to

179W.

Lights: Indicates the PoE usage is around/over 180W.

240W Amber

Blinks: Indicates that the PoE usage is around 180W to

239W.

Lights:IndicatesthePoEusageisatthemaximum.

Per 802.3at PoE+ 10/100/1000BASE-T Interface (Port 1 to Port 8)

LED Color Function

LNK/

ACT Green

Lights: Indicates the link through that port is successfully

establishedat10Mbps,100Mbpsor1000Mbps.

Blinks: Indicates that the switch is actively sending or

receiving data over that port.

PoE -

in-Use Amber

Lights: Indicates the port is providing DC in-line power.

O: Indicates the connected device is not a PoE powered

device (PD).

Per 100/1000X SFP Slot (Port 9 to Port 10)

LED Color Function

LNK/

ACT Green

Lights: Indicates the link through that port is successfully

establishedat1000Mbpsor100Mbps.

Blinks: Indicates that the switch is actively sending or

receiving data over that port.

1000 Amber

Lights: Indicates the link through that port is successfully

establishedat1000Mbps.

O:Indicatesthelinkthroughthatportisnotestablished

orisestablishedat100Mbps.

2.3 Switch Upper Panel

The upper panel of the Industrial PoE+ Switch consists of one terminal block

connector within two power input and one relay output.

Figure 2-3 shows the upper panel of the IGS-1020PTF.

PWR1 PWR2

Alarm

DC Input:

48-54V , 7A max.

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

Figure 2-3: IGS-1020PTF Upper Panel

Figure 2-4 shows the upper panel of the IGS-1020PTF-12V.

PWR1 PWR2

Alarm

DC Input:

12-54V , 7A max.

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

Figure 2-4: IGS-1020PTF-12V Upper Panel

2.4 Wiring the Power Inputs

The 6-contact terminal block connector on the top panel of Industrial PoE+

Switch is used for two DC redundant power inputs. Please follow the steps

belowtoinsertthepowerwire.

When performing any of the procedures like inserting the wires

or tightening the wire-clamp screws, make sure the power is

OFF to prevent from getting an electric shock.

1. Insert positive and negative DC power wires into Contacts 1 and 2 for

Power 1, or Contacts 5 and 6 for Power 2.

PWR1 PWR2

Alarm

DC Input:

48-54V , 7A max.

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

2. Tighten the wire-clamp screws for preventing the wires from loosening.

123456

Power 1 Alarm Power 2

+ - + -

1.The wire gauge for the terminal block should be in the range

between12and24AWG.

2. The IGS-1020PTF-12V supports DC input range of 12V

to 54V. To avoid damage, please use the IGS-1020PTF-12V

underitsspecication.

DC Input Max.PoEBudget

12V 60W

24V 120W

54V 240W

3. PWR1 and PWR2 must provide the same DC voltage while

operating with dual power input.

2.5 Wiring the Fault Alarm Contact

The fault alarm contacts are in the middle of the terminal block connector as

the picture shows below. Inserting the wires, the Industrial PoE+ Switch will

detect the alarm status of the power failure and then forms an open circuit.

The following illustration shows an application example for wiring the fault

alarm contacts.

Fault Alarm Contacts

Alarm

The Fault Alarm Contacts are

energized (CLOSE) for

normal operation and will

OPEN when failure occurs

Insert the wires into the fault alarm contacts

1.The wire gauge for the terminal block should be in the range

between12and24AWG.

2.Alarmrelaycircuitacceptsupto24Vwithamaximumcurrent

of 1A.

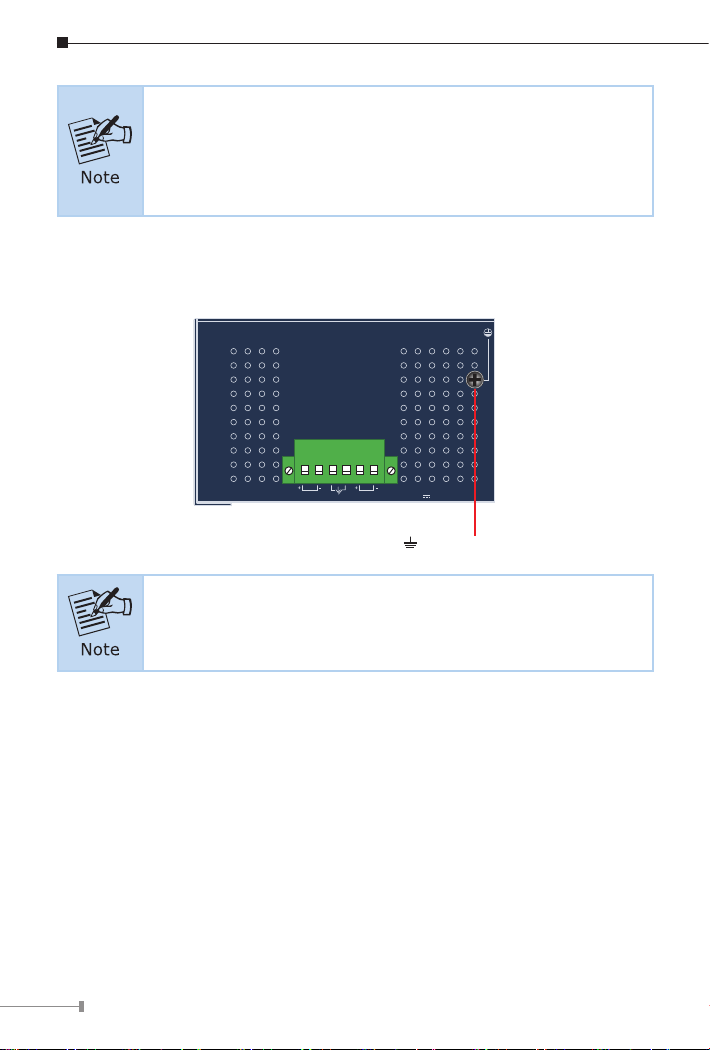

2.6 Grounding the Device

Users MUST complete grounding wired with the device; otherwise, a sudden

lightning could cause fatal damage to the device.

PWR1 PWR2

Alarm

DC Input:

48-54V , 7A max.

Max. Fault Alarm Loading: 24V, 1A

1 2 3 4 5 6

Earth Ground

EMD (Lightning) DAMAGE IS NOT COVERED UNDER WARRANTY.
