Pitney Bowes ADDRESSRIGHT DA950 Manual de usuario

1 Elmcroft Road Stamford, CT 06926-0700

This document is a publication of Pitney Bowes. The use of this information by the recipient or others for purposes other than the repair, adjustment

or operation of Pitney Bowes equipment may constitute an infringement of patent and/or other intellectual property rights of Pitney Bowes or others.

Pitney Bowes assumes no responsibility for any such use of the information. Except as provided in writing, duly signed by an officer of Pitney Bowes,

no license, either express or implied, under any Pitney Bowes or any third party’s patent, copyright, or other intellectual property rights is granted by

providing this information.

Installation Instructions

AddressRight® DA950 Printer

Installation Instructions

Page 1 of 10

Taking the Printer Out of Box

1. Open the top of the box and remove the accessories.

2. Cut around the bottom of the box.

3. Lift the box off of the printer.

IMPORTANT! Do not attempt to pick the printer up without assistance.

1. Remove accessories from

the top of the box.

2. Cut the box (for example, along

the dotted line as shown here).

3. Lift the box off of the printer.

AddressRight® DA950 Printer

Page 2 of 10

Installation Instructions

SV61184 Rev. B

Page 3 of 10

AddressRight® DA950 Printer

Installation Instructions

SV61184 Rev. B

Assembling the

Printer

• Remove the printer and feeder from the boxes they were shipped in.

• Be sure to remove any accessories from the boxes.

NOTE: Ensure that all packing materials (styrofoam, tape, etc.) have been

removed from the exterior and interior of the printer and feeder.

Once you've placed the printer and feeder in a suitable location, assemble the

printer and feeder components in the following order:

NOTE: Do not plug the printer into the power source until you've completed

steps 1-4.

1. Attaching the Feeder

2. Installing the Gas Shock

3. Installing the Side Guides

4. Installing the Ramp

5. Connecting the Parallel or USB cable

6. Attaching the Power Cord and Turning the Printer ON.

7. Installing the Bulk Ink Tray Assembly (Optional)

8. Installing the Print Cartridges or Bulk Ink Cartridges

The following environmental consid-

erations must be kept in mind when

selecting a location for the Address

Printer. Doing otherwise may affect the

operation and performance of the Ad-

dress Printer.

1. Place the printer close enough to

the computer for the parallel or USB

cable to reach.

NOTE: A/B Parallel switches are

not recommended for operation

with this printer.

2. Place the printer on a flat, stable

surface.

3. Use a grounded, dedicated outlet

for the printer only. Do not use an

adapter plug.

4. Avoid locations near direct sunlight,

excessive heat, high humidity, mois-

ture, or dust.

5. Keep the entire system away from

large motors or other appliances

that might disturb the power supply

or create potential interference.

Choosing a Location

Feeder

Printer

AddressRight® DA950 Printer

Page 2 of 10

Installation Instructions

SV61184 Rev. B

Page 3 of 10

AddressRight® DA950 Printer

Installation Instructions

SV61184 Rev. B

1. Attaching the Feeder

A. Prop the printer cover open.

B. Plug the feeder information cable

into the receptacle on the printer.

Assembling the

Printer (continued)

C. Lift the feeder and slide the tangs

into the slots on the printer.

D. Push the feeder down until it locks

into place.

Slots to attach

feeder

AddressRight® DA950 Printer

Page 4 of 10

Installation Instructions

SV61184 Rev. B

Page 5 of 10

AddressRight® DA950 Printer

Installation Instructions

SV61184 Rev. B

Assembling the

Printer

(continued)

2. Installing the Gas Shock

A. Insert the screw through the hole on

the printer wall and secure with the

bolt provided.

B. Snap the shock onto the bolt as

shown in the picture at right.

C. Snap the other end of the shock

onto the bolt inside the printer cov-

er.

D. Push in the plastic end caps to lock

the shock onto each ball attach-

ment.

NOTE: This cap must be pulled

open to remove the shock.

AddressRight® DA950 Printer

Page 4 of 10

Installation Instructions

SV61184 Rev. B

Page 5 of 10

AddressRight® DA950 Printer

Installation Instructions

SV61184 Rev. B

3. Installing the Side Guides

Use the screws provided to attach the right and left side guides to the printer.

Installing the left side guide Installing the right side guide

4. Installing the Feed Ramp

A. Remove the quick release pin at the

bottom of the feed ramp.

B. Slide the wire form adjustment slide

onto the adjustment bracket.

Assembling the

Printer

(continued)

AddressRight® DA950 Printer

Page 6 of 10

Installation Instructions

SV61184 Rev. B

Page 7 of 10

AddressRight® DA950 Printer

Installation Instructions

SV61184 Rev. B

Assembling the

Printer

(continued)

C. Line up the feed ramp on the feeder

floor. Reinsert the quick release pin

to lock the feed ramp in place.

D. Slide the media support wedge onto

the feed ramp.

5. Connecting the Parallel Cable or USB Cable

Use the parallel cable to connect the

printer to a standard parallel port on

your computer, or use a USB cable to

connect the printer to a USB port on

your computer.

The Address Printer ports are located on

the rear of the printer near the power

switch.

Parallel Cable

A. Align the male end of the parallel

cable to the port on the printer. Push the cable connector completely in.

B. Secure the cable in place. Use the two wire clips located on each side of the

Parallel connector to snap into the tabs on the cable.

C. Align the other end of the cable to the connector on the computer and push

into the port.

D. Secure the cable in place. Use the thumb screws on the cable connector to

screw into the connector on the computer.

USB port

Parallel port

AddressRight® DA950 Printer

Page 6 of 10

Installation Instructions

SV61184 Rev. B

Page 7 of 10

AddressRight® DA950 Printer

Installation Instructions

SV61184 Rev. B

USB Cable

A. Align the squarer end of the USB cable to the USB port on the printer. Push

the cable connector completely in.

B. Align the flatter end of the USB cable to the USB port on the computer or

USB hub. Push the cable connector completely in.

6. Connecting the Power Cord and Turning the Printer ON

A. Make sure that the power switch is

turned OFF (0), then connect the

power cord to the printer.

B. Plug the power cord into a grounded

outlet.

Once you've connected the cable, press

the printer’s power switch to the “I”

(ON) position. The switch is located next

to the power cord receptacle.

When you turn the printer on. The LCD

menu displays that the printer is initial-

izing. After a few seconds, the printer

will automatically go "ON LINE".

You can tell if the printer is ON LINE, by looking at the indicator light above the

ON LINE key. When the printer is ON LINE, the indicator will be lit.

Power switch

Power plug and receptacle

Parallel cable and power cord connections USB cable and power cord connections

Assembling the

Printer

(continued)

AddressRight® DA950 Printer

Page 8 of 10

Installation Instructions

SV61184 Rev. B

Page 9 of 10

AddressRight® DA950 Printer

Installation Instructions

SV61184 Rev. B

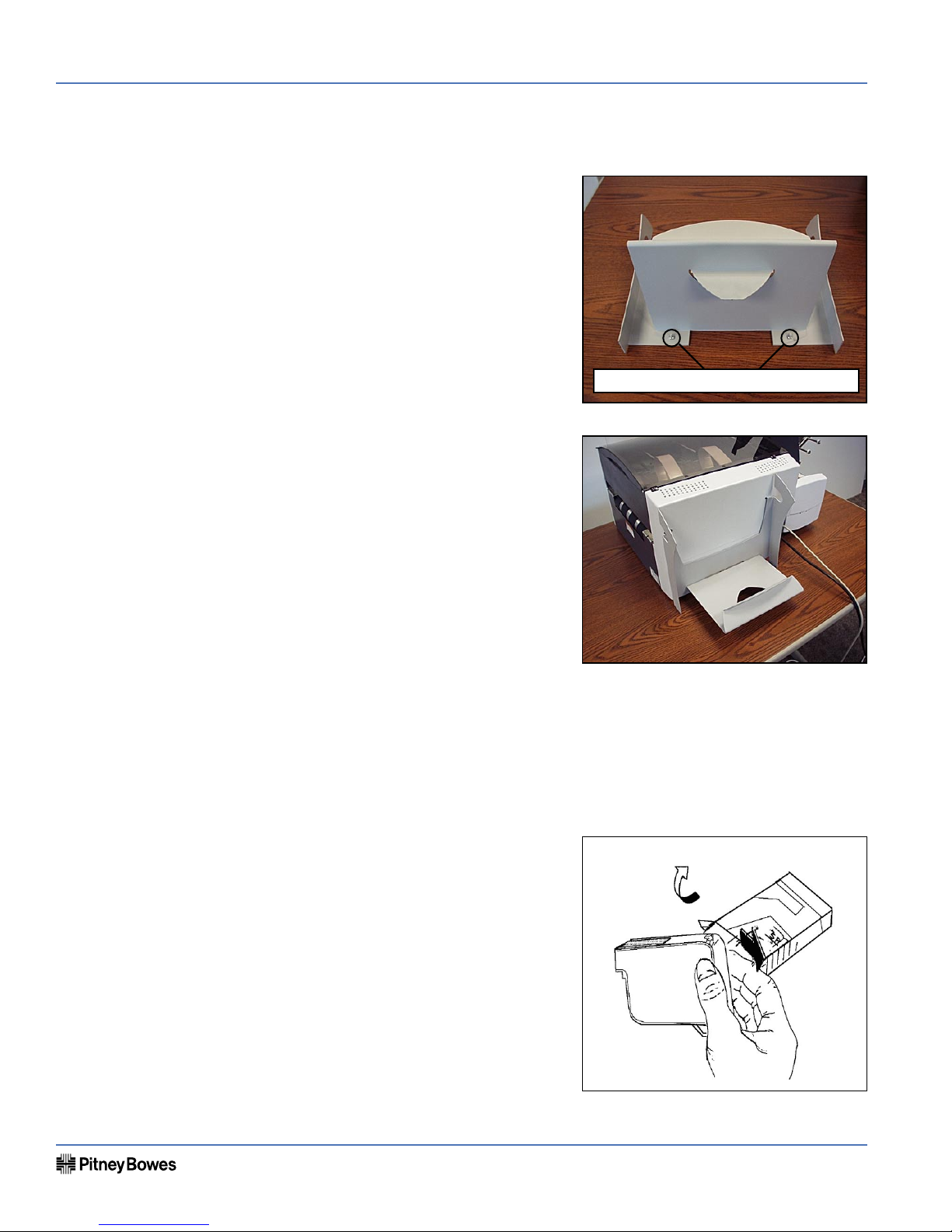

7. Installing the Bulk Ink Assembly (Optional)

The bulk ink assembly can accommodate up to six ink reservoirs.

A. Assemble the bulk ink assembly.

Tighten the nuts around the pre-

mounted screws.

B. Slide the bulk ink assembly onto the

hooks at the back of the printer (ad-

jacent to the power switch).

8. Installing the Print Cartridges or Bulk Ink Cartridges

Installing New Print Cartridges

1. Make sure the printer is OFF LINE. With the printer on, press the On Line key

until the indicator light above the key goes out.

2. Lift the main cover.

3. Remove the Cartridge from the ship-

ping container by peeling the top

cover off. Be careful not to touch the

copper ribbon.

Assembling the

Printer

(continued)

Tighten nuts around pre-mounted

AddressRight® DA950 Printer

Page 8 of 10

Installation Instructions

SV61184 Rev. B

Page 9 of 10

AddressRight® DA950 Printer

Installation Instructions

SV61184 Rev. B

Assembling the

Printer

(continued)

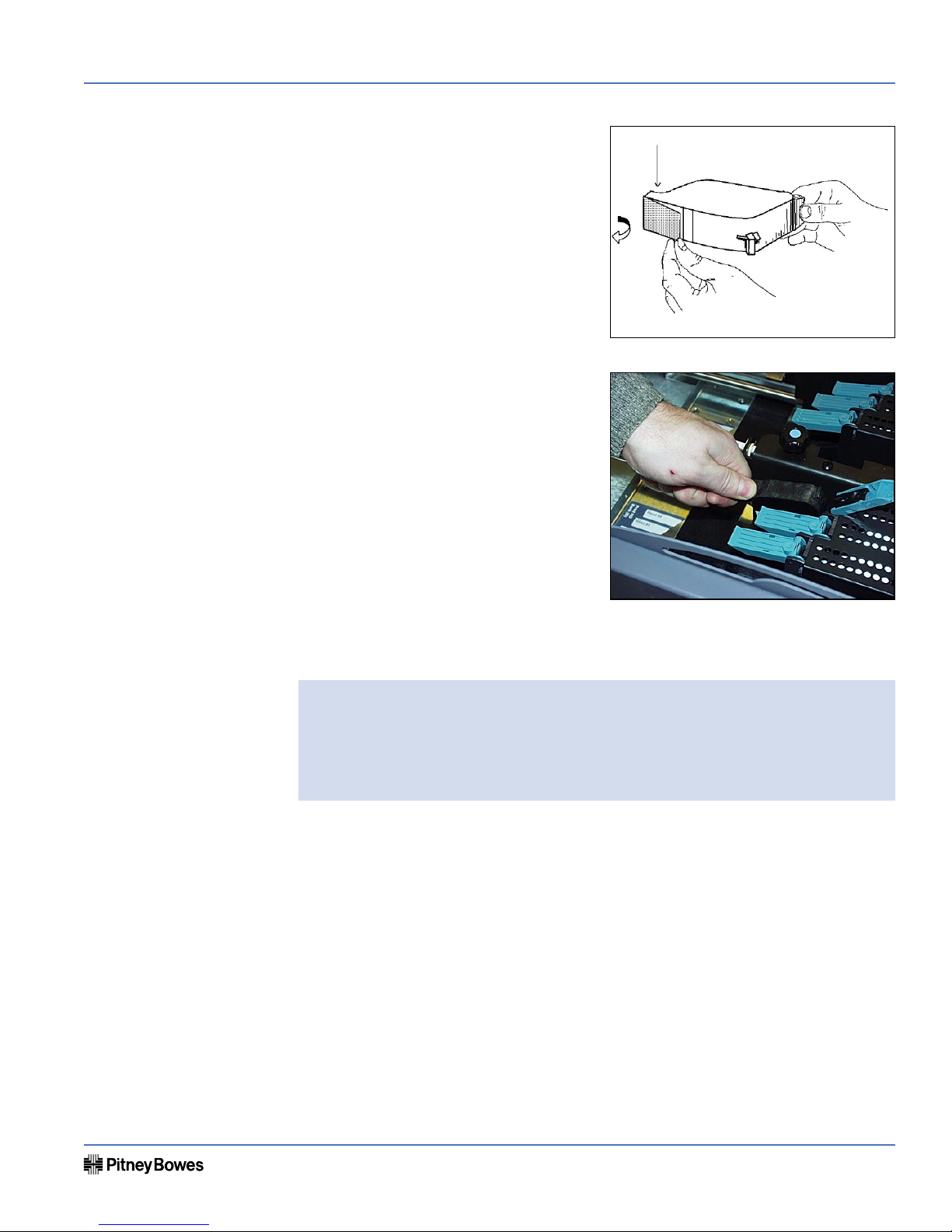

4. Gently remove both pieces of tape

covering the ink nozzles on the Print

Cartridge. Be careful not to touch

the copper nozzles.

5. Raise the latch all the way up on the

Head Print Assembly. Hold the car-

tridge from the notched handle on

top of the cartridge. Gently insert

the cartridge down at approximately

a 45 degree angle into the cradle.

6. Push down on the ink cartridge un-

til it is seated on the bottom of the

Head Print Assembly. Push and rock

the ink cartridge forward to stand

the ink cartridge up.

7. Press down the blue latch to lock the

ink cartridge in place.

8. Repeat this process to load the other ink cartridges.

NOTES:

• Reset the Ink Count in the Main Menu after replacing a Print Cartridge.

• Make a test print after replacing a Print Cartridge. If "stepping" or mis-

alignment is apparent, realign the cartridges using the Adjust Print func-

tion described on page A-26.

AddressRight® DA950 Printer

Page 10 of 10

Installation Instructions

SV61184 Rev. B

Installing the Printer

Driver and Envelope

Designer Plus™

Refer to SV61108, Installing Printer Drivers and Envelope Designer™ Plus for

AddressRight® DA Printing Systems and DocuMatch®, for instructions on installing

the printer driver.

Installing New Bulk Ink Cartridges

The bulk ink tray can hold up to six bulk

ink cartridges; one to hook up to each

of the six print heads.

1. Stack the bulk ink reservoirs on the

bulk ink tray.

2. Route (up to three cables) through

the notches on either side of the

bulk ink assembly as shown at right.

Route cables here

3. Lift the printer cover and route the

cables through the notch as shown

at right.

4. Gently remove both pieces of tape

covering the ink nozzles on the print

cartridge

5. Plug the nozzle on the cable into the

print cartridge.

6. Lift the blue tab and slide the car-

tridge into place.

Assembling the

Printer

(continued)

Route cables here

Performing Print Head

Calibration

Refer to pages 3-17 through 3-20 of SV61185, DA950 Service Manual, for instruc-

tions on print head calibration..

Otros manuales para ADDRESSRIGHT DA950

Tabla de contenidos

Otros manuales de Impresora de Pitney Bowes

Pitney Bowes

Pitney Bowes Datamax w1110 Manual de usuario

Pitney Bowes

Pitney Bowes AddressRight DA300 Manual

Pitney Bowes

Pitney Bowes Datamax w1110 Manual de usuario

Pitney Bowes

Pitney Bowes W1110 Manual de usuario

Pitney Bowes

Pitney Bowes AddressRight 200 Manual de usuario

Pitney Bowes

Pitney Bowes AddressRight DA70S Manual

Pitney Bowes

Pitney Bowes DP50S Manual de servicio

Pitney Bowes

Pitney Bowes Datamax w1110 Manual de usuario

Pitney Bowes

Pitney Bowes DocuMatch Integrated Mail System Suplemento

Pitney Bowes

Pitney Bowes QL-1100 Manual de usuario

Pitney Bowes

Pitney Bowes SendKit PB-SP100 Manual de usuario

Pitney Bowes

Pitney Bowes DP50S Manual de usuario

Pitney Bowes

Pitney Bowes ADDRESSRIGHT DA500 Manual

Pitney Bowes

Pitney Bowes AddressRight DA300 Manual

Pitney Bowes

Pitney Bowes W660 Manual

Pitney Bowes

Pitney Bowes DocuMatch Integrated Mail System Manual de usuario

Pitney Bowes

Pitney Bowes 1100 Manual de usuario

Pitney Bowes

Pitney Bowes ADDRESSRIGHT DA750 Manual

Pitney Bowes

Pitney Bowes da95f Manual

Pitney Bowes

Pitney Bowes DP50S Manual de usuario

Pitney Bowes

Pitney Bowes SendPro Network SendKit Manual de usuario

Pitney Bowes

Pitney Bowes ADDRESSRIGHTTM DA900 Manual de usuario

Pitney Bowes

Pitney Bowes ADDRESSRIGHT DA700 Manual de usuario

Pitney Bowes

Pitney Bowes DP40S Manual

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
