Model:PSMFK13

TV Wall Mount

Instruction Manual

Please carefully read all instructions before attempting installation. If you do not

understand the instructions or have any concerns or questions, please contact

our Technical Support line at 1-800-556-6806 or customer service at

[email protected]

CAUTION: Avoid potential personal injuries and property damage!

• Do not use this product for any purpose that is not explicitly speciﬁed in this

manual. Do not exceed weight capacity. We are not liable for damage or injury

caused by improper mounting, incorrect assembly or inappropriate use.

• This product is designed for use in wood stud, solid concrete, and concrete

block walls

• DO NOT install into drywall alone.

• The wall must be capable of supporting ﬁve times the weight of the TV and

mount combined.

MAX:400mm/16 in.

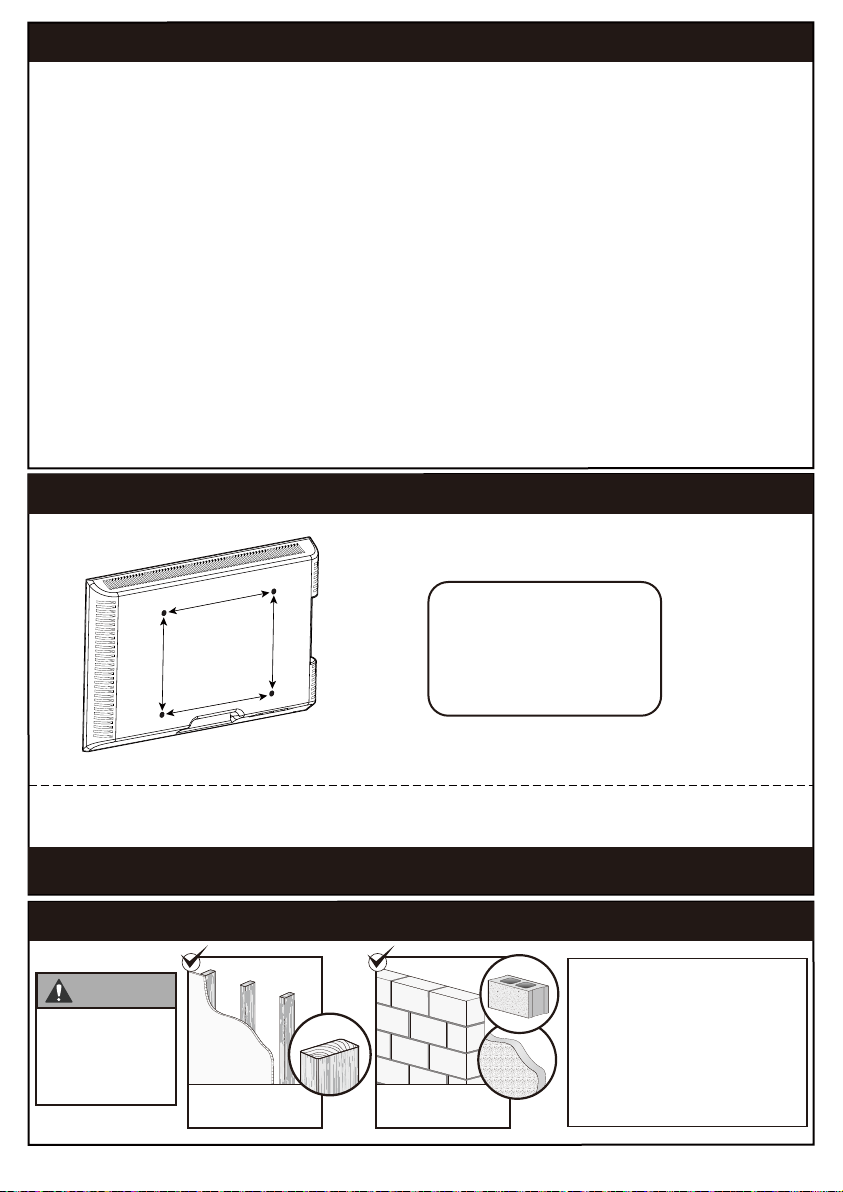

Check the VESA Pattern of Your TV before the Installation

IMPORTANT SAFETY INFORMATION

If this mount is NOT compatible, please contact customer service at

[email protected] to ﬁnd a compatible mount.

Solid Concrete

or Concrete Block

CAUTION

DO NOT

install into

drywall alone Wood Studs

(with Drywall)

Verify Your Wall Construction

If you are are not sure the

wall construction, please

contact our product

support line at

1-800-556-6806 or

customer service at

[email protected]

Minimum VESA pattern: 75mm/3 in.(W)x75mm/3 in.(H)

If your TV VESA is greater than 400x400 mm/16x16 in. or less than VESA

75x75mm/3x3in., this mount is NOT compatible.

75 mm ≈ 3 in.

100 mm ≈ 4 in.

200 mm ≈ 7 7/8 in.

300 mm ≈ 11 3/4 in.

400 mm ≈ 15 3/4 in.

M6 x 20mm x4 M6 x 12mm x4

Spacer x4 M6 x8

F1 F2

F3 F4

BoltBolt

Nut

Warning:This product contains small items that could be a choking hazard if

swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use

damaged or defective parts. lf you require replacement parts, contact our Product

Support line at 1-800-556-6806 or customer service at

[email protected]

• Please note: Not all hardware included in this package will be used.

Awl

Stud Finder Tape Measure Pencil Drill

5/32 in.(4 mm)

Wood Drill

3/8 in.(10mm)

Concrete Drill

1/2in.(13mm)

Socket Wrench Screwdriver

Hammer

Tools Needed (Not lncluded)

Supplied Parts and Hardware

Supplied Parts and Hardware for Step 1

Arm Assembly/Wall Plate

TV Bracket

3/8 in.(10mm)

Wrench

Spacers

[if needed]

[Only one bolt size ﬁts your TV]

04 05

[B] x4

Washer

TV Bolts

M6 x 15mm

[D1] x4

M8 x 25mm

[E1] x4

M8 x 35mm

[E2] x4

M8 x 50mm

[E3] x4

M6 x 35mm

[D2] x4

L2.5mm

[C1] x8 L10mm

[C2] x4

L20mm

[C3] x4

Note: The bolts are shown in accordance with the actual size

Note: The spacers are shown in accordance

with the actual size

Supplied Parts and Hardware for Step 2

Supplied Parts and Hardware for Step 3

Note: The lag screw is shown in accordance with the actual size

Lag Screw

M7x70mm [G]

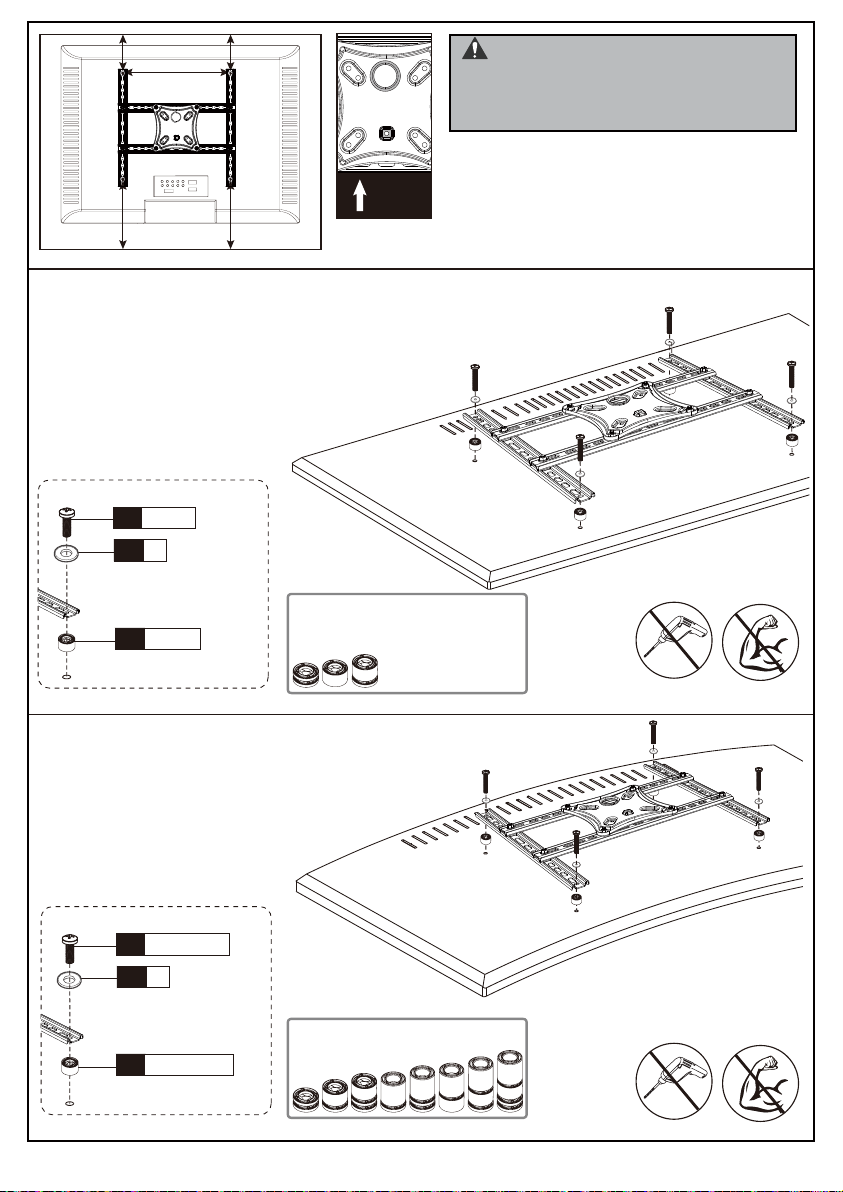

Step 1 Secure the TV Plate to TV Bracket Assembly

3 in. (75mm)x3 in. (75mm)

4 in.(100mm)x4 in.(100mm)

8 in. (200mm)x8 in. (200mm)

12 in.(300mm)x12 in.(300mm)

16 in.(400mm)x16 in.(400mm)

3 in. (75mm)

4 in.(100mm)

3 in. (75mm)

4 in.(100mm)

Loosen the preassembled bolt [S] to detach the TV plate [a] from the arm

assembly/wall plate [01], and keep the preassembled bolt [S] for the use in step 5

①

②

Choose the Combination that Applies to Your VESA Hole Pattern

Option A

Option B

11 3/4 in.(300mm)

15 3/4 in.(400mm)

11 3/4 in.(300mm)

15 3/4 in.(400mm)

7 7/8 in.(200mm)

Wall

Anchor

These anchors are for

concrete or brick walls

ONLY. DO NOT use them

in drywall or wood studs.

CAUTION!

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination.

We recommend thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Note: If necessary, the spacers can be used in multi-layer. If the installation fails

after trying various methods, please contact customer service at

[email protected]

Too Short Too Long Correct Correct

F1 F3

Adjust the width of the two vertical brackets

according to the width of the VESA pattern

holes.Then secure the other two brackets [02] to

the two horizontal brackets [02]with TV plate [a]

using bolts [F1], spacers [F3] and nuts [F4].

Secure the TV brackets [02] to the TV

plate [a] using bolts [F2] and nuts [F4].

M6 M8

Only one bolt size ﬁts your TV.

Step 2 Secure the TV Plate or TV Plate with Brackets Assembly to TV

Select TV Bolts

CAUTION: Ensure the TV plate

assembly are EQUALLY CENTERED

on your TV and securely fastened in

place.

Option A (For Flat Back TV)

Option B (For Round Back TV)

06 D2/E2/E3

C1/C2/C3

06 D1/E1

C1/C2

（If Needed）

Alternate Spacer Setups

D2/E2/E3

C1/C2/C3

D1/E1

Spacers may be necessary for 2 holes ONLY.

Option C (For TV with A “Bump”)

Option D

For cable interference or inset holes, use spacers [05] to create extra space

between the TV and TV plate assembly

06 D2/E2/E3

C1/C2/C3

Alternate Spacer Setups

C1/C2

（If Needed）

Position the arm assembly/wall

plate [01] at your desired height

and line up the holes with your

stud center line. Level the arm

assembly/wall plate [01] and

mark the holes.

Step 3 Attach the Arm Assembly/Wall Plate [01] to Wall

WARNING:

16 in.(406mm)

Use a stud ﬁnder(not

included) to locate wood

studs or use an awl (not

included) to verify the

edges. Mark the edge

and center locations.

Awl

(Not lncluded)

3A-1

3A-2

Step 3A Wood Stud Option

● Any material covering the wall must not exceed 5/8 in. (16 mm)

● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x

3½ in. (38 x 89 mm)

● Stud center must be veriﬁed

●Ensure the arm assembly/wall plate [01] is securely fastened to

the wall before continuing to the next step.

●DONOT USE ANCHOR [A2] FOR THIS STEP!

●Avoid potential personal injury or property damage! DO NOT over-tighten the

lag screws [A1]. Tighten the lag screws [A1] only until they are pulled ﬁrmly

against the wall plate.

For wood stud installation, follow STEP 3A

For concrete installation, follow STEP 3B

HEAVY! You may need

assistance with this step.

If the stud is not quite well where you'd

like, please refer to the step 3A-3 in Page

09 (Horizontal Shift) to adjust the position

CAUTION!

3A-3-1

3A-3-2

3A-3-3

3A-3 Shift the Arm Assembly（If Needed）

To better position your mount and TV on your wall,the mount can be horizontal shifted

side to side by following these steps

Lossen the four preassembled bolts using wrench, and keep the four bolts for

use in the step 3A-3-3

Shift the arm assembly to your desired position.

Wrench

3/8 in.(10mm)

Wrench

3/8 in.(10mm)

Fasten the four bolts using wrench to ﬁx the arm assembly to your desired

position.
