Perlesmith PSXF3 Manual de usuario
Thank you for choosing this Perlesmith product! At Perlesmith
we strive to provide you with the best quality products and
services in the industry. Please share your experience of our
product with others at www.perlesmith.com/pages/reviews if
you are satisfied. Should you have any issues, please don't
hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US/CA/DE/UK/FR/IT/ES/AU)
Website:
www.perlesmith.com
V1.0
Model:PSXF3
TV Wall Mount
Instruction Manual
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
300 mm ≈ 11 3/4 in.
600 mm ≈ 23 6/10 in.
800 mm ≈ 31 1/2 in.
100 mm ≈ 4 in.
MAX:800mm/31 in.
MAX:
400mm/16 in.
Please carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns or questions, please contact
our Technical Support line at 1-800-556-6806 or customer service at
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, and concrete
block walls - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
Minimum VESA pattern: 200mm/8 in.(W)x100mm/4 in.(H)
Check the VESA Pattern of Your TV before the Installation
Weight Restrictions
132 lbs.
(60 kg)
IMPORTANT SAFETY INFORMATION
DO NOT exceed the maximum weight
indicated. This mounting system is intended
for use only with the maximum weights
indicated. Use with products heavier than the
maximum weights indicated may result in
failure of the mount and its accessories,
causing possible damage and or injury.
WARNING
If your TV weighs more, this
mount is NOT compatible.
If your TV VESA is greater than 800x400 mm/31x16 in. or less than VESA
200x100mm/8x4in., this mount is NOT compatible.
If this mount is NOT compatible, please contact customer service at
[email protected] to find a compatible mount.
01
The TV brackets are attached
to the arm assembly/ wall
plate with plastic cable ties
TV Bracket
x2
03
Warning:This product contains small items that could be a choking hazard if
swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not use
damaged or defective parts. lf you require replacement parts, contact our Product
Support line at 1-800-556-6806 or customer service at
• Please note: Not all hardware included in this package will be used.
Awl
Stud Finder Tape Measure Pencil Drill
7/32 in.(5.5 mm)
Wood Drill
3/8 in.(10mm)
Concrete Drill
1/2 in.(13mm)
Socket Wrench Screwdriver
Hammer
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
Spacers
[if needed]Washer
05 06
M6/M8
[B] x4
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall)
Verify Your Wall Construction
If you are not sure the wall
construction, please
contact our product
support line at
1-800-556-6806 or
customer service at
L2.5mm
[C1] x8
L10mm
[C2] x4
L22mm
[C3] x4
02
[Only one bolt size fits your TV]
TV Bolts
M6 x 15mm
[D1] x4
M6 x 35mm
[D2] x4
M8 x 25mm
[E2] x4
M8 x 50mm
[E4] x4
M6
M8
Note: The bolts are shown in accordance with the actual size
M8 x 15mm
[E1] x4
M8 x 35mm
[E3] x4
07
Supplied Parts and Hardware for Step 2
01 x1
Wall Plate Wall Plate Template
04 x1
Note: The lag screw is shown in accordance with the actual size
Lag Screw
M8x65mm
x6
A1
Level
x1
03
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination.
We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short Too Long Correct Correct
Only one bolt size fits your TV.
Step 1 Secure the TV Brackets to TV
Select TV Bolts
M6 M8
Wall
Anchor
x6
A3
These anchors are for
concrete or brick walls
ONLY. DO NOT use them
in drywall or wood studs.
CAUTION!
Supplied Parts and Hardware for Step 3 to Step 6
Washer
M8
A2
x6
Arm Assembly
02 x1
Front Support
09
x1
Allen Key
x1
Bolt
[F1] x2
Bolt
[F2] x1
04
03
Option A (For Flat Back TV)
Option B (For Round Back TV)
06
05
07 D2/E2/E3/E4
B
C1/C2/C3
05
07 D1/E1
B
UP
CAUTION: Ensure the TV brackets
[03] are EQUALLY CENTERED on your
TV AND securely fastened in place.
Note: If necessary, the spacers can be used in multi-layer. If the installation fails
after trying various methods, please contact customer service at
Alternate Spacer Setups
05
D2/E2/E3/E4
07
B
05
C1/C2/C3
06
07
05
B
D1/E1
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
Option D
For cable interference or inset holes, use spacers [06] to create extra space
between the TV and TV brackets
06
05
07 D2/E2/E3/E4
B
C1/C2/C3
Alternate Spacer Setups
Alternate Spacer Setups
06
16 in.(406mm)
24 in.(609mm)
Use a stud finder(not included) to
locate wood studs or use an awl (not
included) to verify the edges. Mark
the edge and center locations.
Awl
(Not lncluded)
2A-1
2A-2
Position the wall plate template
[04] at your desired height and
line up the holes with your stud
center line. Level the wall plate
template [04] and mark the
holes.
WARNING:
Step 2
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B
Attach the Wall Plate [01] to Wall
Step 2A Wood Stud Option
X
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x
3½ in. (38 x 89 mm)
● Stud center must be verified
●Ensure the wall plate [01] is securely fastened to the wall before
continuing to the next step.
●DONOT USE ANCHOR [A3] FOR THIS STEP!
●Avoid potential personal injury or property damage! DO NOT over-tighten the
lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are
pulled firmly against the wall plate.
04
07
WARNING:
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag
screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly
against the wall plate.
●Ensure the wall plate [01] is securely fastened to the wall before
continuing to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Never drill into the mortar between blocks
Wall
Anchor
A3
Step 2B Solid Concrete or Concrete Block Option

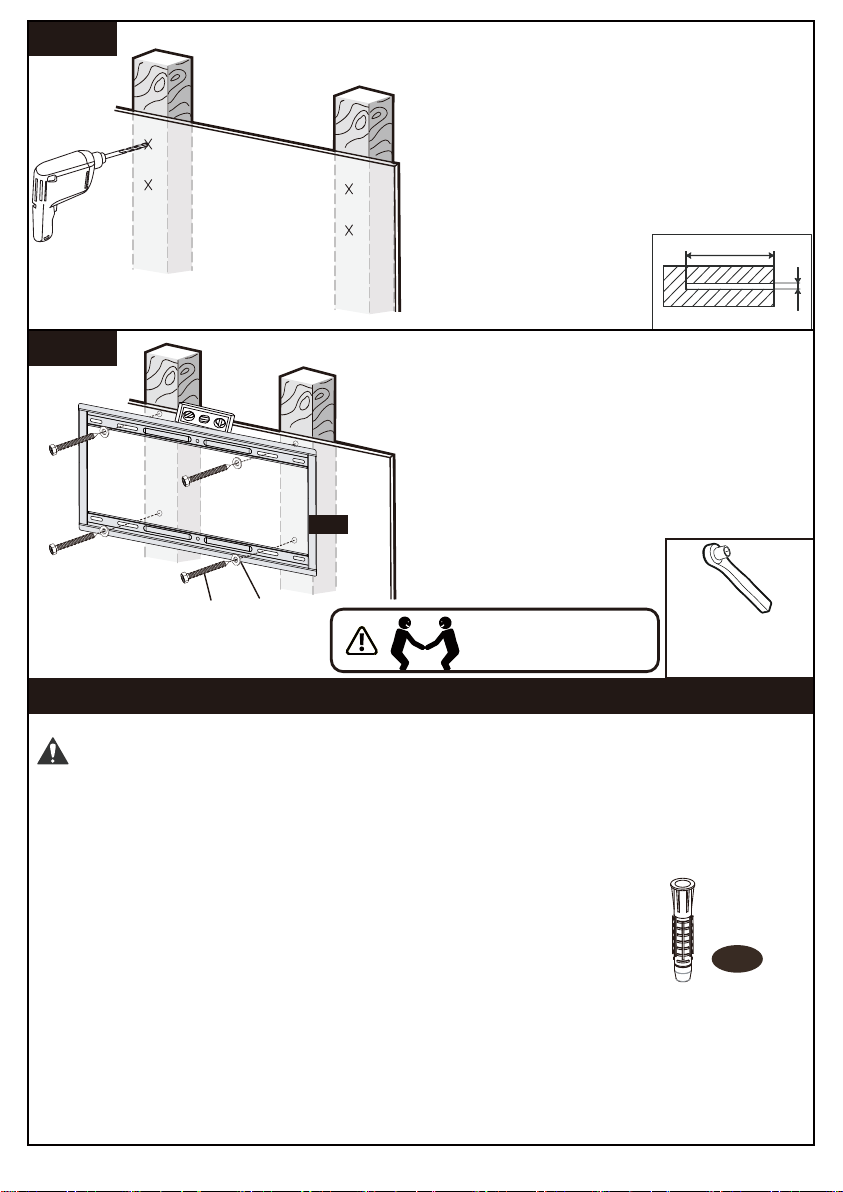

2A-3
2A-4
ø7/32 in.(5.5 mm)
2 9/16 in.(65mm)
1/2 in.(13mm)
Socket Wrench
(Not included)
Drill 4 pilot holes using a 7/32 in.(5.5
mm) diameter drill bit. Make sure the
depth is not less than 2 9/16 in.(65mm).
Install the wall plate using lag screws
[A1] and washer [A2]. Tighten the lag
screws [A1] only until the washers
[A2] are pulled firmly against the wall
plate.
You may need
assistance with this step.
A1 A2
01
08
ø3/8 in.(10mm)
2 3/4 in.(70mm)
Drill 6 pilot holes using a 3/8
in.(10mm)diameter drill bit. Make sure
the depth is not less than 2 3/4
in.(70mm). Never drill into the mortar
between blocks.
1/2 in.(13mm)
Socket Wrench
(Not included)
Use the hammer to knock anchors
[A3] into the wall. Be sure the
anchors [A3] are seated flush with
the concrete surface.
Install wall plate using lag
screws [A1], washers [A2] and
anchors [A3]. Tighten the lag
screws [A1] only until the
washers [A2] are pulled firmly
against the wall plate. DO NOT
over-tighten the lag screws [A1].
2B-1
2B-2
2B-3
2B-4
Position the wall plate template
[04] at your desired height, level
the wall plate template and mark
the pilot hole locations.
You may need
assistance with this step.
04
A1 A2
01
09
