PSLFK3
V1.0
LARGE FULL-MOTION TV WALL MOUNT
Thank you for choosing our product! We strive to provide the best quality and
services for our customers. Would you kindly share your experience on Amazon if
you are satisfied? Should you have any issues, please don't hesitate to contact us.
Telephone：800-5566-806 Mon-Fri 10am - 6pm (PST) (USA)
Email：[email protected] (US/CA/DE/UK/FR/IT/ES/JP/AU)

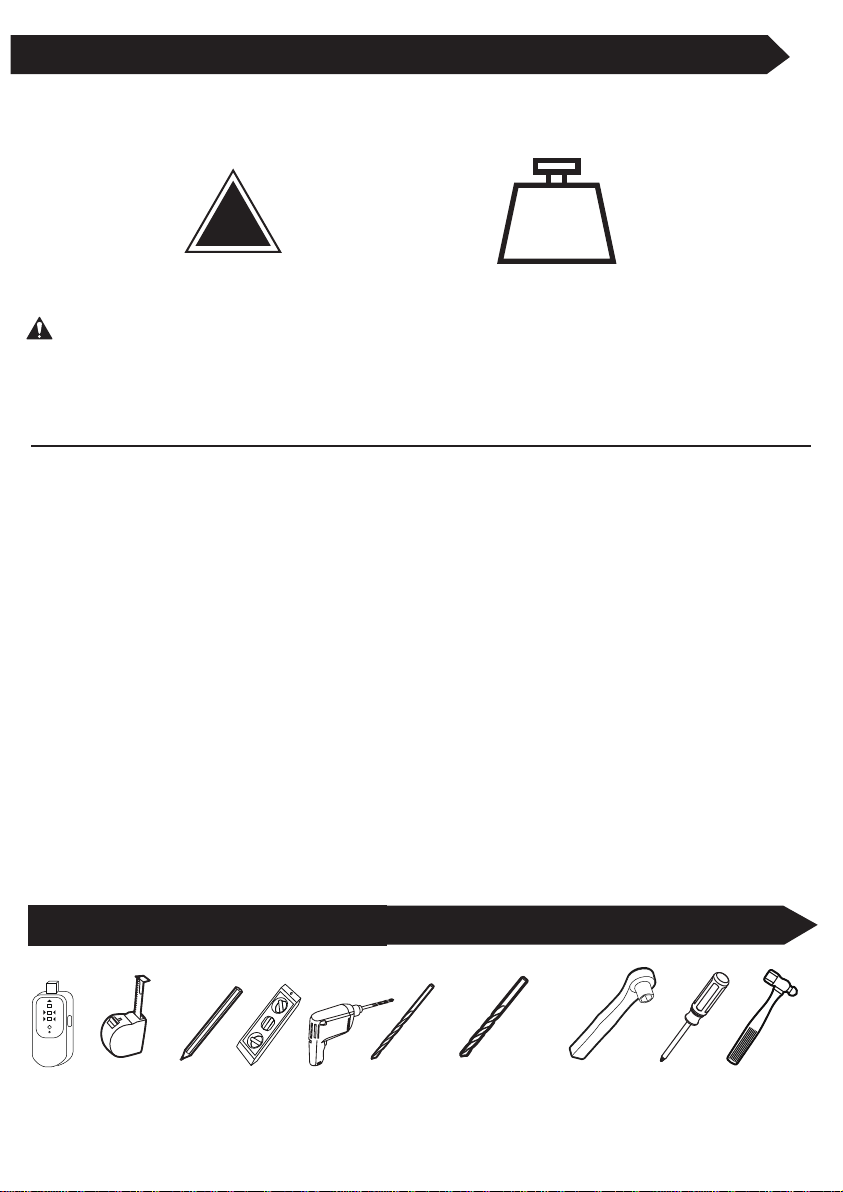

Tools Needed
Hammer
P1
Getting Started
WARNING:
Exceeding the weight capacity can result in serious personal injury or damage to
equipment! It is the installer’s responsibility to make sure the weight of the TV (with
accessories) does not exceed 60 kg.
WARNING! SEVERE PERSONAL INJURY AND PROPERTY DAMAGE CAN RESULT FROM IMPROPER
INSTALLATION OR ASSEMBLY. READ THE FOLLOWING WARNINGS BEFORE BEGINNING.
If you do not understand the instructions or have any concerns or questions, please contact a
qualified installer.
Do not install or assemble if the product or hardware is damaged or missing. Not all parts and
hardware included must be used. If you require replacement parts, contact customer service at
This product has been designed for use on a vertical wall constructed of wood studs. Wood studs
being defined as a wall consisting of a minimum of 2” x 4” studs with a maximum of 16” stud
spacing with a maximum of 1/2” of wall covering (drywall, lath, plaster).For custom installations
please contact a qualified installer. For safe installation, the wall you are mounting to must support
4 times the weight of the total load. If not, the surface must be reinforced to meet this standard.
The installer is responsible for verifying that the wall structure/surface will safely support the total
load.
This product may contain moving parts. Use with caution.
DO NOT EXCEED THE MAXIMUM WEIGHT CAPACITY FOR THIS PRODUCT.
Please check www.perlesmith.com for more products and company information.
Stud
Finder Tape
measure 1/2 in.
(12.7 mm)
7/32 in.
(5.5 mm)
Wood Drill
Screw
driver
Pencil Level
(included
inside the box)
Drill 3/8 in.
(10 mm)
Concrete Drill
CAUTION!
!60 kg
MAXIMUM WEIGHT CAPACITY
P2
Arm and
Wall Plate
TV Brackets
Arm Extensions
Hardware Included
01 x1
03 x2
Front Support
End Caps
02 x1
05 x1
04 x2
Hardware （Wall /Product)
5/16 x 2½ in
Lag Bolts
x4
Wall
Anchor
x4
DA
Washers
Ø8mm Allen Wrench
x4
B
This product contains
small items that could be a choking hazard if
swallowed. Before starting assembly, verify
all parts are included and undamaged. If
any parts are missing or damaged, do not
return the damaged item to your dealer;
please contact our customer service team.
Never use damaged parts!
NOTE: Not all parts and hardware included
will be used.
WARNING:
x1
C
Philips Screws
M6 x 15mm
M6 x 30mm
Philips
Screws
M6 x 50mm
Washers
Ø6mm
M4-5-6
Spacers
L10mm
x4x4
Philips Screws
M8 x 15mm
M8 x 45mm
x4
x4 x8 x4
M-DM-A M-B
x4
M-C M-E
Philips
Screws
M8 x 65mm
x4
M-F M-G M-H
Spacers
L5mm
x8
M-I
TV Screws / Washers
STEP 1-1 Select TV
Screw Diameter
P3
Thread screws by hand into the threaded holes on the back of your TV to select which screw
diameter fits your TV.
M6 M8
STEP 1-2 Select TV
Screw Length
Correct Correct
Too Long
Too Short
Measurement
200mm~600mm
（7.9”~23.6”）
100mm~400mm
（3.9”~15.7”）
?
?
P4
STEP 1-3 Attach the TV Bracket
(a) Flat Back
04
Position your TV brackets over your TV hole pattern - making sure the brackets are centered
and level over the TV hole pattern.
Secure thebrackets using your screw/washer/spacer selection:
(a) for Flat Back
(b) for Round Back / Extra space
CAUTION: Ensure TV bracket is securely fastened before moving on to the next step.
04
(b) Round Back /
Extra Space
M-A M-D
M-H
M-B M-C
M-F M-E
M-H
M-G M-I
STEP 2A
Wall Plate Installation (Concreteorbrick)
CAUTION: Avoid potential personal injuryor property damage! All lag bolts A
MUST BE firmly tightened to prevent unwanted movement of the wall plate 01 .
CAUTION: Ensure the wall plate is securelyfastened to the wall before continuing
on to the next step.
2A-1
01
Position the
wall plate
at your
desired
height , level
the wall plate
and mark the
pilot hole
locations.
Drill pilot
holes
2A-2
2A-3
01
ABD
01
Concrete Wall
Concrete Wall
D
01 A
DB
01
Installwallplate using lag bolts
andwasher andanchor .
Tightenthelag bolts until theyare
pulledfirmlyagainst the wallplate .
A
UP
P5
2.75in 70 mm
Ø 10 mm
Ø 10 mm
STEP 2B Wall Plate Installation (Woodstud)
CAUTION:
CAUTION: Avoid potential personal injuryor property damage! All lag bolts A
MUST BE firmly tightened to prevent unwanted movement of the wall plate 01 .
CAUTION: Ensure the wall plate is securelyfastened to the wall before continuing
on to the next step.
2B-1
2B-2
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: common 2 x 4 in.(51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
Locate your studs. Verify and
mark the center of the studs by
finding the stud edges using an
awl, a thin nail, or an
edge-to-edge stud finder.
Position the wall plate at
your desired height and line up
the holes with your stud center
line. Level the wall plate and
make the holes.
UP
01
P6
01
2B-3
7/32 in.
Ø5.5 mm
in.(70mm)
Drillpilot holesusing a7/32in. (5.5mm)
diameterdrill bit.
IMPORTANT: Pilot holes must be
in. (70 mm).
Besuretodrillintothecenterofthestud.
drilled to a depth of
2B-4
A
2
01 A
B
01
Installwallplate using lag bolts
andwasher .Tighten the lagbolts
untiluntilthey are pulledfirmly against
thewallplate .
A
STEP 3
Install Front support [02] and extensions [03] and End cap [05] together.
Install the extensions [03] to Front support [02] withe the pre-assembled screws.
Install the extensions [03] to Front support [02] withe the pre-assembled screws.
02 03 05
P7
01
B
UP
3-1
3-2
Pre-assembled scews
Pre-assembled scews Finished
02
03
05
P8
3-3
STEP 4
Hang TV withbrackets
04
onto the
arm
extensions
02
and
03
.
S1
Hang02onto 01 andusing ascrewdriver,securewithpreassembled screws
S1
S1
S2 S2
01
02
04
03 02
Remove the
preassembled
screws [S2] and
save to use, then
raise the safety
locks.
Press the safety locks
then fasten the removed
screws [S2].
01 02 03
Adjustments
P9
[S1]
TO ADJUST TV LEVEL, loosen the two screws [S1] on the
rear of the arm plate, adjust level, and retighten to secure.
To adjust the tilt in both sides, loosen both tilt nuts and move panel to
desired position. Tighten both tilt nuts to hold desired tilt.
！
TIGHTEN
C
！
LOOSEN
C
TIGHTEN
± 3°
