Perlesmith PSMFK1 Manual de usuario
Full Motion TV Mount
Instruction Manual
Model: PSMFK1
For any parts enquiries, please contact AV Supply Group as below: New Zealand: P: 64 9 274 9172 E: [email protected]
IMPORTANT SAFETY INFORMATION
Check the VESA Pattern of TV before the Installation
Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete block
and brick walls. - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
Verify Your Wall Construction
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall) Solid Concrete
or Concrete Block
100 mm ≈ 4 in
200 mm ≈ 7 7/8 in
400 mm ≈ 15 3/4 in
300 mm ≈ 11 3/4 in
Minimum VESA pattern: 100mm/4 in (W)x100mm/4 in (H)
If your TV VESA is greater than 400x400 mm/16x16in. or less than
VESA 100x100mm/4x4 in, this mount is NOT compatible.
MAX: 400mm/16 in
MAX: 400mm/16 in
If you are not sure the
wall construction, please
contact customer service at
01
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
WARNING: This product contains small items that could be a choking hazard if
swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, please
•PLEASE NOTE: Not all hardware included in this package will be used.
Extender Brackets
Supplied Hardware for Step 2
[B] x4
M4/M6
Carriage Bolt
M6 x 12mm
x8
G
M6 Nut
x8
H
[C1] x8
φ8.5x18x2.5mm
[C2] x4
φ8.5x18x10mm
[C3] x4
φ8.5x18x22mm
04 05
Washer (if needed)
Spacers (if needed)
NOTE: The spacers are shown in actual size.
Faceplate x1
01A
Stud Finder Tape
Measure Pencil Electric
Drill
5/32 in (4mm)
Wood Drill
3/8 in (10mm)
Concrete Drill
3/8 in (10mm)
Socket Wrench
7/16 in (11mm)
Socket Wrench
1/2 in (13mm)
Socket Wrench
Phillips
Screwdriver
HammerAwl
Level
x2
02
x2
03
02
Supplied Parts and Hardware for Step 3
Select the Combination that Applies to Your VESA Hole Pattern.
06
M8
M6M4
TV Bolts (Only one bolt size fits your TV)
NOTE: The bolts are shown in actual size.
[D1] x4
M4 X 30mm
[F1] x4
M8x20mm
[E1] x4
M6x15mm
[E2] x4
M6x35mm
[F2] x4
M8x35mm
[F3] x4
M8x50mm
Step 1 Secure the Extender Brackets to Faceplate (Optional)
x4
A1
Lag Screw
ST6.3x60 mm
NOTE: The lag screw is shown
in actual size.
x4 Wall
Anchor
This anchor is for
concrete or brick walls
ONLY. DO NOT use them
in drywall or wood studs.
CAUTION!
A2
Arm Assembly/
Wall Plate
x1
01B
Wall Plate Template
x1
07
03
For VESA hole pattern:
15.7x11.8 in (400x300 mm)
11.8x9.8 in (300x250 mm)
For VESA hole pattern:
11.8x9.9 in (300x250 mm)
15.7x11.8 in (400x300 mm)
For VESA hole pattern:
11.8x11.8 in (300x300 mm)
15.7x15.7 in (400x400 mm)
For VESA hole pattern:
11.8x7.9 in (300x200 mm)
15.7x7.9 in (400x200 mm)
400mm
300mm
200mm
400mm
300mm
300mm
400mm
For VESA hole pattern:
7.9x11.8 in (200x300 mm)
7.9x13.8 in (200x350 mm)
7.9x15.7 in (200x400 mm)
For VESA hole pattern:
11.8x5.9 in (300x150 mm)
15.7x5.9 in (400x150 mm)
Option A: No Need to Attach Extender Brackets to Faceplate
Option B: Need to Attach Extender Brackets to Faceplate
For VESA hole pattern:
3x3 in (75x75 mm)
4x4 in (100x100 mm)
4x5.9 in (100x150 mm)
4x7.9 in (100x200 mm)
7.9x4 in (200x100 mm)
7.9x5.9 in (200x150 mm)
7.9x7.9 in (200x200 mm)
100mm
200mm
75mm
100mm
200mm
75mm
150mm
300mm
400mm
300mm
250mm
300mm
400mm
300mm
250mm
150mm
150mm
400mm
300mm
200mm
300mm
350mm
400mm
03
03
02
02 02
02
02
02
02
02
02
02
02
02
03
03
03
03
03
03
03
03
03
03
04
Select TV Bolts
Only one bolt size fits your TV.
Step 2 Secure the Faceplate [01A] or Faceplate [01A] with
Extender Brackets [02] and [03] to TV
M4 M6 M8
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Long
Correct Correct
Too Short
Please Note: When using the spacers it is important to note that they
can be used in multi-layers (meaning stacked). If you have any difficulty
undestanding how to install the TV bolts or spacers, please contact
Please Note: The provided TV bolts meet most of today’s TVs design.
However, some TVs require special bolts which may not be in the hardware
bag. In this case we offer our “PSUHP" Universal Hardware Kit which provides
a large selection of bolts that can meet the demand of older and unique
applications.
H
G
03
03
02
02
Note: Please do not
firmly tighten the bolts
[G] and nuts [H] until
the step 2 is finished.
Note: The side with the nut and phillips
head bolt should be upwards-facing.
Note: The side
with bump should
be touched with
the faceplate.
05
CAUTION: Ensure the faceplate [01A] or
faceplate [01A] with extender brackets [02]
and [03] is EQUALLY CENTERED on your
TV and securely fastened in place.
Option A (For Flat Back TV)
Option B (For Round Back TV)
Option C (For TV with A “Bump”)
D1/E2/F2/F3
B
C1/C2/C3
06
04
05
(If needed)
D1/E2/F2/F3
B
C1/C2/C3
06
04
05
(If needed)
Alternate
Spacer
Setups
PLEASE NOTE: The bolt hole locations on
your TV may vary in accordance of the
manufacturers design of the TV. We are only
illustrating possible locations of the bolt
holes.
Alternate
Spacer
Setups
D1/E1/F1
B
C1/C2
06
04
05
(If needed)
(If needed)
Alternate Spacer Setups
UP
06
H
For wood stud installation, follow STEP 3A.
For concrete installation, follow STEP 3B.
Option D
For cable interference or inset holes,
use spacers [05] to create extra space
between the TV and the faceplate.
D1/E2/F2/F3
06
C1/C2/C3
05
B
04
(If needed)

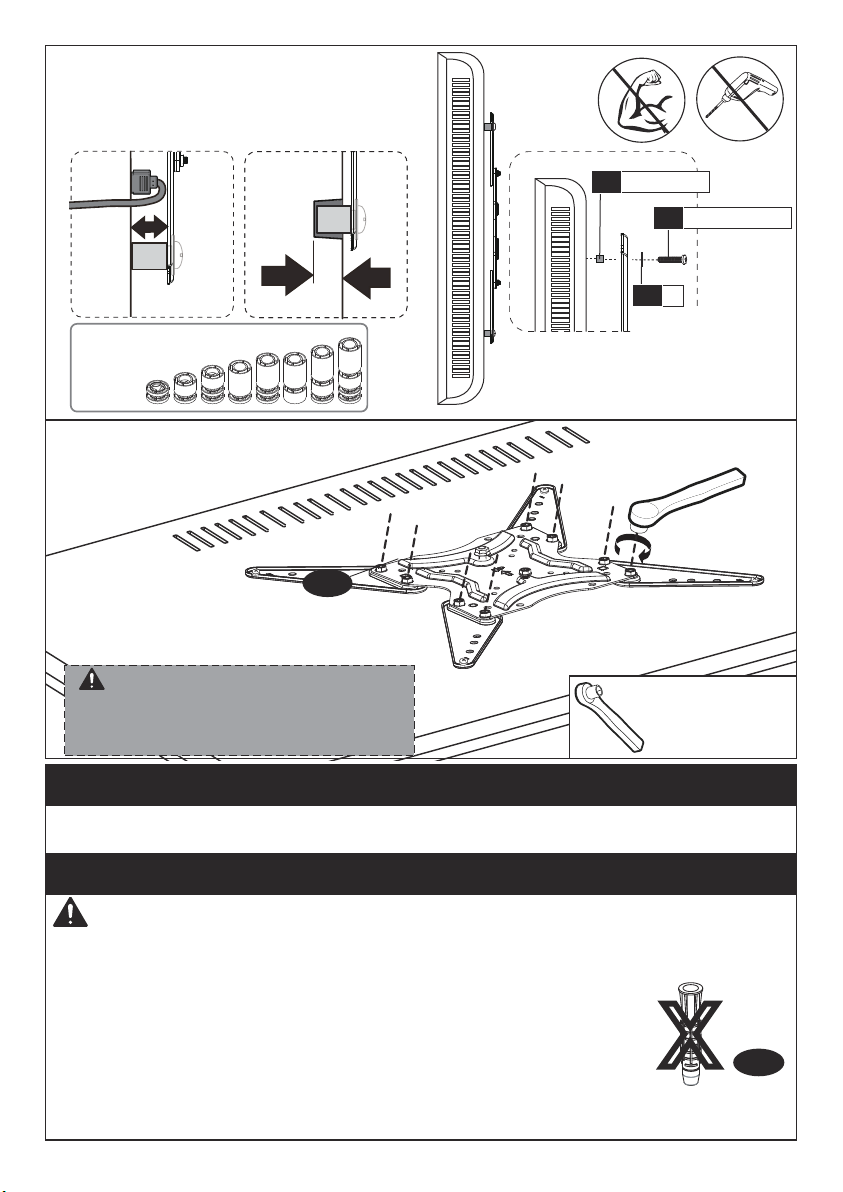

Step 3 Attach the Arm Assembly/Wall Plate [01B] to Wall
Step 3A Wood Stud Option
Wall
Anchor
A2
X
WARNING:
Ensure the arm assembly/wall plate [01B] is securely fastened to
the wall before continuing to the next step.
● Any material covering the wall must not exceed 5/8 in (16 mm).
● Nominal wood stud size: common 2 x 4 in (51 x 102 mm) minimum
1.5 x 3.5 in (38 x 89 mm).
● Stud center must be verified.
Avoid potential personal injury or property damage! DO NOT over-tighten the lag
screws [A1]. Tighten the lag screws [A1] only until they are pulled firmly against
the arm assembly/wall plate [01B].
DO NOT USE ANCHOR FOR THIS STEP.
Alternate
Spacer
Setups
When you finish securing the
TV bolts into the TV, please
remember to tighten the nuts [H]
using a socket wrench.
7/16 in (11mm)
Socket Wrench
(Not lncluded)
07
Install the arm assembly/wall plate
[01B] using lag screws [A1].
Tighten the lag screws [A1] only
until they are pulled firmly against
the arm assembly/ wall plate [01B].
Position the Wall Plate
Template [07] at your
desired height and line up
the holes with your stud
center line. Level the Wall
Plate Template [07] and
mark the holes.
Use a stud finder (not included)
to locate wood studs or use an
awl (not included) to verify the
edges. Mark the edge and
center locations.
Drill 3 pilot holes using a 5/32 in
(4mm) diameter drill bit. Make sure
the depth is not less than 2 23/64 in
(60mm).
Awl
(Not included)
UP
UP
HEAVY! You may need
assistance with this step.
HEAVY! You may need
assistance with this step.
3A-1
3A-2
3A-3
3A-4
5/32 in (4mm)
2 23/64 in (60mm)
1
2
3
A1
3/8 in (10mm)
Socket Wrench
(Not lncluded)
07
01B
08
● Any material covering the wall must not exceed 5/8 in (16 mm)
● Mount the arm assembly/wall plate directly onto the concrete
surface.
● Minimum solid concrete thickness: 203 mm (8 in).
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in).
● Never drill into the mortar between blocks.
Position Wall Plate
Template [07] at your
desired height, level the
wall plate Template [07]
and mark the pilot hole
locations.
UP
HEAVY! You may need
assistance with this step.
WARNING:
Ensure the arm assembly/wall plate [01B] is securely
fastened to the wall before continuing to the next step.
Avoid potential personal injury or property damage! DO NOT over-tighten
the lag screws [A1]. Tighten the lag screws [A1] only until they are pulled
firmly against the arm assembly/wall plate [01B].
Step 3B Solid Concrete or Concrete Block Option
Wall
Anchor
A2
3B-1
3B-2 Drill 4 pilot holes using a 3/8 in
(10mm) diameter drill bit. Make
sure the depth is not less than 2
9/16 in (65mm). Never drill into the
mortar between blocks.
Use the hammer to knock
anchors [A2] into the wall.
Be sure the anchors [A2]
are seated flush with the
concrete surface.
A2
3/8 in (10mm)
2 9/16 in (65mm)
2
1
3
4
3B-3
07
09
