Perlesmith PSLFK1 Manual de usuario
*
*
*
*
*
*
Stud Finder Tape Measure Pencil Drill
1/2 in. (12.7 mm)
7/32 in. (5.5 mm)
Wood Drill
Screw Driver Hammer
WARNING! SEVERE PERSONAL INJURY AND PROPERTY DAMAGE CAN RESULT FROM IMPROPER
INSTALLATION OR ASSEMBLY. READ THE FOLLOWING WARNINGS BEFORE BEGINNING.
If you do not understand the instructions or have any concerns or questions, please contact a qualified
installer.
Do not install or assemble if the product or hardware is damaged or missing. Not all parts and hardware
included must be used. If you require replacement parts, contact customer service at supportus@per-
lesmith.com.
This product has been designed for use on a vertical wall constructed of wood studs. Wood studs being
defined as a wall consisting of a minimum of 2”x 4”studs with a maximum of 16”stud spacing with a
maximum of 1/2”of wall covering (drywall, lath, plaster).For custom installations please contact a
qualified installer. For safe installation, the wall you are mounting to must support 4 times the weight of
the total load. If not, the surface must be reinforced to meet this standard. The installer is responsible for
verifying that the wall structure/surface will safely support the total load.
This product may contain moving parts. Use with caution.
DO NOT EXCEED THE MAXIMUM WEIGHT CAPACITY FOR THIS PRODUCT.
CAUTION!MAXIMUM WEIGHT CAPACITY
!132 lbs
(60kgs)
USE WITH PRODUCTS LARGER THAN THE MAXIMUM WEIGHT AND SIZE MAY RESULT IN
INSTABILITY CAUSING POSSIBLE INJURY. USER MUST REMOVE TELEVISION OR OBJECT
OFF THE BRACKET BEFORE ADJUSTING. NOT SUITABLE FOR A TV THAT SURPASSES THE
TELEVISION MAXIMUM WEIGHT CAPACITY AND RECOMMENDED DIAGONAL MEASURED TV
SIZE!
WARNING!
Tools Needed (Not Included)
Socket Wrench
Weight Capacity

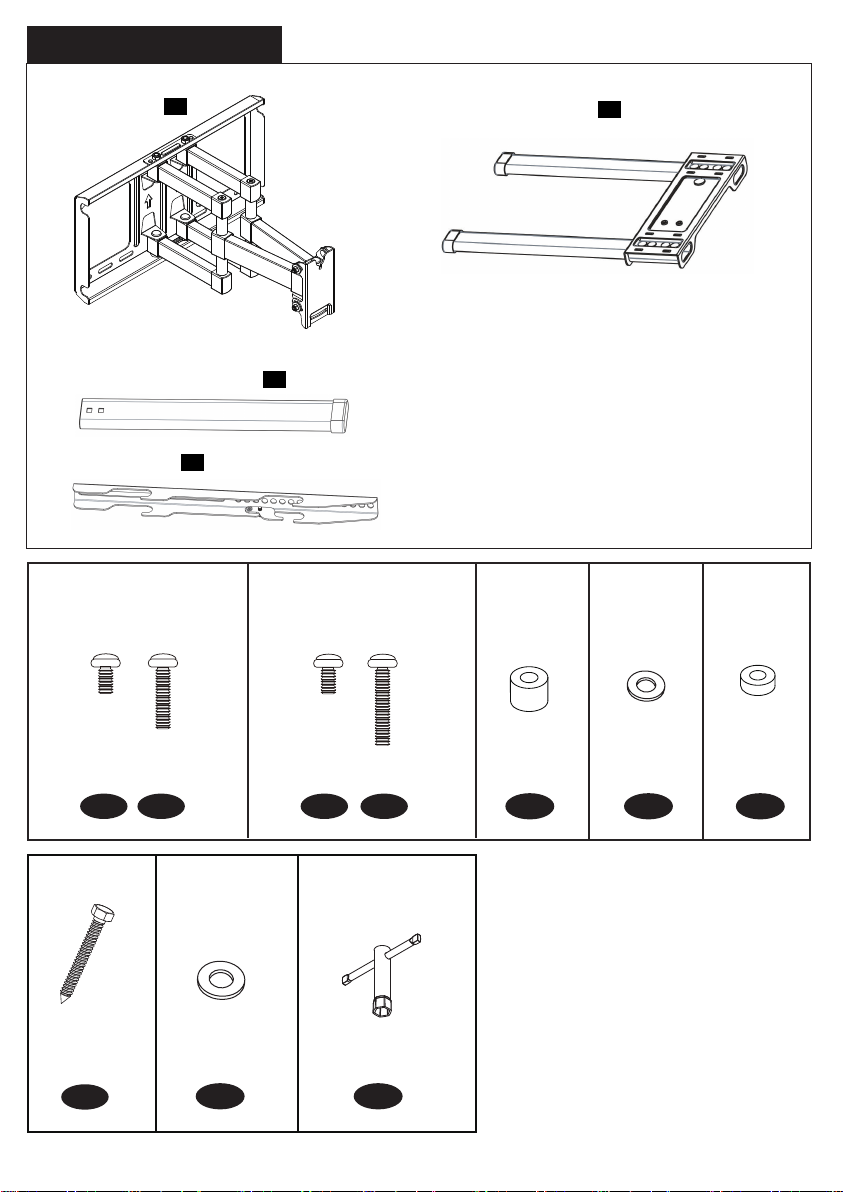

TV Bracket (Left and Right）
Arm Extensions 03 x2
04 x2
Front Support 02 x1
5/16 x 2½ in
Lag Bolts
x4
A
Washers
Ø8mm
x4
B
x1
C
Philips Screws
M8 x 15mm
M8 x 45mm
Philips Screws
M6 x 15mm
M6 x 30mm
Washers
Ø6mm
M4-5-6
Spacers
L10mm
x4x4 x4
x4 x8 x4
M-A M-B M-C M-D M-E M-F
Spacers
L5mm
x8
M-G
Arm and
Wall Plate 01 x1
Supplied Hardware
Socket
Spanner
Step 1 Before TV Bracket Installation
75 mm ≈2 7/8 in
100 mm ≈4 in
200 mm ≈7 7/8 in
300 mm ≈11 3/4 in
400 mm ≈15 3/4 in
600 mm ≈23 5/8 in
400mm (15 3/4 in)
Max 600mm（23 5/8 in）
Max
Measure the distance between the holes located
at the back of your TV (these measures may form
the shape of a square, or a rectangle) and check
that these taken measures are within the VESA(*)
range for this wall mount.
(*) VESA: International standard established by the
TV manufacturers used to determine if LCD / LED
TVs are compatible with wall mounts.
Check TV Screws
Please select the proper screw length for your
TV by hand tightening to check your plat panel
thread depth.
TV
M-F
M-A
04
M-C
04
M-D
M-E
M-G
04
M-B
M-F
M-E
M-G
04
04
04
For Flat Screen TV
For Curved TV
Step 2 Install TV Bracket
or
or
Use a stud finder (not included) to locate wood
studs. Mark the edge and center locations.
16in(406mm)
Step 3A
3-1
3-2
Use wall plate 01 to mark mounting location x4 locations.
Ensure marking at the
center of the stud.
01
01
Drill 4 pilot holes using a 7/32 in. (5.5 mm) diameter drill
bit. Make sure the depth is not less than 2 3/4” (70mm).
7/32 in.
Ø5.5 mm
in. (70 mm)
Mount the wall plate using 4 sets of 5/16 lag bolts (a) and
washers B with a 1/2 in. socket wrench (not included).
A
B
3-4
3-3
1/2 in. (12.7 mm)
socket wrench
01
2
B
A
UP
01
Use socket spanner C to remove the
pre-assembed nuts and screws S4
from the extensions 02 and save
them to use.
Insert the extensions into the .
03 02
4-2
4-1
4-3
Fasten the nuts and
screws S4 x8.
4-4
S1 S2
Hang 02 and 03 into 01 , and using Screw Driver secure with
pre-assembled screws and washers .
02
S4
Step 4 Install Arm Extensions then Fasten It
S2
S1
S1
S2
02
S4
02
03
S4
02
02
03
01
S4
02
C
C
S4
02 03 01
Secure TV with brackets
against the arm
extensions and
with the pre-assembled
screws [S3] .
04
S3
03 02
Hang TV with brackets
04
onto the
arm
extensions
02
and
03
.
Step 5 Hang TV
Step 6 Secure TV
04
03
04
02
04
[S3]
Screw
Lock
driver
Remove the preassembled
screws [S3] and save to use,
then raise the safety locks.
[S3]
If needed, the TV can be leveled +/-3 degrees.
Loosen 2 screws [S1]
S1 Level the TV
To adjust the tilt in both sides,
loosen both tilt levers and move
panel to desired position.
Tighten both tilt levers to hold
desired tilt.
Step 7 Tilt Adjustment
Step 8 Level Adjustment
Tighten 2 screws S1
TIGHTEN
TIGHTEN
C ！
！
LOOSEN
C
4PCS
± 3°
