Assembly and Operating Instructions for Outback®

NEW Apollo 4 Burner Gas BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

MF4493

CODE PART QTY Outback®

NEW Apollo 4 Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Heat Indicator 1 

A4 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner 4 

B3 Control Panel 1 

B4 Knob 4 

B5 Hose and Regulator Assembly 1 

B6 Flame Tamer 4 

B7 Round Grill 1 

B8 Grill With Hole 1 

B9 Cooking Grill 1 

B10 Drip Tray 1 

TROLLEY

C1 Side Burner Shelf 1 

C2 Side Burner Shelf Panel 1 

C3 Side Shelf 1 

C4 Side Shelf Panel 1 

C5 Tool Hook 1 

C6 Side Burner Grid 1 

C7 Side Burner Knob 1 

C8 Side Burner 1 

C9 Left Cabinet Panel 1 

C10 Right Cabinet Panel 1 

C11 Upper Support 1 

C12 Door Handle 2 

C13 Left Door 1 

C14 Right Door 1 

C15 Rear Panel 1 

C16 Bottom Panel 1 

C17 Storage Unit 1 

C18 Lockable Caster 2 

C19 Wheel 2 

C20 Wheel Hubcap 2 

C21 Axle 1 

C22 Locknut 2 

HARDWARE

D1 M6x35 Bolt 8 

D2 ST4.0x10 Screw 15 

D3 M6x15 Bolt 25 

D4 M6 Nut 12 

D5 M4x10 Bolt 3 

B11 Ignition Button 1 

B12 Beer Bottle Opener 1 

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B10

C15

C12

C13 C14

C20 C19

C11

C10

C16

C17

C18

C21

C22

B11

B12

Hardware Reference Diagram

Specifications subject to change without prior notice.

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal component or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Left Cabinet Panel (C9) and Right Cabinet Panel (C10) to the Bottom Panel (C16)

using M6x35 Bolts (D1x8pcs) and M6 Nuts (D4x8pcs), ST4.0x10 Screw (D2x6pcs) as shown.

C16

Attach the Rear Panel (C15) to the cabinet assembly using ST4.0x10 Screws (D2x7pcs) as

shown.

C15

C9 C10 D1 D4

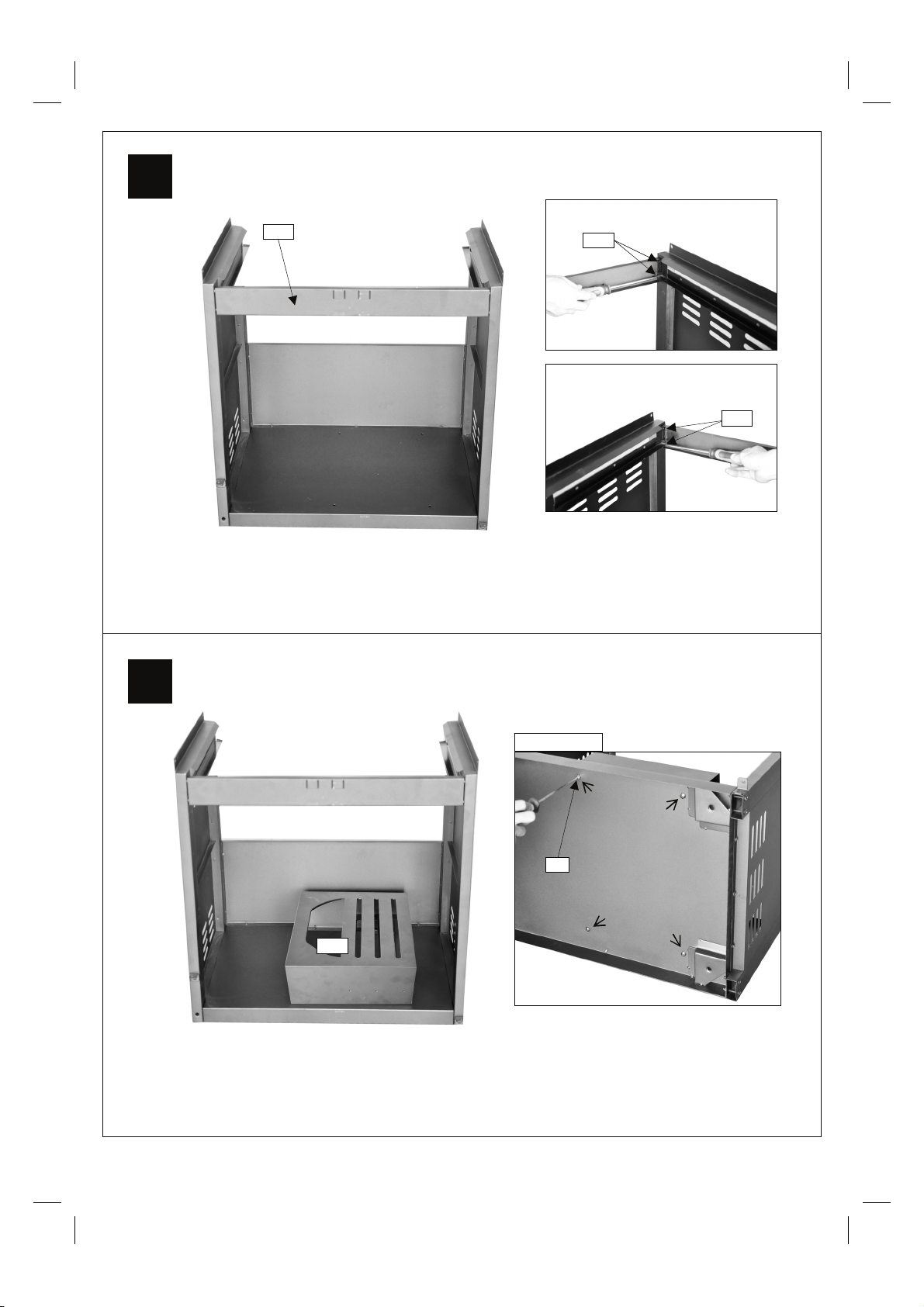

Attach the Upper Support (C11) to the left/right cabinet panel using M6x15 Bolts (D3x4pcs).

C17

Attach the Storage Unit (C17) onto the Bottom Panel (C16) using M6x15 Bolts (D3x4pcs) as

shown.

Bottom View

C11

Carefully turn the cabinet upside-down.

Unscrew the Locknuts (C22) from both ends of the Axle (C21).

Slide the axle through the corresponding holes in the left cabinet panel. Slide the Wheels (C19)

over each end of the axle. Secure the wheels into place with the locknuts. Place the Wheel

Hubcaps (C20) onto the outside of the wheels.

Attach the Lockable Casters (C18x2pcs) into the rear side holes of the right cabinet panel, as

shown.

C19

C18

C21

C22

C20

C18

Carefully place the Barbecue Body (B1) onto the cabinet assembly and fix using M6x15 Bolts

(D3x4pcs) as shown.

Remove the retaining bolts from one Door Handle (C12), and then attach the door handle onto the

Left Door (C13) using the retaining bolts as shown.

C13

C12

Remove the retaining bolts from one Door Handle (C12), and then attach the door handle onto the

Right Door (C14) using the retaining bolts as shown.

Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.

C14

C12

Attach Side Shelf Panel ,Tool Hook (C4 , C5) onto Side Shelf (C3) using M6x15 Bolts (D3x2pcs)

and M6 Nut (D4x2pcs) as shown.

Attach the side shelf assembly to the barbecue body using ST4.0x10 Screw (D2x1pcs) and

M6x15 Bolts (D3x4pcs) as shown.

step1

step2

step4

step3
