Assembly and Operating Instructions for Outback®

Senator 6 Burner Gas BBQ

WARNING

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions may be

dangerous and will invalidate your warranty. This does not affect your statutory rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check that the

hose connections are tight and leak test each time you reconnect the gas bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

MS5661AW

Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see ‘Hardware Reference Diagram’.

CODE PART QTY Senator 6 Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Heat Indicator 1 

A4 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner 6 

B3 Cross Channel 5 

B4 Control Panel 1 

B5 Knob 6 

B6 Flame Tamer 6 

B7 Cooking Grill 2 

B8 Round Cooking Grill 1 

B9 Drip Tray Handle 1 

B10 Drip Tray 1 

B11 Drip Tray Left Bracket 1 

B12 Drip Tray Right Bracket 1 

B13 Side burner valve, Hose and Regulator Assembly 1 

B14 Main Burner Electrode Wire 1 

TROLLEY

C1 Side Burner Shelf 1 

C2 Side Burner Shelf Front Panel 1 

C3 Side Burner Grid 1 

C4 Side Burner Knob 1 

C5 Knob Bezel 1 

C6 Side Burner 1 

C7 Side Burner Electrode Wire 1 

C8 Ignition Button 1 

C9 Side Shelf 1 

C10 Side Shelf Front Panel 1 

C11 Tool Hook 1 

C12 Left Cabinet Panel 1 

C13 Right Cabinet Panel 1 

C14 Upper Support 1 

C15 Left Door 1 

C16 Right Door 1 

C17 Door Handle 2 

C18 Rear Panel 1 

C19 Bottom Panel 1 

C20 Magnet 2 

C21 Axle 1 

C22 Wheel 2 

C23 Hubcap 2 

C24 Locknut 2 



HARDWARE

D1 ST4.0x10 Screw 21 

D2 M4x10 Bolt 3 

D3 M4x15 Bolt 4 

D4 Washer 4 

D5 M4 Nut 4 

D6 M6x15 Bolt 22 

D7 M6x65 Bolt 4 

D8 M6 Nut 10 

 Pre-Assembled Component

Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see hardware pack page.

A4 A2

B14

B11 B12

C7 C6

C8 C10

C12 C13

C14

C15 C16

C17

C18

C19

C21

C22 C23

C20

C11

B10

C24

B13

Hardware Reference Diagram

Specifications subject to change without prior notice.

D3,D4,D5

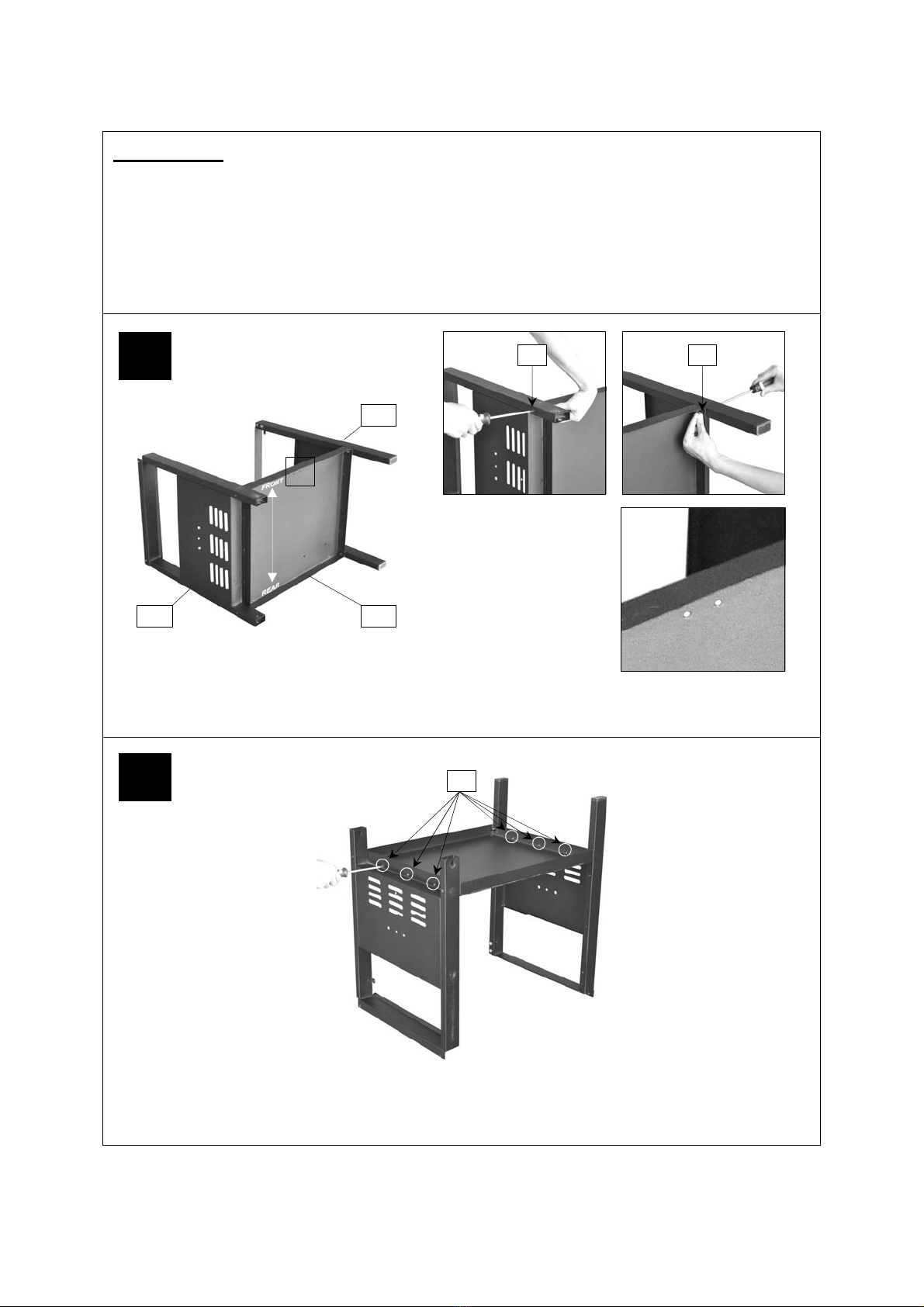

Attach the Left Cabinet Panel (C12) and Right Cabinet Panel (C13) to the Bottom Panel (C19)

using the M6x65 Bolts (D7x4pcs) and M6 Nuts (D8x4pcs).

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 Remove any internal components or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

Complete fixing the left cabinet panel and right cabinet panel onto bottom panel using the

ST4.0x10 Screw (D1x6pcs) as shown.

C19C12

C13

D7 D8

Note: Ensure that the

holes to install magnet

should be at the front

of the bottom panel as

showed in figure D.

Unscrew the Locknuts (C24) from both ends of the Axle (C21).

Insert the axle through the corresponding holes in the left legs, then slide a Wheel (C22) over

each end of the axle. Secure the wheels into place with the locknuts.

Place the Hubcaps (C23) onto the outside of the wheels.

Carefully turn the assembled cabinet right side up.

Install the Rear Panel (C18) in position using the ST4.0x10 Screw (D1x7pcs) as shown.

C23

Step① Step②

C18

LEFT RIGHT

BOTTOM

C24

C22

C21

Attach the Upper Support (C14) between the front legs using M6x15 Bolts (D6x4pcs).

Attach the Drip Tray Left Bracket (B11) to the left legs using ST4.0x10 Screws (D1x2pcs) as

shown. Repeat above process for Drip Tray Right Bracket (B12).

FRONT REAR

B11 B12

C14 D6

LEFT RIGHT

Fit the Left Door (C15) and Right Door (C16) to the cabinet by depressing the spring pins and

placing into the cabinet, as shown.

Attach the Magnets (C20) onto the bottom panel and upper support using M4x15 Bolts (D3x4pcs),

Washer (D4x4pcs) and M4 Nuts (D5x4pcs) as shown.

D4D3 D5

C15 C16

Step① Step②

C20

Carefully place the Barbecue Body (B1) onto the body supports and fix it by using M6x15 Bolts

(D6x4pcs) as shown.

WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS

NOT BEEN PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR

BARBECUE.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or

become damaged when it is set on the ground.

Attach Side Shelf Front Panel (C10) onto the Side Shelf (C9) using M6x15 Bolts (D6x2pcs) and M6

Nuts (D8x2pcs).

Attach Side Burner Shelf Front Panel (C2) onto the Side Burner Shelf (C1) using M6x15 Bolts

(D6x2pcs) and M6 Nuts (D8x2pcs).

Body supports

C10 C2

D6 D8

C9 C1

Attach the side shelf assembly to the barbecue body using ST4.0x10 Screws (D1x2pcs) and

M6x15 Bolts (D6x4pcs) as shown.

Attach the Tool Hook (C11) onto the side shelf using M6x15 Bolts (D6x2pcs) and M6 Nut

(D8x2pcs) as shown.

D6 D8

C11

D1 D6

step1

step2

step4

step3
