Outback Excel 310 Manual de usuario
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions
could result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets
away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check
that the hose connections are tight and leak test each time you reconnect the
gas bottle.
For Flare-up control please refer to the ‘OPERATION’ section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other
flammable vapours or liquids in the vicinity
of this or any other appliance.
2. A gas bottle not connected for use must not
be stored in the vicinity of this or any other
appliance.
0359
Assembly and Operating Instructions for Outback®
Excel 310 Gas BBQ and Excel Onyx 2 Burner Gas BBQ
EX310A EX311A
2
CODE PART QTY EX310A EX311A
HOOD
A1 Hood (Pre-Assembled to Body)
1 √ √
A2 Hood Handle 1 √ √
A3 Hood Handle Heat Shield 1 √ √
A4 Heat Indicator 1 √ √
A5 Warming Rack 1 √ √
BODY
B1 Barbecue Body 1 √ √
B2 Burner 1 √ √
B3 Control Panel 1 √ √
B4 Knob (Pre-Assembled) 2 √ √
B5 Flame Tamer Bracket 2 √ √
B6 Flame Tamer 1 √ √
B7 Cooking Grill 1 √ √
B8 Ignition Button (Pre-Assembled) 1 √ √
B9 Control Panel Heat Shield 1 √ √
B10 Main Electrode 1 √ √
B11 Hinge Bracket (Pre-Assembled) 2 √ √
B12 Body Heat Shield 1 √ √
B13 Body Support 2 √ √
B14 Grease Cup Holder 1 √ √
B15 Grease Cup 1 √ √
B16 Hose and Regulator Assembly 1 √+ √+
TROLLEY
C1 Side Shelf 1 √ √
C2 Side Shelf Bracket A 1 √ √
C3 Side Shelf Bracket B 1 √ √
C4 Side Burner Knob 1 √ √
C5 Side Burner Grid 1 √ √
C6 Side Burner Shelf 1 √ √
C7 Side Burner 1 √ √
C8 Side Burner Electrode 1 √ √
C9 Side Burner Valve / Hose Assembly 1 √ √
C10 Left Front Leg 1 √ √
C11 Left Rear Leg 1 √ √
C12 Right Front Leg 1 √ √
C13 Right Rear Leg 1 √ √
C14 Gas Bottle Holder 1 √ √
C15 Leg End Loop 1 √ √
C16 Wheel Spacer 2 √ √
C17 Wheel 2 √ √
C18 Wheel Hubcap 2 √ √
C19 Axle 1 √ √
C20 Bottom Shelf 1 √ √
C21 Gas Bottle Strap 1 √ √
HARDWARE
D1 M6x15 Bolt 28 √ √
D2 M5x15 Bolt 2 √ √
D3 M5x10 Bolt 2 √ √
D4 M4x10 Bolt 4 √ √
D5 ST4.0x10 Screw 4 √ √
D6 ST4.0x15 Screw 4 √ √
D7 ST4.8x15 Screw 6 √ √
D8 Locknut 2 √ √
D9 M4 Nut 4 √ √
D10 M5 Nut 2 √ √
D11 Spacer 6 √ √
D12 Hose Clip 1 √ √
Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
3
A2
B1
A1
B11
Parts Diagram:
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
A5
B2
B12
B13
B10
B7
B6
B15
B14
C1
C2
C3
C11
C21
C14
C17 C19
C15
C12
C13
C20
C16
B8
B4 B3
B9
A4
C18
A3
C10
B5
C5
C7
C6
C4
B16
C9
C8
4
Hardware Reference Diagram:
Specifications subject to change without prior notice.
D1
D3
D5
D9
D4D10
D6
D8
D7
D12
D1
D2
D11
5
Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
The assembly of this barbecue requires 2 people.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
2
Attach the Right Front Leg (C12) and Right Rear Leg (C13) to the Leg End Loop (C15). The
legs are a push fit onto the leg end loop. In case of difficulty, they may need tapping with a soft
faced mallet. Take care not to damage the parts.
1 C15
C12
C13
Attach the Gas Bottle Holder (C14) to the Bottom Shelf (C20) using ST4.8x15 Screws
(D7x2pcs). Take care not to over tighten these screws which will damage the plastic
gas bottle holder.
C20
C14
6

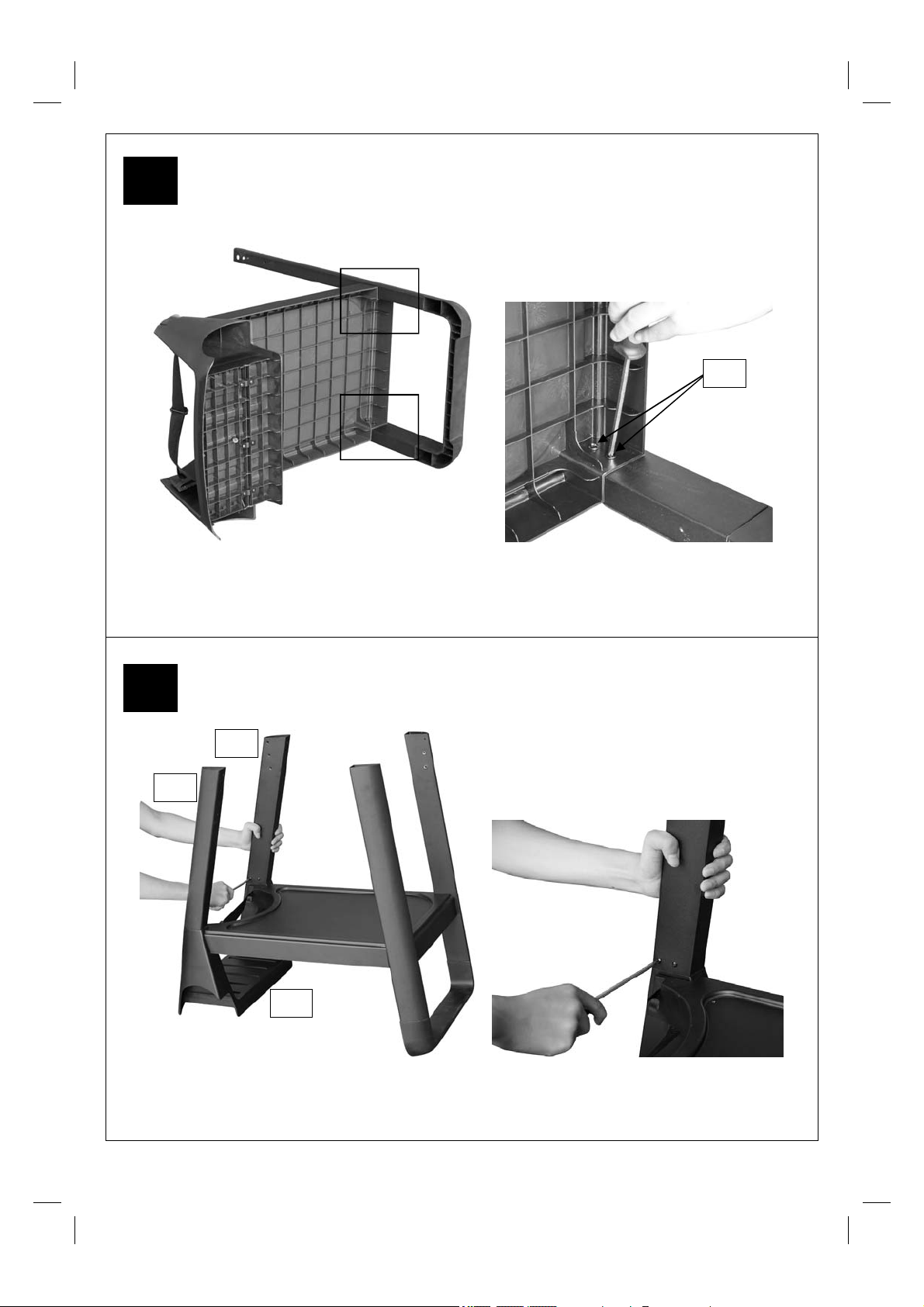

Attach right leg assembly to the bottom shelf assembly using M6x15 Bolts (D1x4pcs).
4
3
D1
Attach the Left Front Leg (C10) and Left Rear Leg (C11) to the Gas Bottle Holder (C14) using
ST4.8x15 Screws (D7x4pcs).
C10
C11
C14
7
Insert the Axle (C19) through the clamping brackets underneath the Gas Bottle Holder (C14) and
tighten the clamping screws. Take care not to over tighten these screws which will damage the
plastic gas bottle holder.
Slide a Wheel Spacer (C16) over each end of the Axle (C19). Note: the spacers are packed in a
plastic bag with the electrode, grease cup holder and grease cup.
Slide the Wheels (C17) over each end of the axle. Secure the wheels into place with the Locknuts
(D8x2pcs). Place the Wheel Hubcaps (C18) onto the outside of the wheels.
Carefully turn the completed trolley over, right side up.
Attach the Body Supports (B13) to the legs using M6x15 Bolts (D1x4pcs).
D1
B13
√
×
C14
C19 C16
D8
C17 C18
5
6
8
Unscrew the locknut from the Heat Indicator (A4). Insert heat indicator through the Hood
(A1) and fix it by tightening its locknut.
Attach the Hood Handle (A2) and Hood Handle Heat Shield (A3) onto the hood using the
M5x15 Bolts (D2x2pcs).
Carefully place the Barbecue Body (B1) onto the tops of the legs.
Attach the barbecue body to the trolley assembly using the M6x15 Bolts (D1x8pcs). Ensure the tabs
on the body fit over the legs as shown in the diagram and do not go down inside of the legs.
WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN
PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.
8
7
A1
A4
A2
D2
B1
D1
A3
9
Feed the Grease Cup Holder (B14) through the hole in barbecue body.
Insert the Grease Cup (B15) into the grease cup holder.
10
9
Install a M6x15 Bolt (D1) and a Spacer (D11) into the upper fixing hole on each front leg.
Place the Control Panel (B3) assembly in position by aligning the spacers with the slot on
each side of control panel and fix it onto the trolley assembly using M6x15 Bolts (D1x2pcs).
B14
B15
D1
D11
D1
1
3
2
10
Feed the Burner (B2) into barbecue body. Ensure that the burner venturi tubes are over the
ends of the gas valves. They are a loose fit and not a gas tight seal. Secure the burner with
the ST4.0x10 Screws (D5x2pcs).
12
Insert the Main Electrode (B10) into the hole at the bottom of the barbecue body and
secure with a ST4.0x10 Screw (D5).
B10
11
View from underneath the body
B2
D5
×
√
