Assembly and Operating Instructions for Outback®

Jupiter 4S and Jupiter 6S Gas BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

RS4491S RS5691S

CODE PART QTY Outback®

Jupiter 4S Gas BBQ

Outback®

Jupiter 6S Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1  

A2 Hood Handle 1  

A3 Warming Rack 1  

BODY

B1 Barbecue Body 1  

B2 Burner 4 6

B3 Control Panel 1  

B4 Knob 4 6

B5 Hose and Regulator Assembly 1  

B6 Flame Tamer 4 6

B7 Round Grill 1  

B8 Left Cooking Grill 1  

B9 Right Cooking Grill 1  

B10 Drip Tray 1  

TROLLEY

C1 Side Burner Shelf 1  

C2 Side Burner Shelf Panel 1  

C3 Side Shelf 1  

C4 Side Shelf Panel 1  

C5 Side Burner Grid 1  

C6 Side Burner Lid 1  

C7 Side Burner Lid Axle 1  

C8 Side Burner Firebox 1  

C9 Side Burner Electrode 1  

C10 Knob Bezel 1  

C11 Side Burner Knob 1  

C12 Sear Burner 1  

C13 Side Burner Drip Tray 1  

C14 Left Cabinet Panel Assembly 1 

C15 Right Cabinet Panel Assembly 1 

C16 Upper Support 1  

C17 Door Handle 2 

C18 Left Door 1  

C19 Right Dorr 1  

C20 Rear Panel 2  

C21 Bottom Panel 1  

C22 Front W heel Skirt 1  

C23 Storage Unit 1 

C24 Middle Panel 1  

C25 Food Basket Bracket 2  

C26 Food Basket 2  

C25 Food Basket Front Bracket 1  

C28 Lockable Caster 2  

C29 Caster 2  

C30 Tool Hook 1  

HARDWARE

D1 M6x35 Bolt 8  

D2 M6x15 Bolt 40  

D3 ST4.0x10 Screw F# 1  

D4 M5x15 Bolt 2  

D5 ST4.0x10 Screw 20  

D6 M6 Nut 12  

D7 M4x10 Bolt 6  

D8 M5x10 Bolt 2  

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B10

C23

C17

C21

C12

C11

C10

C24

C18 C19

C29

C28

C16

C2 C4

C13

C15

C14

C25

C20

C26

C22

C27

C30

Hardware Reference Diagram

Specifications subject to change without prior notice.

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal component or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

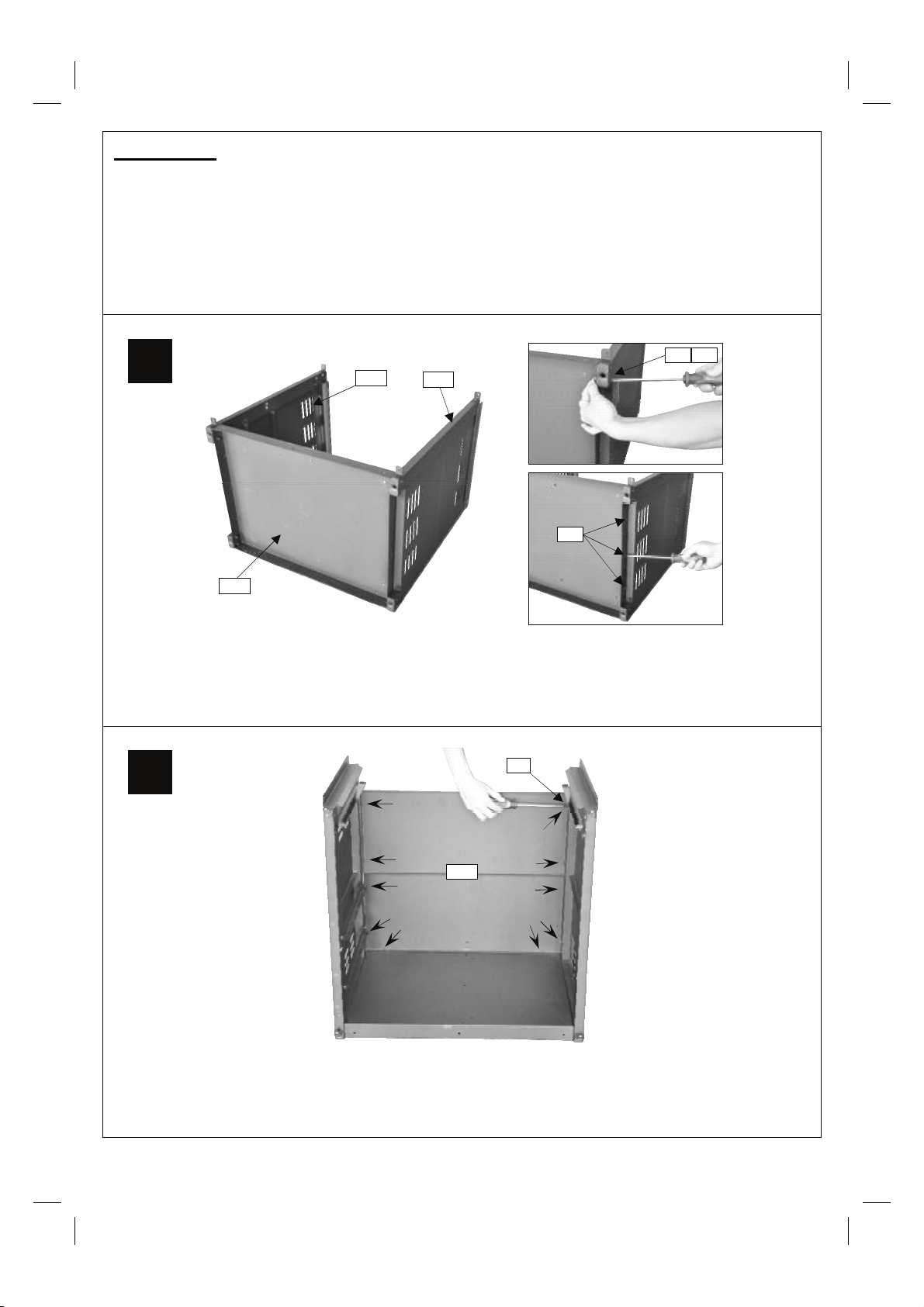

Attach the Left Cabinet Panel Assembly (C14) and Right Cabinet Panel Assembly

(C15) to the Bottom Panel (C21) using M6x35 Bolts (D1x8pcs) and M6 Nuts

(D6x8pcs), ST4.0x10 Screw (D5x6pcs) as shown.

C21

C14 C15

D1 D6

Attach the Rear Panel (C20x2pcs) to the cabinet assembly using ST4.0x10 Screws

(D5x10pcs) as shown.

C20

Attach the Food Basket Bracket (C25x2pcs) onto the Middle Panel (C24) using M6x15

Bolts (D2x4pcs), Then attach the middle panel assembly to the cabinet assembly using

M6x15 Bolts (D2x5pcs) as shown.

C25

C24

Attach the Storage Unit (C23) onto the Bottom Panel (C21) using M6x15 Bolts

(D2x4pcs) as shown.

C23

Attach the Upper Support (C16) to the left/right cabinet panel assembly using M6x15

Bolts (D2x4pcs).

C16

Attach the Food Basket Front Bracket (C25) to the Left Cabinet Panel Assembly

(C14) and Middle Panel (C24) using M6x15 Bolts (D2x4pcs).

C25

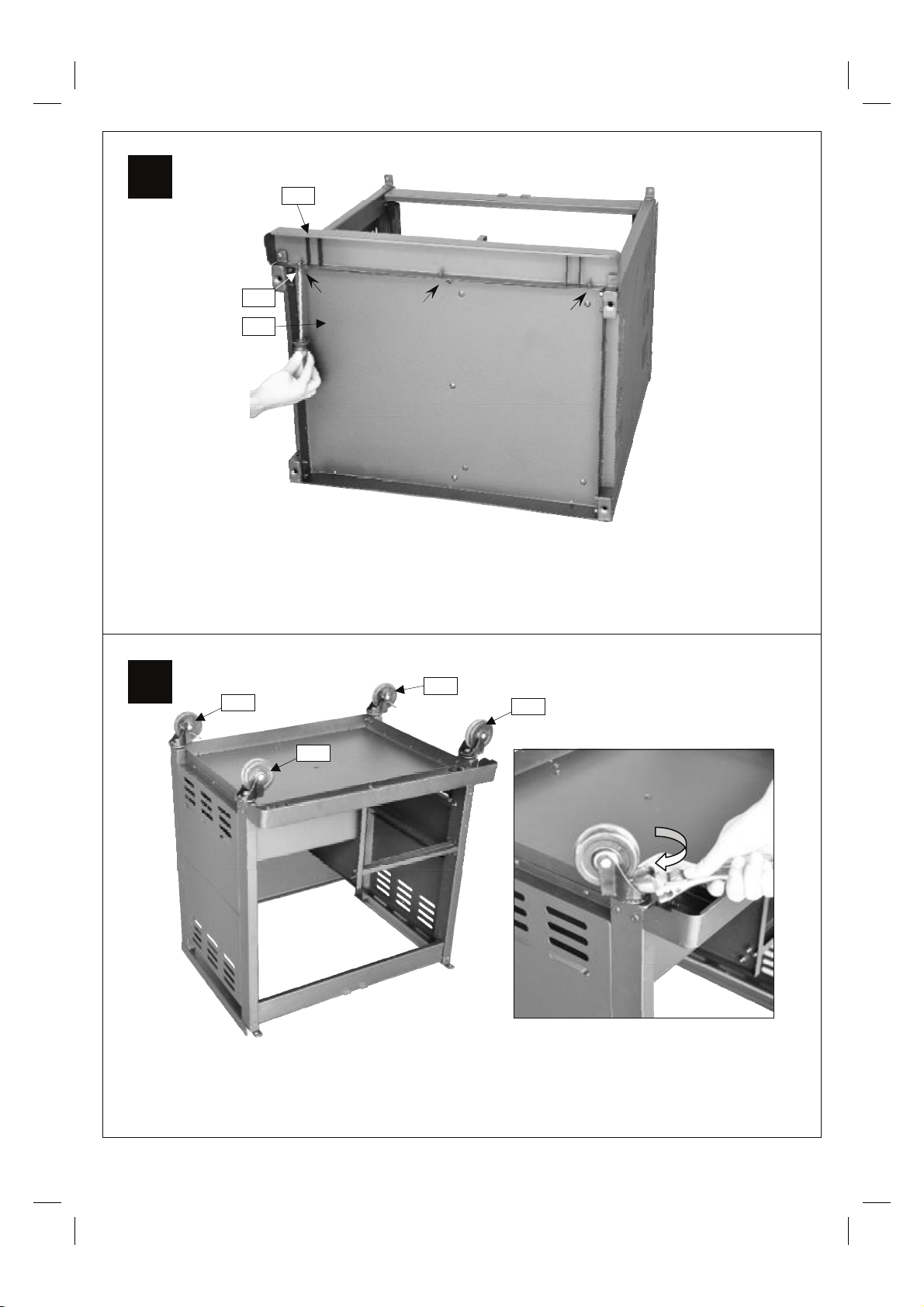

Attach the Front Wheel Skirt (C22) onto the Bottom Panel (C21) using M6x15 Bolts

(D2x3pcs) as shown.

C22

C21

C28

C29

Carefully turn the cabinet upside-down.

Attach the Lockable Casters (C28x2pcs) into the rear side holes of the left/right cabinet panel

assembly and the Casters (C29x2pcs) into the front side holes of the left/right cabinet panel assembly.

Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.

C17

C18

Remove the retaining bolts from one Door Handle (C13), then attach the door handle

onto the Left Door (C14) using the retaining bolts as shown.

Repeat above process for Right Door (C15).

Carefully place the Barbecue Body (B1) onto the cabinet assembly and fix using

M6x15 Bolts (D2x4pcs) as shown.

Attach Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts (D2x2pcs) and M6 Nut

(D6x2pcs) as shown.
