Excel 100T

Assembly and Operating Instructions for

Excel 100T, Excel 200T, and Excel 300T Gas Barbecues

Gas Barbecues

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test your barbecue annually. Check the hose connections are tight and leak

test them each time you reconnect the gas bottle.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

Excel 200T Excel 300T

 Pre-Assembled

 Quantity and specification varies according to model purchased.

A. Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model.

OUTBACK® EXCEL RANGE

CODE PART QTY EXCEL 100T EXCEL 200T EXEL 300T

Body

Assembly

A1 Lava Rock Rack 1 √√√

A2 Burner 1 √√√

A3 Hood Lower Handle 1 √√√

A4 Hood 1 √* √* √*

A5 Body 1 √* √* √*

A6 Grease Cup Holder 1 √√√

A7 Grease Cup 1 √√√

A8 Cooking Grill 1 √√√

A9 Lava Rock (Shrink Packed) 1 √* √* √*

A10 Hood Upper Handle 1 √* √* √*

A11 Hinge Bracket 2 √* √* √*

A12 Main Electrode & Gas Collector Box 1 √√√

A13 Heat Shield 1 √√√

A14 Warming Rack 1 √√√

A15 Sillcon Bumpers 2 √√√

A16 Body Support 2 √√√

Upper

Trolley

B1 Control Panel 1 √√√

B2 Igniter Button 1 √* √* √*

B3 Main Burner Knob 2 √* √* √*

B4 Trolley Handle 1 √

B5 Main Hose / Regulator Assembly 1 √*√*√*

B6 Side Shelf ▲2 1

B7 Side Burner Knob 1 √

B8 Side Burner Rack 1 √

B9 Side Burner Shelf 1 √

B10 Side Burner 1 √

B11 Side Burner Electrode 1 √

B12 Side Burner Valve/Hose Assembly 1 √*

Lower

Trolley

C1 Short Leg Front 1 √√√

C2 Short Leg Rear 1 √√√

C3 Gas Cylinder Holder 1 √√√

C4 Wheel 2 √√√

C5 Axle 1

√√√

C6 Leg End Loop 1 √√√

C7 Long Leg Front 1 √√√

C8 Long Leg Rear 1 √√√

C9 Bottom Shelf 1 √√√

C10 Gas Bottle Strap 1 √*√*√*

C11 Hose Tidy 1 √√√

C12 Wheel Spacer 2 √√√

Hardware

D1 M6x15 Bolt ▲24 28 28

D2 M5x10 Bolt 4 √√√

D3 M4x10 Bolt 1 √

D4 ST4.0x10 Screw 2 √√√

D5 ST4.8x15 Screw 2 √√√

D6 M8 Locknut 2 √√√

D7 M5 Keps Nut 2 √√√

D8 Shelf Spacer ▲8 4

B1. Parts Diagram: Excel 100T

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram: Excel 100.’

A13

A12

A14

C4 C6

C10

A4 A5 A10

A11 A15

Pre-assembled body unit

includes the following

individual parts:

A16

C11

C12

B2. Hardware Reference Diagram: Excel 100T

Specifications subject to change without prior notice.

D1 D4 D2

D6D7

C1. Parts Diagram: Excel 200T

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram: Excel 200.’

A13

A12

A14

C4 C6

C10

Pre-assembled body unit

includes the following

individual parts:

A4 A5 A10

A11 A15

A16

C11

C12

C2. Hardware Reference Diagram: Excel 200T

Specifications subject to change without prior notice.

D7 D8 D6

D1. Parts Diagram: Excel 300T

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram: Excel 300.’

A13

A12

A14

B11

B10

C4 C6

C2 C8

C10

Pre-assembled body unit

includes the following

individual parts:

A4 A5 A10

A11 A15

B12

A16

C11

C12

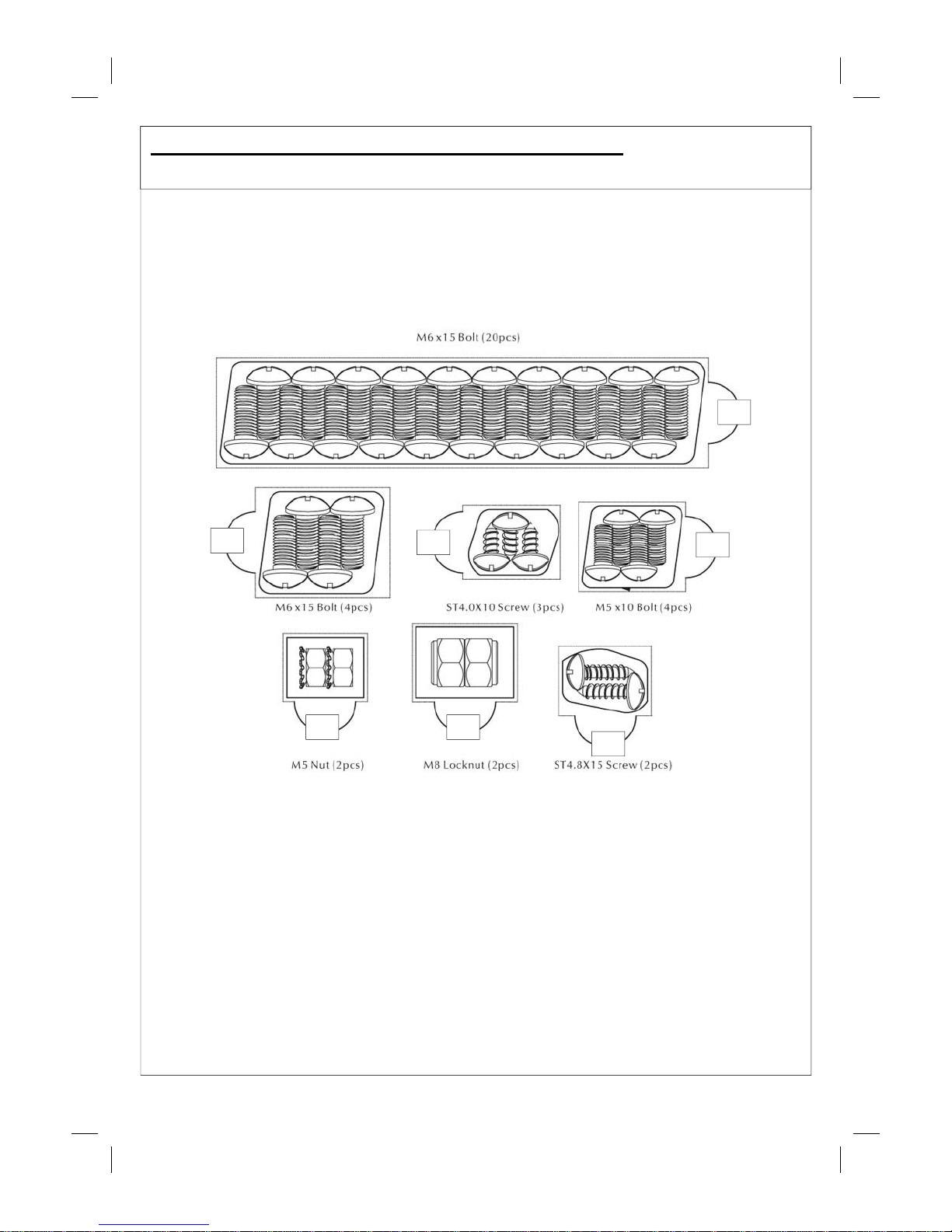

D2. Hardware Reference Diagram: Excel 300T

Specifications subject to change without prior notice.

D1 D5 D4 D3

D7 D8 D2 D6

E. Assembly

TOOLS NEEDED FOR ASSEMBLY:

Medium size flat blade or Philips/cross-point screwdriver, adjustable spanner or metric spanner set

This barbecue requires two people for assembly. Please remove all packaging materials from all

individual parts before assembling. Please lay out all nuts and bolts and check lengths before

assembling. Whilst every care is taken during the manufacture of this product, care must be taken

during the assembly in case sharp edges are present.

Attach the Long Leg Front

(C7) and Long Leg Rear

(C8) to the Leg End Loop

(C6). The legs are a push

fit onto the Leg End Loop.

In case of difficulty, they

may need tapping with a

soft faced mallet. Take

care not to damage the

parts.

Excel 100T  Excel 200T  Excel 300T

Attach the Short Leg

Front (C1) and Short Leg

Rear (C2) to the Gas

Bottle Holder (C3). The

legs are a push fit onto

the Gas Bottle Holder. In

case of difficulty; they

may need tapping with a

soft faced mallet. Take

care not to damage the

parts.

Excel 100T  Excel 200T  Excel 300T

Attach the Bottom Shelf (C9) to the Gas Bottle

Holder (C3) using the screws (D5). Taking care

not to over tighten.

Attach the leg assembly to the Bottom

Shelf assembly using the screws (D1).

Excel 100T  Excel 200T  Excel 300T
