Outback Meteor 3 Manual de usuario

0359

Assembly and Operating Instructions for Outback®

Meteor 3 Burner Gas BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

MH3330

CODE PART QTY Outback® Meteor 3 Burner

Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner 3 

B3 Control Panel 1 

B4 Knob 3 

B5 Hose and Regulator Assembly 1 

B6 Lava Rock in Basket 1 

B7 Cooking Grill 1 

B8 Cooking Griddle 1 

B9 Drip Tray Left Bracket 1 

B10 Drip Tray Right Bracket 1 

B11 Drip Tray 1 

B12 Drip Pan 1 

B13 Ignition Button 1 

TROLLEY

C1 Side Shelf 2 

C2 Left Side Shelf Panel 1 

C3 Right Side Shelf Panel 1 

C4 Left Leg 2 

C5 Right Leg 2 

C6 Front Upper Panel 1 

C7 Front Lower Panel 1 

C8 Wire Base 1 

C9 Wheel 2 

C10 Wheel Hubcap 2 

C11 Axle 1 

HARDWARE

D1 ST4.0x10 Screw 10 

D2 M5x15 Bolt 4 

D3 Ø5 Washer 4 

D4 M5 Nut 4 

D5 M6x15 Bolt 12 

D6 M6x65 Bolt 12 

D7 Ø6 Washer 4 

D8 M6 Nut 8 

D9 Locknut 2 

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

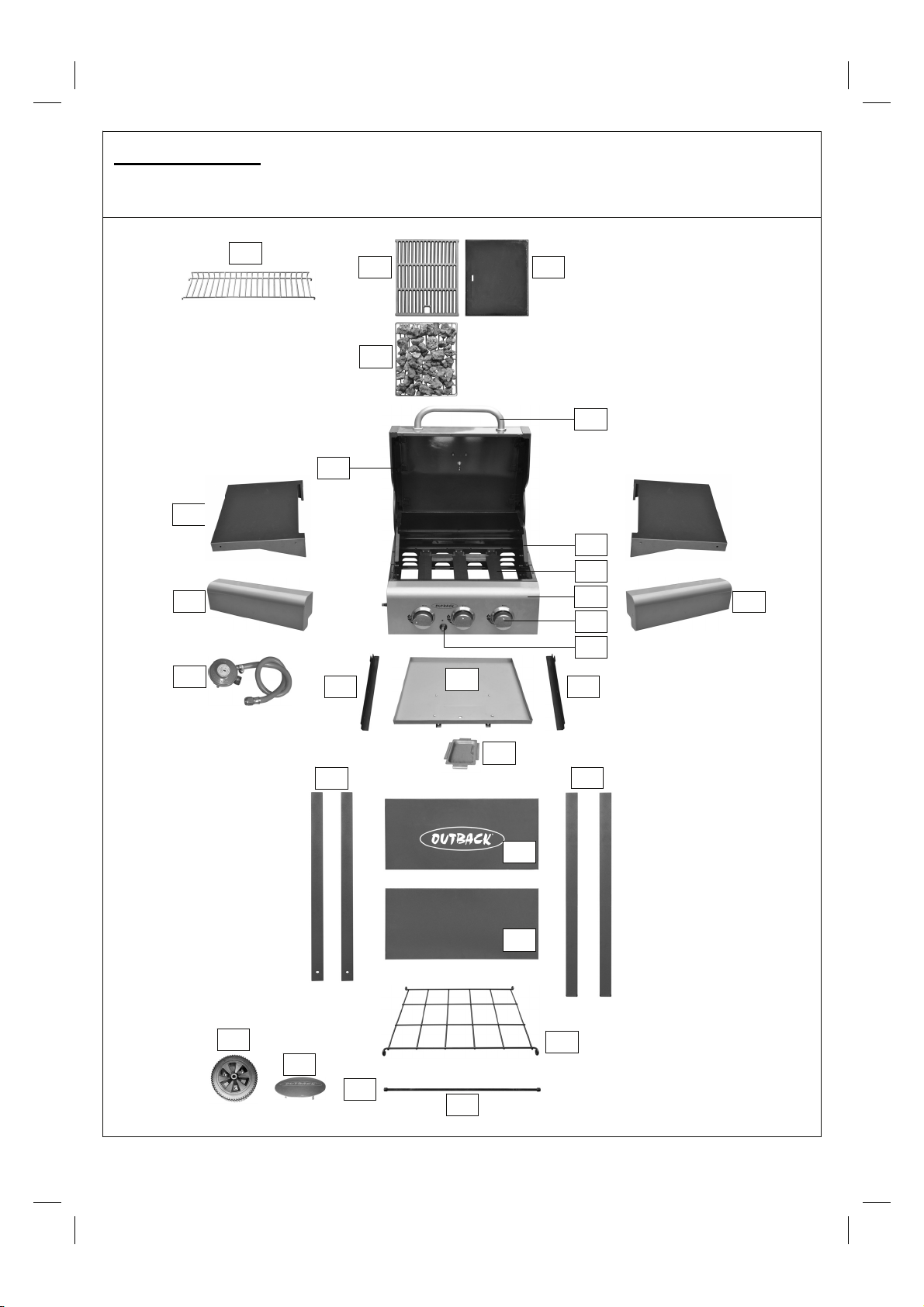

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B9 B10

B11

C11

B12

B7 B8

C10

B13

Hardware Reference Diagram

Specifications subject to change without prior notice.

D7 D8

D5 D1

D3 D4D2

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal component or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Legs (C4,C5) to the Panels (C6,C7) using ST4.0x10 Screws (D1x8pcs) as shown.

Attach the front panel assembly and the Legs (C4,C5) to the Wire Base (C8) by inserting the

M6x65 Bolts (D6x4pcs) through the legs, wire base, Ø6 Washers (D7x4pcs) and secure with M6

Nuts (D8x4pcs). Ensure that the holes in the top of each leg which to fix barbecue body are in the

front of the side.

Rear view

Front view

C5C4

C4C5

C9C11

Unscrew the Locknuts (D9) from both ends of the Axle (C11).

Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C9)

over each end of the axle. Secure the wheels into place with the locknuts.

Place the Wheel Hubcaps (C10) onto the outside of the wheels.

C10

Lay the assembled trolley on its side. Lay the Barbecue Body (B1) on its back and slide into

position between the trolley legs.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly

or becomes damaged when it is set on the ground.

Insert the M6x65 Bolts (D6x8pcs) through the guide holes of each leg and screw into barbecue

body tightly.

Connect the Hose and Regulator Assembly (B5) to the barbecue.

Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing

tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner.

Do not use force which may damage the assembly.

Attach the Left Side Shelf Panel (C2) onto one Side Shelf (C1) using M6x15 Bolts (D5x2pcs) and

M6 Nuts (D8x2pcs).

Attach the left side shelf assembly to the barbecue body using a ST4.0x10 Screw (D1) and

M6x15 Bolts (D5x4pcs) as shown.

Attach the Right Side Shelf Panel (C3) onto the other Side Shelf (C1) using M6x15 Bolts

(D5x2pcs) and M6 Nuts (D8x2pcs).

Attach the right side shelf assembly to the barbecue body using a ST4.0x10 Screw (D1) and

M6x15 Bolts (D5x4pcs) as shown.

Attach the Drip Tray Right Bracket (B10) to the barbecue body using M5x15 Bolts (D2x2pcs),

Ø5 Washers (D3x2pcs) and M5 Nuts (D4x2pcs) as shown. Repeat the above process for the

Drip Tray Left Bracket (B9).

NOTE: Ensure that the big tabs of the brackets which stop the drip tray are located at

the front of the barbecue.

B10

Insert the Drip Tray (B11) by sliding it underneath the barbecue body. Insert the Drip Pan

(B12) into position.

B12

B11
