Outback Jupiter 4S Manual de usuario

RS4491SH RS5691SH

Assembly and Operating Instructions for Outback®

Jupiter 4S Gas/Charcoal Hybrid and Jupirer 6S Gas/Charcoal Hybrid

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and contact

your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

2575

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check

that the hose connections are tight and leak test each time you reconnect the gas

bottle.

 For Flare-up control please refer to the 'OPERATION' section of this manual.

0359

 Pre-Assembled Component

H Quantity varies according to model purchased

Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.

CODE PART QTY Jupiter 4S Gas/

Charcoal Hybrid Jupiter 6S Gas/

Charcoal Hybrid

HOOD

A1 Hood (Pre-Assembled to Body)1 

A2 Hood Handle 1 

A3 Warming Rack 1

BODY

B1 Barbecue Body 1

B2 Main Burner H4 6

B3 Control Panel 1 

B4 Knob H4 6

B5 Side Burner Valve, Hose and Regulator Assembly 1

B6 Flame Tamer H46

B7 Round Grill 1 

B8 Cooking Grill 2

B9 Drip Tray 1

B10 Charcoal Basket 1

TROLLEY

C1 Side Burner Shelf 1 

C2 Side Burner Shelf Panel 1 

C3 Side Shelf 1 

C4 Side Shelf Panel 1 

C5 Side Burner Grid 1 

C6 Side Burner Lid 1 

C7 Side Burner Lid Axle 1 

C8 Side Burner Firebox 1 

C9 Side Burner Electrode 1 

C10 Knob Bezel 1 

C11 Side Burner Knob 1 

C12 Sear Burner 1 

C13 Side Burner Drip Tray 1 

C14 Left Cabinet Panel Assembly 1

C15 Right Cabinet Panel Assembly 1

C16 Upper Support 1 

C17 Door Handle 2

C18 Left Door 1 

C19 Right Door 1 

C20 Rear Panel 2 

C21 Bottom Panel 1 

C22 Front Wheel Skirt 1 

C23 Clapboard 1 

C24 Middle Panel 1 

C25 Food Basket Bracket 2 

C26 Food Basket 2 

C27 Lockable Caster 2 

C28 Caster 2 

C29 Tool Hook 3 

C30 Hook Rail 1 

C31 Chopping Board 1 

HARDWARE

D1 M6x35 Bolt 8 

D2 M6x15 Bolt 32  

D3 ST4.0x10 F# Screw 1 

D4 M5x15 Bolt 2 

D5 ST4.0x10 Screw 20  

D6 M6 Nut 12  

D7 M4x10 Bolt 6 

D8 M5x10 Bolt 2 

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.

C23

C21

C12

C11

C10

C24

C28

C27

C2 C4

C13

C15C14

C25C26

C22

C29

C31

B10

C30

C16

C17

C19C18

C20

Hardware Reference Diagram

Specifications subject to change without prior notice.

M6X35 BOLT 8PCS

ST4.0X10.0 SCREW 20PCS

M6X15 BOLT 32PCS

M6 NUT 12PCS

M4X10 BOLT 6PCS

M5X15 BOLT 2PCS

M5X10 BOLT 2PCS

ST4.0X10.0 SCREW F# 1PC

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 Remove any internal component or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

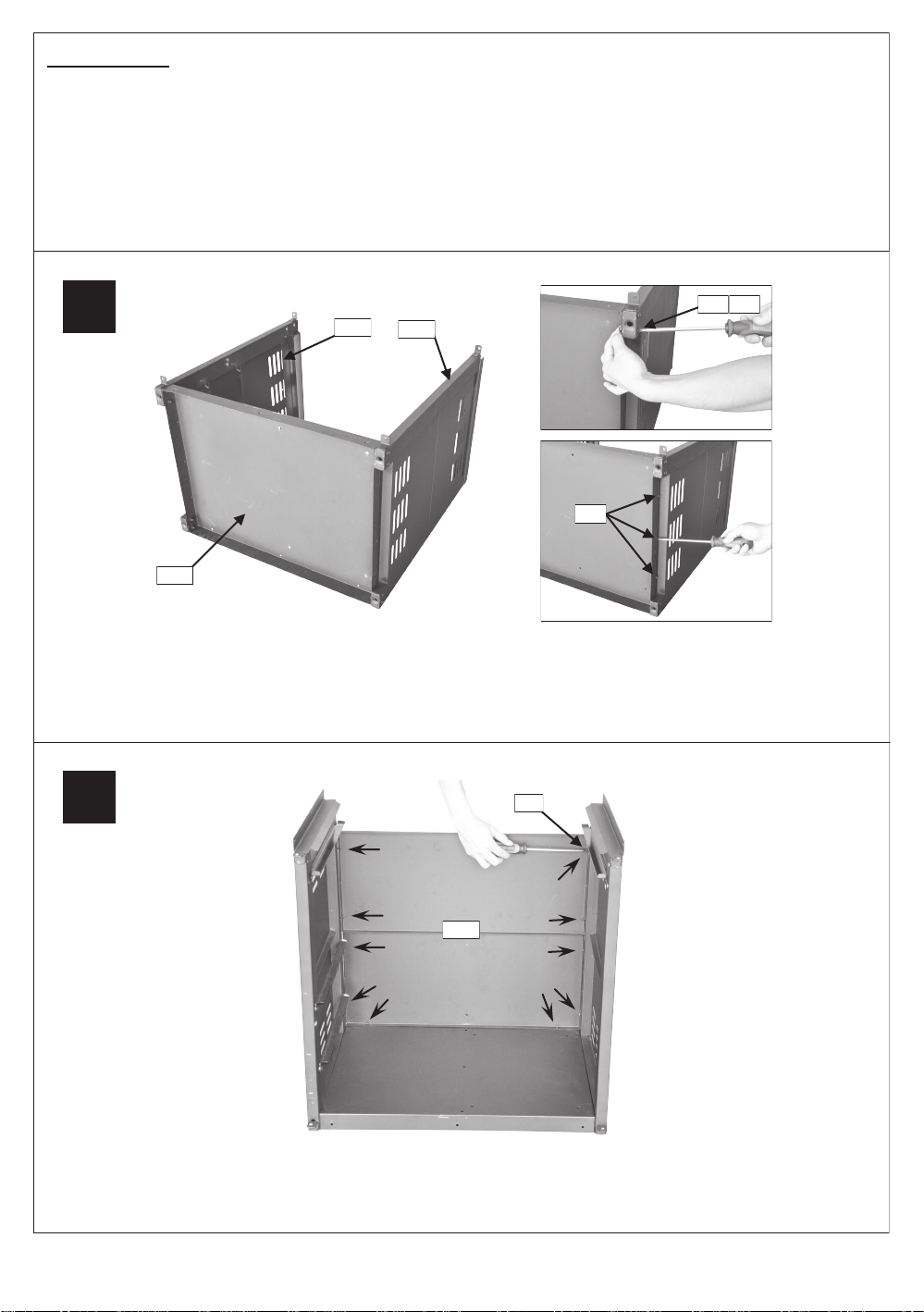

Attach the Left Cabinet Panel Assembly (C14) and Right Cabinet Panel Assembly

(C15) to the Bottom Panel (C21) using M6x35 Bolts (D1x8pcs) and M6 Nuts

(D6x8pcs), ST4.0x10 Screw (D5x6pcs) as shown.

C21

C14 C15

D1 D6

Attach the Rear Panels (C20x2pcs) to the cabinet assembly using ST4.0x10 Screws

(D5x10pcs) as shown.

C20

Attach the Upper Support (C16) to the left/right cabinet panel assembly using M6x15

Bolts (D2x4pcs).

C16

Attach the Food Basket Brackets (C25x2pcs) onto the Middle Panel (C24) using

M6x15 Bolts (D2x4pcs), and then attach the middle panel assembly to the cabinet

assembly using M6x15 Bolts (D2x5pcs) as shown.

C25

C24

Attach the Front Wheel Skirt (C22) onto the bottom panel using M6x15 Bolts (D2x3pcs)

as shown.

C22

C27

C28

Carefully turn the cabinet upside-down.

Attach the Casters (C28x2pcs) and Lockable Casters (C27x2pcs) onto the left/right

cabinet panels as shown. Ensure the lockable casters are installed on the rear side.

Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.

C17

C18

Remove the retaining bolts from one Door Handle (C17), then attach the door handle

onto the Left Door (C18) using the retaining bolts as shown. Repeat above process

for Right Door (C19).

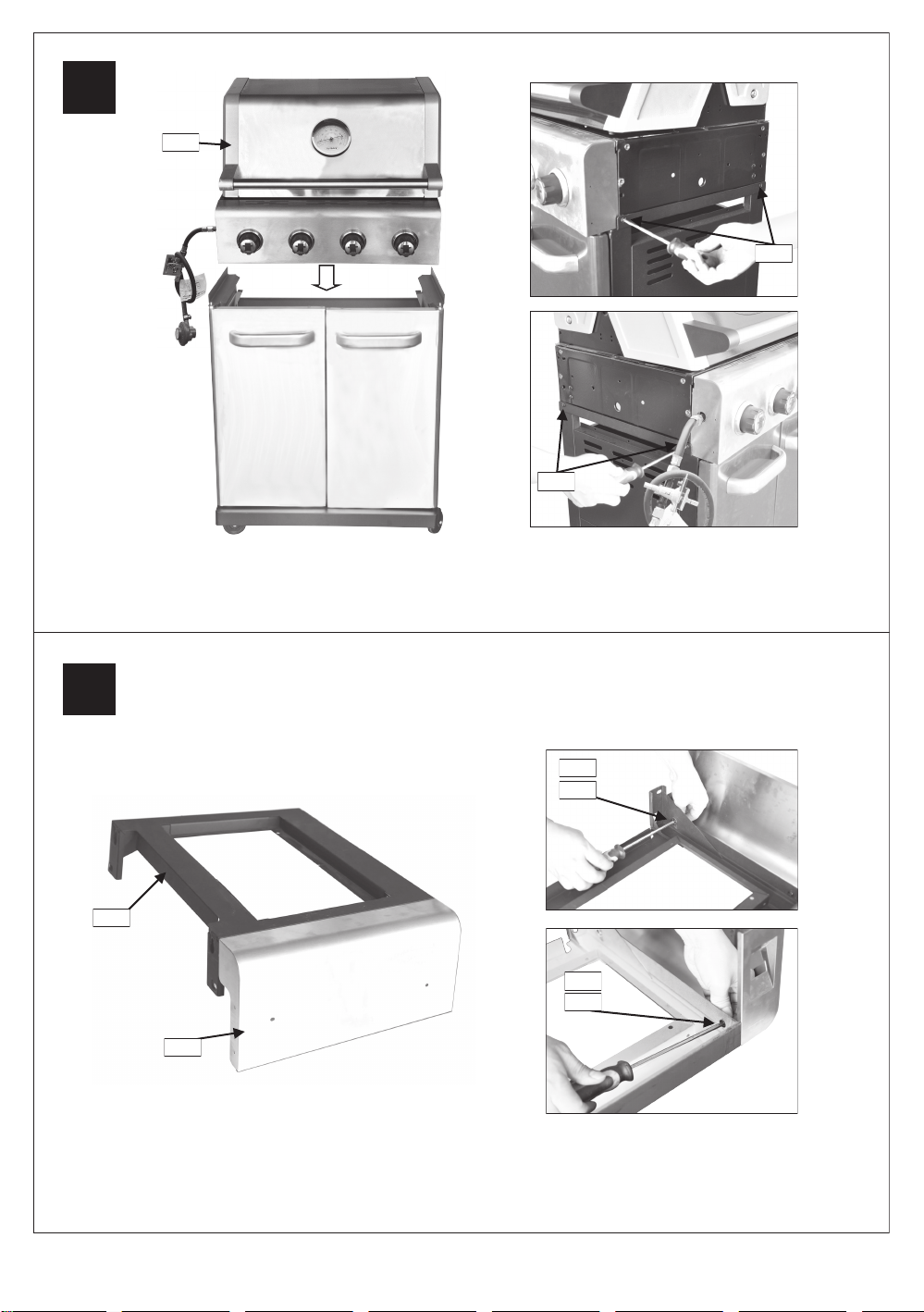

Carefully place the Barbecue Body (B1) onto the cabinet assembly and fix it using

M6x15 Bolts (D2x4pcs) as shown.

Attach Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts (D2x2pcs) and M6 Nut

(D6x2pcs) as shown.

Attach Side Burner Shelf Panel (C2) onto Side Burner Shelf (C1) using M6x15 Bolts (D2x2pcs)

and M6 Nut (D6x2pcs) as shown.

step1

step2

step4step3

Attach the side shelf assembly to the barbecue body using ST4.0x10 Screw (D5x2pcs)

and M6x15 Bolts (D2x4pcs) as shown.
